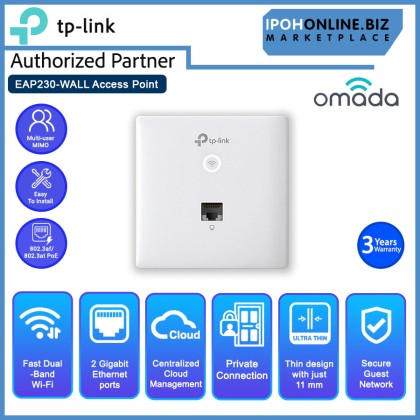

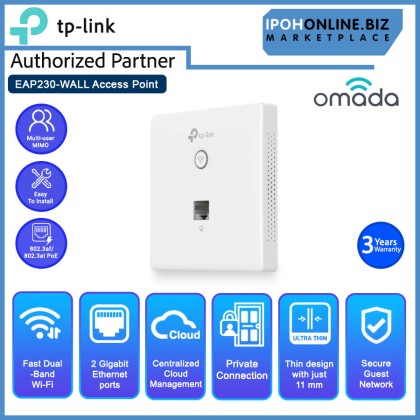

Name: TP-LINK EAP230-Wall Omada AC1200 Wireless MU-MIMO + Dual-Band Gigabit Wall-Plate Access Point with 802.3af 802.3at PoE Compatibility
Brand: TP-Link
SKU: WAP-TL-EAP230-WALL
Price: 329.00 MYR
Availability: OutOfStock

TP-LINK EAP230-Wall Omada AC1200 Wireless MU-MIMO + Dual-Band Gigabit Wall-Plate Access Point with 802.3af 802.3at PoE Compatibility

RM329.00 RM499.00 RM

TP-LINK EAP230-Wall Omada AC1200 Wireless MU-MIMO + Dual-Band Gigabit Wall-Plate Access Point with 802.3af 802.3at PoE Compatibility

Price	RM329.00 RM499.00 RM
Product SKU	WAP-TL-EAP230-WALL
Brand	TP-Link
Size (L x W x H)	16 cm x 15 cm x 8 cm
Availability	Pre-Order

Product
Description
Reviews (0)
What's in the box

Description

Highlight

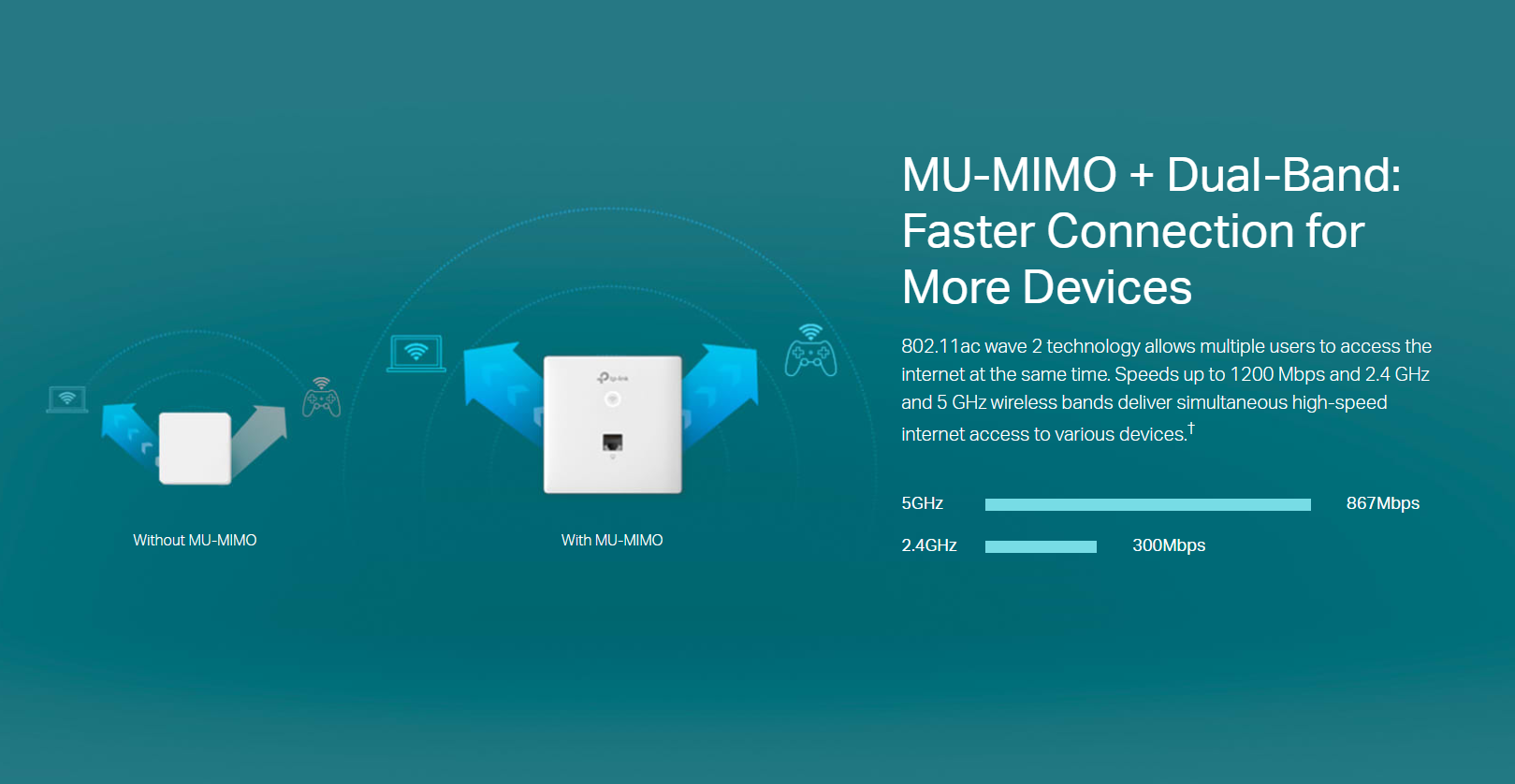

								Fast Dual-Band Wi-Fi: Simultaneous 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1,167 Mbps Wi-Fi speeds with MU-MIMO.†

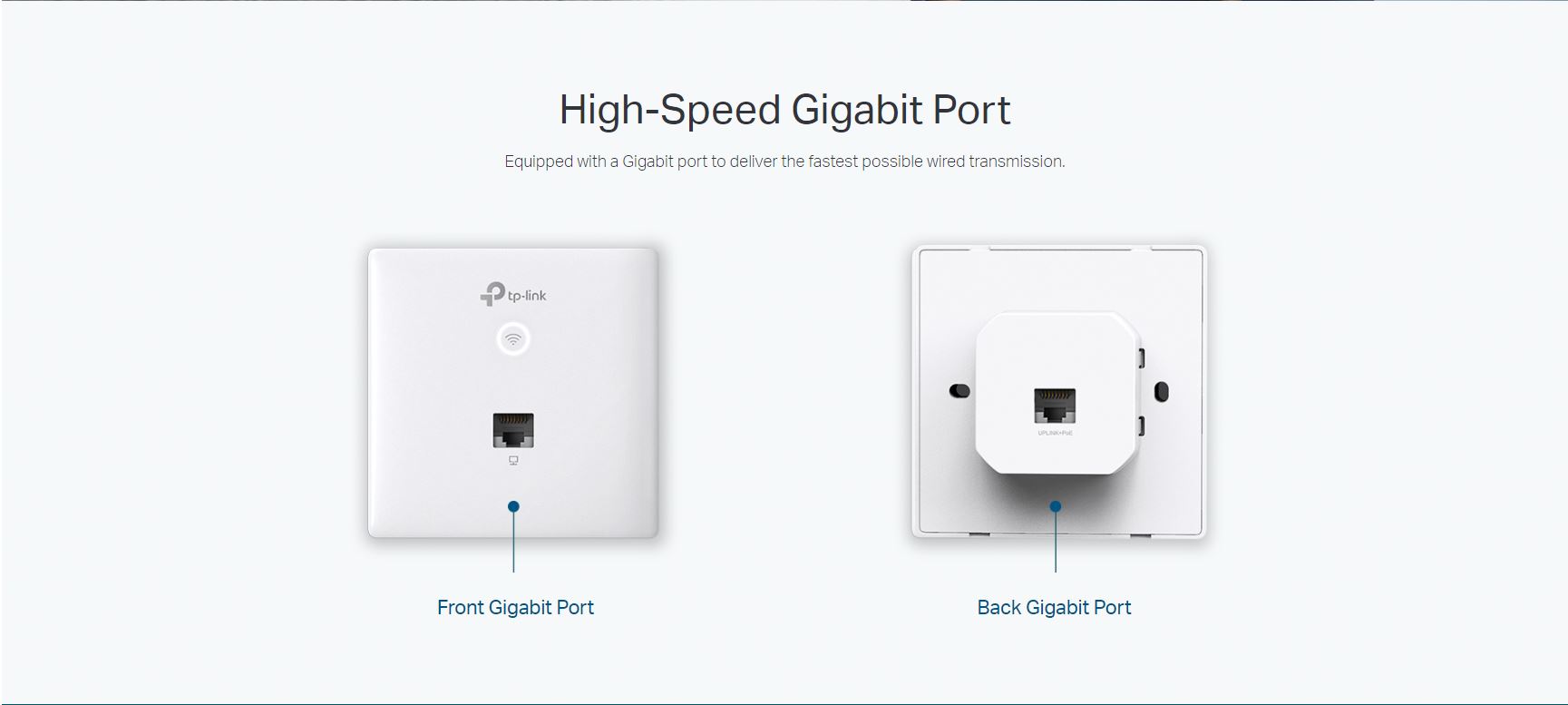

Gigabit Ports: 2 Gigabit Ethernet ports (1× uplink + 1× downlink).

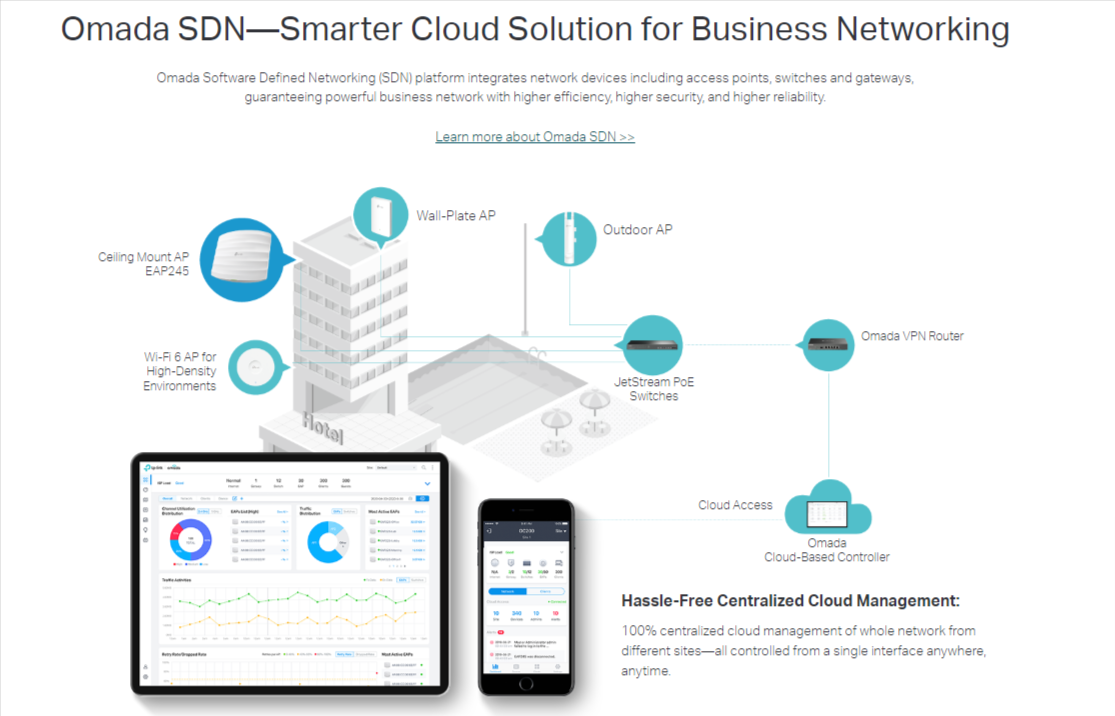

Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)‡, Centralized Cloud Management, and Intelligent Monitoring.

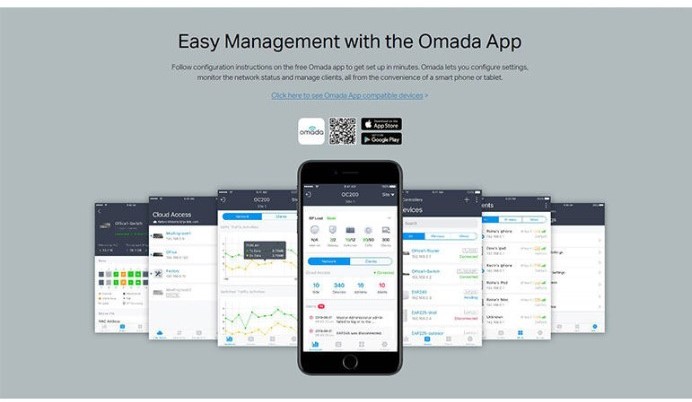

Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
Private Connection for Every Room: Designed to meet every network need in environments with numerous separated rooms, like hotels, offices, and dormitories.
Elegant Appearance: Unprecedented thin design with just 11 mm, the same size and shape as a light switch or power outlet faceplate to fit perfectly in any room.

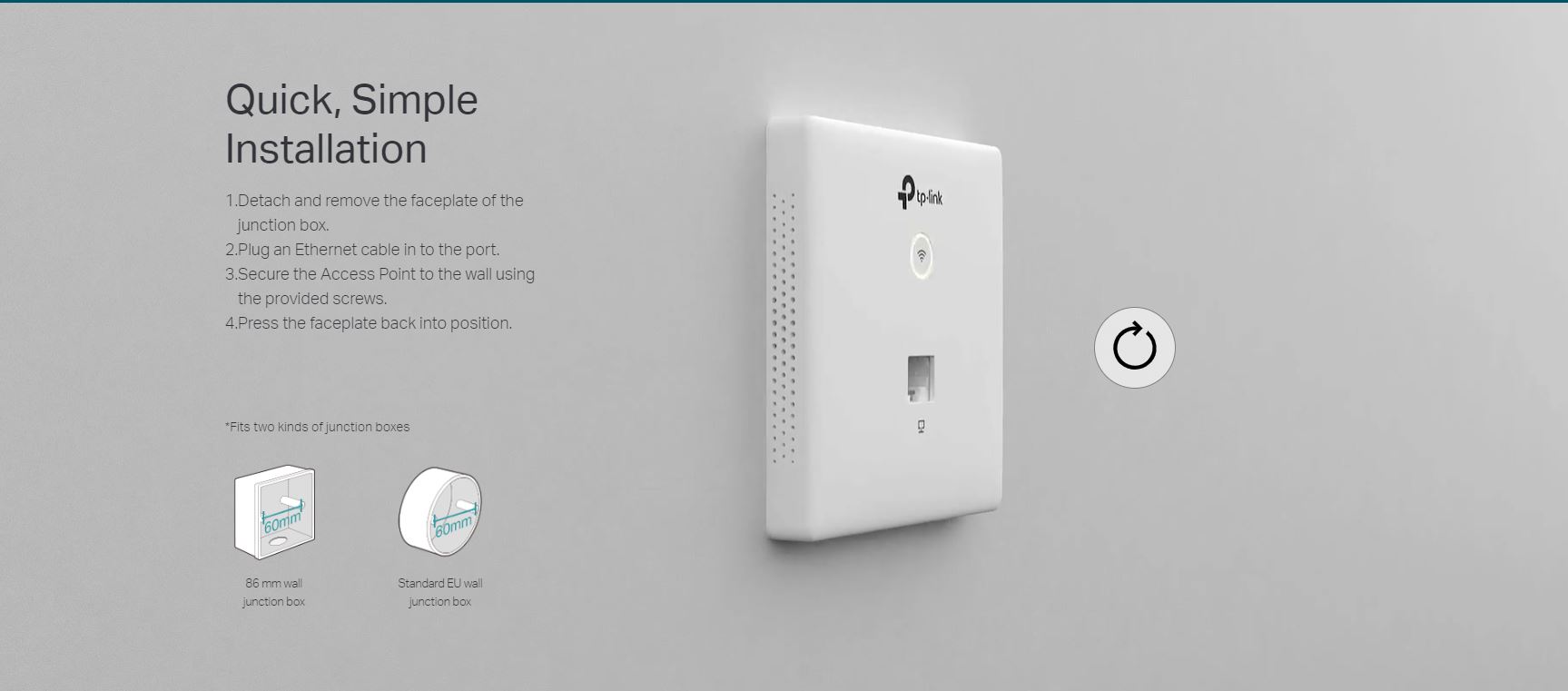

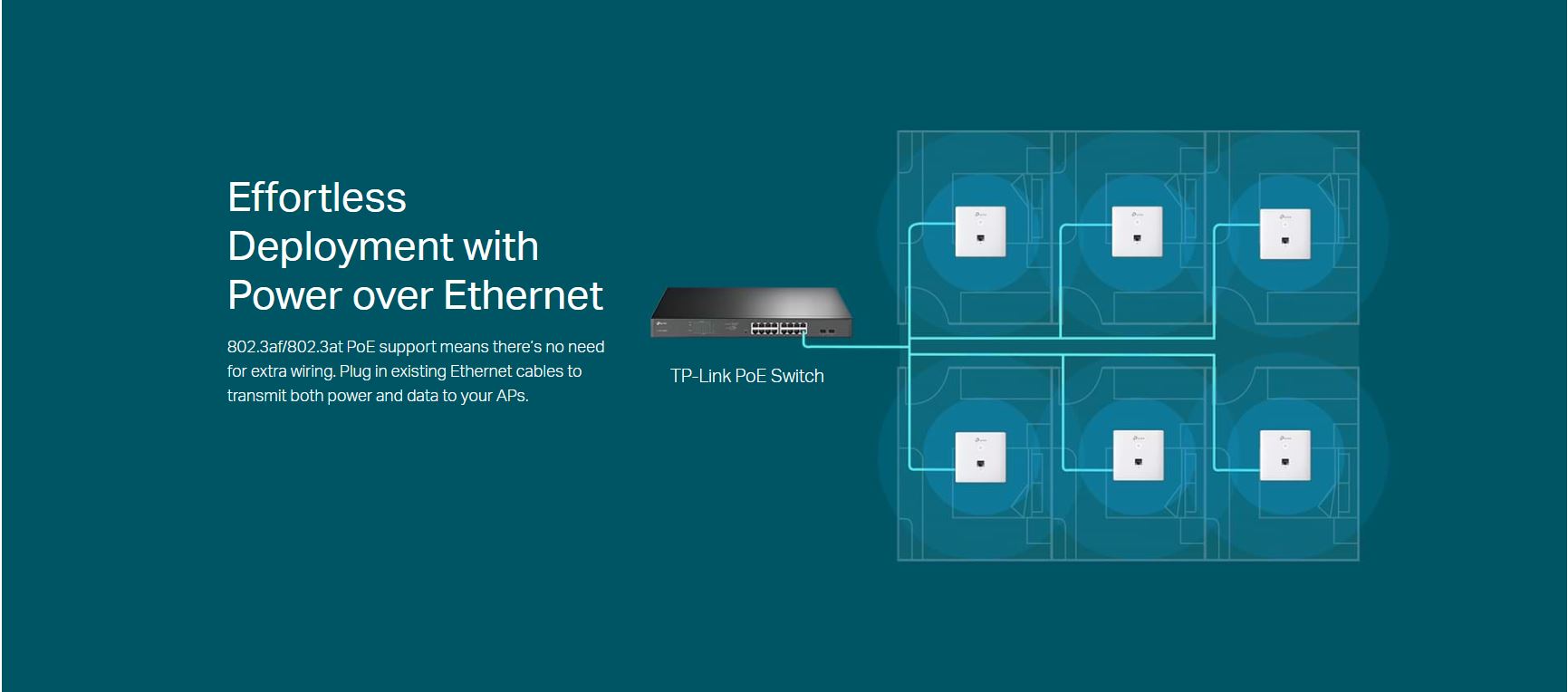

Easy Installation and PoE Support: Easy-mount construction, compatible with 86 mm & EU standard junction box, and 802.3af/at PoE support.
Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.



TP-LINK EAP230-Wall Omada AC1200 Wireless MU-MIMO + Dual-Band Gigabit Wall-Plate Access Point with 802.3af 802.3at PoE Compatibility

Overview

Specifications

Hardware Features
Interface	• Uplink: 1× 10/100/1000 Mbps Ethernet Port • Downlink: 1× 10/100/1000 Mbps Ethernet Port
Physical Security Lock	No
Button	LED/Wi-Fi Button, RESET
Power Supply	802.3af/802.3at PoE
Power Consumption	7 W
Dimensions ( W x D x H )	3.4 × 3.4 × 1.2 in (86.8 × 86.8 × 30.2 mm)
Dimensions	3.4 × 3.4 × 1.2 in (86.8 × 86.8 × 30.2 mm)
Antenna	2 Dual-Band Antennas • 2.4 GHz: 2× 4 dBi • 5 GHz: 2× 3.6 dBi
Mounting	Wall Plate Mounting
Hardware Watch Dog	Yes
Wireless Features
Wireless Standards	IEEE 802.11n/g/b/ac
Frequency	2.4 GHz and 5 GHz
Signal Rate	• 5 GHz: Up to 867 Mbps • 2.4 GHz: Up to 300 Mbps
Wireless Functions	• 16 SSIDs (Up to 8 SSIDs on each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • Load Balance • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client • MU-MIMO • Band Steering • Beamforming
Wireless Security	• Captive Portal Authentication • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Local LAN port based VLAN • Rogue AP Detection • 802.1X Support • 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK
Transmission Power	CE: • ≤20 dBm (2.4 GHz, EIRP) • ≤23 dBm (5 GHz, EIRP)
Management
Omada App	Yes
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller
Cloud Access	Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Email Alerts	Yes
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	v1,v2c
System Logging Local/Remote Syslog	Local/Remote Syslog
SSH	Yes
Web-based Management	HTTP/HTTPS
L3 Management	Yes
Multi-site Management	Yes
Management VLAN	Yes
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller.
Others
Certification	CE, RoHS
Package Contents	• Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point EAP230-Wall • Installation Guide • Mounting Screw
System Requirements	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Environment	• Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing

What's in the box

1 x TP-LINK EAP230-Wall Omada AC1200 Wireless MU-MIMO + Dual-Band Gigabit Wall-Plate Access Point with 802.3af 802.3at PoE Compatibility
1 x Installation Guide
1 x Mounting Screw

Warranty
3 Year Warranty
Local Manufacturer Warranty
