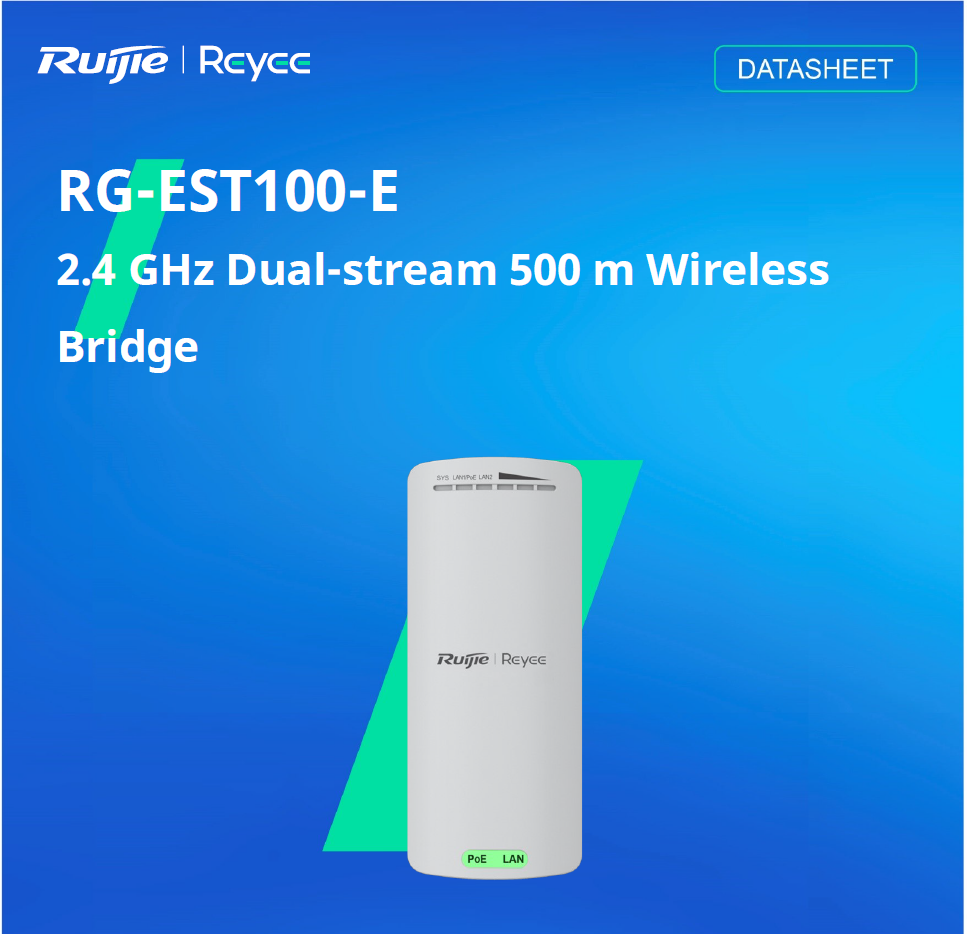

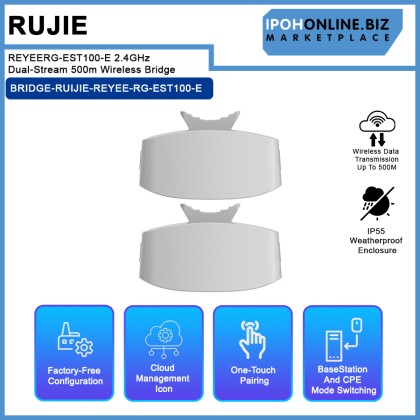

RUJIE REYEERG-EST100-E 2.4GHz Dual-Stream 500m Wireless Bridge

RM440.00 RM550.00 RM

RUJIE REYEERG-EST100-E 2.4GHz Dual-Stream 500m Wireless Bridge

Price	RM440.00 RM550.00 RM
Product SKU	BRIDGE-RUIJIE-REYEE-RG-EST100-E
Brand	Ruijie
Size (L x W x H)	28 cm x 26 cm x 14 cm
Availability	1

Quantity

Product
Description
Reviews (0)
What's in the box

Description

Highlight

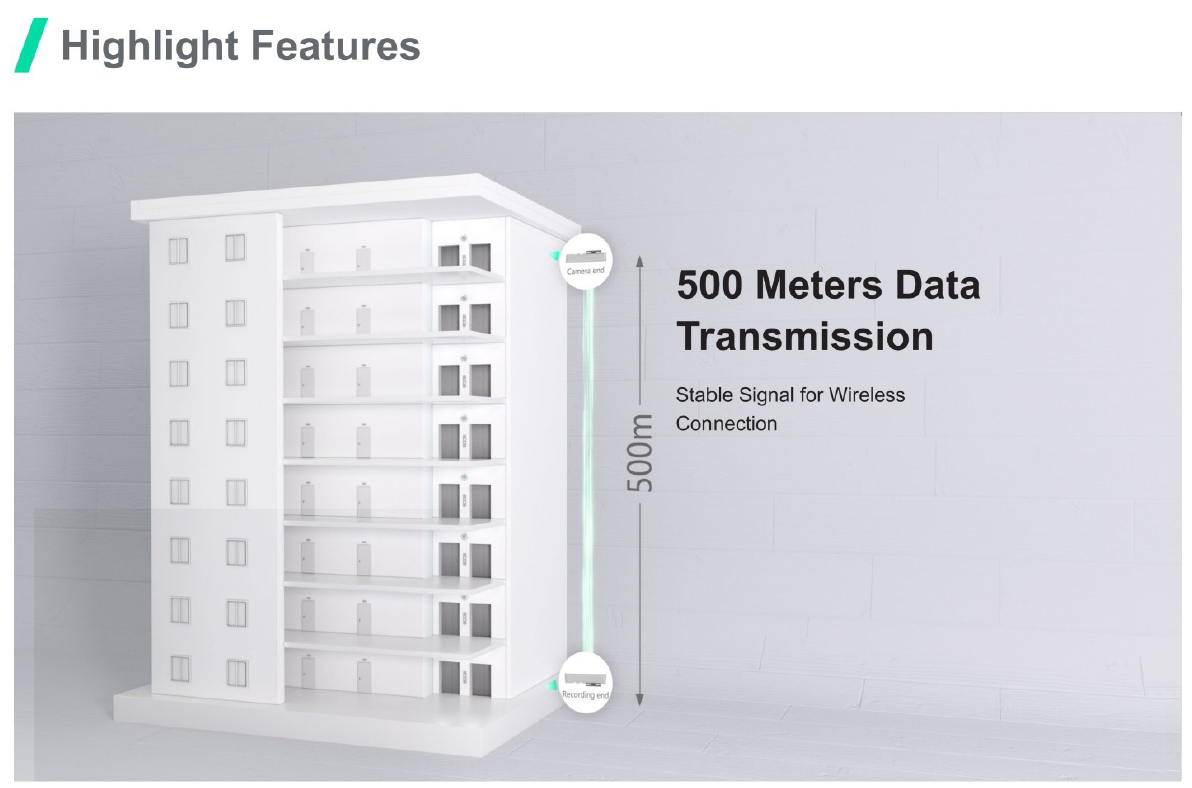

								Supports wireless data transmission up to 500 metres for long-distance connectivity.
Factory-free configuration for quick deployment without complex antenna alignment.
300 Mbps wireless throughput using 2×2 MIMO Wi-Fi 4 technology.
Built-in 8 dBi directional antennas for stable point-to-point transmission.
IP55 weatherproof enclosure suitable for outdoor installations.
Operates reliably in temperatures from -30°C to +60°C.
Supports up to 10 × 3 MP IP cameras at 100 m or 5 × 3 MP IP cameras at 500 m.

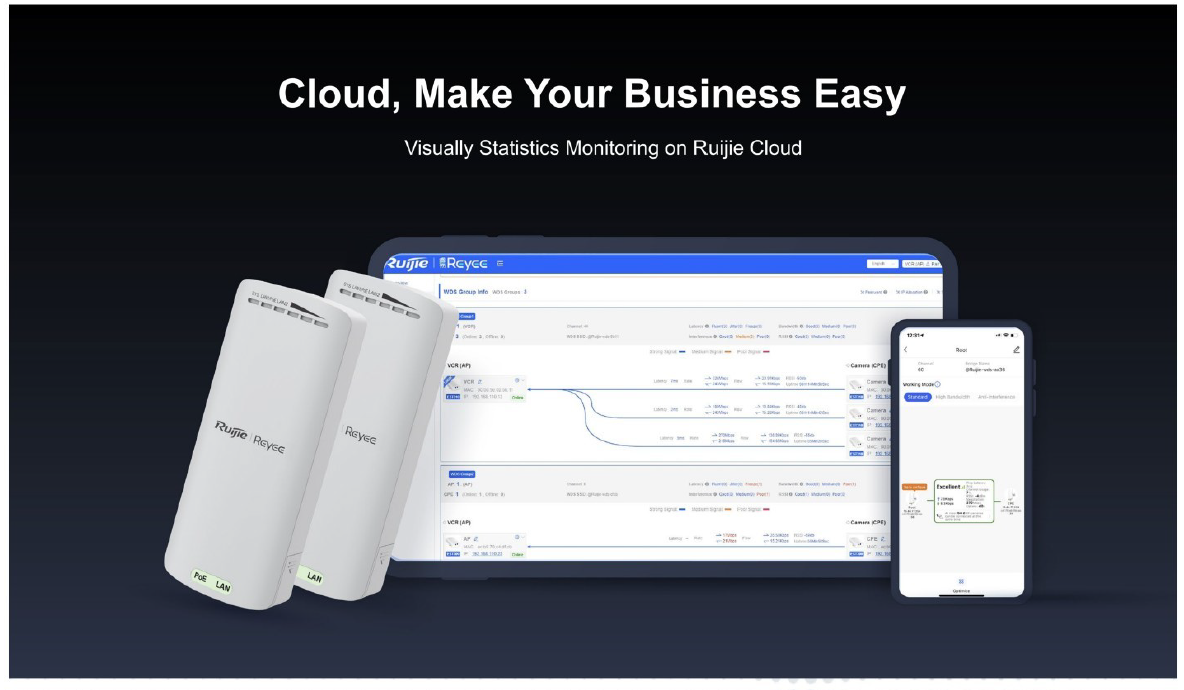

Ruijie Cloud management enables remote monitoring and maintenance.
Supports One-touch Pairing for fast bridge deployment.
Built-in Bridge Speed Test and real-time signal strength monitoring.
Supports BaseStation and CPE mode switching.
Includes Fault Diagnosis, Configuration Backup, and DHCP Server/Client.
Supports WPA2-PSK encryption, VLAN, Broadcast Storm Control, and WMM for secure and reliable networking.



Features

Supports wireless data transmission up to 500 metres for long-distance connectivity.
Factory-free configuration for quick deployment without complex antenna alignment.
300 Mbps wireless throughput using 2×2 MIMO Wi-Fi 4 technology.
Built-in 8 dBi directional antennas for stable point-to-point transmission.
IP55 weatherproof enclosure suitable for outdoor installations.
Operates reliably in temperatures from -30°C to +60°C.
Supports up to 10 × 3 MP IP cameras at 100 m or 5 × 3 MP IP cameras at 500 m.
Ruijie Cloud management enables remote monitoring and maintenance.
Supports One-touch Pairing for fast bridge deployment.
Built-in Bridge Speed Test and real-time signal strength monitoring.
Supports BaseStation and CPE mode switching.
Includes Fault Diagnosis, Configuration Backup, and DHCP Server/Client.
Supports WPA2-PSK encryption, VLAN, Broadcast Storm Control, and WMM for secure and reliable networking.

Specifications

Model	RG-EST100-E
Color	Elegant White
CPU	Single-core processor, 575/580 MHz clock frequency
Flash Memory	8 MB
RAM	64 MB DDR2
Wireless Radio	Single-radio
Spatial Streams	2 Spatial Streams (2×2 MIMO)
Wireless Standard	Wi-Fi 4 (IEEE 802.11b/g/n)
Operating Frequency	2.400 GHz – 2.483 GHz
Maximum Wireless Data Rate	300 Mbps
Channel Width	Auto / 20 / 40 MHz
Antenna Type	2 × Built-in Directional Antennas
Antenna Gain	8 dBi
Antenna Horizontal Beamwidth	70°
Antenna Vertical Beamwidth	70°
Maximum Transmit Power	Combined 23 dBm (Single Stream 20 dBm)

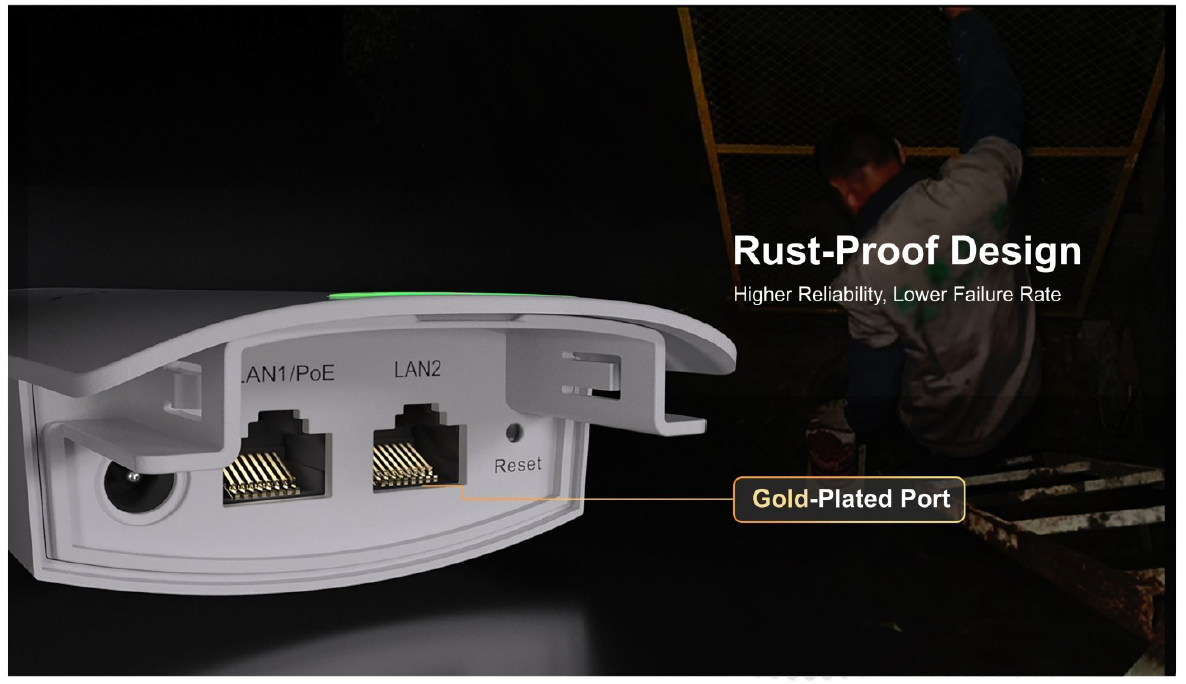

Ethernet Ports	2 × 10/100BASE-T RJ45
PoE In Port	1
Local Power Supply	Yes, 12 V DC (1 A)
Power Supply Options	DC Power Adapter, Passive PoE Injector
DC Adapter Input	100–240 V AC, 50/60 Hz, 0.3 A
DC Adapter Output	12 V DC, 1 A
Passive PoE Input	12 V DC, 1 A
Passive PoE Output	12 V DC, 1 A
Maximum Power Consumption	5 W
Reset Button	1
LED Indicators	1 × System Status LED, 2 × Ethernet Port LEDs, 3 × Signal Status LEDs
Dimensions (W × D × H)	68.7 × 42 × 165.5 mm
Weight	0.14 kg (without packaging)
Shipping Weight	0.30 kg
Mounting Options	Wall / Pole Mount
Operating Temperature	-30°C to +60°C
Storage Temperature	-40°C to +70°C
Operating Humidity	5%–95% RH (Non-condensing)
Storage Humidity	5%–95% RH (Non-condensing)
Operating Altitude	-500 m to +5,000 m
Storage Altitude	-500 m to +5,000 m
Cooling	Natural Cooling
IP Rating	IP55
MTBF	400,000 Hours
ESD Protection	Contact: ±8 kV; Air: ±15 kV (Class B)
Surge Protection	Service Port: ±6 kV (Common Mode); Power Connector: ±4 kV (Common Mode), ±2 kV (Differential Mode)
Safety Compliance	EN62368-1
EMC Standards	EN 55032, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 301489-1, EN 301489-3, EN 301489-17
Certifications	CE, FCC, CB, ISED, cTUVus
IP Service
IPv4 Ping	Yes
IPv4 Traceroute	Yes
DHCP Server	Yes
DHCP Client	Yes
Ethernet Switching
Interface Rate	10/100 Mbps Auto-negotiation
VLAN	Yes
Link Aggregation	No
Security
Broadcast Storm Control	Yes
WPA2-PSK Encryption	Yes
WPA-PSK Encryption	No
WPA/WPA2-PSK Encryption	No
Network Management & Monitoring
SON	Yes
AI Heatmap	No
Camera Detection	No
Network-wide Management SSID Configuration	Yes
Network Connection Through Management SSID	No
Ruijie Cloud Management	Yes
Restart Devices Through Ruijie Reyee App	Yes
SNMP v1/v2c/v3	No
Fault Diagnosis	Yes (Supports ping, traceroute, nslookup, fault alarms, and fault collection)
Restart Cause Prompt	Yes
Disconnection Cause Prompt	No
Cloud Alarms on DFS Signal Detection	No
Basic Configuration
eWeb Login (Username & Password)	Yes
Local Upgrade	Yes
Configuration Backup	Yes
System Language	Chinese (Simplified), English
System Time Settings	Yes
WLAN
BaseStation / CPE Mode Switching	Yes
Enhanced One-to-Many Transmission (TDMA)	No
Bridge SSID Hiding	Yes
Recommended Channel	Yes
Bridge Speed Test	Yes
Random Security Key Upon Configuration Delivery	No
Configure Security Key for Network-wide Bridges	Yes
Configure Security Key for Single Bridge Group	Yes
Configure Security Key for Single Bridge	Yes
Bridge SSID, Channel & Power Configuration	Yes
WMM	Yes
Recommended PTMP Connections	1
Maximum Bridge Distance	0.5 km (500 m)
One-touch Pairing	Yes
Maximum Effective One-touch Pairing Distance	20 m
Bridge Performance
Throughput	60 Mbps @ 100 m (HT20); 30 Mbps @ 500 m (HT20)
RSSI	-58 dBm @ 100 m; -68 dBm @ 500 m
Recommended Cameras (3 Mbps Stream)	10 @ 100 m; 5 @ 500 m
Recommended Cameras (4–5 Mbps Stream)	6 @ 100 m; 3 @ 500 m
Recommended Cameras (6–7 Mbps Stream)	3 @ 100 m; 1 @ 500 m
Recommended Cameras (7–8 Mbps Stream)	3 @ 100 m; 1 @ 500 m
Real-time Signal Strength	Yes
Optimal Signal Strength	Yes
Active/Standby Channel	No
Restore to Active Channel	No
Maximum Devices on SON	200
