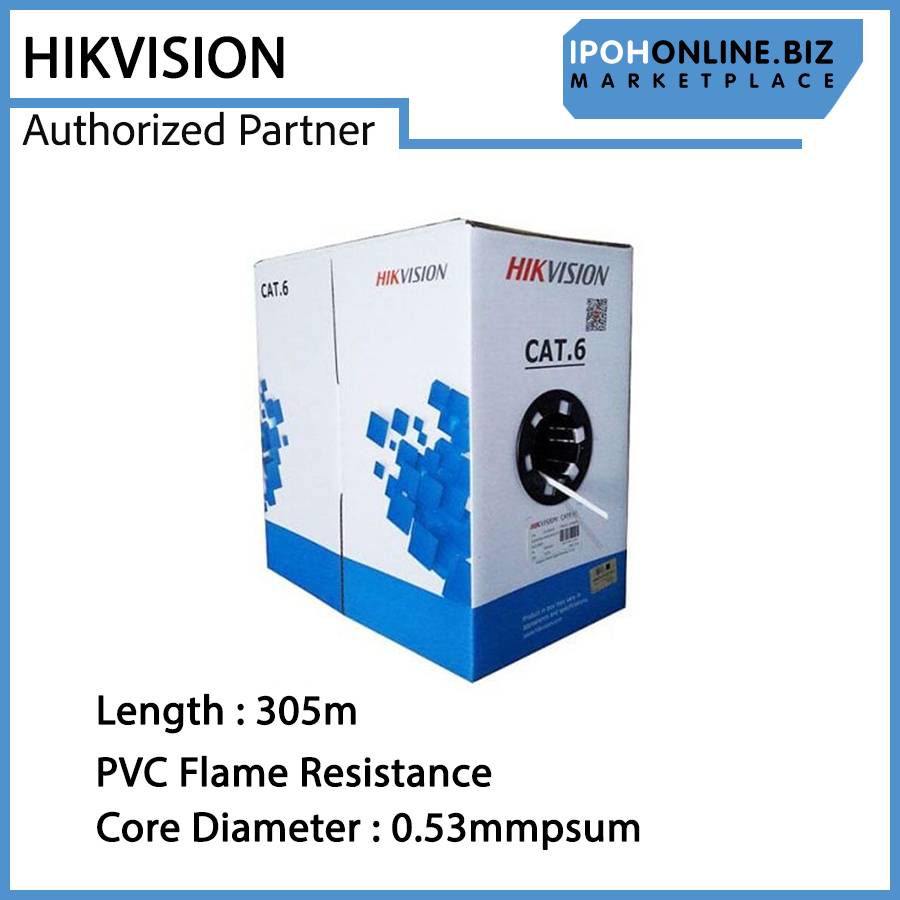

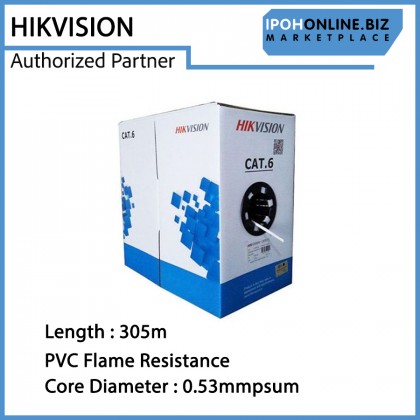

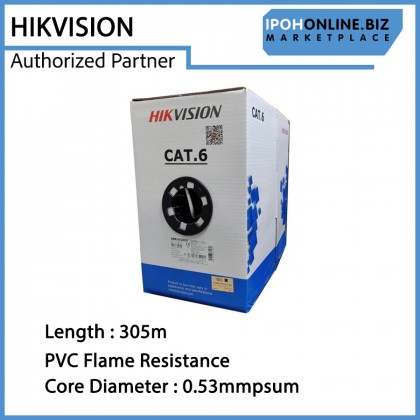

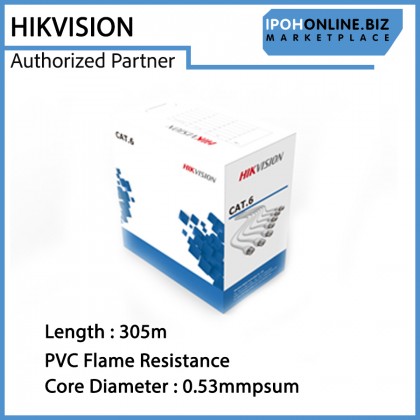

Name: HIKVISION Cat6 305m SOLID-Bare Copper UTP Network Cable DS-1LN6-UE-W
Brand: Hikvision
SKU: CABLE-HIK-CAT6
Price: 520.00 MYR
Availability: OutOfStock

HIKVISION Cat6 305m SOLID-Bare Copper UTP Network Cable DS-1LN6-UE-W

RM520.00 RM599.00 RM

HIKVISION Cat6 305m SOLID-Bare Copper UTP Network Cable DS-1LN6-UE-W

Price	RM520.00 RM599.00 RM
Product SKU	CABLE-HIK-CAT6
Brand	Hikvision
Size (L x W x H)	44 cm x 44 cm x 28 cm
Availability	Out Of Stock

Product
Description
Reviews (0)
What's in the box

Description

Highlight
								Full Diameter 305 m CAT6 Network Cable
Core Diameter: 0.53mm
Excellent Transmission Performance Using Solid Copper
Quality Verified By Fluke Test
Guaranteed Long PoE Transmission Distance
Great PVC Flame Resistance.



Features

Full Diameter 305 m CAT6 Network Cable
Core Diameter: 0.53mm
Excellent Transmission Performance Using Solid Copper
Quality Verified By Fluke Test
Guaranteed Long PoE Transmission Distance
Great PVC Flame Resistance.

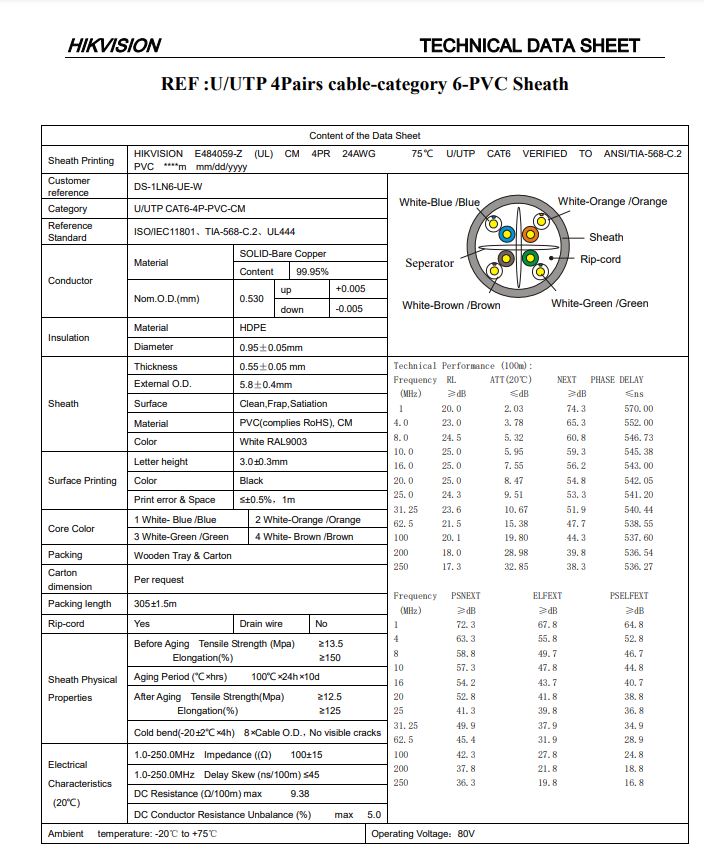

Specifications

General
Core Color	1 White- Blue /Blue 2 White-Orange /Orange,3 White-Green /Green 4 White- Brown /Brown
Packing	Wooden Tray & Carton
Carton Dimension	Per Request
Packing Length	305±1.5m
Rip-Cord	Yes
Drain Wire	No
Sheath Physical Properties	Before Aging Tensile Strength (Mpa) ≥13.5, Elongation(%) ≥150,Aging Period (℃×hrs) 100℃×24h×10d,After Aging Tensile Strength(Mpa) ≥12.5, Elongation(%) ≥125,Cold Bend(-20±2℃×4h) 8×Cable O.D.，No Visible Cracks
Electrical Characteristics (20℃)	1.0-250.0MHz Impedance ((Ω) 100±15,1.0-250.0MHz Delay Skew (ns/100m) ≤45,DC Resistance (Ω/100m) Max 9.38,DC Conductor Resistance Unbalance (%) Max 5.0
Conductor
Material	SOLID-Bare Copper,Content 99.95%
Nom.O.D.(Mm)	0.530±0.005
Insulation
Material	HDPE
Diameter	0.95±0.05mm
Sheath
Thickness	0.55±0.05 mm
External O.D.	5.8±0.4mm
Surface	Clean,Frap,Satiation
Material	PVC(complies RoHS), CM
Color	White RAL9003
Surface Printing
Letter Height	3.0±0.3mm
Color	Black
Print Error & Space	≤±0.5%，1m
