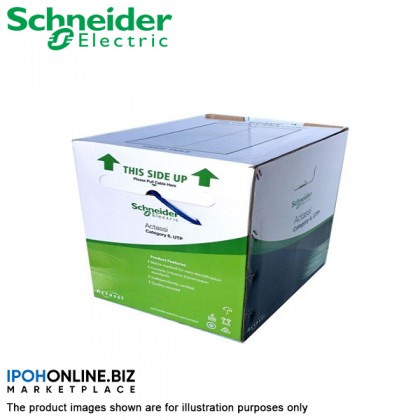

Name: Schneider Actassi Cat6 4pr 23AWG UTP LAN Cable 305m Blue PoE JKR APPROVED
Brand: Schneider
SKU: CAB-ACTASSI-CAT6-305M
Price: 699.00 MYR
Availability: OutOfStock

Schneider Actassi Cat6 4pr 23AWG UTP LAN Cable 305m Blue PoE JKR APPROVED

RM699.00 RM799.00 RM

Schneider Actassi Cat6 4pr 23AWG UTP LAN Cable 305m Blue PoE JKR APPROVED

Price	RM699.00 RM799.00 RM
Product SKU	CAB-ACTASSI-CAT6-305M
Brand	Schneider
Size (L x W x H)	38 cm x 33 cm x 41 cm
Availability	Out Of Stock

Product
Description
Reviews (0)
What's in the box

Description

Highlight
								ACT4P6UCM3RBBU
JKR APPROVED
250 to 500 MHz
10Gb 180ft
Power over Ethernet (POE)
Category6, 4pr UTP Cable 305m Blue, CM



Specification

Brand	Schneider Electric
Model	ACT4P6UCM3RBBU
Category	Cat.6
Main
Range	Actassi
Product or Component Type	Copper cable
Colour Tint	Blue
Cable Shielding Type	UTP
Complementary
Type of Cable	4 pair cables
Return Loss	Guaranteed: >= 23 dB @4 MHz Guaranteed: >= 25 dB @10 MHz Guaranteed: >= 25 dB @16 MHz Guaranteed: >= 25 dB @20 MHz Guaranteed: >= 23.6 dB @31.25 MHz Guaranteed: >= 21.5 dB @62.5 MHz Guaranteed: >= 20.1 dB @100 MHz Guaranteed: >= 20 dB @1 MHz Guaranteed: >= 24.3 dB @25 MHz Guaranteed: >= 19.4 dB @0.772 MHz Guaranteed: >= 24.5 dB @8 MHz
Attenuation	2 dB at 1 MHz, cable length 100 m 4.1 dB at 4 MHz, cable length 100 m 5.8 dB at 8 MHz, cable length 100 m 6.5 dB at 10 MHz, cable length 100 m 8.2 dB at 16 MHz, cable length 100 m 9.3 dB at 20 MHz, cable length 100 m 10.4 dB at 25 MHz, cable length 100 m 11.7 dB at 31.25 MHz, cable length 100 m 17 dB at 62.5 MHz, cable length 100 m 22 dB at 100 MHz, cable length 100 m 1.8 dB at 0.772 MHz, cable length 100 m
Power Sum Near-end Crosstalk [PS NEXT]	Guaranteed: 62.3 dB @1 MHz Guaranteed: 53.3 dB @4 MHz Guaranteed: 47.3 dB @10 MHz Guaranteed: 42.8 dB @20 MHz Guaranteed: 39.9 dB @31.25 MHz Guaranteed: 35.4 dB @62.5 MHz Guaranteed: 32.3 dB @100 MHz Guaranteed: 48.8 dB @8 MHz Guaranteed: 41.3 dB @25 MHz Guaranteed: 64 dB @0.772 MHz Guaranteed: 44.3 dB @16 MHz
Input Impedance	100 Ohm (+/- 6) at 1...100 MHz
Loop Resistance	<= 73.2 Ohm/km
Capacitance Unbalance	330 pF / 100 m
Resistance Unbalance	<= 5 %
Wire Insulation Material	PE
Conductor Material	Solid bare copper
AWG Gauge	AWG 23
Cable Outer Diameter	4.9 mm
Cable Length	305 m
Targeted Region	Asia Pacific
Environment
Ambient Air Temperature for Operation	75 °C
Product Certifications	UL
Flame Retardance	CM
Standards	ANSI/TIA/EIA-568-B ISO/IEC 11801 UL 444
Offer Sustainability
Sustainable Offer Status	Green Premium product
RoHS (date code: YYWW)	Schneider Electric declaration of conformity
REACh	Reference not containing SVHC above the threshold
Product Environmental Profile	Available
Product end of Life Instructions	Need no specific recycling operations
