- Non-Blocking Layer 2 Switching Capacity
- 16K Host Table
- IEEE 802.1Q VLAN
- Supports Up To 250 VLANs
- Port Isolation
- Port Security
- Broadcast Storm Control
- Port Mirroring Of Ingress/Egress Traffic
- Rapid Spanning Tree Protocol
- Access Control List
- MikroTik Neighbor Discovery
- SNMP v1
- Web-Based GUI

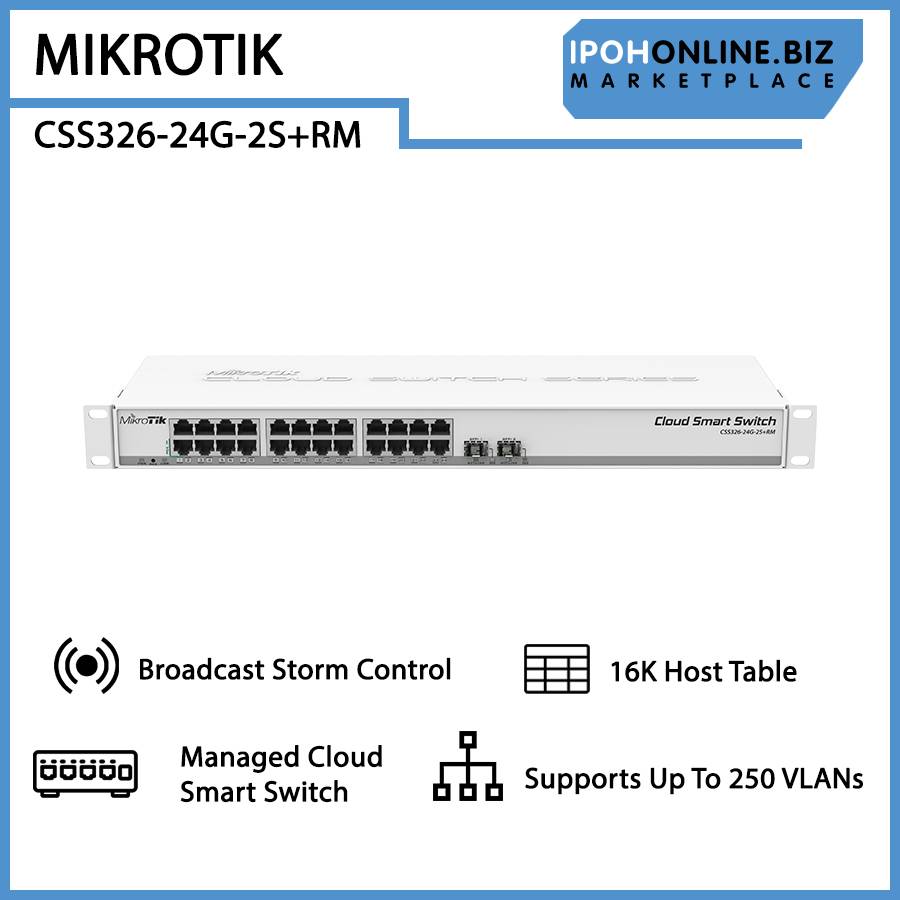

SwOS Powered 24 Port Gigabit Ethernet Switch With Two SFP+ Ports, Wire Speed Connectivity With Several New Switching Features. The Device Is Powered By A Marvell DX Switch Chip. The Device Is Running An Operating System Designed Specifically For MikroTik Switch Products - SwOS. SwOS Is Configurable From Your Web Browser. It Gives You All The Basic Functionality For A Managed Switch, Plus More: Allows To Manage Port-To-Port Forwarding, Apply MAC Filter, Configure VLANs, Mirror Traffic, Apply Bandwidth Limitation And Even Adjust Some MAC And IP Header Fields. SFP Cage Supports Both 1.25 Gb SFP And 10 Gb SFP+ Modules
Features
- Non-Blocking Layer 2 Switching Capacity
- 16K Host Table
- IEEE 802.1Q VLAN
- Supports Up To 250 VLANs
- Port Isolation
- Port Security
- Broadcast Storm Control
- Port Mirroring Of Ingress/Egress Traffic
- Rapid Spanning Tree Protocol
- Access Control List
- MikroTik Neighbor Discovery
- SNMP v1
- Web-Based GUI
Specification
Details | |
Product Code | CSS326-24G-2S+RM |
Switch Chip Model | 98DX3216 |
Dimensions | 443 x 144 x 44 mm |
Operating System | SwOS |
Storage Size | 2 MB |
Storage Type | FLASH |
MTBF | Approximately 200'000 Hours At 25C |
Tested Ambient Temperature | -20°C To 70°C |
Powering
Details | |
Number Of DC Inputs | 2 (PoE-IN, DC Jack) |
DC Jack Input Voltage | 10-30 V |
Max Power Consumption | 19 W |
Cooling Type | Passive |
PoE In | Passive PoE |
PoE In Input Voltage | 10-30 V |
Ethernet
Details | |
10/100/1000 Ethernet Ports | 24 |
Fiber
Details | |
SFP+ Ports | 2 |
Certification & Approvals
Details | |
Certification | CE, EAC, ROHS |
IP | 20 |

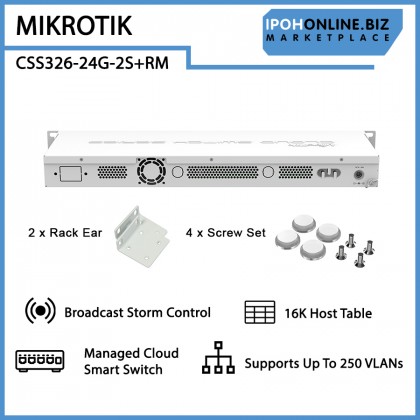

What In The Box
- 1 x MIKROTIK CSS326-24G-2S+RM Cloud Smart Switch 24 port Gigabit + 10G SFP+ L3 Managed VLAN LACP RSTP Jumbo Frame
- 1 x Rack Ears
- 4 x Screw Set
Warranty
6 Month Warranty
Local Manufacturer Warranty
- 1 x MIKROTIK CSS326-24G-2S+RM 24PORTS GIGABIT Router Managed Cloud Smart Switch
- 1 x Rack Ears
- 4 x Screw Set
