- 1.4GHZ CPU
- QUAD CORE ARM
- IPSEC ACCELERATED
- 4 CHAIN WIFI
- 1733MBPS DATA RATE
Features
The WiFi Model Is A Dual BAnd,Four Chain Unit With A Supported Data Rate of Up To 1733 Mbps In 5 Ghz. For Legacy Devices, The Unit Also has dual Chain 2.4GHz Interface.The Device Has Large External Atenas For Amazing 360 Degree Coverage.
In Addition To The Ten 1 Gbps Ethernet Poerts, An SFP+ Port Provides Optional 10 Gbps Connectivity Through An SFP+ Module(Not Included)
Specifications
| Details | |
| Product Code | RB4011iGS+5HacQ2HnD-IN |
| Architecture | ARM 32bit |
| CPU | AL21400 |
| CPU Core Count | 4 |
| CPU Nominal Frequency | Auto (533 - 1900) MHz |
| Switch Chip Model | RTL8367SB |
| Dimensions | 228 x 120 x 30 mm |
| RouterOS Llicense | 5 |
| Operating System | RouterOS |
| Size Of RAM | 1 GB |
| Storage Size | 512 MB |
| Storage Type | NAND |
| MTBF | Approximately 200'000 Hours At 25C |
| Tested Ambient Temperature | -40°C To 45°C |
| IPsec Hardware Acceleration | Yes |
Wireless Capabilities
| Details | |
| Wireless 5 GHz Max Data Rate | 1733 Mbit/s |
| Wireless 5 GHz Number Of Chains | 4 |
| Wireless 5 GHz Standards | 802.11a/n/ac |
| Antenna Gain dBi For 5 GHz | 3 |
| Wireless 5 GHz Chip Model | QCA9984 |
| Wireless 5 GHz Generation | Wi-Fi 5 |
| Wireless 2.4 GHz Max Data Rate | 300 Mbit/s |
| Wireless 2.4 GHz Number Of Chains | 2 |
| Wireless 2.4 GHz Standards | 802.11b/g/n |
| Antenna Gain dBi For 2.4 GHz | 3 |
| Wireless 2.4 GHz Chip Model | R11e-2HnD |
| Wireless 2.4 GHz Generation | Wi-Fi 4 |
| WiFi Speed | AC2000 |
Ethernet
| Details | |
| 10/100/1000 Ethernet Ports | 10 |
Fiber
| Details | |
| SFP+ Ports | 1 |
Peripherals
| Details | |
| MiniPCI-e Slots | 1 |
| Serial Console Port | RJ45 |
Powering
| Details | |
| Number Of DC Inputs | 2 (DC jack, PoE-IN) |
| DC Jack Input Voltage | 12-57 V |
| Max Power Consumption | 44 W |
| Max Power Consumption Without Attachments | 23 W |
| Cooling Type | Passive |
| PoE In | Passive PoE |
| PoE In Input Voltage | 18-57 V |
PoE-Out
| Details | |
| PoE-Out Ports | Ether10 |
| PoE Out | Passive PoE Up To 57V |
| Max Out Per Port Output (Input 18-30 V) | 600 mA |
| Max Out Per Port Output (Input 30-57 V) | 420 mA |
| Max Total Out (A) | 600 mA |
Certification & Approvals
| Details | |
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | IP20 |
Other
| Details | |
| PCB Temperature Monitor | Yes |
| Voltage Monitor | Yes |
Wireless Specification
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
| 6MBit/s | 33 | -96 |
| 54MBit/s | 29 | -81 |
| MCS0 | 33 | 96 |
| MC57 | 28 | -77 |
| MC59 | 26 | -72 |
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
| 1MBit/s | 28 | -100 |
| 11MBit/s | 28 | -94 |
| 6MBit/s | 29 | -96 |
| 54MBit/s | 25 | -80 |
| MCS0 | 26 | -96 |
| MCS7 | 24 | -79 |
What In The Box

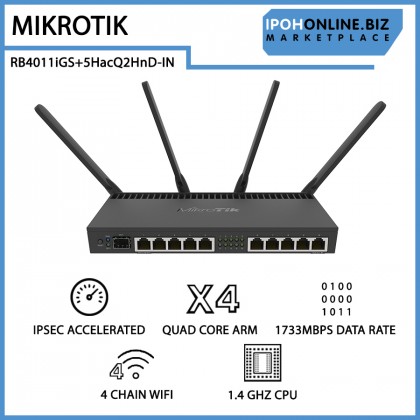

- 1 x MIKROTIK RB4011iGS+5HacQ2HnD-IN 10G Gigabit WiFi AC POE SFP+ IPSec VPN Router
- 1 x UK 3 Pin Power Cord
- 1 x 24V 2.5A Power Adapter
- 1 x K-59 Kit
Warranty
6 Month Warranty
Local Manufacturer Warranty
- 1 x MIKROTIK RB4011iGS+5HacQ2HnD-IN 10G Gigabit WiFi AC POE SFP+ IPSec VPN Router
- 1 x UK 3 Pin Power Cord
- 1 x 24V 2.5A Power Adapter
- 1 x K-59 Kit
