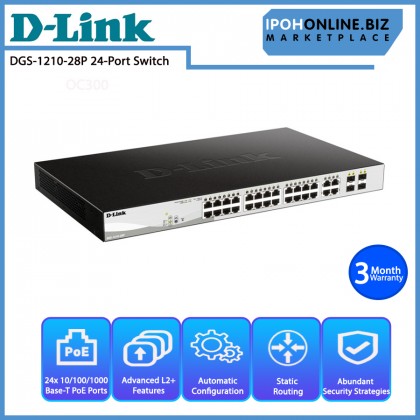

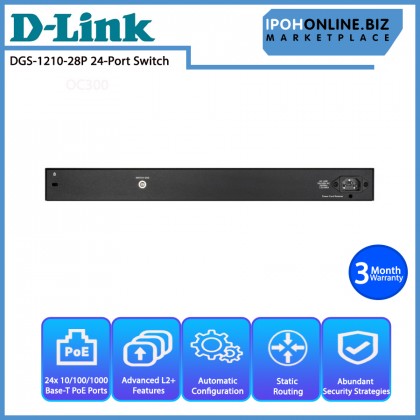

Name: D-Link 28 Port Layer 2 Smart Managed Gigabit PoE Network Switch DGS-1210-28P
Brand: D-Link
SKU: SWI-DLINK-DGS-1210-28P
Price: 1488.00 MYR
Availability: OutOfStock

D-Link 28 Port Layer 2 Smart Managed Gigabit PoE Network Switch DGS-1210-28P

RM1,488.00 RM2,488.00 RM

D-Link 28 Port Layer 2 Smart Managed Gigabit PoE Network Switch DGS-1210-28P

Price	RM1,488.00 RM2,488.00 RM
Product SKU	SWI-DLINK-DGS-1210-28P
Brand	D-Link
Size (L x W x H)	55 cm x 40 cm x 15 cm
Availability	Out Of Stock

Product
Description
Reviews (0)
What's in the box

Description

Highlight
								24 x 10/100/1000BASE-T PoE ports
4 x Gigabit RJ45/SFP Combo ports
Advanced L2 switching and security features
L2+ Static Routing
Optional “standard mode” or “surveillance mode” management user interface
193 W PoE budget



Specifications

Interfaces	24 x 10/100/1000 Mbps PoE ports • 4 x SFP ports
Port Standards & Functions	Ports 1 to 4 compliant with 802.3at Ports 5 to 24 compliant with 802.3af
Other Port Standards & Functions	IEEE 802.3 10BASE-T Ethernet (twisted-pair copper) IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper) IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted- pair copper) IEEE 802.3az compliance Auto-negotiation IEEE 802.3x Flow Control IEEE 802.3z
Auto Negotiation	UTP Cat. 5, Cat. 5e (100 m max.)
Duplex Mode	Full/Half-duplex for 10/100 Mbps Full-duplex for 1000 Mbps
Media Interface Exchange	Auto MDI/MDIX adjustment for all twisted-pair ports
Performance
Switching Capacity	56 Gbps
Transmission Method	Store-and-forward
MAC Address Table	16 ,000 entries per device
MAC Address Update	Store-and-forward
MAC Address Table	16,000 entries per device
MAC Address Update	Up to 256 static MAC entries
Maximum 64 bytes packet forwarding rate	41.7 Mpps
Packet Buffer Memory	1.5 MB
CPU Memory	128 MB DDR3
Flash Memory	16 MB
Physical/Environmental
AC Input	100 to 240 VAC 50/60 Hz internal universal power supply
Maximum Power Consumption	251.3 W (PoE on) 26.3 W (PoE off)
Maximum PoE Budget	193 W
Standby Power Consumption	100 V: 24 W/ • 240 V: 21.9 W
Acoustics	Low speed: 47 dBA • High speed: 52.4 dBA
Heat Dissipation	840.89 Btu/hr
Operating Temperature	-5 to 50 °C (23 to 122 °F)
Storage Temperature	-20 to 70 °C (-4 to 158 °F)
Operating Humidity	0% to 95% non-condensing
Storage Humidity	0% to 95% non-condensing
Dimensions (L x W x H)	444 x 210 x 44 mm (17.32 x 8.27 x 1.73 in)
Weight	2.54 kg (5.60 lbs)
Diagnostic LEDs	Link/Activity/Speed (per 10/100/1000 Mbps port) Power Fail/Power Ok (per PoE port)
Certifications	CE Class A, VCCI Class A, FCC Class A, BSMI, C-Tick, cUL, CE (LVD), CCC
MTBF	239,236 hours

What's in the box :

1 x D-Link 28 Port Layer 2 Smart Managed Gigabit PoE Network Switch DGS-1210-28P
1 x power cable

Warranty
3 Months Warranty
Local Manufacturer Warranty
Warranty policy : -Please complete and submit Product Warranty Registration Form within 14 days of purchase to ensure continuous coverage.LAZADA Warranty Registrationhttp://LWR.accessglobal.infoEmail us at [email protected]
