| Price | RM178.00 RM389.00 RM |
| Product SKU | SWI-DLINK-DES-F1010P-E |
| Brand | D-Link |
| Size (L x W x H) | 34 cm x 29 cm x 12 cm |
| Availability | Out Of Stock |
- 6 KV Lightning Protection
- 250M Tranmission Distance
- VLAN
- Plug-And-Play Installation
- IEEE802.3 af/at Standards
- 8 10/100 Mbps PoE Ports
- 2 10/100Mbps Uplink Ports
- 96 W PoE Budget
- Robust And Cost-Effective PoE Solution To Provide Power For Your PoE Powered Devices Such As IP Cameras, CCTV, VoIP, AP etc
- Plug & Play Installation

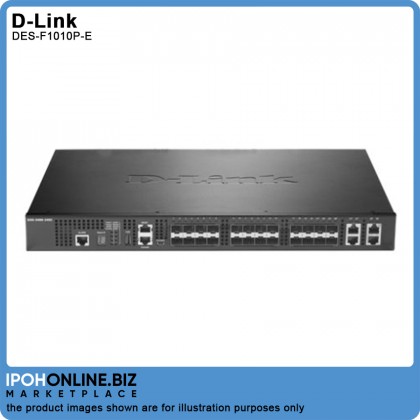

D-Link DES-F1010P-E 250M 10-Port Fast Ethernet Switch with 8 PoE Ports & 2 Uplink Ports
Overview
Power Your Devices
Supports IEE 802.3af/at PoE To Power PoE Capable Network Devices Via Ethernet Cables Without Need For Power Adapters
Flexible Connectivity
Support Transmission Distance Up To 250M For Flexible Installation Of Wireless AP & Surveillance Solutions.
Eco-Friendly And Economical
Low-Cost, Innovative Design Runs Reliably And Quietly, Saving Energy And Cutting Costs Without Sacrificing Performance.
The D-Link DES-F1010P-E Is A 10 Port 100Mbps With 8 10/100 Mbps PoE Ports, 2 10/100Mbps Uplink Ports. This Switch Enables User To Easily Connect And Supply Power To PoE-Capable Devices Such As Wireless Access Points (APs), IP Cameras.
Power Over Ethernet
The DES-F1010P-E Supports Both IEEE 802.3 At And IEEE 802.3af PoE Protocol. With A Total PoE Budget Of 96 Watts, Allowing Users To Attach An IEEE 802.3af-Compliant Device To The DES-F1010P-E Without Requiring Additional Power. PoE Is Especially Suitable For Devices That Are Far From Power Outlets Or When Users Want Minimize The clutter Of Extra Cables As Power Is Supplied Via The Ethernet Cables Themselves.
Features
- 8 10/100 Mbps PoE Ports
- 2 10/100Mbps Uplink Ports
- 96 W PoE Budget
- Support IEEE802.3af/at Up To 30W Per Port To PoE Compatible Devices
- Support Transmission Data/PoE Up To 250m Cable Length
- 6KV Lightning Protection
- Smart Features: Extend, VLAN, QoS And PoE
- Plug & Play Installation
- Robust And Cost-Effective PoE Solution To Provide Power For Your PoE Powered Devices Such As IP Cameras, CCTV, VoIP, AP etc
- Plug & Play Installation
Specification
| General | ||
| Network Interface | - 8 10/100Mbps PoE RJ45 Port (Port1 ~ Port8) - 2 10/100Mbps Uplink RJ45 Port (Port9 ~ Port10) | |
| Transmission Rate | - 10/100Mbps Each Port Supports MDI / MDIX Auto-Flip And Auto-Negotiation - Network Interface: 10BASE-T Or 100BASE-TX Ethernet RJ-45 Port | |
| Protocols And Standards | - IEEE802.3 10BASE-T - IEEE 802.3u 100BASE-TX - ANSI/IEEE 802.3 NWay Auto-Negotiation - IEEE 802.3x Flow Control - IEEE 802.3af/at Standard | |
| Functionality | ||
| Switching Capacity | 2 Gbps | |
| Forwarding Rate | 10M: 14,800pps 100M: 148,800pps | |
| LED's Indicator | Power LINK/ACT | |
| PoE Budget | 96W | |
| Power | External Power Adapter: 100-240 ~ 50/60Hz, 52V/1.85A | |
| Lightning Protection | 6KV | |
| Environmental Parameter | Operating Temperature: 0 to 40°C (32 to 104°F) Operating Humidity: 10% to 90% Non-Condensing | |
What's In The Box
- 1 x D-Link DES-F1010P-E 250M 10-Port Fast Ethernet Switch with 8 PoE Ports And 2 Uplink Ports
- 1 x User Manual
- 1 x Power Cord
- 1 x Warranty Card
Warranty
3 Months Limited Warranty
Local Manufacturer Warranty
- 1 x D-Link DES-F1010P-E 250M 10-Port Fast Ethernet Switch with 8 PoE Ports and 2 Uplink Ports
- 1 x User Manual
- 1 x Power Cord
- 1 x Warranty Card
