| Price | RM438.00 RM499.00 RM |
| Product SKU | SWI-DLINK-DGS-1100-08P |
| Brand | D-Link |
| Size (L x W x H) | 25 cm x 21 cm x 10 cm |
| Availability | 1 |
| Quantity |
|
Description
Highlight
- Eight (8) 10/100/1000Mbps PoE switched ports
- 64 watt PoE power budget
- Easy plug and play installation
- Management via web browser
- Supports D-Link Network Assistant for easy centralized management of D-Link Smart Managed Switches
- Voice VLAN
- Surveillance VLAN
- Up to 32 VLAN for network segmentation and security
- Quality of service (QoS) traffic prioritization
- Loopback detection and cable diagnostics
- Up to 1000Mbps of dedicated bandwidth per port and up to 2000Mbps bandwidth in full-duplex mode.
- Auto MDI/MDI-X crossover for all ports
- IEEE 802.3x flow control
- Jumbo frame support up to 9216 bytes.
- Supports 802.1Q VLAN
What this product does

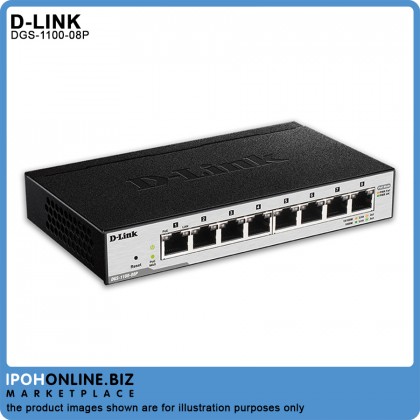

- The D-Link 8-Port Gigabit Smart Management Switch (DCS-1100-08P) is a compact, web managed switch that can power connected devices through Power over Ethernet (PoE). Optimized for small business and departmental deloyments, the DGS-1100-08P can be used as a simple plug and play switch or users can take advantage of advanced fetures such as Surveillance VLAN, Quality Of Service (QaS), and port-based Bandwidth Control. Configuration is easy using either the Intuitive web-based management interface or D-Link's Network Assistant software utility. This switch designed with ease of use in mind, is ideal for growing business looking for simple port expansion now and management in the future.
PoE Support
- The DGS-1100-08P can power connected devices through PoE, making deployment with IP cameras, VoIP phones, and access points much easier. Power cords will become a thing of the past as the DGS-1100-08P supports a 64 watt power budget. The 10/100/1000Base-T Ethernet ports mean that even high quality video is no problem.
Specifications
|
Interface |
8 x 10/100/1000BASE-T PoE ports |
| Performance | |
| Switch Capacity | 16 Gbps |
| Max. Packet Forwarding Rate | 11.9 Mpps |
| PoE | |
| PoE Budget | 64 W |
| Technical Specification | |
| Maximum Heat Dissipation | 265.85 BTU/hr |
| Maximum Power Consumption | 77.9 W (PoE on) 4.6 W (PoE off) |
| MTBF | 786,841 hours |
| 10/100/1000BASE-T PoE ports | 8 |
| DRAM Size | 48K Bytes |
| CPU Speed | 62.5 MHz |
| Flash Memory Size | 2 MB |
| Packet Buffer Size | 1.5 Mbits |
| FAN | Fanless |
| Jumbo Frame | 9216 bytes |
| Loopback Detection (LBD) | Yes |
| MAC Address Table Size | 4160 |
| IGMP Snooping | Yes |
| Max IGMP Snooping Groups | 128 |
| Link Aggregation Group Per Device | 2 (static port trunk) |
| Max Port Per Link Aggregation Group | 4 (static port trunk) Only port 1-4 for group 1 Only port 5-8 for group 2 |
| Web-based GUI | Yes |
| SNMP | Yes |
| SNMP Trap | Yes |
| D-Link Discover Protocol (DDP) | Yes |
| DHCP/BootP Client | Yes |
| D-Link Network Assistant | Yes |
| Port Mirroring | Yes |
| Cable Diagnostics | Yes |
| Switch Capacity | 16 Gbps |
| Max. Packet Forwarding Rate | 11.9 Mpps |
| Maximum PoE Budget | 64W |
| PoE Budget | 64W |
| Rate Limiting | Yes |
| Power Input | AC：100 ~ 240 V (54V/1.574A power adapter |
| Number of Queue | 4 |
| Queue Handling | Yes |
| Strict Priority Queue (SPQ) | Yes |
| Weighted Round Robin (WRR) | Yes |
| Port Security | Yes |
| Broadcast/Multicast/Unicast Storm Control | Yes |
| Traffic Segmentation | Yes |
| 802.1D Spanning Tree (STP) | Yes |
| 802.1w Rapid Spanning Tree (RSTP) | Yes |
| Surge/Lightning Protection (AC Power Inet) | 2kV |
| Surge/Lightning Protection (All Ethernet Ports) | 1Kv |
| Dimension | 171 × 97.8 × 28.6 mm |
| Weight | 0.433 kg |
| Operation Temperature | 0 ~ 40 °C |
| Storage Temperature | - 40 ~ 70 °C |
| Storage Humidity | 0% ~ 95% RH |
|
Maximum Power Consumption |
77.9 W (PoE on) |
| Operating Altitude | 2000m |
| Standby Power Consumption | 2.0 W |
| Maximum Heat Dissipation | 265.85 BTU/hr |
| Acoustic | 0 dB |
| MTBF | 786,841 hours |
| 802.1Q VLAN | Yes |
| VLAN Groups | 32 |
| Port-based VLAN | Yes |
| Voice VLAN | Static Voice VLAN only |
| Surveillance VLAN | Yes |
| Asymmetric VLAN | Yes |
What's in the box
- 1 x D-Link DGS-1100-08P 8 Port Gigabit PoE Smart Managed Switch with 64W
- 1 x Power Adapter
- 1 x Rubber feet
- 1 x Mounting Screws
- 1 x Quick Installation Guide and warranty documents
- 1 x CD-ROM with product documentation
Warranty
3 Months Warranty
Local Manufacturer Warranty
