| Price | RM849.00 RM890.00 RM |
| Product SKU | SWI-DT-VIGOR-P1092 |
| Brand | Draytek |
| Size (L x W x H) | 37 cm x 33 cm x 13 cm |
| Availability | Out Of Stock |
Description
Highlight
- PoE (Power Over Ethernet) - Deliver Power And Data Over One Ethernet Cable To Reduce The Cost Of Electrical Infrastructure

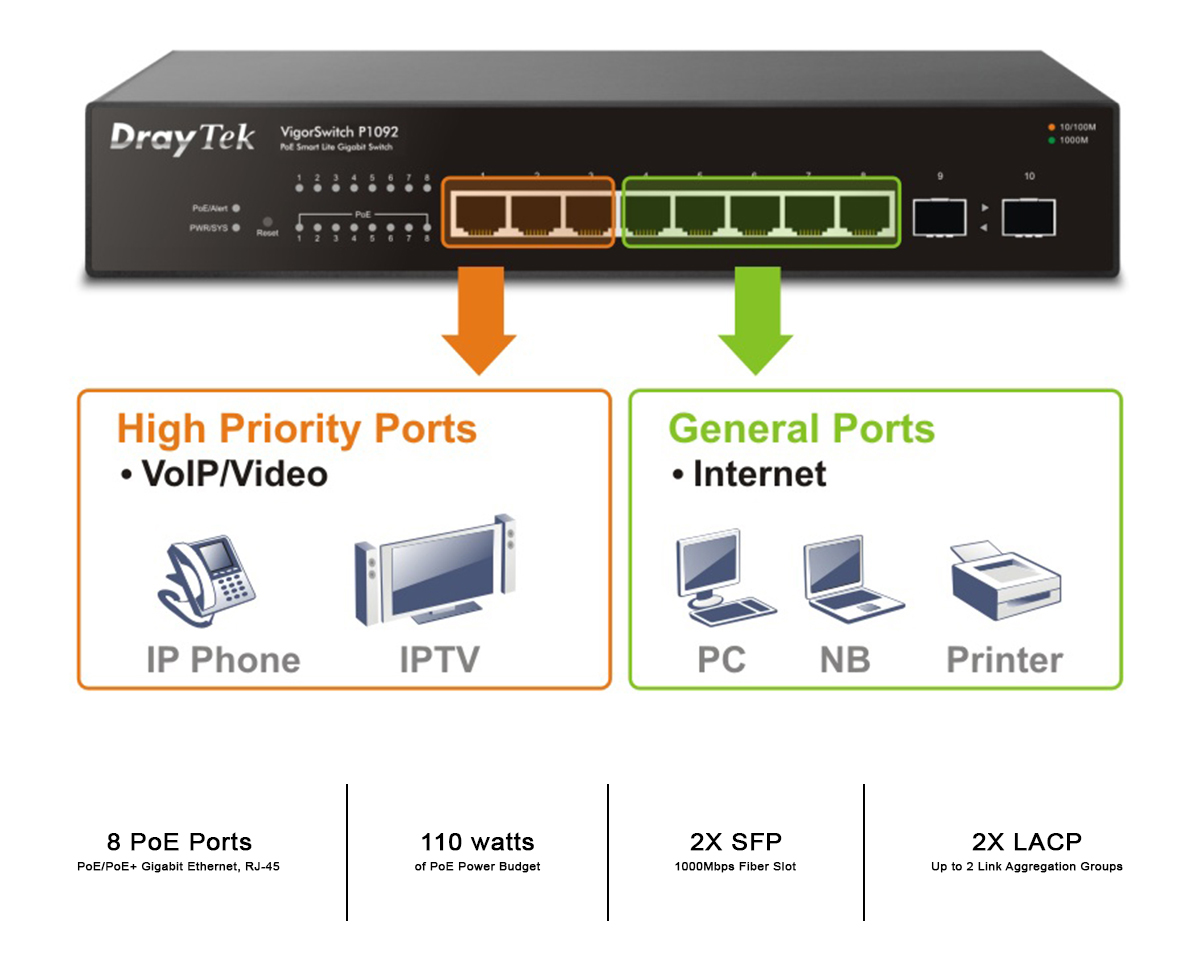

- QoS (Quality Of Service) - Improve The Performance Of Critical Traffic By Prioritizing The Traffic With CoS, DSCP And IP Precedence Tag
- Central Switch Management - Set Up VLAN Easily From The Router And Get A Centralized Hierarchy View Of The Switches
- Energy-Efficient Ethernet - Compliant With IEEE 802.3az To Reduce Power Consumption

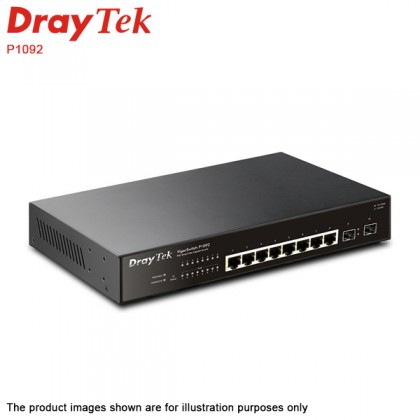

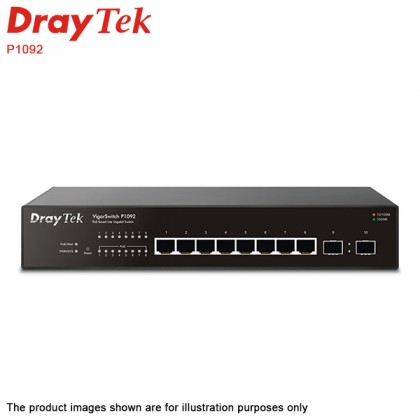

DrayTek VigorSwitch P1092 10-Port Smart Lite Managed Gigabit PoE+ Switch
DrayTek VigorSwitch P1092 Is A Smart Lite Managed Gigabit PoE Switch. It Has 8x Gigabit Ethernet Ports Compliant With PoE And PoE+ Ports And A Power Budget Of 110 Watts. It Also Equipped With 2x Gigabit SFP Slots And Basic Management Features, Including 802.1q Tag-Based VLAN And QoS
Key Feature
- PoE (Power Over Ethernet) - Deliver Power And Data Over One Ethernet Cable To Reduce The Cost Of Electrical Infrastructure
- QoS (Quality Of Service) - Improve The Performance Of Critical Traffic By Prioritizing The Traffic With CoS, DSCP And IP Precedence Tag
- Central Switch Management - Set Up VLAN Easily From The Router And Get A Centralized Hierarchy View Of The Switches
- Energy-Efficient Ethernet - Compliant With IEEE 802.3az To Reduce Power Consumption
Specification
| Interface | |
| Ethernet Port | 8 x 10/100/1000Mbps Ethernet, RJ-45 |
| Fiber Slot | 2 x 100/1000Mbps SFP |
| Button | 1 x Factory Reset Button |
| PoE | |
| PoE Capable Ports | 8 |
| PoE Standards | PoE/PoE+(802.3af/802.3at), Type Mode A |
| PoE Power Budget | 110 Watts |
| Capacity | |
| Buffer Size | 1.5 Mbit |
| Switching Capacity | 20 Gbps |
| Forwarding Rate | 14.9 Mpps (64 bytes) |
| MAC Address Table | 4k |
| Jumbo Frame | Up To 9KB |
| Networking Standards | |
| IP Version | IPv4 |
| Ethernet Standards | 802.3af PoE 802.3at PoE+ 802.3 10Base-T 802.3u 100Base-T 802.3ab 1000Base-T 802.1q Tag-Based VLAN 802.3x Flow Control 802.3 Auto-Negotiation 802.1p Class Of Service 802.3ad LACP 802.3az EEE |
| VLAN | |
| Max. Number Of VLAN | 10 |
| VLAN Type | 802.1q Tag-Based, Port-Based |
| QoS | |
| Number Of QoS Queues | 4 |
| Rate Limit | Port-Based Ingress And Egress |
| Queue Scheduling | SPQ, WFQ |
| CoS (Class Of Service) | 802.1p CoS |
| Traffic Control | |
| Storm Control | Broadcast, Multicast, Unicast |
| Loop Prevention | Yes |
| Link Aggregation | |
| Max. Number Of Group | 2 |
| Member Port | GE7 & GE8, SFP1 & SFP2 |
| Type | LACP |
| Multicast | |
| IGMP Snooping | V2 |
| Max. Number Of Multicast Group | 128 |
| Management | |
| Web Interface | HTTP |
| Diagnostics Tools | Port Mirroring |
| Config File Export/Import | Yes |
| Managed By Vigor Router SWM | Yes |
| Managed By VigorConnect | Yes |
| Physical | |
| 19-Inch Rack Mountable | Mouting Kit Included |
| Max. Power Consumption | 141.3 Watts |
| Dimension | 265mm x 184mm x 44mm |
| Weight | 1.68 KG |
| Operating Temperature | 0 To 45°C |
| Storage Temperature | -20 To 70°C |
| Operating Humidity | 10 To 90% Non-Condensing |
| Storage Humidity | 5 To 90% Non-Condensing |
What In The Box
- 1 x DrayTek VigorSwitch P1092 10-Port Smart Lite Managed Gigabit PoE+ Switch
- 1 x Power Cord
- 1 x Rack Mount Kit (Bracket)
- 1 x Quick Start Guide
Warranty
2 Year Warranty
Local Manufacturer Warranty
