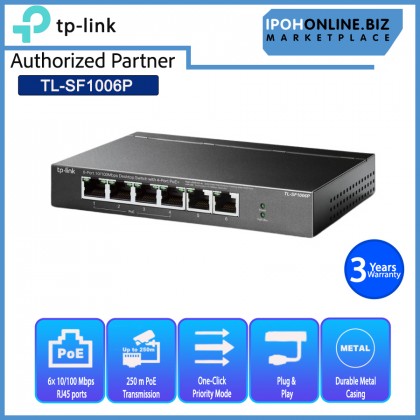

TP-Link TL-SF1006P 6 Port 10/100Mbps Desktop Switch With 4 Port PoE+ With Transmission For Surveillance Up To 250m
| Price | RM149.00 RM319.00 RM |
| Product SKU | SWI-TL-SF1006P |
| Brand | TP-Link |
| Size (L x W x H) | 23 cm x 15 cm x 16 cm |
| Availability | 5 |
| Quantity |
|
Description
Highlight
- 6× 10/100 Mbps RJ45 ports
- 4× PoE+ ports transfer data and power on individual cables
- Works with IEEE 802.3af/at compliant PDs
- Up to 250m data and power transmitting range under Extend Mode**
- Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
- Supports PoE Power up to 30 W for each PoE port
- Supports PoE Power up to 67 W for all PoE ports*
- Plug and play with no configuration required
Specification
| Hardware Features | |
| Interface | • 6× 10/100 Mbps RJ45 Ports (ports 1–4 support 802.3af/at PoE+) • AUTO Negotiation • AUTO MDI/MDIX |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity | Fanless |
| Physical Security Lock | Yes |
| External Power Supply | External Power Adapter (Output: 54 V DC / 1.3 A) |
| Packet Forwarding Rate | 892.8 Kpps |
| PoE Ports (RJ45) | • Standard: 802.3 af/at compliant • PoE Ports: Ports 1–4 • Power Supply: 67 W |
| Mac Address Table | 2K |
| Jumbo Frame | 2 KB |
| Switching Capacity | 1.2 Gbps |
| Dimensions | 6.2 x 4.0 x 1.0 in (158 x 101 x 25 mm) |
| Max Power Consumption | • 1.9 W (with no PD connected) • 74 W (with 67 W PD connected) |
| Max Heat Dissipation | • 6.5 BTU/h(with no PD connected) • 252.3 BTU/h(with 67 W PD connected) |
| Software Features | |
| Transmission Method | Store-and-forward |
| Advanced Functions | • Compatible with IEEE 802.3af/at compliant power devices (PDs) • Extend mode switch (Ports 1–4) • Priority mode switch (Ports 1–2) • MAC address auto-learning and auto-aging • IEEE802.3x flow control for full-duplex mode and backpressure for half-duplex mode |
| Others | |
| Certification | FCC, CE, RoHS |
| Package Contents | • TL-SF1006P • Power Adapter • Installation Guide |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
What In The Box
- 1 x TP-Link TL-SF1006P 6 Port 10/100Mbps Desktop Switch With 4 Port PoE+ With Transmission For Surveillance Up To 250
- 1 x Power Adapter
- 1 x Rubber Feet
- 1 x Installation Guide
Warranty
3 Year Warranty
Local Supplier Warranty
