| Price | RM189.00 RM299.00 RM |
| Product SKU | SWI-TL-SF1008P |
| Brand | TP-Link |
| Size (L x W x H) | 33 cm x 27 cm x 12 cm |
| Availability | 1 |
| Quantity |
|
Description
Highlight
- With four PoE ports, transfers data and power on one single cable
- Working with IEEE 802.3af compliant PDs, expands home and office network
- Supports PoE power up to 15.4W for each PoE port
- Supports PoE power up to 57W for all PoE ports
- Requires no configuration and installation

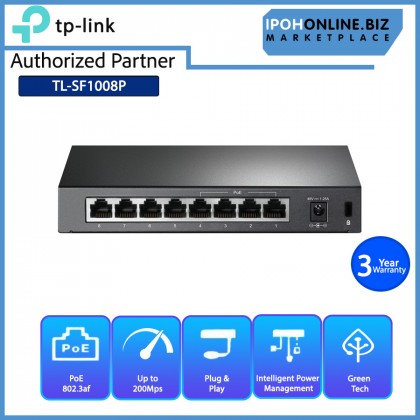

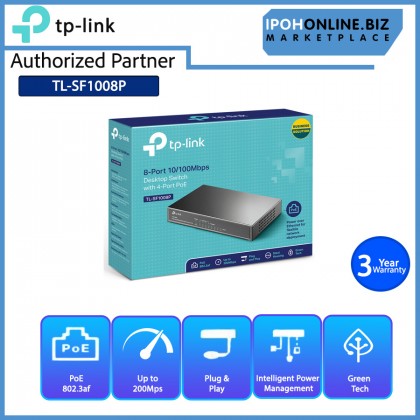

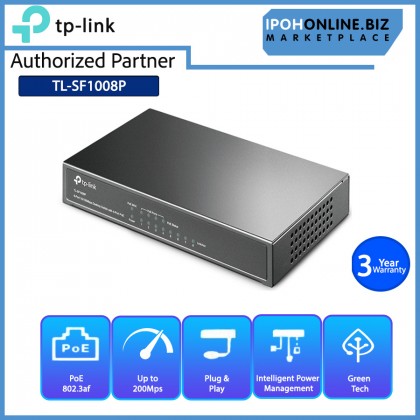

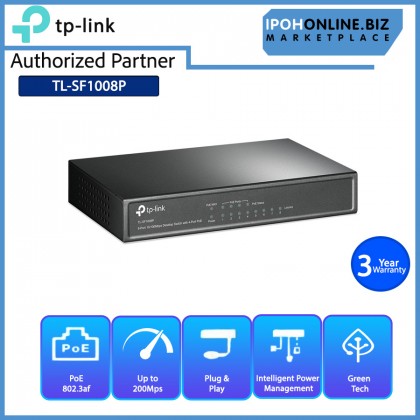

TP-LINK TL-SF1008P 8-port 10/100Mbps Switch with 4-Port PoE
Overview
Specifications
| Hardware Features | |
| Interface | 8 10/100Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity | Fanless |
| Physical Security Lock | Yes |
| External Power Supply | External Power Adapter(Output: 48VDC / 1.25A) |
| Packet Forwarding Rate | 1.1904 Mpps |
| PoE Ports (RJ45) | Standard: 802.3 af compliant PoE Ports: Port1- Port4 Power Supply: 57W |
| Backbound Bandwidth | 1.6Gbps |
| Mac Address Table | 2K |
| Jumbo Frame | 2 KB |
| Switching Capacity | 1.6 Gbps |
| Dimensions ( W x D x H ) | 6.7*3.9*1.1 in. (171*98*27 mm) |
| Max Power Consumption | 2.66(220/50Hz. no PD connected) 65.92(220/50Hz. with 57W PD connected) |
| Max Heat Dissipation | 9.08BTU/h(no PD connected) 224.92BTU/h(with 57W PD connected) |
| Software Features | |
| Transmission Method | Store-And-Forward |
| Advanced Functions | Compatible With IEEE 802.3af Compliant PDs Priority Function Mac Address Auto-Learning And Auto-Aging IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode |
| Others | |
| Certification | FCC, CE, RoHS |
| Package Contents | TL-SF1008P, Power Adapter, User Guide |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
What's in the box
- 1 x TP-LINK TL-SF1008P 8-port 10/100Mbps Switch with 4-Port PoE
- 1 x Power Adapter
- 1 x Installation Guide
- 1 x Rubber Feet
Warranty
3 Years Warranty
Local Manufacturer Warranty
