| Price | RM409.00 RM599.00 RM |
| Product SKU | SWI-TL-SG1016DE |
| Brand | TP-Link |
| Size (L x W x H) | 43 cm x 28 cm x 11 cm |
| Availability | Pre-Order |
Description
Highlight
- 16 10/100/1000Mbps RJ45 Ports
- Provides Network Monitoring, Traffic Prioritization And VLAN Features
- Green Technology Reduces Power Consumption
- Simple Network Set-Up On Top Of Plug-And-Play Connectivity
- Web-Based User Interface And Management Utility Simplify Configuration
Specification
| Hardware Features | |
| Standards And Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p |
| Interface | 16 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity | Fanless |
| Physical Security Lock | No |
| Power Supply | 100-240VAC, 50/60Hz |
| Dimensions | 11.6*7.1*1.7 in. (294*180*44 mm) |
| Mounting | Rack Mountable |
| Max Power Consumption | 19.15W (220V/50Hz) |
| Max Heat Dissipation | 65.34 BTU/h |
| Performance | |
| Switching Capacity | 32Gbps |
| Packet Forwarding Rate | 23.8Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 512KB |
| Jumbo Frame | 9KB |
| Software Features | |
| Quality Of Service | Support Port-based/802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control |
| L2 Features | IGMP Snooping V1/V2/V3 Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention |
| VLAN | Supports up to 128 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN |
| Transmission Method | Store-And-Forward |
| Others | |
| Certification | FCC, CE, RoHS |
| Package Contents | TL-SG1016DE Power Cord Installation Guide Resource CD Rackmount Kit Rubber Feet |
| System Requirements | Microsoft® Windows® for running Utility |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
What In The Box

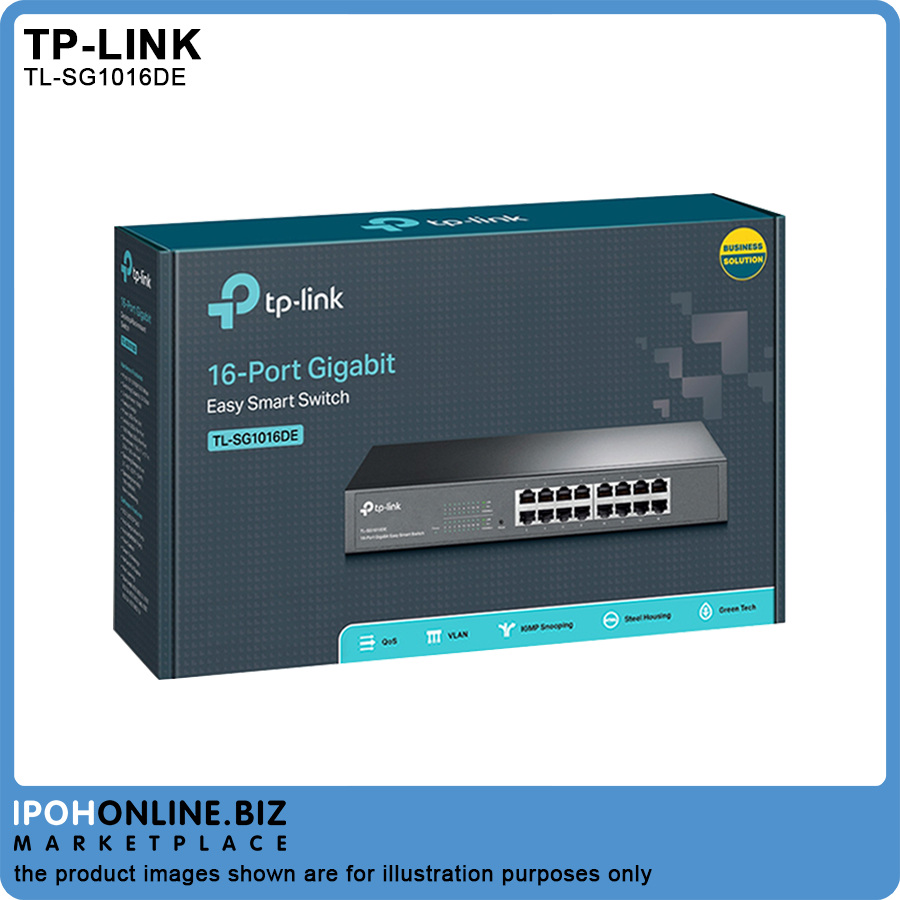

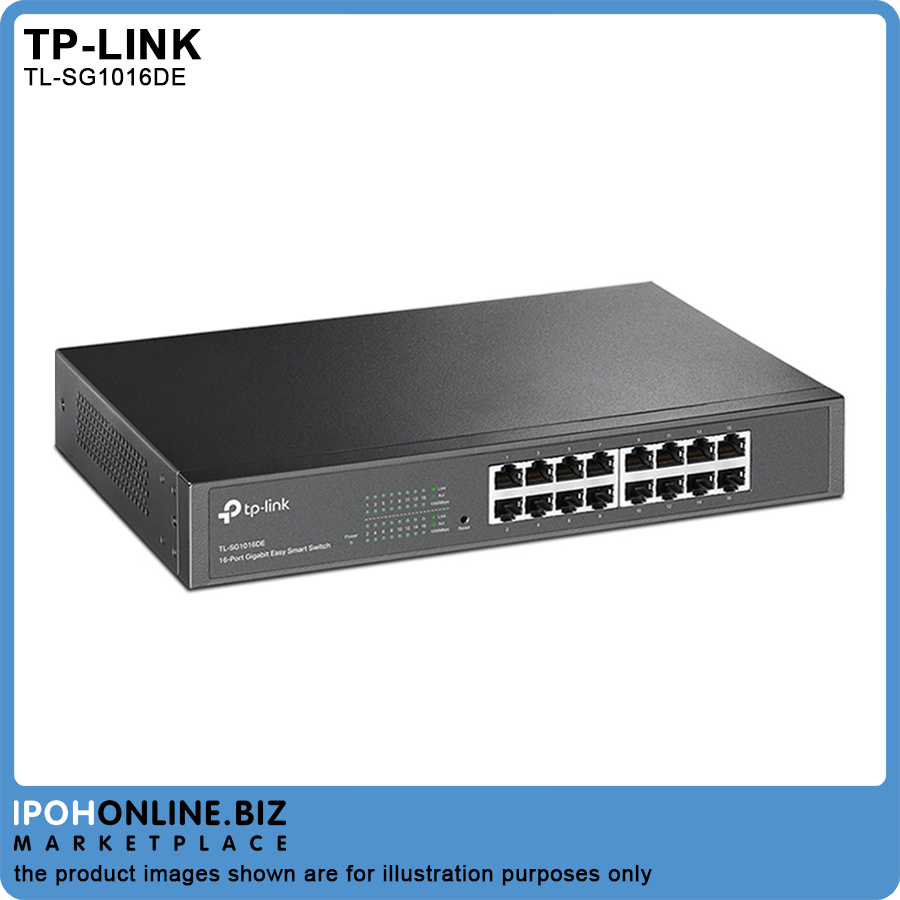

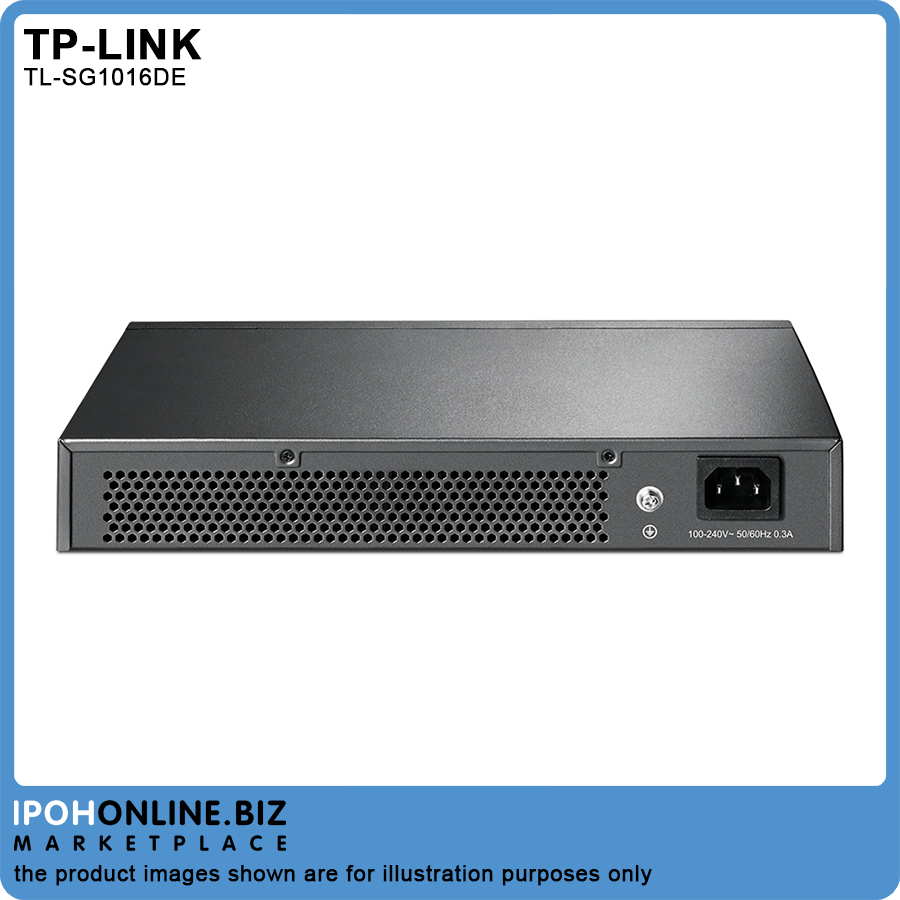

- 1 x TP-Link TL-SG1016DE 16 Port 10/100/1000Mbps Gigabit Easy Smart Switch
- 1 x Power Cord
- 1 x Rubber Feet
- 1 x Rackmount Kit
- 1 x Installation Guide
- 1 x Resource CD
Warranty
3 Year Limited Warranty
Local Manufacturer Warranty
