| Price | RM399.00 RM499.00 RM |
| Product SKU | SWI-TL-SG108PE |
| Brand | TP-Link |
| Size (L x W x H) | 24 cm x 17 cm x 15 cm |
| Availability | 2 |
| Quantity |
|
Description
Highlight
- 8 10/100/1000Mbps RJ45 ports
- Equipped with 4 802.3af PoE ports with up to 15.4W for each port, data and power can be transferred on one single cable
- Provides network monitoring, traffic prioritization and VLAN features
- Simple network set-up on top of plug-and-play connectivity
- Web-based user interface and Easy Smart Configuration Utility simplify configuration

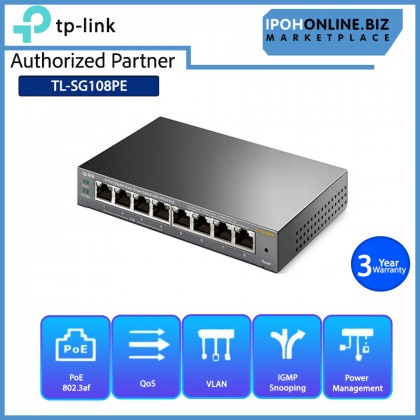

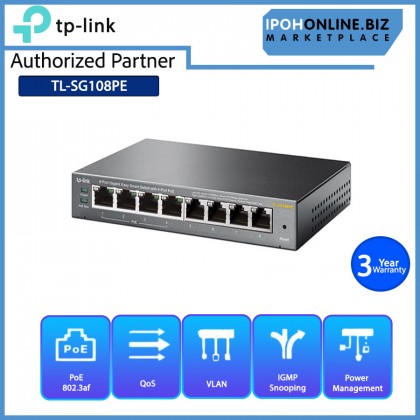

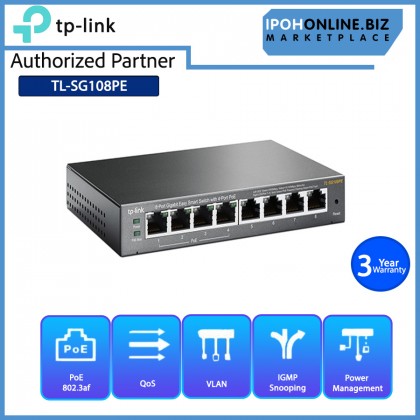

TP-LINK TL-SG108PE 8-Port Gigabit Easy Smart Switch With 4-Port PoE
Overview
Specifications
| Hardware Features | |
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p |
| Interface | 8 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity | Fanless |
| Power Supply | External Power Adapter(Output: 48VDC / 1.25A) |
| Power Consumption | Maximum (PoE on): 65.2W (220V/50Hz) Maximum (PoE off): 5.2W (220V/50Hz) |
| PoE+ Ports(RJ45) | - |
| PoE Ports (RJ45) | Standard: 802.3 af compliant PoE Ports: Port 1- Port 4 PoE Power Budget: 55W |
| Dimensions (W x D x H) | 6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm) |
| Max Power Consumption | 5.15W (220V/50Hz with no PD connected) 65.18W (220V/50Hz with 55W PD connected) |
| Max Heat Dissipation | 17.57 BTU/h (with no PD connected) 222.39 BTU/h (with 55W PD connected) |
| Performance | |
| Switching Capacity | 16Gbps |
| Packet Forwarding Rate | 11.9Mpps |
| MAC Address Table | 4K |
| Packet Buffer Memory | 1.5Mb |
| Jumbo Frame | 15KB |
| Software Features | |
| Quality of Service | Support Port-Based/802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control |
| L2 Features | IGMP Snooping V1/V2/V3 Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention |
| VLAN | Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN |
| Management | Web-based GUI Easy Smart Configuration Utility |
| Transmission Method | Store-And-Forward |
| Others | |
| Certification | FCC, CE, RoHS |
| Package Contents | TL-SG108PE Power Adapter Installation Guide Resource CD |
| System Requirements | Microsoft® Windows® for running Utility |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90%RH non-condensing Storage Humidity: 5%~95%RH non-condensing |

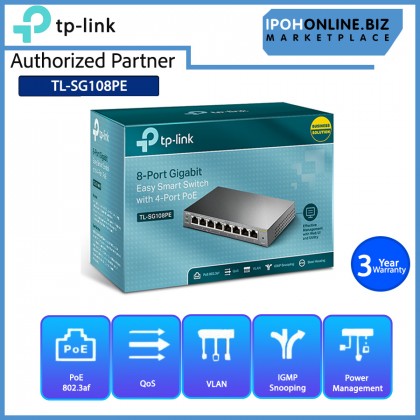

What's in the box
- 1 x TP-LINK TL-SG108PE 8-Port Gigabit Easy Smart Switch With 4-Port PoE
- 1 x Power Adapter
- 1 x Installation Guide
- 1 x Resouce CD
Warranty
3 years warranty
Local Manufacturer Warranty
