TP-LINK TL-SG1218MPE 18-Port Gigabit Easy Smart Switch With 16-Port POE+

RM1,249.00 RM1,698.00 RM

TP-LINK TL-SG1218MPE 18-Port Gigabit Easy Smart Switch With 16-Port POE+

Price	RM1,249.00 RM1,698.00 RM
Product SKU	SWI-TL-SG1218MPE
Size (L x W x H)	58 cm x 30 cm x 13 cm
Availability	2

Quantity

Product
Description
Reviews (0)
What's in the box

Description

Highlight
								16× PoE+ gigabit RJ45 ports, 2× gigabit non-PoE RJ45 ports and 2× combo gigabit SFP slots.
PoE power budget is up to 250 W, making it ideal for small to medium business surveillance systems.*
Port Priority is able to guarantee the quality of sensitive application like video monitor.

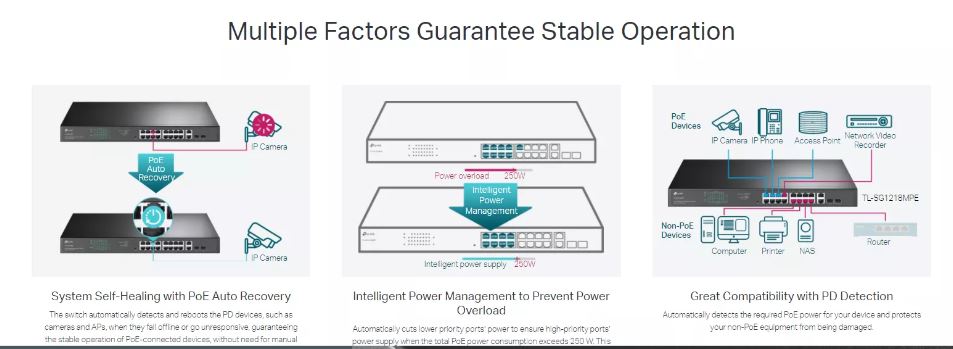

PoE Auto Recovery automatically reboots your dropped or unresponsive PoE-powered devices.
Intelligent power management protects the switch from overload.
QoS ensures smooth traffic for latency sensitive applications.
IGMP Snooping optimizes multimedia traffic delivery, such as IPTV.



Specifications

Hardware Features
Standards and Protocols	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p
Interface	• 16× 10/100/1000 Mbps PoE+ RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) • 2× 10/100/1000 Mbps non-PoE RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) • 2× Combo Gigabit SFP Ports
Network Media	• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-X MMF, SMF
Fan Quantity	2 Fans
Physical Security Lock	Yes
Power Supply	100–240V AC, 50/60 Hz
PoE+ Ports(RJ45)	• Standard: 802.3at/802.3af compliant • PoE+ Ports: Ports 1–16 • Power Supply: 250 W
Dimensions ( W x D x H )	17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
Mounting	Rack Mountable
Max Power Consumption	• 21.4 W (220/50Hz. no PD connected) • 296.3 W (220/50Hz. with 250 W PD connected)
Max Heat Dissipation	• 72.97 BTU/h (no PD connected) • 1010.38 BTU/h (with 250 W PD connected)
Performance
Switching Capacity	36 Gbps
Packet Forwarding Rate	26.78 Mbps
MAC Address Table	8K
Packet Buffer Memory	4.1 Mbit
Jumbo Frame	10 KB
Software Features
Quality of Service	• Support Port-based 802.1p/DSCP priority • Support 4 priority queues • Rate Limit • Storm Control
L2 Features	• IGMP Snooping V1/V2/V3 • Static Link Aggregation • Port Mirroring • Cable Diagnostics • Loop Prevention • PoE Auto Recovery
VLAN	• Support up to 32 VLANs simultaneously (out of 4K VLAN IDs) • MTU/Port/Tag VLAN

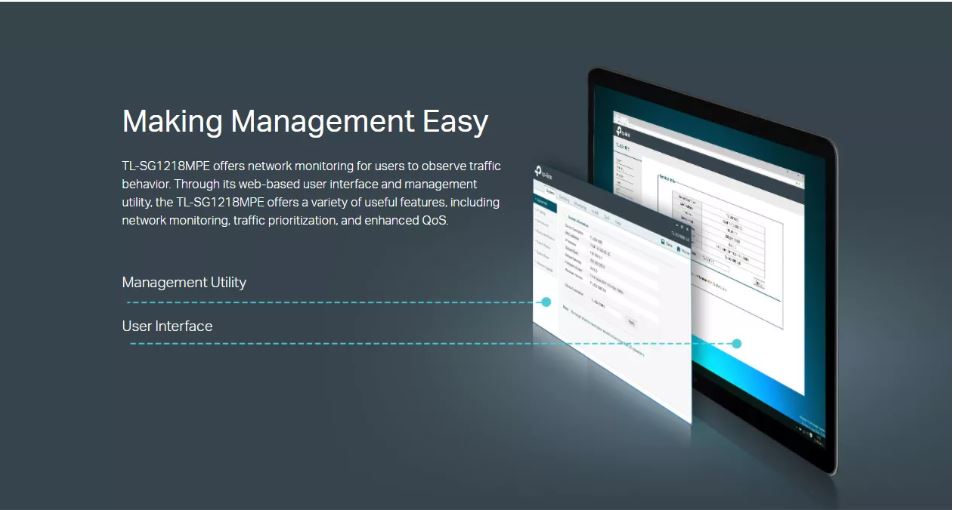

Management	• Web-based GUI • Easy Smart Configuration Utility
Transmission Method	Store-And-Forward
Others
Certification	CE, FCC, RoH
Package Contents	• TL-SG1218MPE • Power Cord • Installation Guide • Rackmount Kit • Rubber Feet
Environment	• Operating Temperature: 0–50 °C (32–122 °F) • Storage Temperature: -40–70 °C (-40–158 °F) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
