| Price | RM1,539.00 RM1,688.00 RM |
| Product SKU | SWI-TL-SG1428PE |
| Brand | TP-Link |
| Size (L x W x H) | 59 cm x 39 cm x 16 cm |
| Availability | 1 |
| Quantity |
|
Description
Highlight

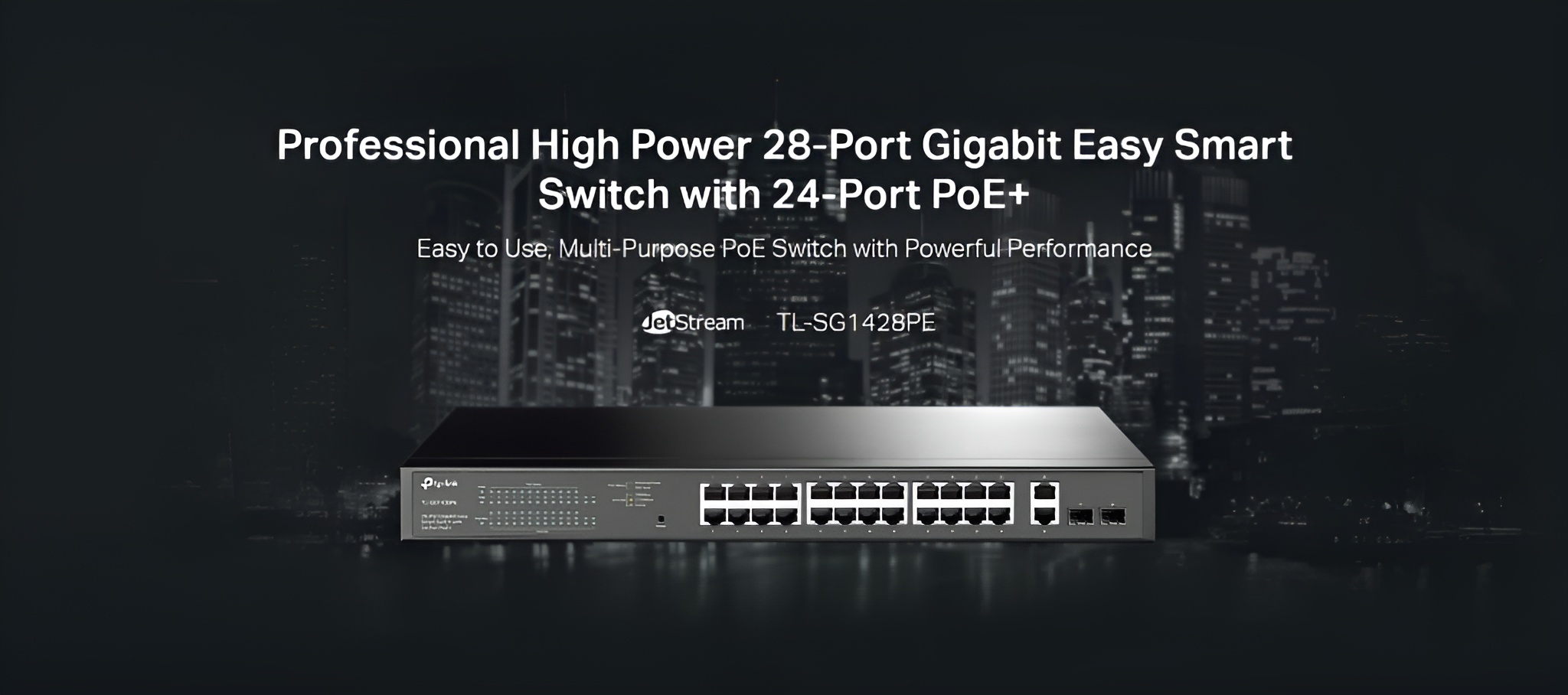

- 24 10/100/1000Mbps RJ45 PoE+ Ports Switch With 2 Ethernet Copper And 2 SFP Fiber Uplink Ports

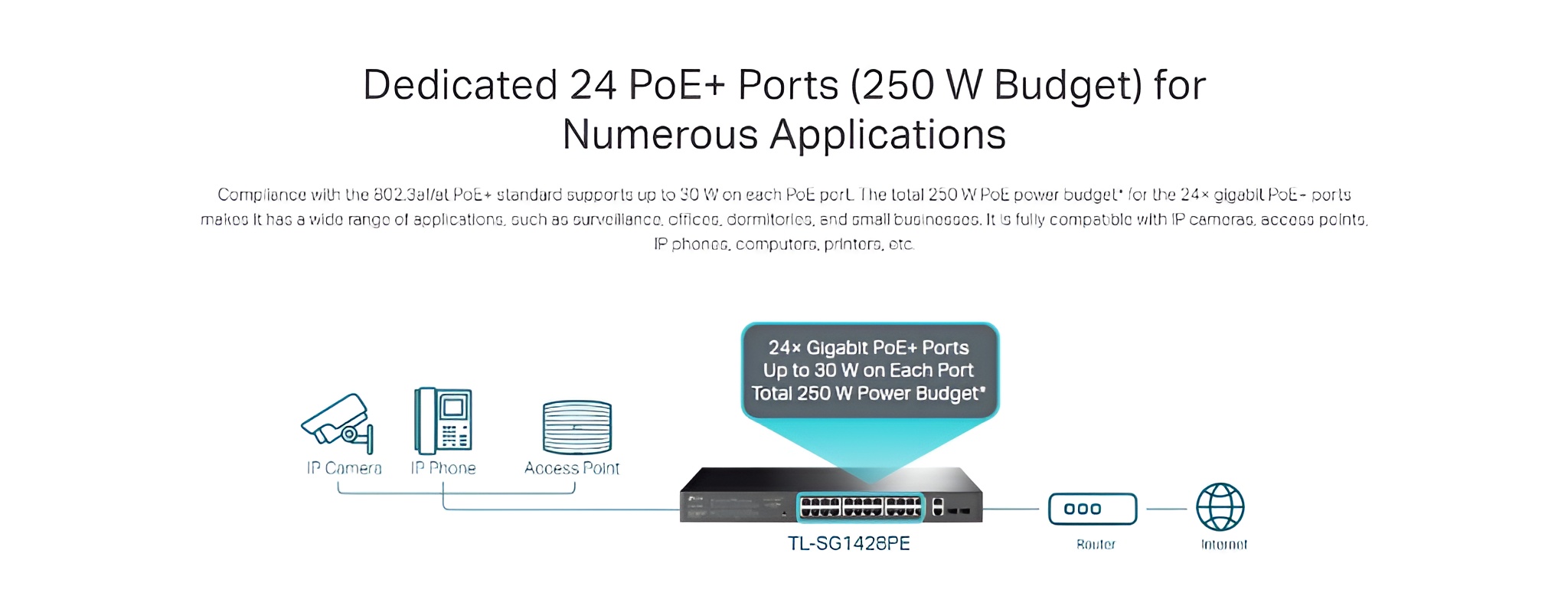

- PoE Power Budget Is Up To 250W*, Making It Ideal For Small To Medium Business Surveillance Systems
- Priority Mode Helps To Guarantee The Quality Of Sensitive Application Like Video Monitoring

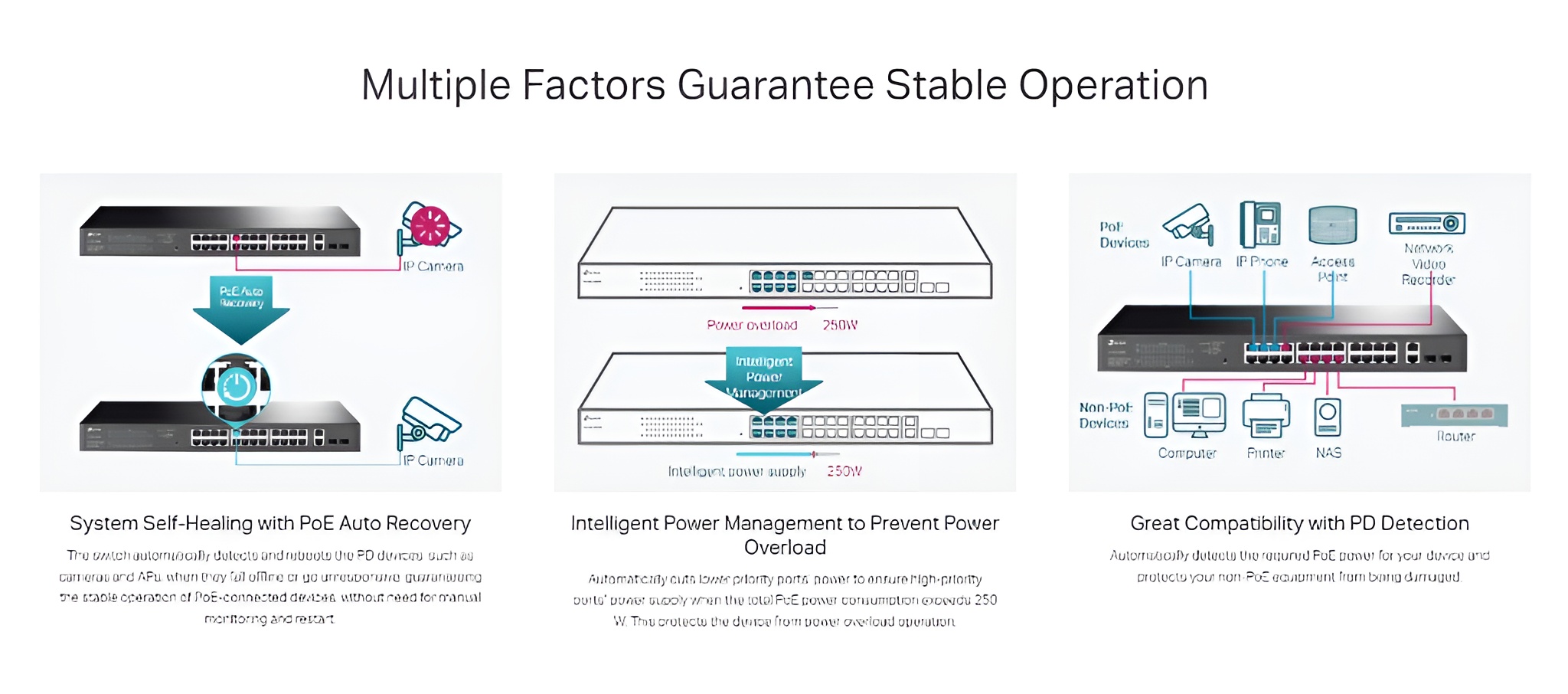

- PoE Auto Recovery Enables System Self-Healing To Guarantee The Stable Operation Of PoE-Connected Devices
- QoS Is For Smooth Internet-Surfing Experience And IGMP Snooping Is Capable Of Optimizing Traffic For IPTV
- Intelligent Power Management Can Protect The Switch From Overload

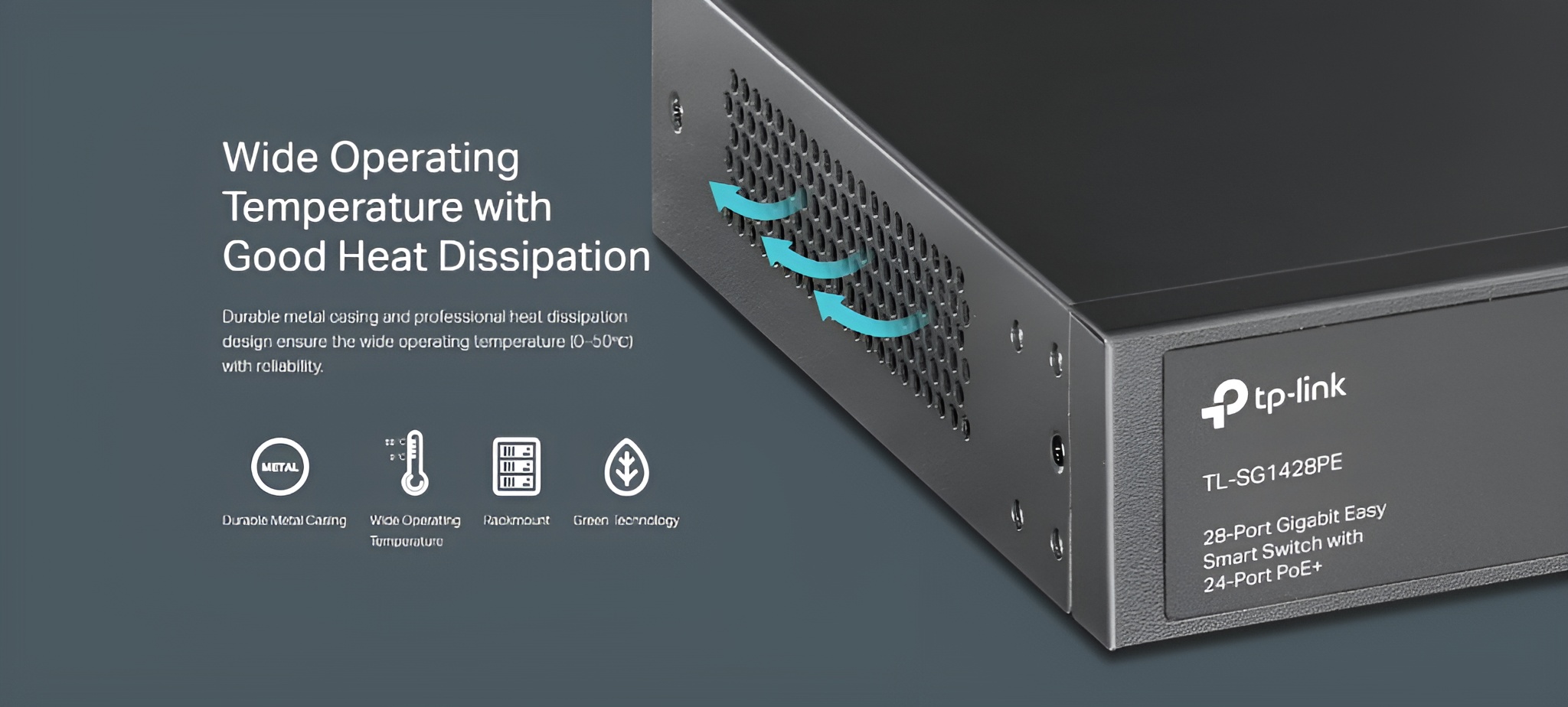

.jpg)
Specification
| Hardware Features | |
| Standards And Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p |
| Interface | 26 10/100/1000Mbps RJ45 Ports 2 Gigabit SFP Ports |
| Network Media | 10BASE-T : UTP Category 3, 4, 5 Cable (Maximum 100m) EIA/TIA-568 100Ω STP (Maximum 100m) 100BASE-TX : UTP Category 5, 5e Cable (Maximum 100m) EIA/TIA-568 100Ω STP (Maximum 100m) 1000BASE-T : UTP Category 5, 5e, 6 Or Above Cable (Maximum 100m) EIA/TIA-568 100Ω STP (Maximum 100m) 1000BASE-X MMF, SMF |
| Fan Quantity | 2 Fans |
| Physical Security Lock | Yes |
| Power Supply | 100-240V AC, 50/60Hz |
| PoE+ Ports (RJ45) | Standard : 802.3at/802.3af Compliant PoE+ Ports : 24 Ports Power Supply : 250W |
| Dimensions | 440mm x 220mm x 44mm (W x D x H ) |
| Mounting | Rack Mountable |
| Max Power Consumption | 27W (220/50Hz; No PD Connected) 304.7W (220/50Hz. With 250W PD Connected) |
| Max Heat Dissipation | 92.07 BTU/h (No PD Connected) 1039.03 BTU/h (With 250W PD Connected) |
| Performance | |
| Switching Capacity | 56Gbps |
| Packet Forwarding Rate | 41.7Mbps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4.1Mbit |
| Jumbo Frame | 9KB |
| Software Features | |
| Quality Of Service | Support Port-Based 802.1p/DSCP Priority Support 4 Priority Queues Rate Limit Storm Control |
| L2 Features | IGMP Snooping V1/V2/V3 Static Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention PoE Auto Recovery |
| VLAN | Support Up To 32 VLANs Simultaneously (Out Of 4K VLAN IDs) MTU/Port/Tag VLA |

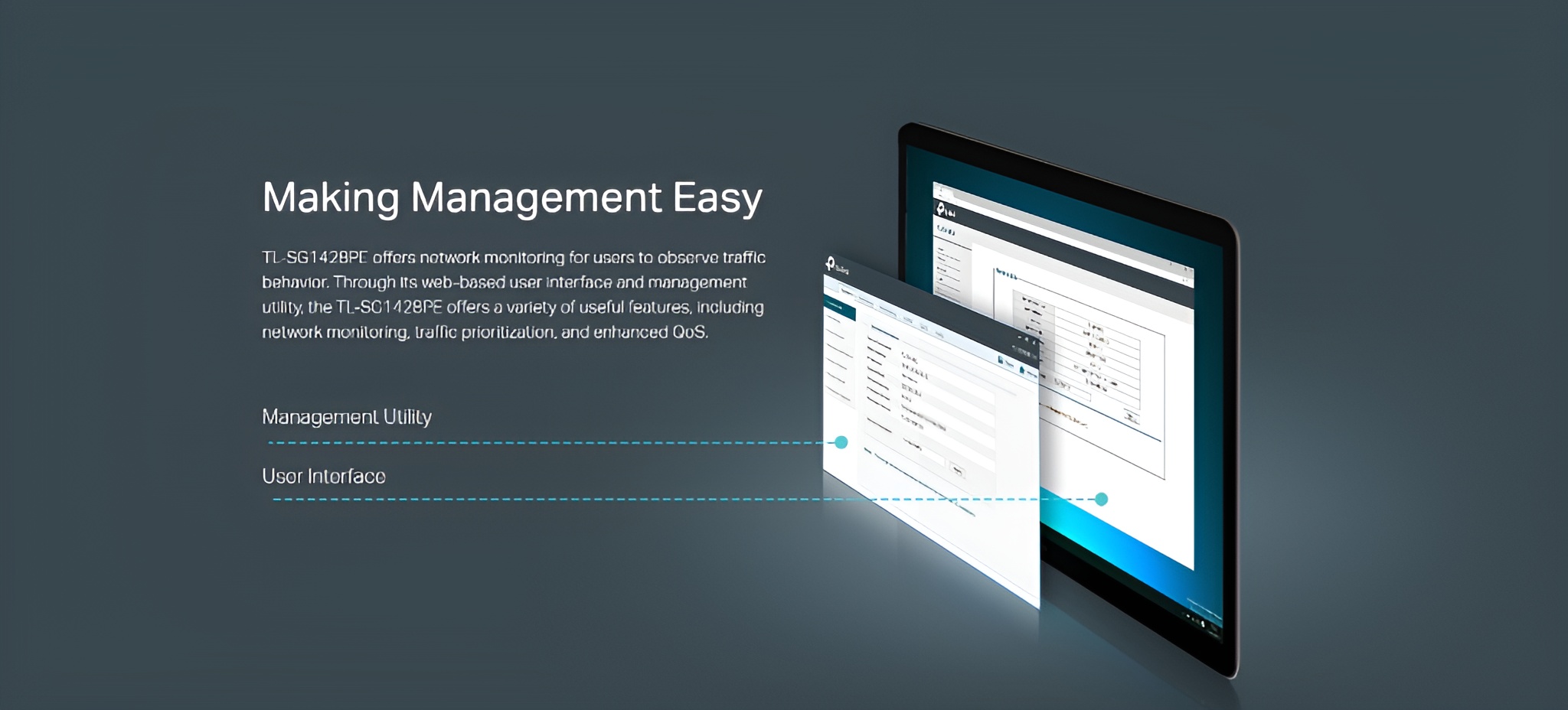

| Management | Web-Based GUI Easy Smart Configuration Utility |
| Transmission Method | Store-And-Forward |
| Others | |
| Certification | CE, FCC, RoHS |
| Environment | Operating Temperature : 0ºC~50ºC Storage Temperature : -40ºC~70°C Operating Humidity : 10%~90% Non-Condensing Storage Humidity : 5%~90% Non-Condensing |
What In The Box
- 1 x TP-LINK TL-SG1428PE 28-Port Gigabit Easy Smart Switch With 24-Port PoE+
- 1 x Power Cord
- 1 x Rackmount Kit
- 1 x Rubber Feet
- 1 x Installation Guide
Warranty
3 Year Limited Warranty
Local Supplier Warranty
