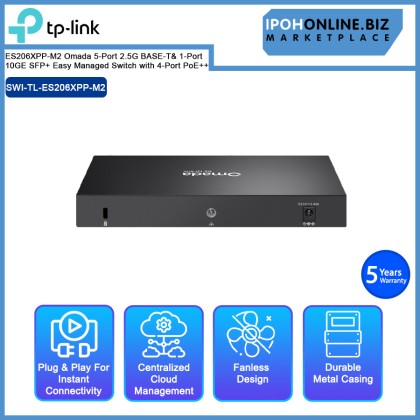

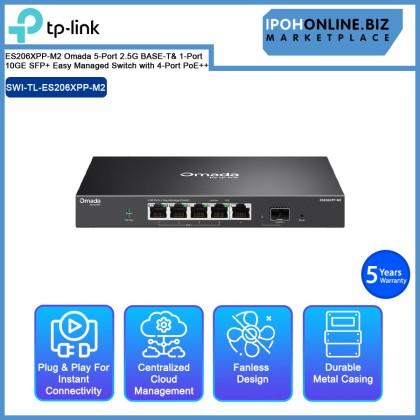

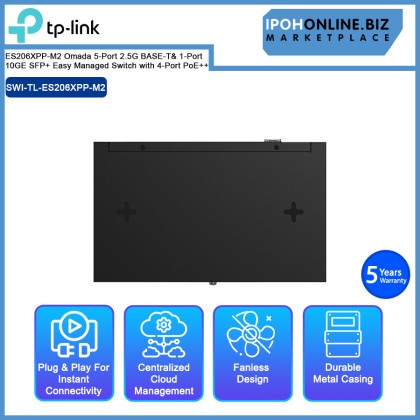

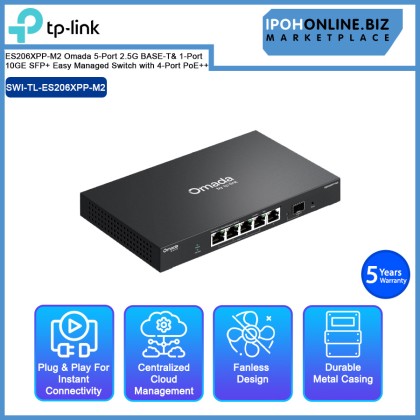

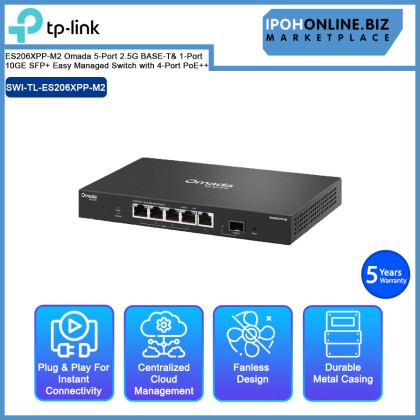

Name: TP-LINK ES206XPP-M2 Omada 5-Port 2.5G BASE-T& 1-Port 10GE SFP+ Easy Managed Switch with 4-Port PoE++
Brand: TP-Link
SKU: SWI-TL-ES206XPP-M2
Price: 1999.00 MYR
Availability: InStock

TP-LINK ES206XPP-M2 Omada 5-Port 2.5G BASE-T& 1-Port 10GE SFP+ Easy Managed Switch with 4-Port PoE++

RM1,999.00 RM

TP-LINK ES206XPP-M2 Omada 5-Port 2.5G BASE-T& 1-Port 10GE SFP+ Easy Managed Switch with 4-Port PoE++

Price	RM1,999.00 RM
Product SKU	SWI-TL-ES206XPP-M2
Brand	TP-Link
Size (L x W x H)	37 cm x 29 cm x 13 cm
Availability	2

Quantity

Product
Description
Reviews (0)
What's in the box

Description

Highlight
								5× 2.5 Gbps RJ45 ports (4× 802.3af/at/bt-compliant PoE++)
1× 10 Gbps SFP+ slot
120W PoE budget, with up to 90W for each PoE port*
Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
Centralized Cloud Management via the web or the Omada app†
Automatic Loop Prevention, VLAN, Port Isolation, QoS△, and IGMP Snooping
Fanless design for silent operation
Durable metal casing and desktop/wall mounting design



Features

5× 2.5 Gbps RJ45 ports (4× 802.3af/at/bt-compliant PoE++)
1× 10 Gbps SFP+ slot
120W PoE budget, with up to 90W for each PoE port*
Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
Centralized Cloud Management via the web or the Omada app^†
Automatic Loop Prevention, VLAN, Port Isolation, QoS^△, and IGMP Snooping
Fanless design for silent operation
Durable metal casing and desktop/wall mounting design

Specifications

Model	ES206XPP-M2
Interface	5× 2.5 Gbps RJ45 Ports (4× 802.3af/At/Bt-Compliant PoE++), 1× 10 Gbps SFP+ Slot, Auto-Negotiation/Auto MDI/MDIX
Fan Quantity	Fanless
Installation	Desktop, Wall Mount
Physical Security Lock	√
Power Supply	DC Power Adapter (Output: 53.5 VDC / 2.43 A)
PoE Ports (RJ45)	Standard: 802.3af/At/Bt PoE++ Compliant, PoE Ports: 4 Ports, PoE Budget: 120W Available For All PoE++ Ports, 90W Max Per Port, Fast PoE & Perpetual PoE, PoE Auto Recovery‡
Dimensions (W X D X H)	8.2 × 5.0 × 1.0 In (209 × 126 × 26 Mm)
Surge Protection	±6 kV
Packet Buffer Memory	640 KB
Jumbo Frame	10 KB
Switching Capacity	45 Gbps
Packet Forwarding Rate	33.48 Mpps
MAC Address Table	16K
Quality Of Service	Port-Based/802.1p/DSCP QoS, 8 Priority Queues, Priority Schedule Mode - WRR (Weighted Round Robin), Queue Weight Config, Bandwidth Control - Port-Based Rating Limit, Storm Control - Multiple Control Modes (Kbps/Pps), Broadcast/Multicast/Unknown-Unicast Control△
L2 Features	Static Link Aggregation, Loop Prevention / Loopback Detection, Flow Control - 802.3x Flow Control, Mirroring - Port Mirroring, One-To-One, Many-To-One, Ingress/Egress/Both, Port Statistics - Port Mirror Status, Traffic Statistics, 802.1ab LLDP
L2 Multicast	IGMP Snooping, IGMP V1/V2/V3 Snooping, Fast Leave
VLAN	MTU VLAN, Port-Based VLAN, 802.1Q Tag VLAN, Max 32 VLAN Groups, 4K VID
Transmission Method	Store-And-Forward
Omada App	Yes. Requires The Use Of Omada Hardware Controller, Omada Cloud-Based Controller, Or Omada Software Controller.
Centralized Management	Omada Cloud-Based Controller, Omada Hardware Controller, Omada Software Controller
Cloud Access	Yes. Requires The Use Of Omada Hardware Controller, Omada Cloud-Based Controller, Or Omada Software Controller.
Zero-Touch Provisioning	Yes. Requires The Use Of Omada Cloud-Based Controller
Management Features	Web-Based GUI, DHCP Client, Cable Diagnostics, Automatic Device Discovery†, Batch Configuration†, Batch Firmware Upgrading†, Unified Configuration†
Certification	FCC, CE, RoHS
Package Content	ES206XPP-M2, Power Adapter, Power Cord, Mounting Feet, Installation Guide
Environment	Operating Temperature: -5℃~40℃ (23℉~104℉), Storage Temperature: -40℃~70℃ (-40℉~158℉), Operating Humidity: 10%~90% Non-Condensing, Storage Humidity: 5%~90% Non-Condensing
