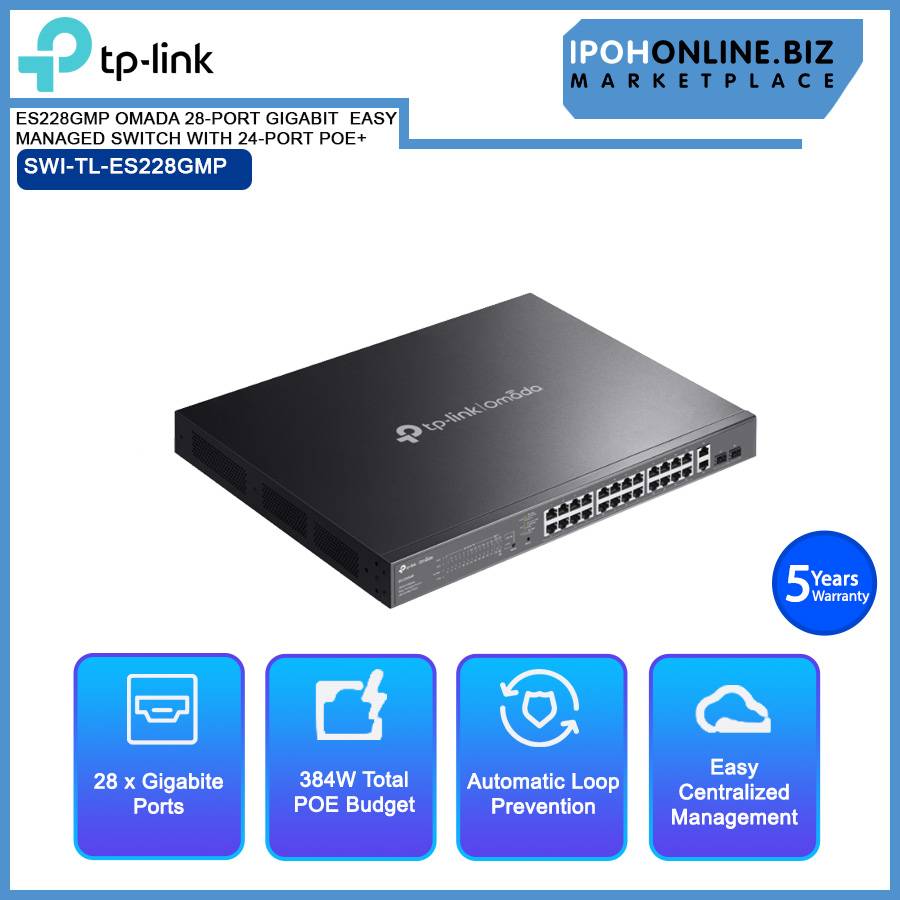

TP-LINK ES228GMP OMADA 28-PORT GIGABIT EASY MANAGED SWITCH WITH 24-PORT POE+

RM1,829.00 RM1,999.00 RM

TP-LINK ES228GMP OMADA 28-PORT GIGABIT EASY MANAGED SWITCH WITH 24-PORT POE+

Price	RM1,829.00 RM1,999.00 RM
Product SKU	SWI-TL-ES228GMP
Size (L x W x H)	58 cm x 52 cm x 15 cm
Availability	1

Quantity

Product
Description
Reviews (0)
What's in the box

Description

Highlight
								26× 10/100/1000Mbps RJ45 ports (24× 802.3af/at-compliant PoE+)
2× Gigabit SFP port
384W Power Budget, with up to 30W for each PoE port
Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
Centralized Cloud Management via the web or the Omada app
Up to 250m PoE, QoS, PoE Auto Recovery, and Port Isolation for reliable surveillance networking
Automatic Loop Prevention, VLAN, and IGMP Snooping
Durable metal casing and rack-mountable design



Feature

26× 10/100/1000Mbps RJ45 ports (24× 802.3af/at-compliant PoE+)
2× Gigabit SFP port
384W Power Budget, with up to 30W for each PoE port
Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
Centralized Cloud Management via the web or the Omada app
Up to 250m PoE, QoS, PoE Auto Recovery, and Port Isolation for reliable surveillance networking
Automatic Loop Prevention, VLAN, and IGMP Snooping
Durable metal casing and rack-mountable design

Specification

Interface	• 24× 10/100/1000 Mbps PoE+ RJ45 Ports (802.3af/at) • 2× 10/100/1000 Mbps RJ45 Ports • 2× Gigabit SFP Slots • Auto-Negotiation/Auto MDI/MDIX
Fan Quantity	2
Installation	Rackmountable
Physical Security Lock	Yes
Power Supply	100–240V AC, 50/60Hz
PoE Standard	802.3af/at compliant
PoE Ports	24
PoE Budget	384W total (30W max per port)
PoE Features	Fast PoE, Perpetual PoE, PoE Auto Recovery
PoE Transmission Distance	Up to 250m
Dimensions	17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm)
Surge Protection	±6kV
Switching Capacity	56 Gbps
Packet Forwarding Rate	41.67 Mpps
MAC Address Table	8K
Packet Buffer Memory	4 Mbit
Jumbo Frame	15 KB
QoS	Port-based / 802.1p / DSCP, 8 queues, WRR, queue weighting, bandwidth control, storm control
L2 Features	Static Link Aggregation, Loop Prevention/Detection, 802.3x Flow Control
Mirroring	Port mirroring (one-to-one, many-to-one, ingress/egress/both)
Port Statistics	Mirror status, traffic statistics
LLDP	802.1ab
L2 Multicast	IGMP Snooping v1/v2/v3, Fast Leave
VLAN	MTU VLAN, Port-Based VLAN, 802.1Q, 32 VLAN groups, 4K VID
Transmission Method	Store-and-Forward
Omada App Support	Yes (requires controller)
Centralized Management	Cloud-Based, Hardware, or Software Controller
Cloud Access	Yes (requires controller)
Zero-Touch Provisioning	Yes (cloud-based controller)
Management	Web GUI, DHCP Client, Cable Diagnostics, Auto Discovery, Batch Config & Firmware Upgrade, Unified Config †
Certification	FCC, CE, RoHS
Package Contents	ES228GMP, Power Cord, Mounting Brackets, Rubber Feet, Screws, Installation Guide
Operating Temperature	-5℃ to 45℃ (23℉ to 113℉)
Storage Temperature	-40℃ to 70℃ (-40℉ to 158℉)
Operating Humidity	10%–90% non-condensing
Storage Humidity	5%–90% non-condensing
