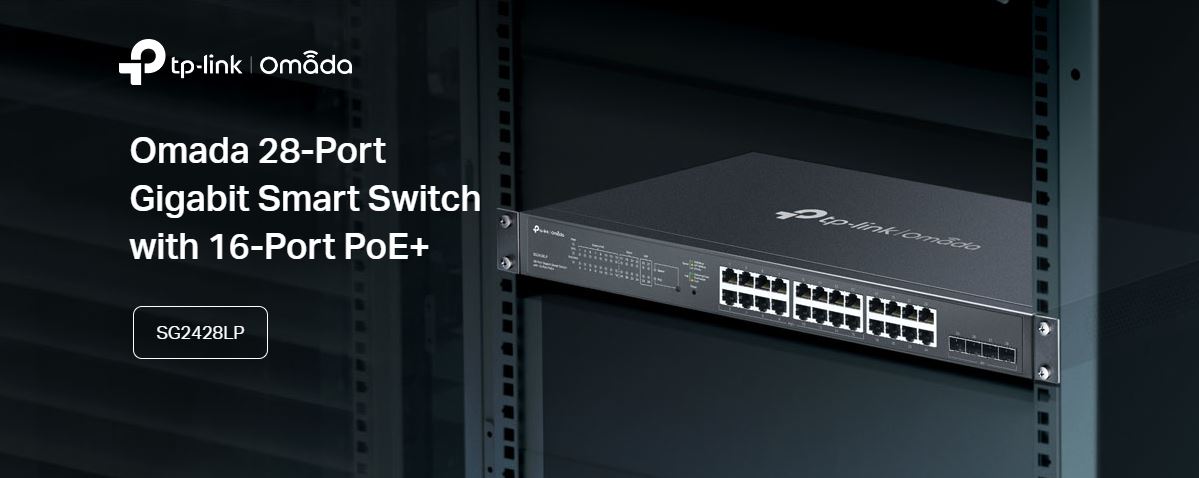

Name: TP-LINK SG2428LP Omada 28-Port Gigabit Smart Switch with 16-Port POE+
Brand: TP-Link
SKU: SWI-TL-SG2428LP
Price: 1439.00 MYR
Availability: InStock

TP-LINK SG2428LP Omada 28-Port Gigabit Smart Switch with 16-Port POE+

RM1,439.00 RM1,999.00 RM

TP-LINK SG2428LP Omada 28-Port Gigabit Smart Switch with 16-Port POE+

Price	RM1,439.00 RM1,999.00 RM
Product SKU	SWI-TL-SG2428LP
Brand	TP-Link
Size (L x W x H)	59 cm x 39 cm x 15 cm
Availability	2

Quantity

Product
Description
Reviews (0)
What's in the box

Description

Highlight
								16× Gigabit 802.3af/at PoE+ ports
8× Gigabit non-PoE RJ45 ports and 4× Gigabit SFP slots
150 W total PoE budget with up to 30 W PoE output per port
Centralized cloud management via the web or the Omada app
Standalone management via web, CLI, SNMP, and RMON
Static Routing helps route internal traffic for higher efficiency
VLAN, ACL, QoS, and IGMP Snooping
Fanless design for quiet operation
Durable metal casing and rackmountable design



Specifications

HARDWARE FEATURES

Interface	16× 10/100/1000 Mbps PoE+ RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) 8× 10/100/1000 Mbps non-PoE RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) 4× Gigabit SFP Slots
Fan Quantity	Fanless
Physical Security Lock	Yes
Power Supply	100-240V AC, 50/60Hz
PoE Ports (RJ45)	Standard: 802.3at/af compliant PoE+ Ports: 16 Ports (up to 30 W PoE Output per Port) PoE Power Budget: 150 W
Dimensions ( W x D x H )	17.3×8.7×1.73 in (440×220×44 mm)
Mounting	Rack Mountable
Max Power Consumption	184.7 W (110V/60Hz) (with 150 W PD connected)
Max Heat Dissipation	628.0 BTU/hr (110V/60 Hz) (with 150 W PD connected)

PERFORMANCE

Switching Capacity	56 Gbps
Packet Forwarding Rate	41.66 Mpps
MAC Address Table	8K
Packet Buffer Memory	4.1 Mbit
Jumbo Frame	9KB

SOFTWARE FEATURES

Quality of Service	802.1p CoS/DSCP priority 8 priority queues Priority Schedule Mode: SP (Strict Priority), WRR (Weighted Round Robin) Queue Weight Config Bandwidth Control: Port/Flow-based Rating Limit Smoother Performance Storm Control: Multiple Control Modes(kbps/ratio), Broadcast/Multicast/Unknown-Unicast Control
L2 and L2+ Features	16 IP Interfaces: Support IPv4/IPv6 Interface Static Routing: 32 IPv4/IPv6 Static Routes DHCP Server DHCP Relay DHCP Interface Relay DHCP VLAN Relay DHCP L2 Relay Static ARP Proxy ARP Gratuitous ARP Link Aggregation Spanning Tree Protocol Loopback Detection 802.3x Flow Control Mirroring Device Link Detect Protocol (DLDP) 802.1ab LLDP/ LLDP-MED
L2 Multicast	511 IPv4, IPv6 shared multicast groups IGMP Snooping Multicast VLAN Registration (MVR) Multicast Filtering Limited IP Multicast (256 profiles and 16 entries per profile)
Advanced Features	Automatic Device Discovery Batch Configuration Batch Firmware Upgrading Intelligent Network Monitoring Abnormal Event Warnings Unified Configuration Reboot Schedule
VLAN	VLAN Group: Max. 4K VLAN Groups 802.1Q tag VLAN MAC VLAN: 12 Entries Protocol VLAN GVRP Voice VLAN
Access Control List	Support up to 230 entries Time-based ACL MAC ACL IP ACL IPv6 ACL Combined ACL Rule Operation: Permit/Deny Policy Action Mirroring Redirect Rate Limit QoS Remark ACL Rules Binding Port Binding VLAN Binding
Security	IP-MAC-Port Binding AAA 802.1X Port based authentication MAC (Host) based authentication Authentication Method includes PAP/EAP-MD5 MAB Guest VLAN Radius authentication and accountability support IP/IPv6-MAC Binding 512 Binding Entries DHCP Snooping DHCPv6 Snooping ARP Inspection ND Detection IP Source Guard 253 Entries Source IP+Source MAC IPv6 Source Guard 183 Entries Source IPv6 Address+Source MAC DoS Defend Static/Dynamic/Permanent Port Security: Up to 64 MAC addresses per port Broadcast/Multicast/Unicast Storm Control: kbps/ratio control mode Port Isolation Secure web management through HTTPS with SSLv3/TLS 1.2 Secure Command Line Interface (CLI) management with SSHv1/SSHv2 IP/Port/MAC-based access control
IPv6	IPv6 Static Routing and ACL IPv6 Dual IPv4/IPv6 IPv6 Interface Multicast Listener Discovery (MLD) Snooping IPv6 neighbor discovery (ND) Path maximum transmission unit (MTU) discovery Internet Control Message Protocol (ICMP) version 6 TCPv6/UDPv6 IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet(v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP
MIBs	MIB II (RFC1213) Bridge MIB (RFC1493) P/Q-Bridge MIB (RFC2674) Radius Accounting Client MIB (RFC2620) Radius Authentication Client MIB (RFC2618) Remote Ping, Traceroute MIB (RFC2925) Support TP-Link private MIBs RMON MIB(RFC1757, rmon 1,2,3,9)

MANAGEMENT

Omada App	Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management	Omada Cloud-Based Controller Omada Hardware Controller Omada Software Controller
Cloud Access	Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller
Management Features	Web-based GUI Command Line Interface (CLI) through telnet SNMPv1/v2c/v3 SNMP Trap/Inform RMON (1,2,3,9 groups) SDM Template DHCP/BOOTP Client Dual Image, Dual Configuration CPU Monitoring Cable Diagnostics EEE SNTP System Log

OTHERS

Certification	CE, FCC
Package Contents	SG2428LP Power Cord Installation Guide Rackmount Kit Rubber Feet
System Requirements	Microsoft® Windows® XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Environment	Operating Temperature: 0–40 ℃ (32–104 ℉); Storage Temperature: -40–70 ℃ (-40–158 ℉) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing

What's in the box

1 x TP-LINK SG2428LP Omada 28-Port Gigabit Smart Switch with 16-Port POE+
1 x Power Cord
1 x Installation Guide
1 x Rackmount Kit
4 x Rubber Feet

Warranty
5 Years Warranty
Local Manufacturer Warranty
