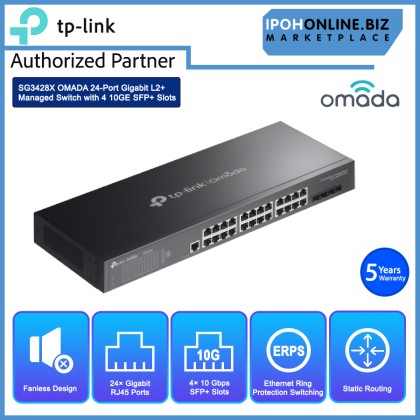

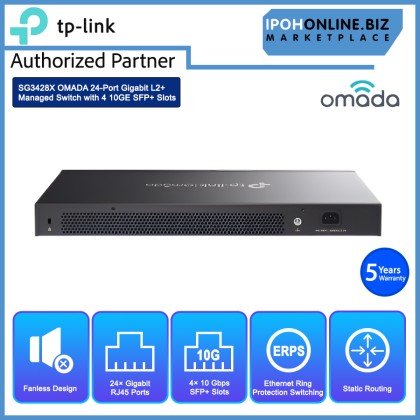

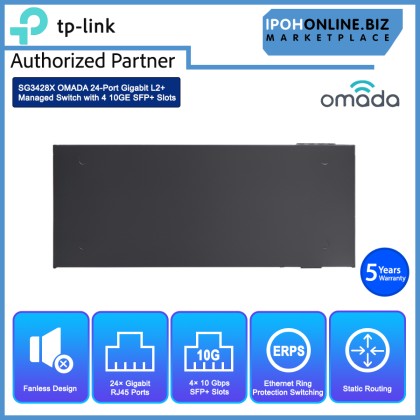

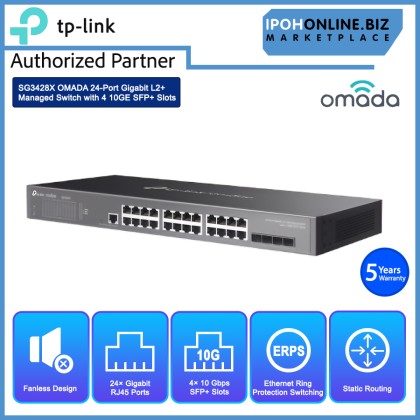

Name: TP-LINK SG3428X OMADA 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots
Brand: TP-Link
SKU: SWI-TL-SG3428X
Price: 1799.00 MYR
Availability: InStock

TP-LINK SG3428X OMADA 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots

RM1,799.00 RM2,699.00 RM

TP-LINK SG3428X OMADA 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots

Price	RM1,799.00 RM2,699.00 RM
Product SKU	SWI-TL-SG3428X
Brand	TP-Link
Size (L x W x H)	59 cm x 31 cm x 14 cm
Availability	1

Quantity

Product
Description
Reviews (0)
What's in the box

Description

Highlight
								4× 10 Gbps SFP+ slots enable high-bandwidth connectivity
24× Gigabit RJ45 ports
128 Gbps switching capacity
Centralized cloud management via the web or the Omada app
Standalone management via web, CLI, SNMP, and RMON
Static Routing helps route internal traffic for higher efficiency
VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
ERPS supports rapid protection and recovery in a ring topology
Fanless design for silent operation
Durable metal casing and rackmountable design



Features

4× 10 Gbps SFP+ slots enable high-bandwidth connectivity
24× Gigabit RJ45 ports
128 Gbps switching capacity
Centralized cloud management via the web or the Omada app
Standalone management via web, CLI, SNMP, and RMON
Static Routing helps route internal traffic for higher efficiency
VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
ERPS supports rapid protection and recovery in a ring topology
Fanless design for silent operation
Durable metal casing and rackmountable design

Specification

HARDWARE FEATURES
Interface	24× 10/100/1000 Mbps RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX) 4× 10G SFP+ Slots 1× RJ45 Console Port 1× Micro-USB Console Port
Fan Quantity	Fanless
Physical Security Lock	√
Power Supply	100-240 V AC~50/60 Hz
Dimensions ( W x D x H )	17.3×7.1×1.7 in (440×180×44 mm)
Mounting	Rack Mountable
Max. Power Consumption	23.6 W (110V/60Hz)
Max Heat Dissipation	80.52 BTU/h (110 V/60 Hz)
PERFORMANCE
Switching Capacity	128 Gbps
Packet Forwarding Rate	95.23 Mpps
MAC Address Table	16 K
Packet Buffer Memory	12 Mbit
Jumbo Frame	9 KB
SOFTWARE FEATURES
Quality of Service	8 priority queues 802.1p CoS/DSCP priority Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR Bandwidth Control: Port/Flow-based Rating Limiting Smoother Performance Action for Flows: QoS remark (802.1P Remark, DSCP Remark)
L2 and L2+ Features	128 IP Interfaces: Support IPv4/IPv6 Interface Static Routing: 48 IPv4/IPv6 Static Routes Static ARP: 128 static entries 512 ARP Entries Proxy ARP Gratuitous ARP DHCP Server DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay DHCP L2 Relay Link Aggregation Spanning Tree Protocol Loopback Detection 802.3x Flow Control Mirroring
L2 Multicast	Supports 1000 (IPv4, IPv6) IGMP groups IGMP Snooping IGMP Authentication Multicast VLAN Registration (MVR) MLD Snooping Multicast Filtering: 256 profiles and 16 entries per profile
Advanced Features	Automatic Device Discovery Batch Configuration Batch Firmware Upgrading Intelligent Network Monitoring Abnormal Event Warnings Unified Configuration Reboot Schedule ISP Features: L2PT (Layer 2 Protocol Tunneling) Device Link Detect Protocol (DLDP) PPPoE ID Insertion ERPS 802.3ah Ethernet Link OAM DDM sFlow
VLAN	VLAN Group: Max 4K VLAN Groups 802.1q Tagged VLAN MAC VLAN: 30 Entries Protocol VLAN: Protocol Template 16, Protocol VLAN 16 Private VLAN GVRP VLAN VPN: VLAN Mapping, VLAN Replace Voice VLAN
Access Control List	Time-based ACL MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS Combined ACL Packet Content ACL IPv6 ACL Policy: Mirroring, Redirect, Rate Limit, QoS Remark ACL apply to Port/VLAN
Security	• IP-MAC-Port Binding - 512 Entries - DHCP Snooping - ARP Inspection - IPv4 Source Guard: 100 Entries • IPv6-MAC-Port Binding - 512 Entries - DHCPv6 Snooping - ND Detection - ND Snooping - IPv6 Source Guard: 100 Entries • DoS Defend • DHCP Filter • Static/Dynamic Port Security: Up to 64 MAC addresses per port • Broadcast/Multicast/Unicast Storm Control: kbps/ratio/pps control mode • 802.1X - Port-based authentication - Mac-base authentication - VLAN Assignment - MAB - Guest VLAN - Radius authentication and accountability support • AAA (including TACACS+) • Port Isolation • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv1/SSHv2 • IP/Port/MAC-based access control
IPv6	IPv6 Dual IPv4/IPv6 Multicast Listener Discovery (MLD) Snooping IPv6 ACL IPv6 Interface Static IPv6 Routing IPv6 neighbor discovery (ND) Path maximum transmission unit (MTU) discovery Internet Control Message Protocol (ICMP) version 6 TCPv6/UDPv6 IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP
MIBs	MIB II (RFC1213) Interface MIB (RFC2233) Ethernet Interface MIB (RFC1643) Bridge MIB (RFC1493) P/Q-Bridge MIB (RFC2674) RMON MIB (RFC2819) RMON2 MIB (RFC2021) Radius Accounting Client MIB (RFC2620) Radius Authentication Client MIB (RFC2618) Remote Ping, Traceroute MIB (RFC2925) Support TP-Link private MIB
MANAGEMENT FEATURES
Omada App	Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management	Omada Cloud-Based Controller Omada Hardware Controller Omada Software Controller
Cloud Access	Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller
Management Features	Web-based GUI Command Line Interface (CLI) through the console port, telnet SNMP v1/v2c/v3: Trap/Inform, RMON (1,2,3,9 groups) SDM Template DHCP/BOOTP Client 802.1ab LLDP/LLDP-MED DHCP AutoInstall Dual Image, Dual Configuration CPU Monitoring Cable Diagnostics EEE Password Recovery SNTP System Log
OTHERS
Certification	CE, FCC, RoHS
Environment	Operating Temperature: 0–45 ℃ (32–113 ℉); Storage Temperature: -40–70 ℃ (-40–158 ℉) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing
