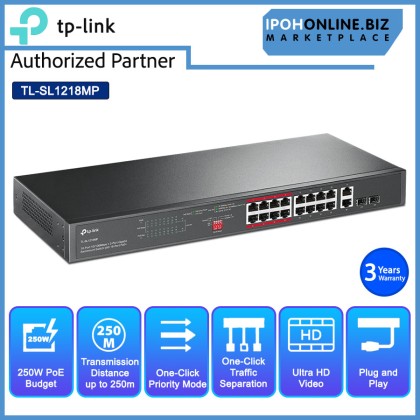

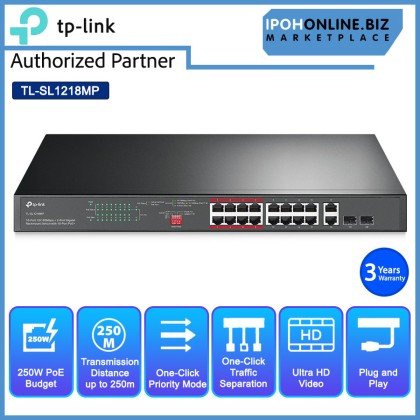

Tp-Link TL-SL1218MP 16 Port 10/100Mbps + 2 Port Gigabit Rackmount Switch with 16 Port PoE+ with Transmission for Surveillance up to 250m
| Price | RM849.00 RM899.00 RM |
| Product SKU | SWI-TL-SL1218MP |
| Brand | TP-Link |
| Size (L x W x H) | 56 cm x 30 cm x 12 cm |
| Availability | 9 |
| Quantity |
|
Description
Highlight
- 250W PoE Budget
- Extend Mode Support up to 250m PoE Power Supplying
- 802.3at/af PoE Supported
- Up to 30W Max Output per Port
2.0_Overview_04_large_1595313613482t.jpg)
2.0_Overview_05_large_1595313622748a.jpg)
2.0_Overview_07_large_1595313652533o.jpg)
2.0_Overview_06_large_1595313644479f.jpg)
2.0_Overview_08_large_1595313660111f.jpg)
Specification
| HARDWARE FEATURES | |
| Interface | • 16 PoE+ 10/100 Mbps RJ45 Ports • 2× 10/100/1000 Mbps RJ45 Ports • 2× Combo Gigabit SFP Slots |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-X MMF, SMF |
| Fan Quantity | 2 Fans |
| Physical Security Lock | Yes |
| Power Supply | 100–240V AC, 50/60 Hz |
| PoE+ Ports(RJ45) | • Standard: 802.3at/802.3af compliant • PoE Ports: Ports 1–16 • PoE Power Budget: 250 W |
| Dimensions ( W x D x H ) | 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm) |
| Max Power Consumption | • 15.0 W (no PD connected) • 285.8 W (with 250 W PD connected) |
| Max Heat Dissipation | • 51.1 BTU/h (no PD connected) • 974.6 BTU/h (with 250 W PD connected) |
| PERFORMANCE | |
| Switching Capacity | 7.2 Gbps |
| Packet Forwarding Rate | 5.36 Mpps |
| MAC Address Table | 8K |
| Jumbo Frame | 10 KB |
| SOFTWARE FEATURES | |
| Advanced Features | • Compatible With IEEE 802.3at/af Compliant PDs • Extend Mode (Up to 250m PoE power supply and data transmission) • Priority Mode • Isolation Mode • Mac Address Auto-Learning And Auto-Aging • IEEE802.3x Flow Control |
| Transmission Method | Store-And-Forward |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | • TL-SL1218MP • Power Cable • Installation Guide • Two mounting brackets and the fittings |
| Environment | • Operating Temperature: 0–50 °C (32–122 °F) • Storage Temperature: -40–70 °C (-40–158 °F) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
What's in the box
- 1 x Tp-Link TL-SL1218MP 16 Port 10/100Mbps + 2 Port Gigabit Rackmount Switch with 16 Port PoE+ with Transmission for Surveillance up to 250m
- 1 x Power Adapter
- 1 x Installation Guide
- 2 x Mounting Brackets
- 1 x Fittings
Warranty
3 Years Warranty
Local Manufacturer Warranty
Warranty Policy : Please Complete And Submit Product Warranty Registration Form Within 14 Days Of Purchase To Ensure Continuous Coverage. Lazada Warranty Registration http://lwr.accessglobal.info Email Us At [email protected]
