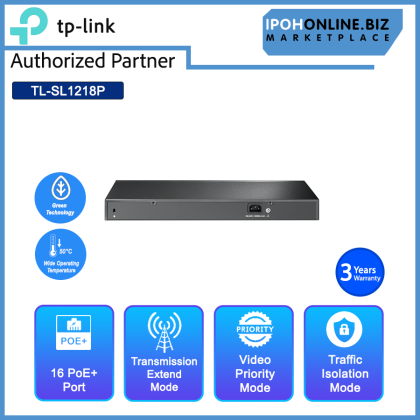

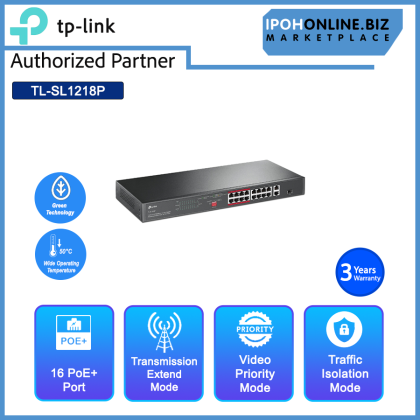

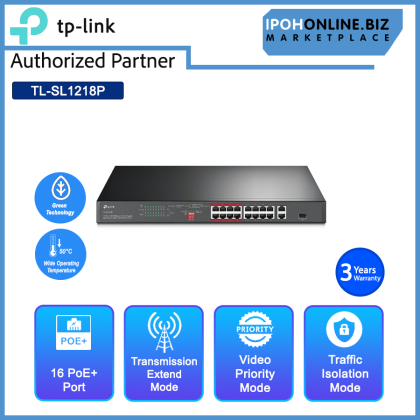

TP-Link TL-SL1218P 16 Port 10/100 Mbps + 2 Port Gigabit Rackmount Surveillance Network Switch with 16 Port PoE+ - Transmission up to 250m & Priority Video Quality Guaranteed
| Price | RM839.00 RM899.00 RM |
| Product SKU | SWI-TL-SL1218P |
| Brand | TP-Link |
| Size (L x W x H) | 58 cm x 30 cm x 13 cm |
| Availability | 5 |
| Quantity |
|
Description
Highlight
- 16× PoE+ 10/100 Mbps RJ45 ports, 2× Gigabit RJ45 ports, and 1× combo Gigabit SFP slot.
- High PoE power budget with up to 30 W for each PoE port and 150 W for all PoE ports.

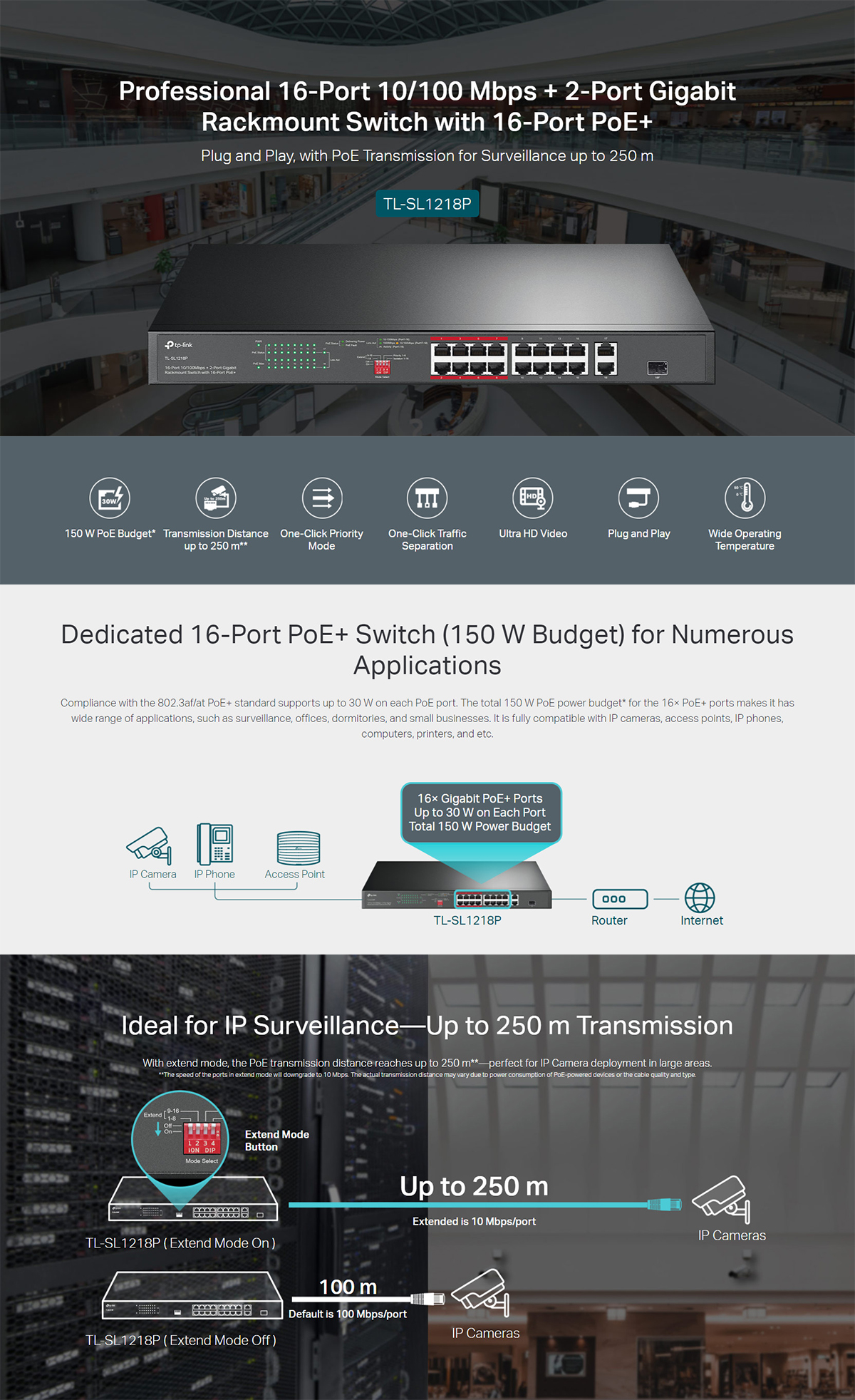

- Up to 250 m data and power transmission under extend mode specially designed for surveillance system.

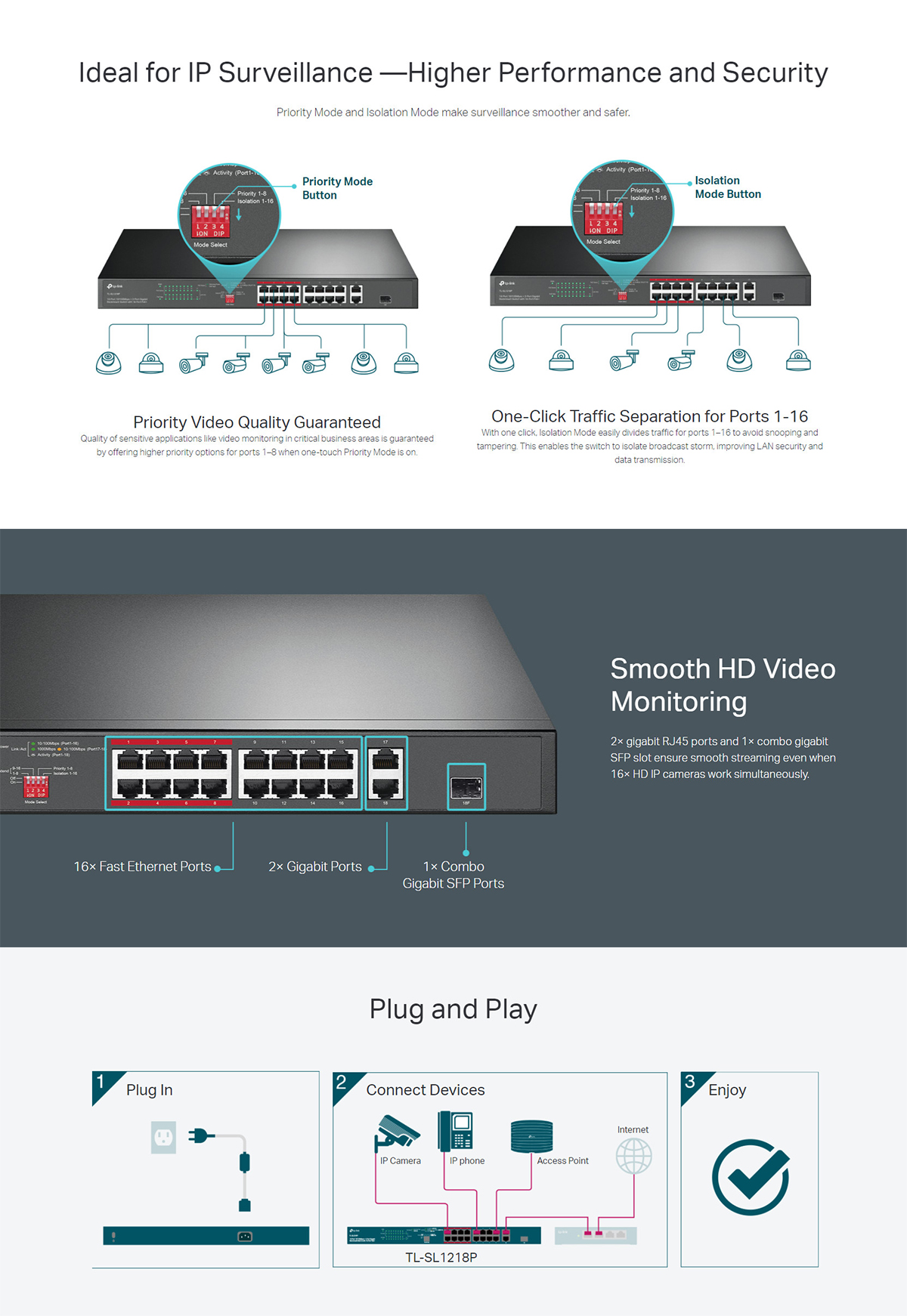

- Priority mode for ports 1–8 to guarantees the quality of sensitive applications like video monitor.
- Isolation Mode allows one-click client traffic separation for higher security and performance.
- Easy to use, with no configuration and installation needed.
Specification
| HARDWARE FEATURES | |
| Interface | 16× PoE+ 10/100 Mbps RJ45 Ports 2× 10/100/1000 Mbps RJ45 Ports 1× Combo Gigabit SFP Slot |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-X MMF, SMF |
| Fan Quantity | 2 Fans |
| Physical Security Lock | Yes |
| Power Supply | 100–240V AC, 50/60 Hz |
| PoE+ Ports(RJ45) | Standard: 802.3at/802.3af compliant PoE Ports: Ports 1–16 PoE Power Budget: 150 W |
| Dimensions ( W x D x H ) | 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm) |
| Max Power Consumption | 12.71 W (220/50Hz. no PD connected) 172.8 W (220/50Hz. with 150 W PD connected) |
| Max Heat Dissipation | 43.34 BTU/h (no PD connected) 589.25 BTU/h (with 150 W PD connected) |
| PERFORMANCE | |
| Switching Capacity | 7.2 Gbps |
| Packet Forwarding Rate | 5.36 Mpps |
| MAC Address Table | 8K |
| Jumbo Frame | 10 KB |
| SOFTWARE FEATURES | |
| Advanced Features | Compatible With IEEE 802.3at/af Compliant PDs Extend Mode (Up to 250m PoE power supply and data transmission) Priority Mode Isolation Mode Mac Address Auto-Learning And Auto-Aging IEEE802.3x Flow Control |
| Transmission Method | Store-And-Forward |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Environment | Operating Temperature: 0–50 °C (32–122 °F) Storage Temperature: -40–70 °C (-40–158 °F) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing |
What's in the box
- 1 x TP-Link TL-SL1218P 16 Port 10/100 Mbps + 2 Port Gigabit Rackmount Surveillance Network Switch with 16 Port PoE+ - Transmission up to 250m & Priority Video Quality Guaranteed
- 1 x Power Cable
- 1 x Installation Guide
- 1 x Two mounting brackets and the fittings
Warranty
3 Years Warranty
Local Manfacturer Warranty
