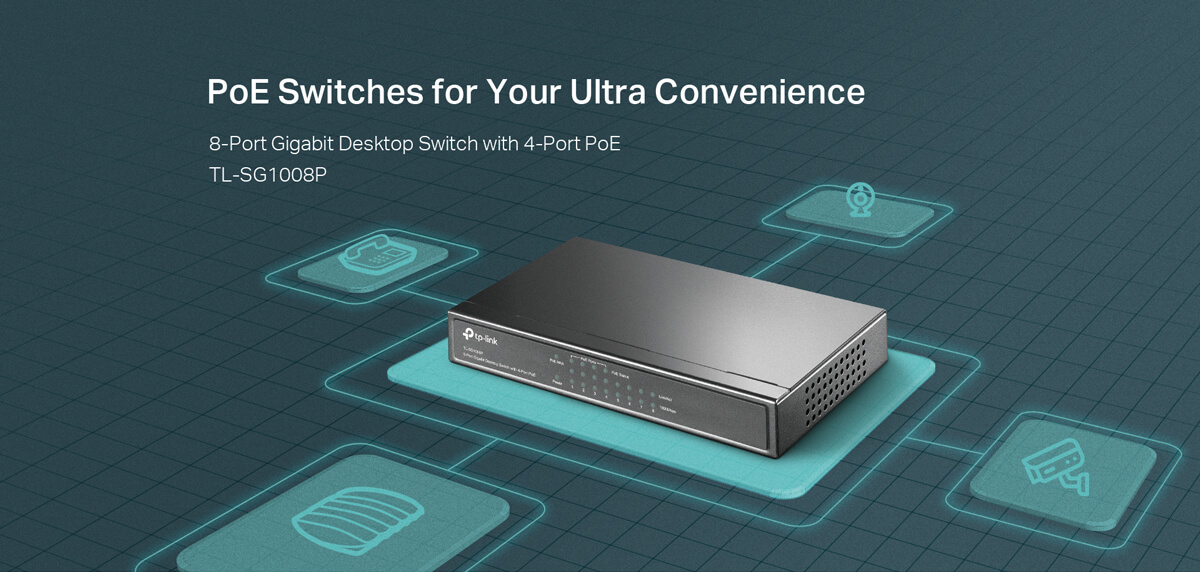

Name: TP-LINK TL-SG1008P 8-Port 10/100/1000 Mbps Gigabit Desktop Switch with 4-Port PoE
Brand: TP-Link
SKU: TP-SG1008P
Price: 369.00 MYR

TP-LINK TL-SG1008P 8-Port 10/100/1000 Mbps Gigabit Desktop Switch with 4-Port PoE

RM369.00 RM419.00 RM

TP-LINK TL-SG1008P 8-Port 10/100/1000 Mbps Gigabit Desktop Switch with 4-Port PoE

Price	RM369.00 RM419.00 RM
Product SKU	TP-SG1008P
Brand	TP-Link
Size (L x W x H)	34 cm x 28 cm x 12 cm
Availability

Product
Description
Reviews (0)
What's in the box

Description

Highlight
								8× 10/100/1000 Mbps RJ45 ports.

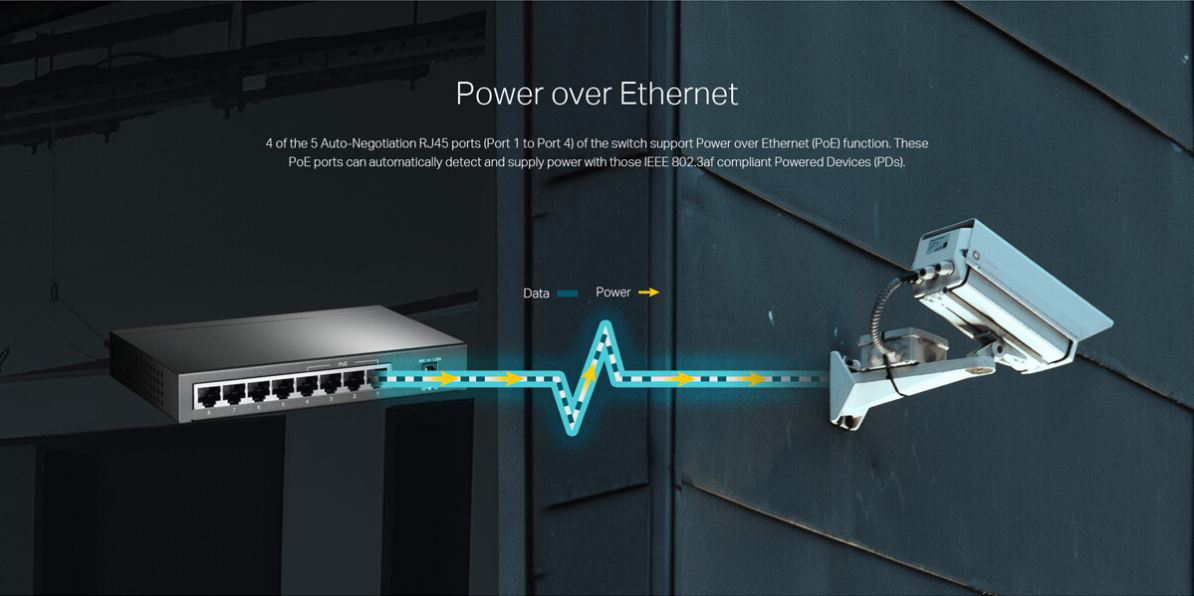

4× PoE+ ports transfer data and power on the cables
Works with IEEE 802.3af/at compliant PDs

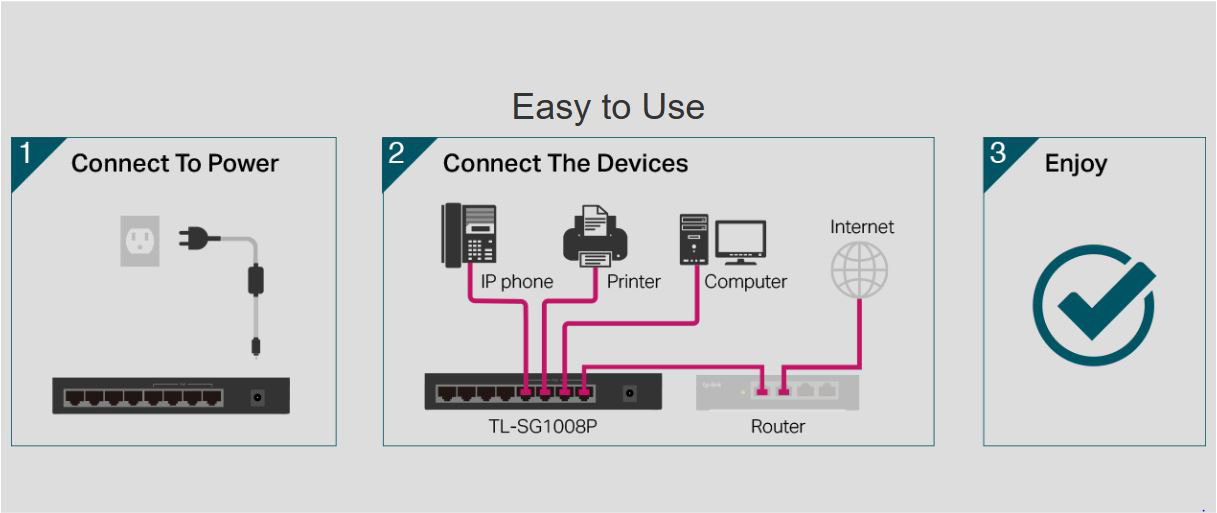

Plug and Play, no configuration and installation required
802.1p/DSCP QoS enable smooth latency-sensitive traffic
Supports PoE power up to 30 W for each PoE port

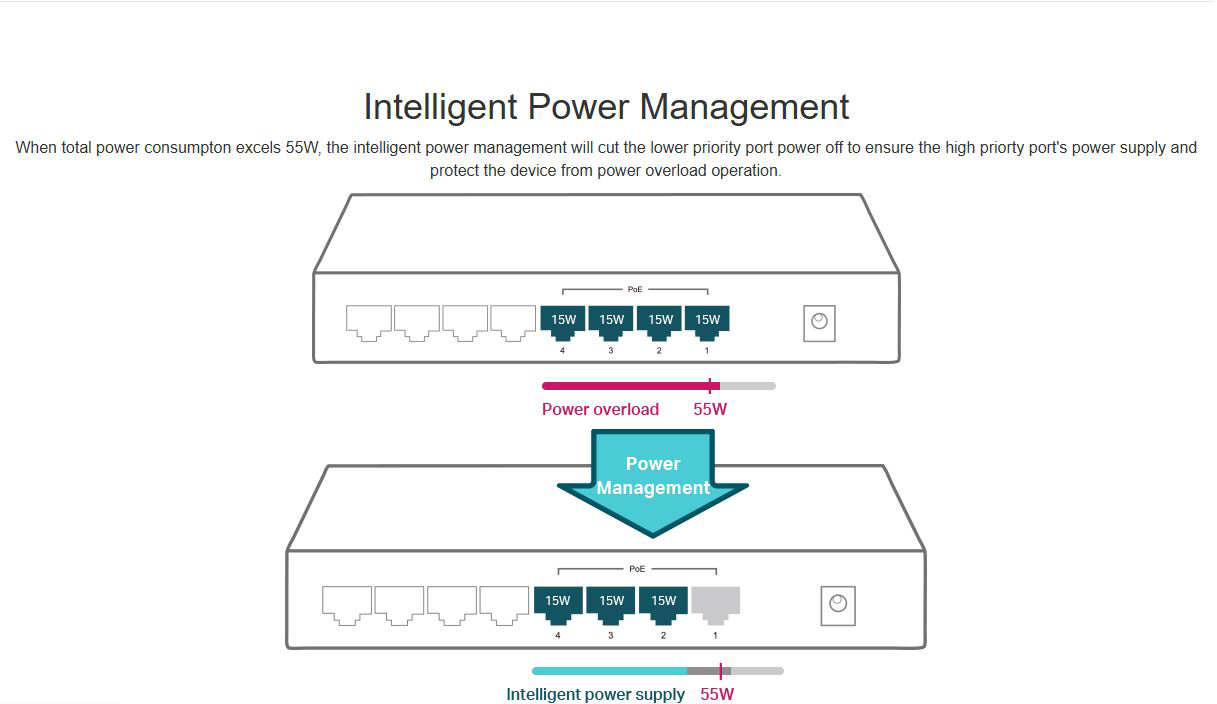

Supports PoE power up to 64 W for all PoE ports



Specifications

Hardware Features
Interface	8× 10/100/1000 Mbps RJ45 Ports AUTO Negotiation AUTO MDI/MDIX
Network Media	• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity	Fanless
Physical Security Lock	Yes
External Power Supply	External power adapter (Output: 54VDC / 1.3A)
Package Forwading Rate	11.904 Mpps
PoE Ports (RJ45)	• Standard: 802.3 af/at compliant • PoE Ports: ports 1–4 • Power budget for all PoE ports: 64 W
Mac Address Table	4K
Jumbo Frame	16 KB
Switching Capacity	16 Gbps
Dimensions ( W x D x H )	6.7 × 3.9 × 1.1 in (171×98×27 mm)
Max Power Consumption	• 5.4 W (with no PD connected) • 75 W (with 64W PD connected)
Max Heat Dissipation	• 18.4 BTU/h (with no PD connected) • 225.8 BTU/h (with 64 W PD connected)
Software Features
Transmission Method	Store-And-Forward
Advanced Functions	• Compatible With IEEE 802.3af/at Compliant PDs • IGMP Snooping • Mac Address Auto-Learning And Auto-Aging • IEEE802.3x Flow Control • 802.1p/DSCP QoS
Others
Certification	CE, FCC, RoHS
Package Contents	• TL-SG1008P • Power Adapter • Installation Guide
Environment	• Operating Temperature: 0–40 ℃ (32–104 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
