RM459.00
RM599.00
RM

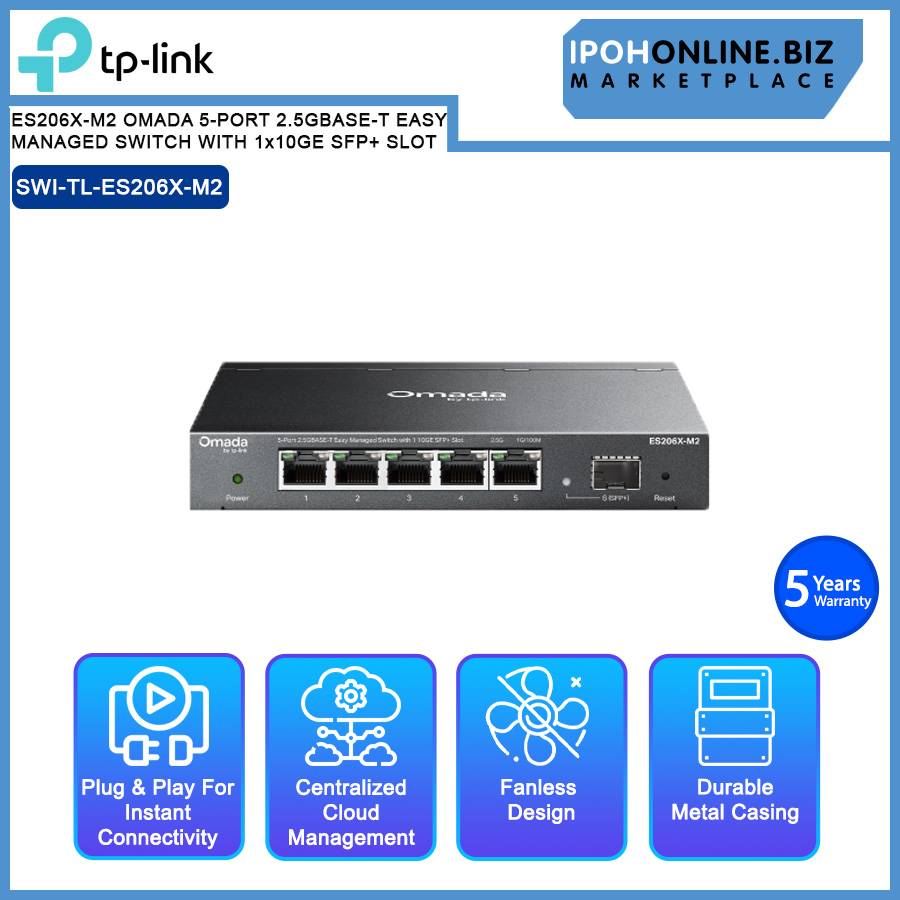

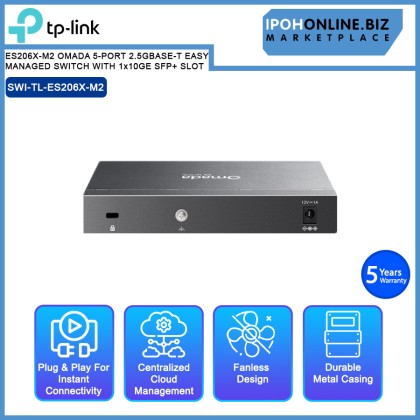

TP-LINK ES206X-M2 OMADA 5-PORT 2.5GBASE-T EASY MANAGED SWITCH WITH 1x10GE SFP+ SLOT
| Price | RM459.00 RM599.00 RM |
| Product SKU | SWI-TL-ES206X-M2 |
| Brand | TP-Link |
| Size (L x W x H) | 24 cm x 19 cm x 14 cm |
| Availability | 2 |
| Quantity |
|
Description
Highlight
- 5× 2.5 Gbps RJ45 Ports
- 1× 10 Gbps SFP+ Slot
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app
- VLAN, Port Isolation, Cable Test , QoS for reliable networking
- Automatic Loop Prevention and IGMP Snooping
- Fanless design for silent operation
- Durable metal casing and desktop/wall mounting design
Features
- 5× 2.5 Gbps RJ45 Ports
- 1× 10 Gbps SFP+ Slot
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app
- VLAN, Port Isolation, Cable Test , QoS for reliable networking
- Automatic Loop Prevention and IGMP Snooping
- Fanless design for silent operation
- Durable metal casing and desktop/wall mounting design
Specifications
| Model | ES206X-M2 |
| Interface | 5× 100 Mbps/1Gbps/2.5Gbps RJ45 Ports, 1× 10 Gbps SFP+ Slot |
| Flash | 64 Mbit |
| Port Standard | IEEE 802.3: Ethernet Media Access Control (MAC) Protocol, IEEE 802.3u:100BASE-X Fast Ethernet, IEEE 802.3ab:1000BASE-T Gigabit Ethernet, IEEE 802.3bz: 2.5GBASE-T Ethernet, IEEE 802.3z: 1000BASE-X Gigabit Ethernet (Optical Fiber), IEEE 802.3ae:10GBASE-SR/LR 10G Ethernet (Optical Fiber), IEEE 802.3aq:10GBASE-LRM 10G Ethernet (Optical Fiber), IEEE 802.3x: Flow Control, IEEE 802.1p: Traffic Class Expediting And Dynamic Multicast Filtering, IEEE 802.1q: Virtual Bridged Local Area Networks, IEEE 802.1ab: Station And Media Access Control Connectivity Discovery (LLDP) |
| Switching Capacity | 45 Gbps |
| Packet Forwarding Rate | 33.48 Mpps |
| MAC Address Table | 16K |
| Packet Buffer | 640 KB |
| Transmission Method | Store And Forward |
| Jumbo Frame | 10 KB |
| Power Supply | AC/DC Adapter (Input: 100-240V AC; Output: 12VDC / 1A) |
| Standby Power Consumption | 1.62 W (110V/60Hz) |
| Max Power Consumption | 5.63 W (110V/60Hz) |
| Max Heat Dissipation | 19.21 BTU/hr (110V/60Hz) |
| MTBF | 1223587 h @ 25°C |
| Dimensions (W x D x H) | 6.2 × 4.0 × 1.0 In (158 × 100.7 × 25.4 Mm) |
| Net Weight | 0.52 Kg (1.15 Lbs) |
| Fan Quantity | Fanless |
| Installation | Desktop / Wall Mounting |
| Operating Temperature | -5 °C To 40 °C (23 °F To 104 °F) |
| Storage Temperature | -40 °C To 70 °C (-40 °F To 158 °F) |
| Operation Humidity | 10% To 90% RH, Non-Condensing |
| Storage Humidity | 5% To 90% RH, Non-Condensing |
| Surge Protection | ±6 kV In Common Mode For Ethernet Ports, ±2 kV In Differential Mode For AC Power Input Port |
| ESD Protection | Air: ±8 kV, Contact: ±4 kV |
| Certification | CE, FCC, RoHS |
What's In The Box
- 1 x ES206X-M2 5-Port 2.5GBASE-T Easy Managed Switch
- 1 x Power Adapter
- 1 x Rubber Feet
- 1 x Installation Guide
Warranty
5 Years Warranty
Local Manufacturer Warranty
