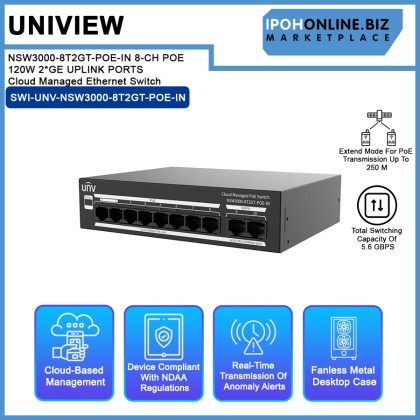

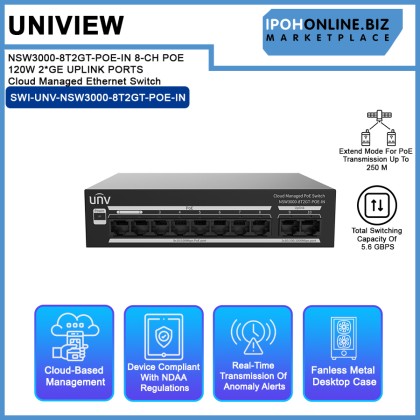

UNV NSW3000-8T2GT-POE-IN 8-CH POE 120W 2*GE UPLINK PORTS Cloud Managed Ethernet Switch

RM369.00 RM469.00 RM

UNV NSW3000-8T2GT-POE-IN 8-CH POE 120W 2*GE UPLINK PORTS Cloud Managed Ethernet Switch

Price	RM369.00 RM469.00 RM
Product SKU	SWI-UNV-NSW3000-8T2GT-POE-IN
Brand	Uniview
Size (L x W x H)	30 cm x 25 cm x 11 cm
Availability	3

Quantity

Product
Description
Reviews (0)
What's in the box

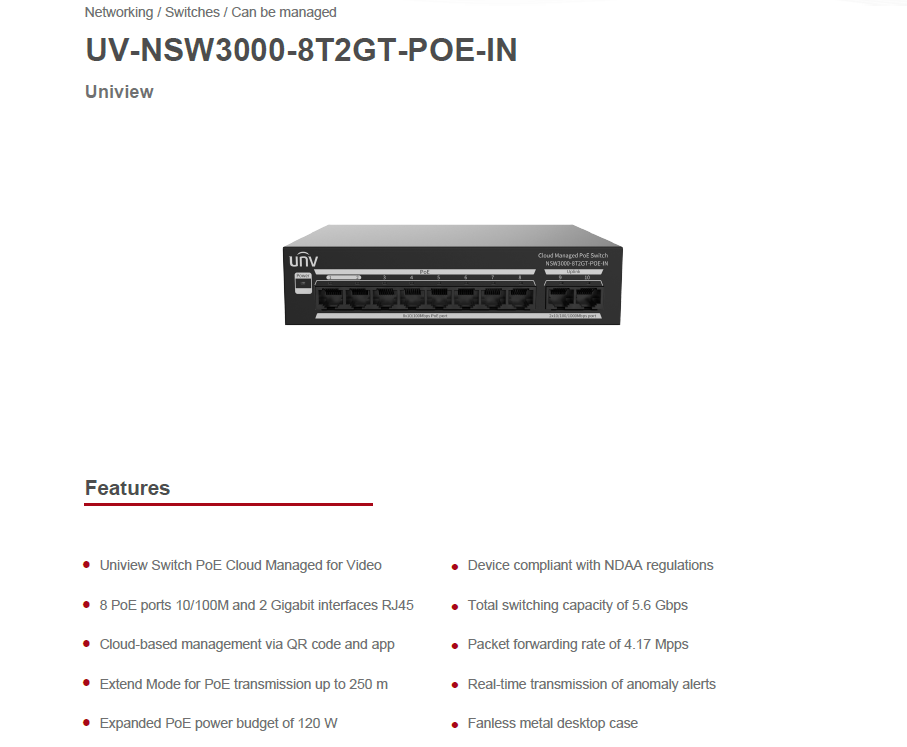

Description

Highlight
								Uniview Switch PoE Cloud Managed for Video
8 PoE ports 10/100M and 2 Gigabit RJ45 interfaces
Cloud-based management via QR code and app
Extend Mode for PoE transmission up to 250 m
Expanded PoE power budget of 120 W
Device compliant with NDAA regulations
Total switching capacity of 5.6 Gbps
Packet forwarding rate of 4.17 Mpps
Real-time transmission of anomaly alerts
Fanless metal desktop case



Features

Uniview Switch PoE Cloud Managed for Video
8 PoE ports 10/100M and 2 Gigabit RJ45 interfaces
Cloud-based management via QR code and app
Extend Mode for PoE transmission up to 250 m
Expanded PoE power budget of 120 W
Device compliant with NDAA regulations
Total switching capacity of 5.6 Gbps
Packet forwarding rate of 4.17 Mpps
Real-time transmission of anomaly alerts
Fanless metal desktop case

Specifications

Brand	Uniview
Device Type	Cloud Managed Ethernet Switch (PoE)
Regulatory Compliance	NDAA Compliant
Interfaces	8 × 10/100 Mbps PoE, 2 × Gigabit RJ45 (Uplink)
PoE Standard	IEEE 802.3af, IEEE 802.3at
PoE Pin Mode	Mode A (1236), Mode B (4578)
Assigned PoE Ports	Ports 1 to 8
PoE Power per Port	Up to 30 W per port
Total PoE Budget	120 W
Transmission Distance	Up to 250 Mbps in Extended mode (Extended mode with an automatic speed of 10 Mbps)
Energy Management	Enable/Disable PoE per port, view real-time power consumption, and perform remote PoE reset via the app
Port Prioritization	Priority ports 1 and 2 (Forwarding priority during data congestion and power-on priority during PoE congestion)
Switching Capacity	5.6 Gbps
Packet Forwarding Rate	4.17 Mpps
Internal Data Cache	2 Mbits
MAC Address Table	4 K (Supports filtering and deleting dynamic addresses)
VLAN Configuration	Supports Access and Trunk modes, Max. 32 VLAN (IDs 1-4094)
Access Security	Block login IP addresses (up to 64 addresses), User authentication, Changeable password
Port Security	Port isolation (downlink ports only), Broadcast storm control
Quality of Service (QoS)	Port-based speed limiting, Priority-based flow control, Traffic statistics
Link Aggregation	Supports the 1 aggregation group (consisting of the two uplink ports)
Cloud and Smart Features	Cloud access via QR code, automatic discovery of video devices, and real-time network topology in the web app
System Alerts	Real-time notification and reporting of port anomaly alarms
Network Maintenance	Loop Detection, Port Mirroring N:1, Cloning, importing/exporting settings, and logs
Smart LED Diagnostics	Yellow LED power alert when PoE consumption exceeds 85% of the device's capacity
Housing Material	All-metal casing
Cooling System	Passive, fanless (0 fans / Silent design)
Installation Type	Dessert (Desk-Mounted)
Power Supply	Internal AC source 100 at 240 V, 50/60 Hz
Energy Consumption	Max. 130 W (With full PoE load)
Operating Temperature	0 °C to 45 °C (32 °F to 113 °F)
Operating Humidity	5% to 90% RH (non-condensing)
Dimensions (W × D × H)	169 mm × 132 mm × 40 mm
Net Weight	0.67 kg (1.47 lb)
