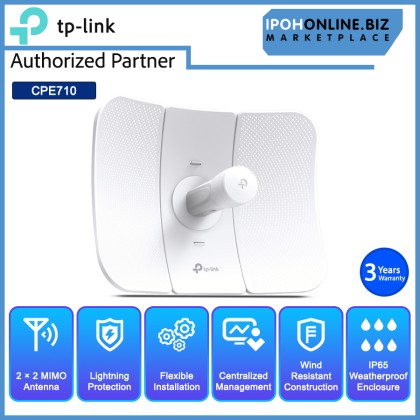

Name: TP-LINK PHAROS CPE710 5GHz AC 867Mbps 23dBi Outdoor CPE
Brand: TP-Link
SKU: CPE-TL-CPE710
Price: 579.00 MYR
Availability: InStock

TP-LINK PHAROS CPE710 5GHz AC 867Mbps 23dBi Outdoor CPE

RM579.00 RM598.00 RM

TP-LINK PHAROS CPE710 5GHz AC 867Mbps 23dBi Outdoor CPE

Price	RM579.00 RM598.00 RM
Product SKU	CPE-TL-CPE710
Brand	TP-Link
Size (L x W x H)	36 cm x 17 cm x 19 cm
Availability	11

Quantity

Product
Description
Reviews (0)
What's in the box

Description

Highlight
								802.11ac For Up To 867Mbps On 5GHz Wireless Data Rate
23dBi High-Gain Directional 2x2 MIMO, Ideal For Long-Distance Application
Excellent Beam Directivity, Improved Latency And Noise Cancellation
Innovative Snap-Lock Parts Make For Fast Assembly And A Sturdy Structural Design Keeps CPE710 Stable Even In Strong Winds
Durable IP65 Weatherproof Enclosure Along With 15kV ESD And 6kV Lightning Protection Ensures All-Weather Suitability
Pharos Control Gives Administrators A Free, Centralized Management System
Passive PoE Supports To Allow Flexible Deployment And Convenient Installation



cpe-tl-cpe710-7

Specification

Hardware Features
Processor	Qualcomm 750MHz CPU, MIPS 74Kc
Memory	128MB DDR2 RAM, 16MB Flash
Interface	1 10/100/1000Mbps Shielded Ethernet Port (LAN/POE) 1 Reset Button
Power Supply	Passive Power Over Ethernet Via LAN (+4,5Pins; -7,8Pins) Voltage Range : 16-27V DC
Dimensions	366 x 280 x 207mm (W x D x H)
Antenna Gain	23dBi
Antenna Beamwidth	9º (Azimuth)/7º (Elevation)
Protection	15KV ESD Protection 6KV Lightning Protection
Enclosure	Material : Outdoor PC Stabilized Plastic Weatherproof : IP65 Water And Dust Proof Design
Wireless Features
Wireless Standards	IEEE 802.11a/n/ac
Wireless Speeds	Up To 867Mbps (80MHz, Dynamic) Up To 400Mbps (40MHz, Dynamic) Up To 173.4Mbps (20MHz, Dynamic)
Frequency	5.15-5.85GHz Note : Available Operating Frequency May Vary Depending On The Limitations Of The Countries Or Regions In Which The Device Is Used
Transmit Power	Max. 27dBm (Adjustable Power By 1dBm)
Software Features
Network Configuration	WAN : Static/Dynamic/PPPoE LAN : Static/Dynamic/DHCP Forwarding : ALG/UPnP/Virtual Server/Port Trigger Security : SPI Firewall/Ping Forbidden/DoS Protection Access Control Static Routing Bandwidth Control IP & MAC Binding
Wireless Configurations	Selectable Channel Width : 20, 40 Or 80MHz Automatic Wi-Fi Channel Selection RF Transmit Power Adjustment In 1dB Step Dynamic Frequency Selection (DFS) WDS Enable/Disable Security : WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, SSID Broadcast Enable/Disable Multi-SSID With VLAN Tagging In AP Mode Distance/ACK Timeout Setting Wireless MAC Address Filter Wireless Advanced Features : Beacon Interval, RTS Threshold, Fragmentation Threshold, DTIM Interval, AP Isolation, Short GI, Wi-Fi Multimedia Long Range Point-To-Point
Management	Discovery And Remote Management With Pharos Control (Windows) HTTP/HTTPS Web-Based Management System Log SNMP Agent (v2c) Ping Watchdog Dynamic DNS SSH Server
System Tools	Indicators : Signal Strength, Noise, Transmit CCQ, CPU And Memory Usage Monitors : Throughput, Stations, Interfaces, ARP, Routes, WAN And DHCP Spectrum Analyzer Speed Test Ping Traceroute Antenna Alignment
System-Level Optimizations	Optimized IGMP Snooping / Proxy For Multicast Applications
POE Adapter Features
Dimensions	85 x 44 x 30mm (W x D x H)
Interfaces	1 AC Jack With Earth Ground 1 10/100/1000Mbps Shielded Ethernet Port (Power + Data) 1 10/100/1000Mbps Shielded Ethernet Port (Data)
Button	Remote Reset Button
Power Status LEDs	Green
Input	100-240VAC, 50/60Hz
Output	24VDC, 0.5A Max +4, 5Pins; -7, 8Pins (Support Up To 60m Power Over Ethernet)
Efficiency	> 84.29%
Certifications	CE/FCC/UL/IC/GS/PSB/C-Tick/SAA/S-Mark/KC-Mark
Other
Certification	CE, FCC, RoHS, IP65
Package Contents	Outdoor Wireless CPE 24V 0.5A Passive PoE Adapter Pole Mounting Kits AC Power Cord Installation Guide
Environment	Operating Temperature : -40ºC~70ºC Storage Temperature : -40ºC~70ºC Operating Humidity : 10%~90% Non-Condensing Storage Humidity : 5%~95% Non-Condensing
