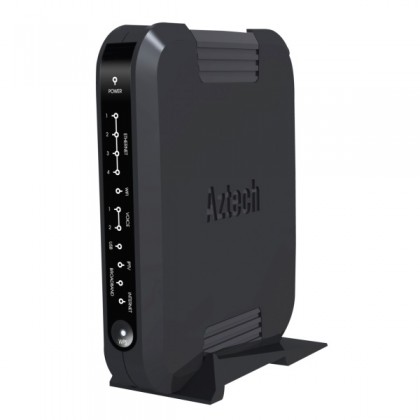

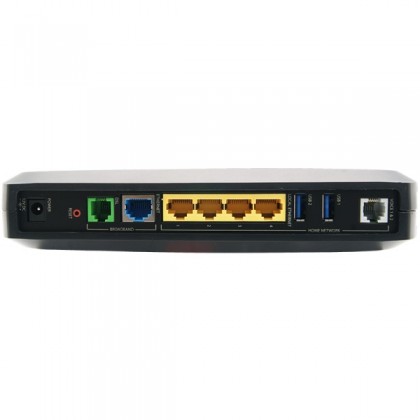

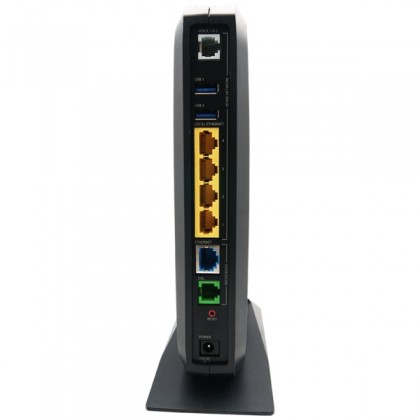

The Aztech DSL7000GR is an integrated access device, which supports ADSL2/2+, 802.11b/g/n 2T2R wireless, 4-Port Gigabit Ethernet switch, 1-Port Gigabit WAN port for fiber ONT, USB 2.0 Host.

• Support ANSI T1.413 issue 2, ITU-T G.992.1 (G.dmt) and G.992.2 (G.lite) compliant and ITU-T G.992.1 (G.dmt Annex B) as Population Option
• Fully Compliant with IEEE 802.11n - 2T2R Mode with 300Mbps PHY rate for both Transmit and Receiving
• 1000Mbps Ethernet WAN Port to connect with an ONT (Optical Network Terminal) in FTTH (Fiber To The Home)
• Support Multiple VLAN for triple play services
• 4-port 10/100/1000 Auto MDI/MDIx LAN Ports for connecting up to four Ethernet devices such as PC, NAS and VoIP Phone
• Supports Wifi Protected Setup (WPS) for easy and secure establishment of a wireless network
• QoS Support (DSCP, TOS), including Diff-serv, IEE802.1p – Priority bit, IEEE802.1q – VLAN triggering
• Additional two high-speed USB 2.0 host with speed up to 480Mbits/second
• SSH Support
• ITU K.21 Support
• TR-069

ADSL/ATM Support

• ANSI T1.413 issue 2, ITU-T G.992.1 (G.dmt) and G.992.2 (G.lite) compliant
• ITU-T G.992.1 (G.dmt Annex B) Population Option
• ADSL2 (G.992.3), ADSL2+ (G.992.5), RE-ADSL Compliant
• ADSL2+ Annex M Support
• ATM Layer with Traffic shaping QoS Support (UBR, CBR, VBR-rt, VBR-nrt)
• AAL ATM Attributes – AAL5
• Multiple PVC support up to 8
• Spectral compatibility with POTS
• F4/F5 OAM Loopback/Send and Receive
• TR-068

Voice Support

• SIP Version 2.0 (RFC3261, RFC3262, RFC3263, RFC3264)
• MGCP Support
• Analog phone, Fax machine and DECT handsets
• RTP/RTPC (RFC1889 & RFC1890)
• Jitter Buffer (Adaptive)
• G.711 Annex1/2, G.729AB, G.723.1A, G.726 support
• Bellcore, FSK, DTMF caller ID detection/generation
• TIA-777-A Caller Identity and Visual Message Waiting Indicator Equipment

Network Support

• Static IP, Dynamic RIP v1/v2 routing
• IP/TCP/UDP/ICMP/ARP Application
• Full Cone NAT (Network Address Translation)
• PVC to VLAN Mapping
• Port Forwarding/Triggering
• Easy setup of Port Forwarding rules for popular Games/Application
• Easy Connect Support ensuring that user need not change any PC settings
• NAT Application Level Gateway for popular applications
• DHCP Server/Relay/client
• DNS Relay Agent
• DMZ (demilitarized zone)
• Multiple Session IP Sec and PPTP/L2TP VPN pass through support
• PPP Always on
• PPP Dial on Demand with configurable timeout
• Universal Plug and Play Support
• DDNS (Dynamic DNS) Support
• IGMP v1, v2, v3; IGMP Snooping support in Bridge mode
• SNTP
• QoS Support (DSCP, TOS), including Diff-serv, IEE802.1p – Priority bit, IEEE802.1q – VLAN triggering
• Set-Top Box Pass Through

WAN Support

• Dedicated 1000Mbps Ethernet WAN Port to connect with an ONT (Optical Network Terminal) in FTTH (Fiber To The Home)
• External RJ45 connector, 10/100/1000Base-T Ethernet (Auto MDI/MDIx)
• Multiple VLAN support for triple play services

WLAN Support

• IEEE 802.11b/g/n standard compliant
• 2T2R Mode with 300Mbps PHY rate for both Transmit and Receiving
• 20MHz/40MHz bandwidth
• Seamless WLAN roaming
• Support Direct Sequence Spread Spectrum (DSSS) technology
• Modulation : OFDM with BPSK, PBCC, QPSK, 16QAM, 64QAM, DBPSK, DQPSK, CCK
• Wireless Media Access Protocol- CSMA/CA with ACK
• Dynamic Rate Scaling from 54, 48, 36, 24, 12, 11, 9, 6, 5.5, 2, 1 Mb/s
• Security: WEP Encryption 64/128Bit, WPA/WPA2, 802.1x RADIUS authentication encryption
• MAC Filtering
• WiFi Protected Setup Feature
• Dynamic Rate Scaling from 54, 48, 36, 24, 12, 11, 9, 6, 5.5, 2, 1Mbps
• Operating Range up to 300 Meters (Outdoor)
• Multiple SSID support (up to 4)
• WMM support

Management Support

• Web Based HTTP management GUI
• TFTP/FTP Support for Firmware Upgrade
• Web Based Firmware Upgrade (Local)
• Soft Factory Reset Button via Web GUI
• Diagnostic Test (DSL, OAM(ADSL), Network(ADSL), Ping Test)
• TR068 – WAN Access
• Telnet with CLI (Read and Write) configuration
• Syslog Support
• Firmware upgrade-able for future feature enhancement
• TR-069, TR-064
• SNMP v1 and v2
• SSH Support

Security Support

• NAT for basic Firewall support
• Packet Filtering Firewall Support
• Stateful Packet Inspection Support
• URL Filtering (optional)
• Protection against Denial of Service attacks
• Password Authentication to Modem
• Real-Time Attack and Alert Logs (optional)

Power Requirements

• Input Voltage : 12VDC
• Input Current : 1.5~2.0A

Measurements

• Dimension : 172mm (W) x 219mm (H) x 42mm (D)
• Weight : 540g

Temperature

• Operating : 0o to 50o Celsius | 32o to 122o Fahrenheit
• Non-Operating : -25o to 70o Celsius | -13o to 158o Fahrenheit

Humidity

• Operating : 30% to 80% Relative Humidity (Non-Condensing)
• Non-Operating : 30% to 95% Relative Humidity (Non-Condensing)
