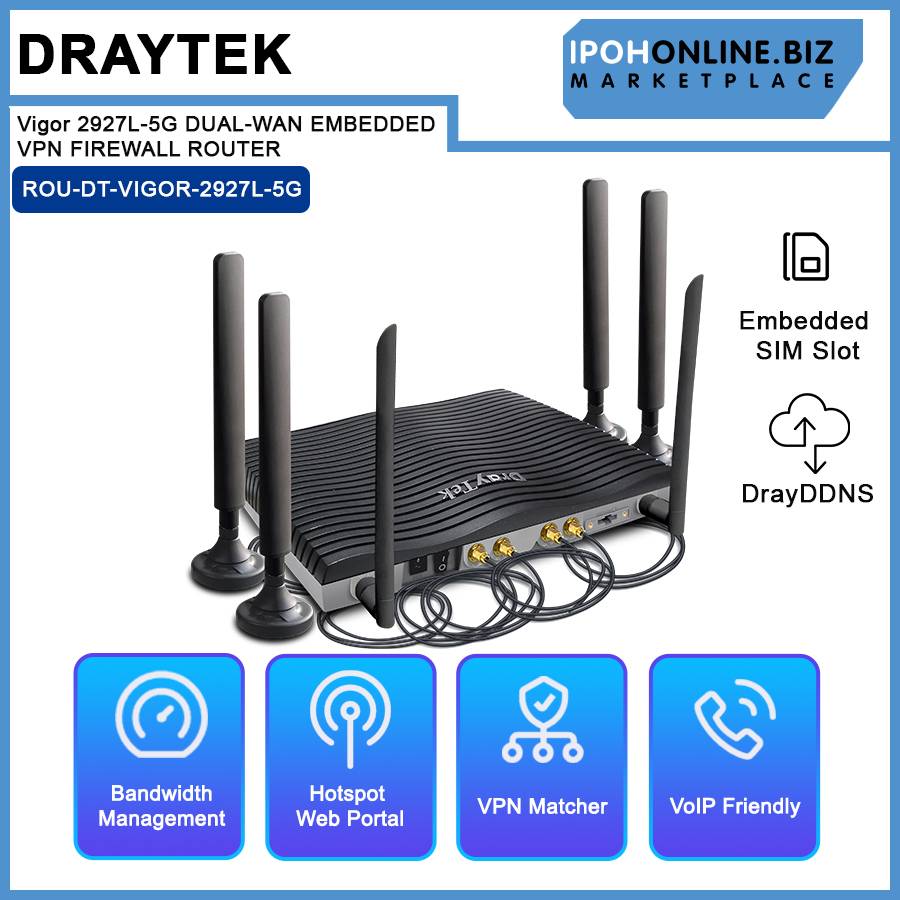

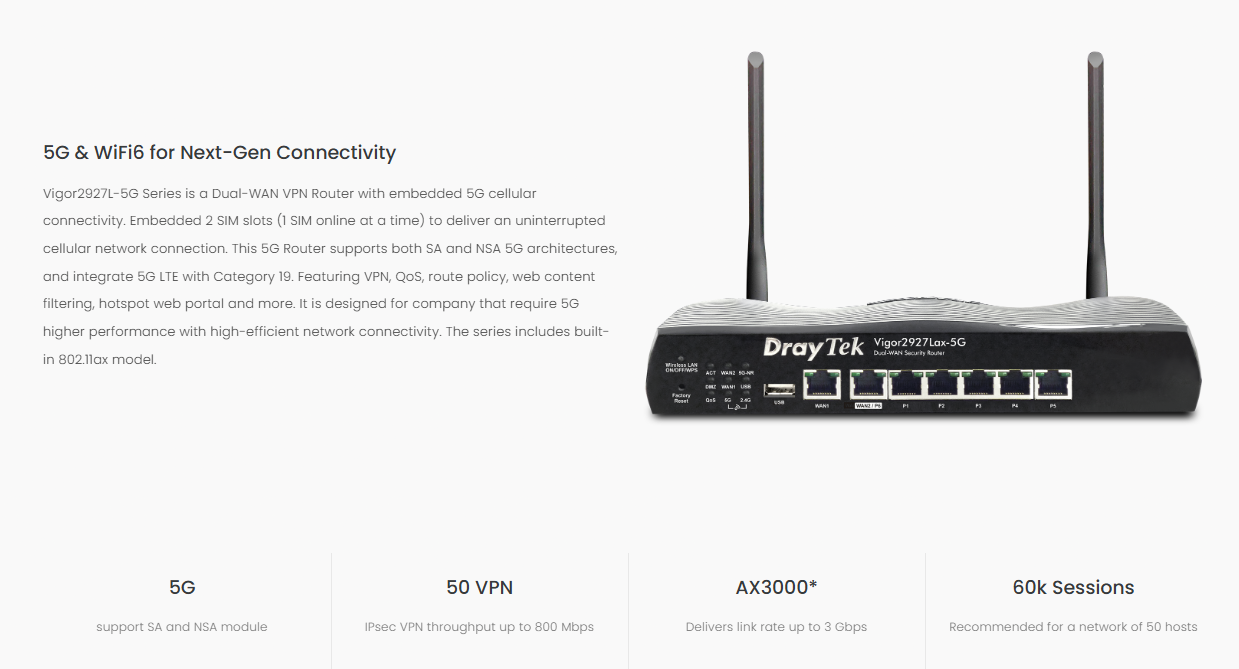

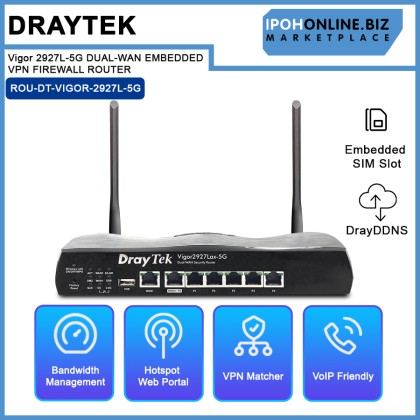

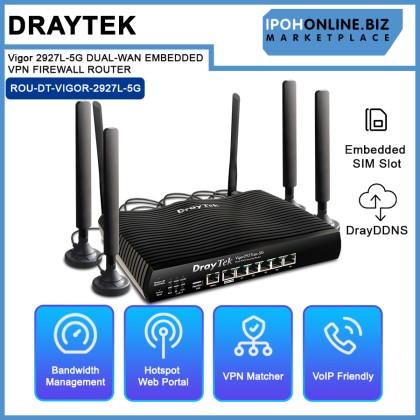

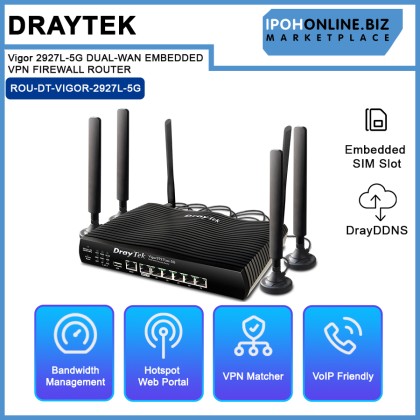

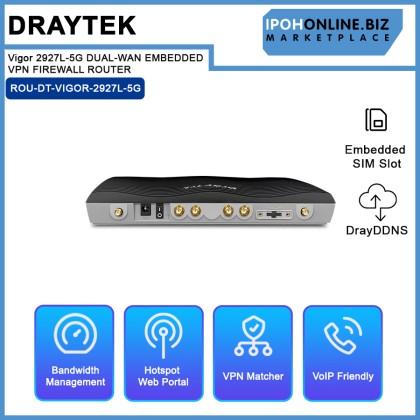

Draytek Vigor 2927L-5G DUAL-WAN EMBEDDED 5G CONNECTIVITY VPN FIREWALL ROUTER
| Price | RM2,550.00 RM2,999.00 RM |
| Product SKU | ROU-DT-VIGOR-2927L-5G |
| Brand | Draytek |
| Size (L x W x H) | 40 cm x 34 cm x 13 cm |
| Availability | 1 |
| Quantity |
|
Description
Highlight

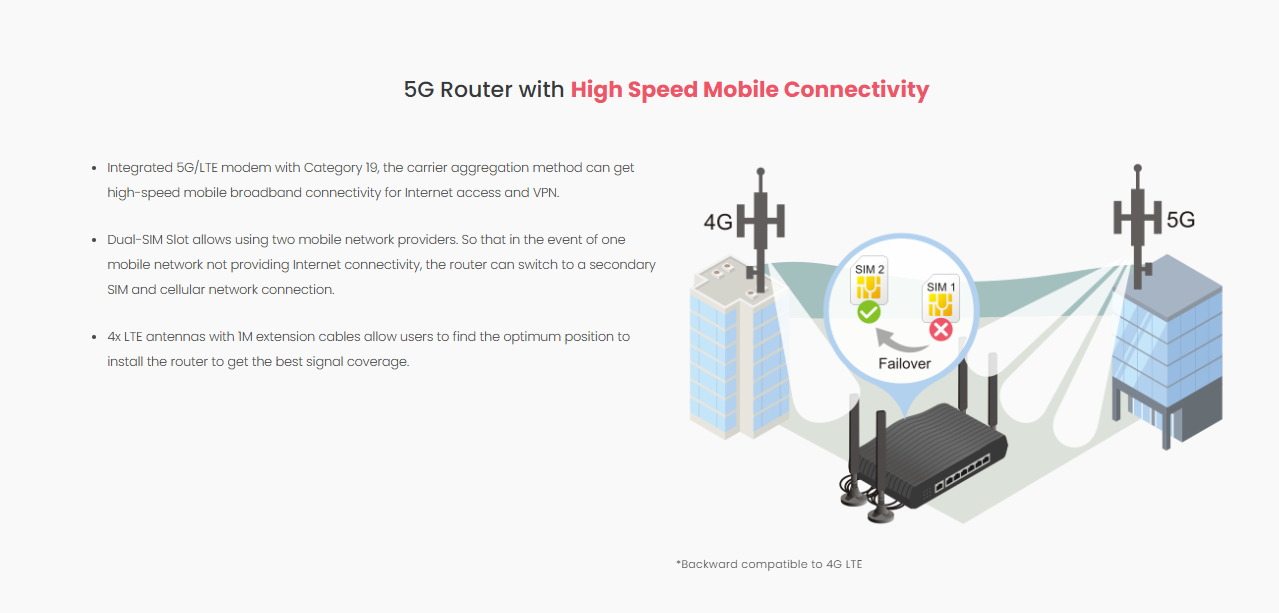

- Embedded SIM Slot – Provides 4G LTE/5G Internet access where fixed lines are temporarily unavailable, without requiring a USB dongle.
- Bandwidth Management – Controls bandwidth usage through bandwidth limit policies, session limit policies and QoS settings.

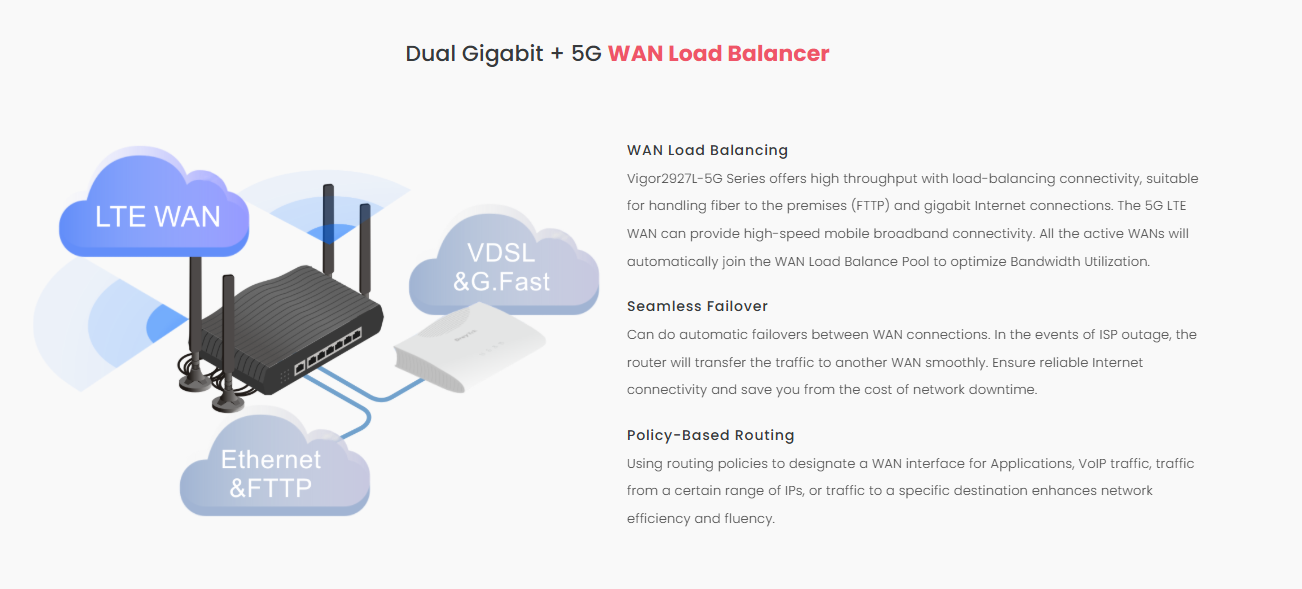

- Load Balancing – Uses multiple Internet connections to maximize throughput and reliability.
- Hotspot Web Portal – Provides a hospitality WLAN solution for business marketing and guest communication.

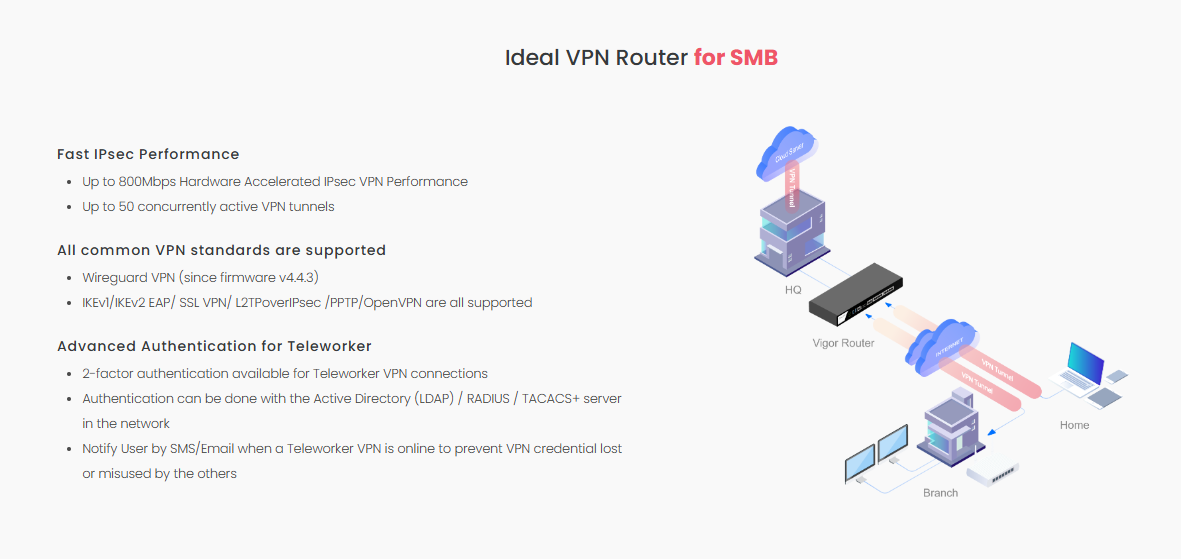

- VPN (Virtual Private Network) – Creates secure and private tunnels between the router, remote offices and teleworkers over the Internet.
- DrayDDNS – Free DDNS service that allows the router to be accessed using a fixed hostname.
- SSL VPN – Provides secure remote access through firewalls to network environments.
- Central AP Management – Allows the Vigor2927L-5G Series to act as a wireless controller for maintaining and monitoring VigorAPs.
- VPN Matcher – Helps routers behind NAT discover each other and establish LAN-to-LAN VPN connections.
- Wi-Fi 6 (ax model only) – Supports OFDMA and MU-MIMO technology for improved Wi-Fi efficiency and higher wireless speeds.
- Firewall & Content Filter – Filters web pages by URL keyword or web category to block insecure or inappropriate content.

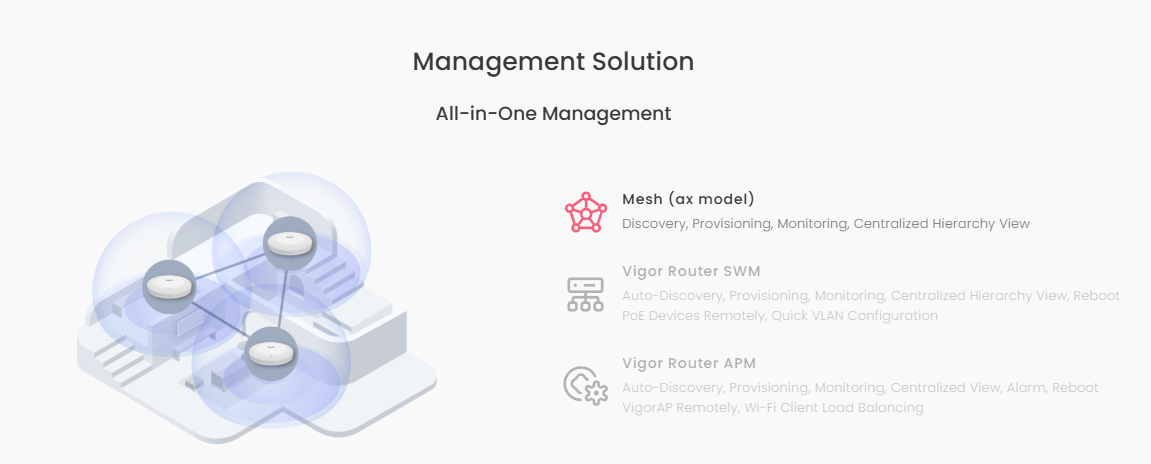

- Mesh (Wireless model only) – Allows compatible VigorAPs to be linked to expand the wireless network.
- VoIP Friendly – Supports port forwarding and bandwidth reservation for VoIP traffic.

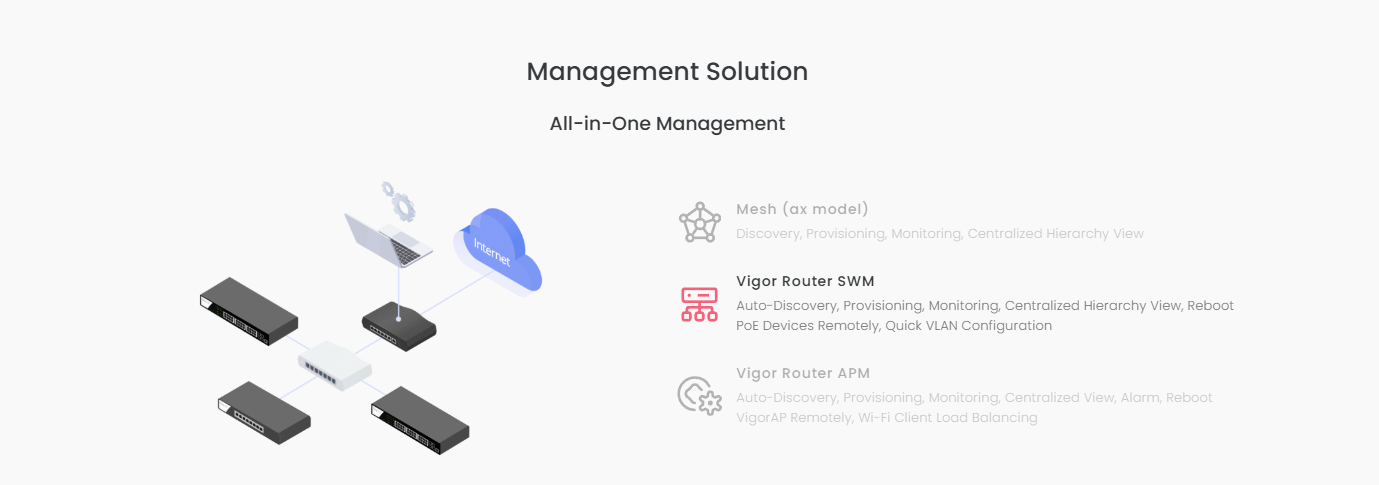

- Central Switch Management – Provides centralized switch management and easier VLAN configuration.
Features
- Embedded SIM Slot – Provides 4G LTE/5G Internet access where fixed lines are temporarily unavailable, without requiring a USB dongle.
- Bandwidth Management – Controls bandwidth usage through bandwidth limit policies, session limit policies and QoS settings.
- Load Balancing – Uses multiple Internet connections to maximize throughput and reliability.
- Hotspot Web Portal – Provides a hospitality WLAN solution for business marketing and guest communication.
- VPN (Virtual Private Network) – Creates secure and private tunnels between the router, remote offices and teleworkers over the Internet.
- DrayDDNS – Free DDNS service that allows the router to be accessed using a fixed hostname.
- SSL VPN – Provides secure remote access through firewalls to network environments.
- Central AP Management – Allows the Vigor2927L-5G Series to act as a wireless controller for maintaining and monitoring VigorAPs.
- VPN Matcher – Helps routers behind NAT discover each other and establish LAN-to-LAN VPN connections.
- Wi-Fi 6 (ax model only) – Supports OFDMA and MU-MIMO technology for improved Wi-Fi efficiency and higher wireless speeds.
- Firewall & Content Filter – Filters web pages by URL keyword or web category to block insecure or inappropriate content.
- Mesh (Wireless model only) – Allows compatible VigorAPs to be linked to expand the wireless network.
- VoIP Friendly – Supports port forwarding and bandwidth reservation for VoIP traffic.
- Central Switch Management – Provides centralized switch management and easier VLAN configuration.
Specifications
| Performance | |
| NAT Session | K |
| Max. NAT | 700 Mbps |
| Max. NAT with Hardware Acceleration | 0 Mbps |
| Max. NAT with Hardware Acceleration: Single WAN | 940 Mbps |
| Max. NAT with Hardware Acceleration: Dual WAN | 1800 Mbps |
| Max. NAT with Software Acceleration (single-directional) | 0 Mbps |
| Max. NAT with Software Acceleration (bi-directional) | 0 Mbps |
| Max. VDSL Link Rate | 0 Mbps |
| Max. ADSL Link Rate | 0 Mbps |
| WAN | |
| xDSL | 0 |
| SFP (1G) | 0 |
| SFP (10G) | 0 |
| SFP/Ethernet Combo | 0 |
| Ethernet (1 GbE) | 2 |
| Ethernet (2.5 GbE) | 0 |
| Ethernet - Switchable | No |
| SFP - Switchable | No |
| SFP/Ethernet Combo - Switchable | No |
| VDSL Standards | None |
| VDSL2 Profile | — |
| G.fast Profile | — |
| ADSL Standards | — |
| Annex Support | — |
| Other Standards | — |
| Band Plan | — |
| Cellular (via USB) | 1 |
| Cellular (Built-in) | 5G |
| Wireless WAN (2.4GHz or 5GHz) | No |
| Wireless WAN (2.4GHz + 5GHz) | No |
| 3G | |
| WCDMA (3G) Band | Band 1, 8 |
| 4G LTE | |
| LTE Category (Up to) | CAT.19 |
| LTE Antenna (External Dipole) | 0 |
| LTE Antenna Peak Gain | — |
| SIM Slot | 2 |
| Max. Rx Link Rate | 1600 Mbps |
| Max. Tx Link Rate | 200 Mbps |
| FDD Band | 1 (2100MHz), 3 (1800MHz), 7 (2600MHz), 8 (900MHz), 20 (800MHz), 28 (700MHz) |
| TDD Band | 38 (2600MHz), 40 (2300MHz) |
| SMS Gateway | Yes |
| 5G | |
| 5G Band | n1, n3, n7, n8, n20, n28, n38, n40, n77, n78 |
| 4G/5G Antenna (External) | 4 |
| 4G/5G Antenna (Internal) | 0 |
| 4G/5G Antenna Peak Gain | 4.37 dBi |
| 5G NSA Max. Rx Link Rate | 3400 Mbps |
| 5G NSA Max. Tx Link Rate | 550 Mbps |
| 5G SA Max. Rx Link Rate | 2400 Mbps |
| 5G SA Max. Tx Link Rate | 900 Mbps |
| 5G Maximum Data Rate | 600 Mbps (estimated) |
| Internet Connection | |
| IPv4 | PPPoE, DHCP, Static IP, PPTP/L2TP |
| IPv6 | PPP, DHCPv6, Static IPv6, TSPC, AICCU, 6rd, 6in4, Static Tunnel |
| LTE WAN Bridge | Yes |
| 802.1p/q Multi-VLAN Tagging | Yes |
| Multi-VLAN/PVC | Yes |
| Virtual WAN | No |
| PPPoE Pass-Through | No |
| MPoA Bridge | No |
| Failover | Yes |
| Load Balancing | Yes |
| WAN Active on Demand | IP-based, Session-based |
| Connection Detection | Link Failure, Traffic Threshold; ARP, Strict ARP, Ping |
| WAN Data Budget | Yes |
| Dynamic DNS | Yes |
| DrayDDNS | Yes |
| LAN | |

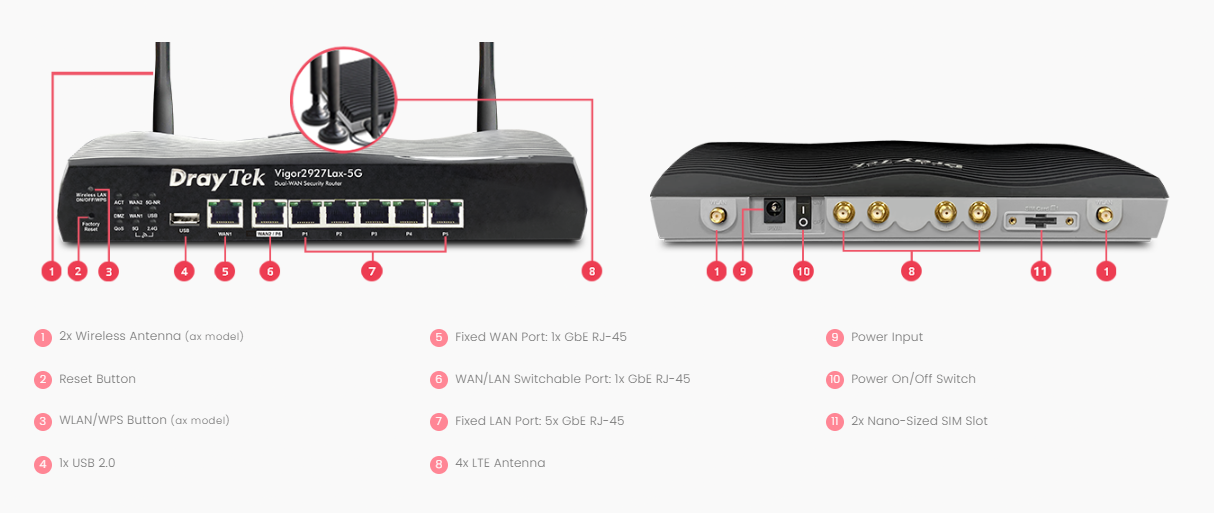

| Fixed LAN (RJ-45, GbE) | 5 |
| LAN Subnet | 8 |
| DMZ Port | 1 |
| VLAN | 802.1q Tag-based VLAN, Port-based VLAN |
| Max. Number of VLAN | 16 |
| DHCP Server | Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC |
| IPv6 Address Assignment | — |
| LAN IP Alias | Yes |
| IP Pool Count | 0 |
| PPPoE Server | No |
| Wired 802.1x Authentication | Yes |
| Port Mirroring | Yes |
| Local DNS Server | Yes |
| Conditional DNS Forwarding | Yes |
| Hotspot Web Portal (Profile No.) | 4 |
| Hotspot Authentication | Click-Through, Social Login, SMS PIN, Voucher PIN, RADIUS, External Portal Server |
| Other Ports | |
| Console (RJ-45) | 0 |
| USB | 1 |
| USB Type | 2.0 |
| FXS (RJ-11) | 0 |
| Networking | |
| Routing | IPv4 Static Route, IPv6 Static Route, Policy Route, Inter-VLAN Route, RIP v1/v2, BGP |
| Policy-based Routing | Protocol, IP Address, Port, Domain, Country |
| Smart Action | No |
| High Availability | Dray High Availability |
| DNS Security (DNSSEC) | Yes |
| IGMP | IGMP v2/v3, IGMP Proxy, IGMP Snooping and Fast Leave |
| Local RADIUS Server | Yes |
| SMB File Sharing | Yes, requires external storage |
| VPN | |
| LAN-to-LAN | Yes |
| Teleworker-to-LAN | Yes |
| EasyVPN | Yes |
| Port Knocking | No |
| VPN Protocols | PPTP, L2TP, IPsec, L2TP over IPsec, SSL, GRE, IKEv2, IKEv2-EAP, IPsec-XAuth, OpenVPN, WireGuard |
| Max. VPN Tunnels | 50 |
| IPsec VPN Throughput (AES 256 bits, single-directional) | 250 Mbps |
| IPsec VPN Throughput (Hardware NAT Enabled) | 800 Mbps |
| IPsec VPN Throughput (AES 256 bits, bi-directional) | 0 Mbps |
| SSL VPN Throughput (single-directional) | 120 Mbps |
| SSL VPN Throughput (bi-directional) | 0 Mbps |
| WireGuard VPN Throughput (single-directional) | 80 Mbps |
| WireGuard VPN Throughput (bi-directional) | 0 Mbps |
| User Authentication | Local, RADIUS, LDAP, TACACS+, mOTP |
| IKE Authentication | Pre-Shared Key, X.509 |
| IPsec Authentication | SHA-1, SHA-256 |
| Encryption | MPPE, DES, 3DES, AES |
| VPN Trunk (Redundancy) | Load Balancing, Failover |
| Single-Armed VPN | Yes |
| NAT-Traversal (NAT-T) | Yes |
| VPN from LAN | No |
| VPN Isolation | No |
| VPN Packet Capture | No |
| VPN 2FA Authentication for AD/LDAP | No |
| VPN Matcher | Yes |

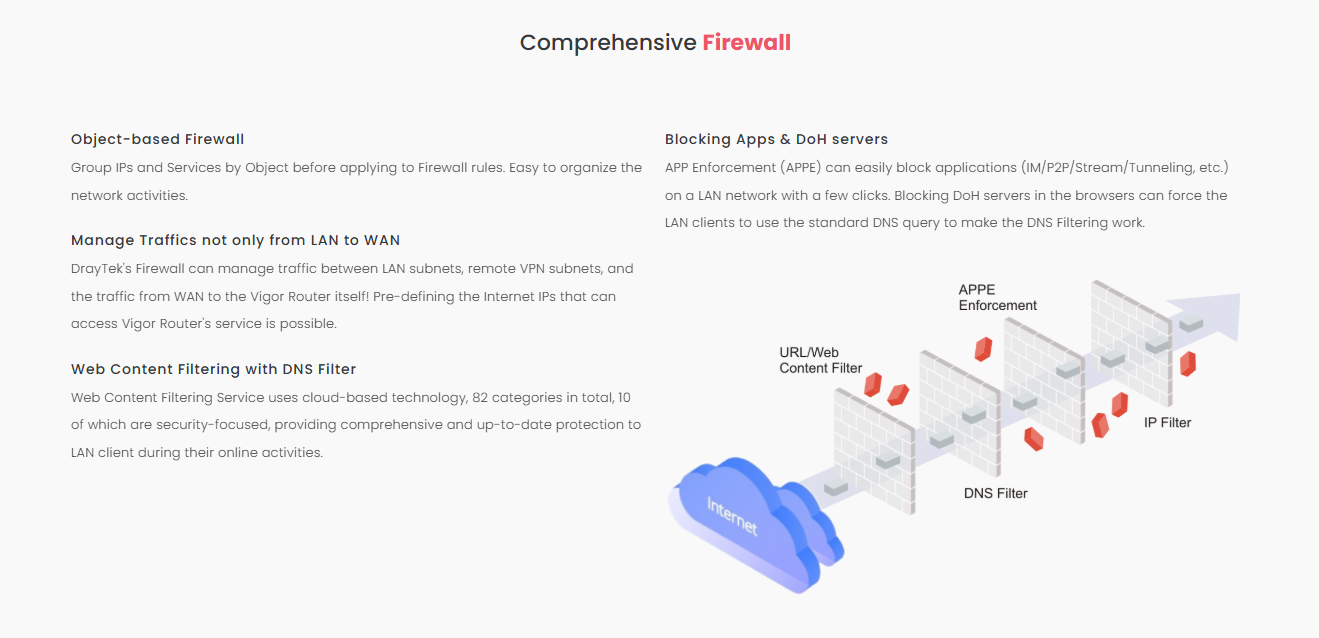

| Firewall & Content Filtering | |
| NAT | Port Redirection, Open Ports, Port Triggering, Port Knocking, DMZ Host, UPnP |
| ALG (Application Layer Gateway) | SIP, RTSP, FTP, H.323 |
| VPN Pass-Through | PPTP, L2TP, IPsec |
| IP-based Firewall Policy | Yes |
| Content Filtering | APP, URL Keyword, DNS Keyword, Web Features, Web Category* (*subscription required) |
| IP Reputation | No |
| DoS Attack Defense | Yes |
| Spoofing Defense | Yes |
| Linux Applications | |
| Suricata | No |
| VigorConnect | No |
| Bandwidth Management | |
| IP-based Bandwidth Limit | Yes |
| IP-based Session Limit | Yes |

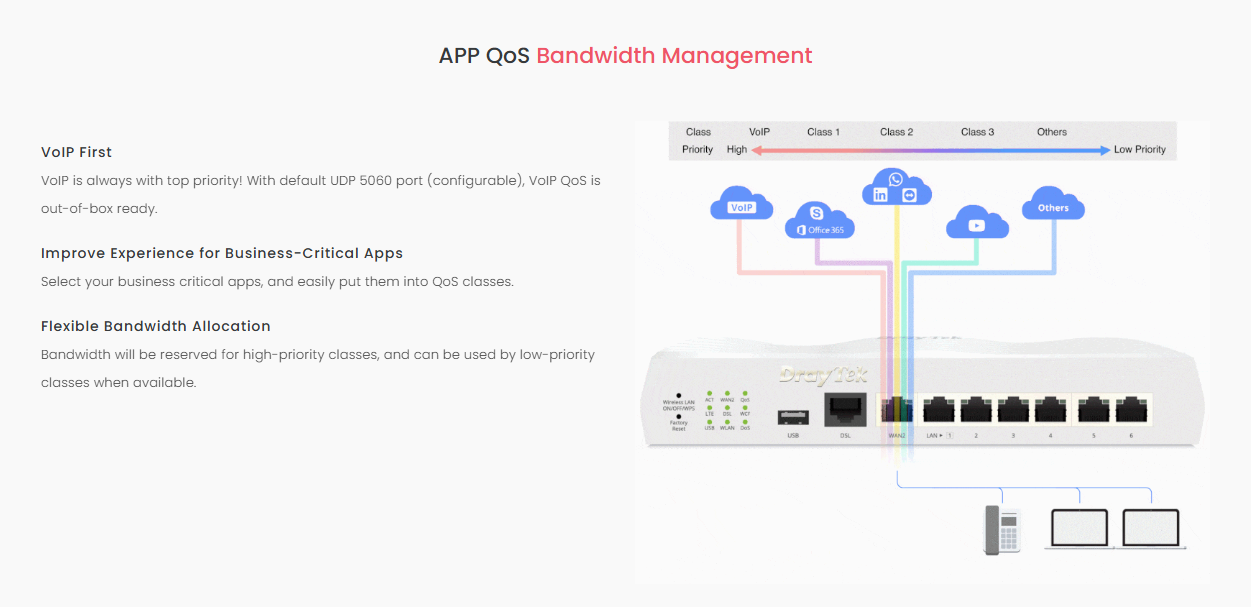

| QoS (Quality of Service) | TOS, DSCP, 802.1p, IP Address, Port, Application |
| VoIP Prioritization | Yes |
| APP QoS | Yes |
| WLAN | |
| 2.4GHz WLAN | — |
| 5GHz WLAN | — |
| Antennas | 0 |
| Antenna Type | — |
| Antenna Spec | — |
| 2.4GHz Antenna Gain | — |
| 5GHz Antenna Gain | — |
| 2.4GHz Max. Link Rate | 0 Mbps |
| 5GHz Max. Link Rate | 0 Mbps |
| Max. Number of SSIDs per Band | 0 |
| Security Mode | — |
| Authentication | — |
| Wi-Fi 6 | No |
| OFDMA | No |
| Roaming | — |
| WPS | — |
| WDS | — |
| Access Control | — |
| AirTime Fairness | No |
| Band Steering | No |
| WMM | No |
| Mesh (5GHz Only) | — |
| VoIP | |
| Protocols | — |
| SIP Registrars | 0 |
| Dial Plan | — |
| Call Features | — |
| Voice Codec | — |
| Caller ID | — |
| Management | |
| Local Service | HTTP, HTTPS, Telnet, SSH v2, FTP, TR-069 |
| Port Knocking for Local Service | Yes |
| Config Backup/Restore | Yes |
| Config File Compatibility | Vigor2926 LTE |
| Firmware Upgrade | WUI, TFTP, TR-069 |
| 2-Level Administration Privilege | Yes |
| Role-based Privilege | No |
| Access Control | Access List, Brute Force Protection |
| Notification Alert | SMS, E-mail |
| Netflow | v5, v9, IPFIX |
| SNMP | v1, v2c, v3 |
| Syslog | Yes |
| Broadcast DSL Info to LAN | No |
| VPN Management | 8 |

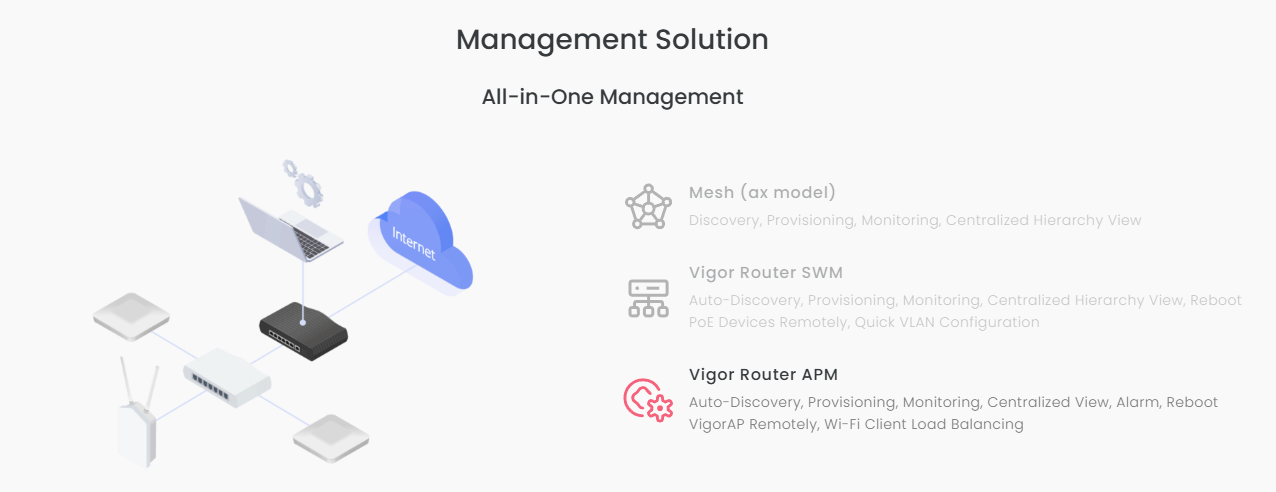

| AP Management | 20 |
| Mesh (Number of Manageable APs) | 0 |
| Switch Management | 10 |

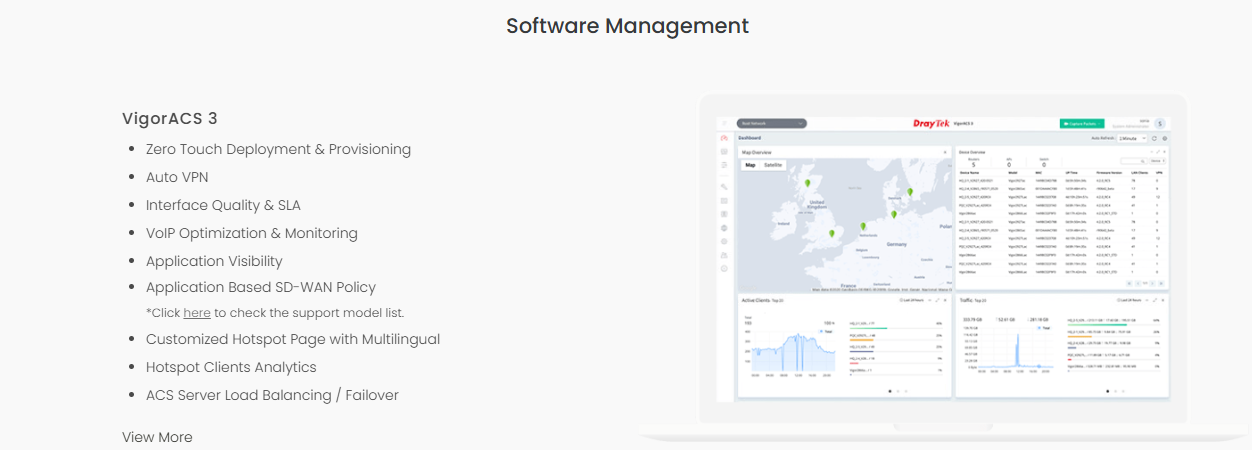

| VigorACS Management (Since f/w) | V4.4.5 |
| Physical | |
| Power Input | DC 12V @ 2.1A |
| Max. Power Consumption | 25.2 W |
| Memory | — |
| Dimension | 241 × 165 × 44 mm |
| Operating Temperature | 0 to 45°C |
| Storage Temperature | -25 to 70°C |
| Operating Humidity (non-condensing) | 10 to 90% |

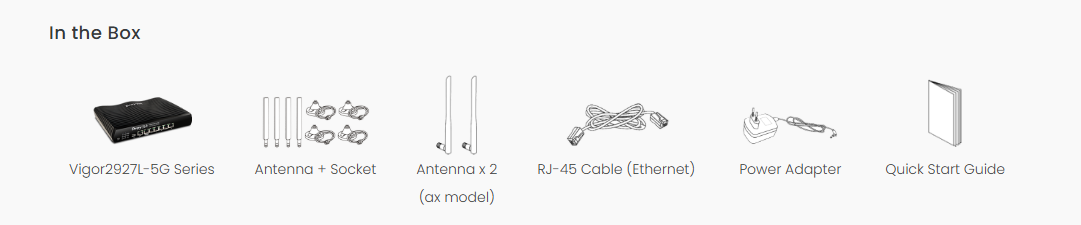

What's In The Box?
- 1 x Vigir2927L-5G Series Router
- 4 x Antenna + Socket
- 2 x Antenna (ax model)
- 1 x RJ-45 Cable (Ethernet)
- 1 x Power Adapter
- 1 x Quick Start Guide
Warranty
2 Year Warranty
Local Manufacturer Warranty
