Wireless

Wi-Fi 6
• IEEE 802.11ax/ac/n/a 5 GHz
• IEEE 802.11ax/n/b/g 2.4 GHz

•AX7800
• 5 GHz-1: 4804 Mbps (802.11ax, HE160)
• 5 GHz-2: 2402 Mbps (802.11ax)
• 2.4 GHz: 574 Mbps (802.11ax)

4 Bedroom Houses
_________________________________________________________________

8× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range

High-Power FEM
Improves transmission power to strengthen signal coverage

4T4R
Multiple streams in the same band strengthen the fault tolerance in transmission

Very High
_________________________________________________________________

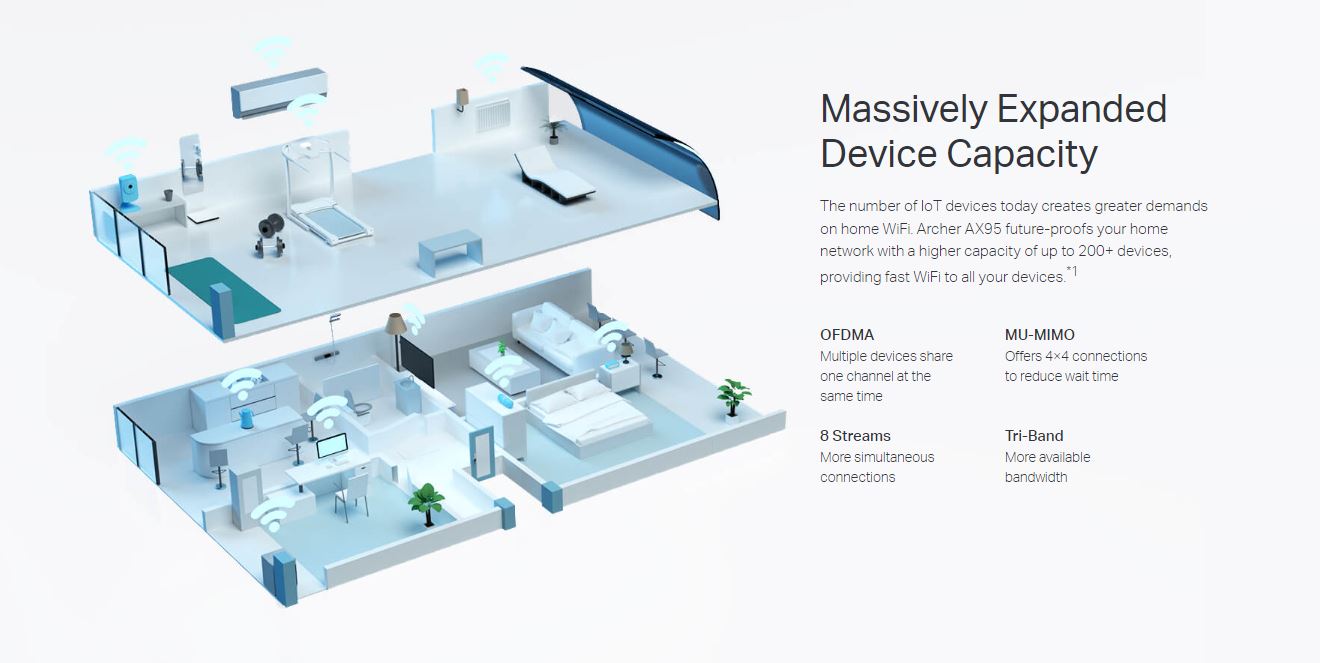

Tri-Band
Allocate devices to different bands for optimal performance

4×4 MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients

OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients

Airtime Fairness
Improves network efficiency by limiting excessive occupation

DFS
Access an extra band to reduce congestion

8 Streams
Connect your devices to more bandwidth

• Router Mode
• Access Point Mode

Hardware

1.7 GHz Quad-Core CPU

• 1× 2.5 Gbps WAN/LAN Port
• 1× 1 Gbps WAN/LAN Port
• 3× 1 Gbps LAN Ports

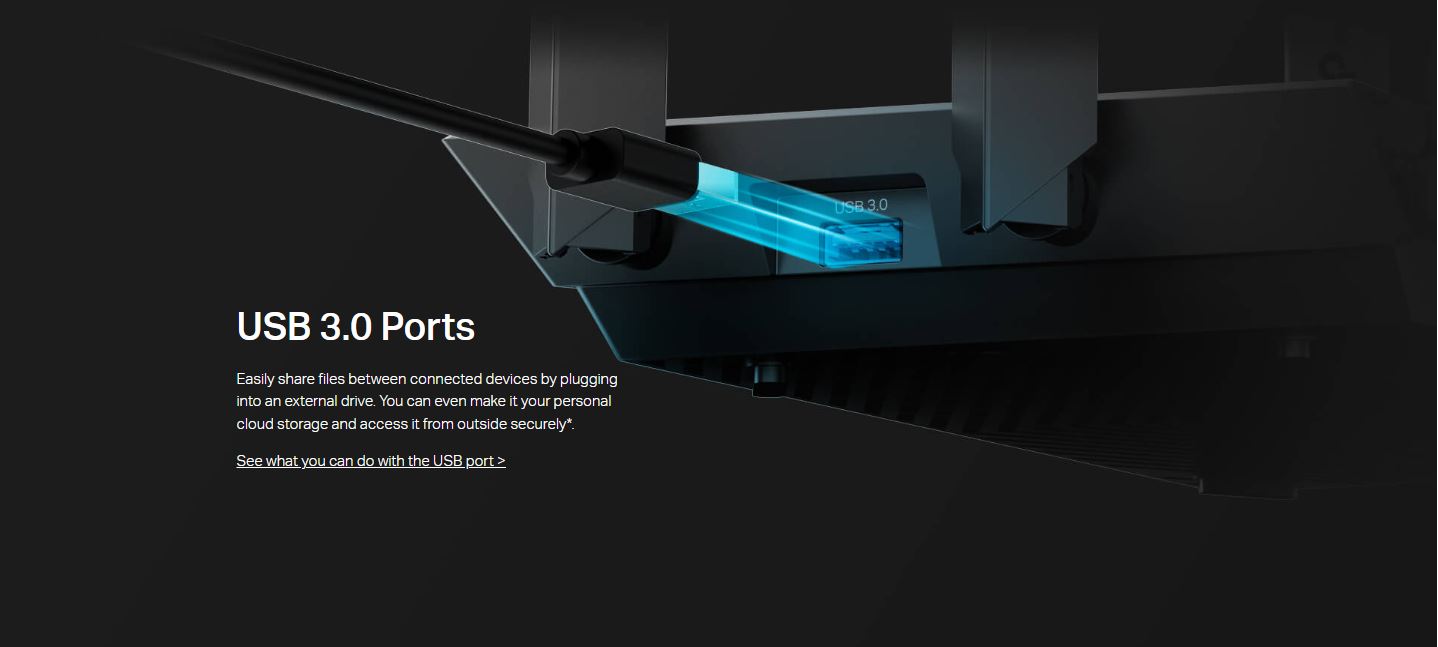

• 1× USB 3.0 Port
• 1× USB 2.0 Port

• Supported Partition Formats:
NTFS, exFAT, HFS+, FAT32

• Supported Functions:
FTP Server
Media Server
Samba Server

• LED On/Off Button
• WPS Button
• Wi-Fi On/Off Button
• Power On/Off Button
• Reset Button

12 V ⎓ 3.3 A

Security

• WPA
• WPA2
• WPA3
• WPA/WPA2-Enterprise (802.1x)

• SPI Firewall
• Access Control
• IP & MAC Binding
• Application Layer Gateway

• HomeShield Security
_________________________________________________________________

Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner

• 1× 5 GHz-1 Guest Network
• 1× 5 GHz-2 Guest Network
• 1× 2.4 GHz Guest Network

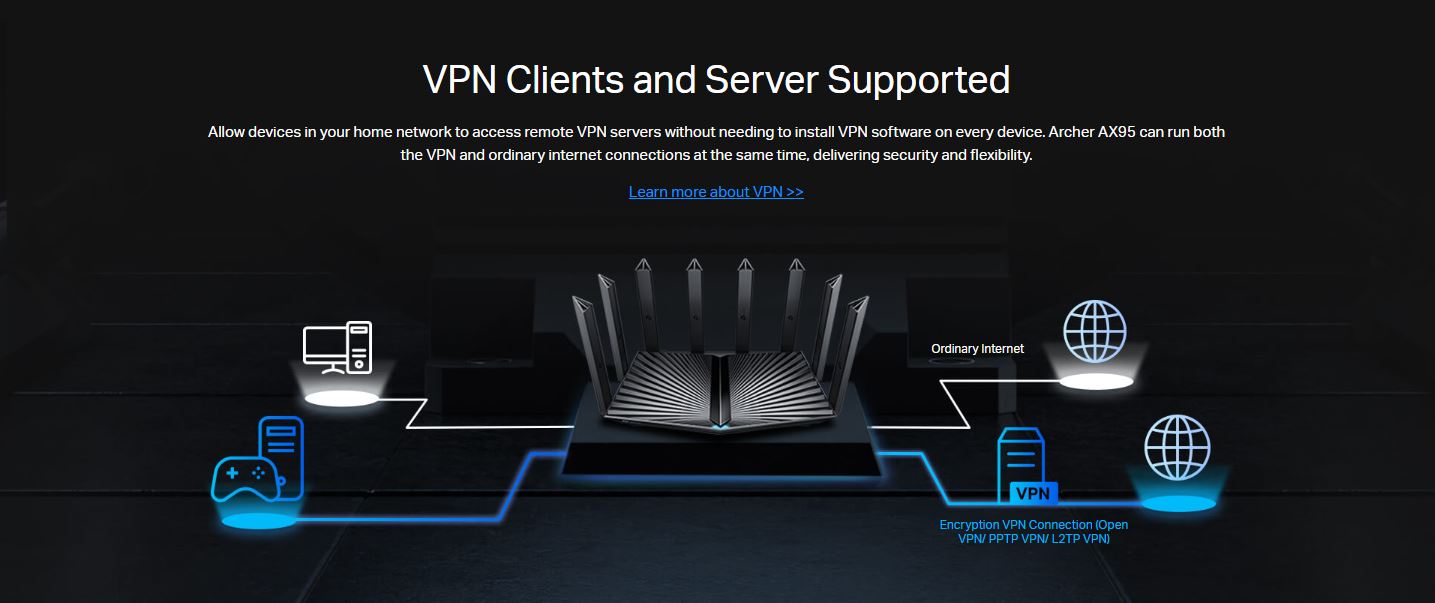

• OpenVPN
• PPTP
• L2TP

• OpenVPN
• PPTP
• L2TP

Software

• IPv4
• IPv6

HomeShield
Learn More>

OneMesh™ Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.
Learn More>
All OneMesh Products>

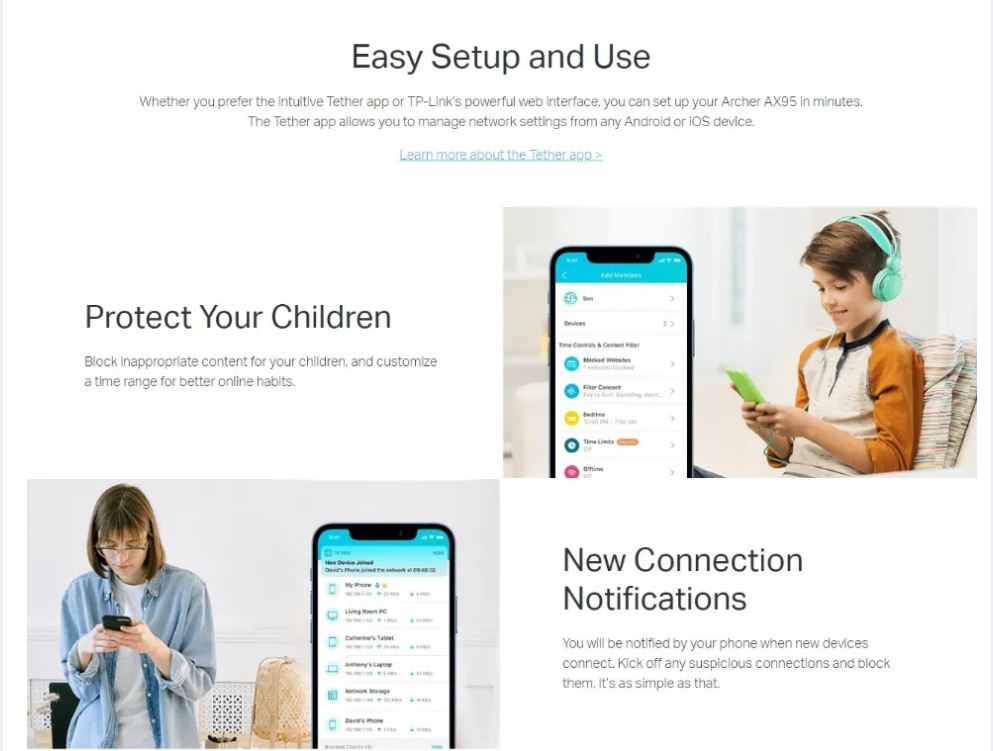

HomeShield Parental Controls
——————————————————————————————————————

Custom Profiles
Professional Content Filter Library
Family Time
Bedtime
Off Time
Time Rewards
Family Online Time Ranking
Pause the Internet
Weekly and Monthly Reports

• Dynamic IP
• Static IP
• PPPoE
• PPTP
• L2TP

QoS by Device

Auto Firmware Upgrade
TP-Link ID
DDNS

• Port Forwarding
• Port Triggering
• DMZ
• UPnP

• IGMP Proxy
• IGMP Snooping
• Bridge
• Tag VLAN

• Address Reservation
• DHCP Client List
• Server

• TP-Link
• NO-IP
• DynDNS

• Tether App
• Webpage

Other

Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)

FCC, CE, RoHS

Environment

• Operating Temperature: 0℃~40℃ (32℉ ~104℉)
• Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing

Test Data

• FCC:
≤30dBm (5.17GHz~5.25GHz);
≤23dBm (5.25GHz~5.35GHz);
≤23dBm (5.49GHz~5.725GHz);
≤28dBm (5.725GHz~5.825GHz);
≤28dBm (2.4GHz)

• CE:
≤23dBm EIRP (5.17GHz~5.35GHz);
≤30dBm EIRP (5.47GHz~5.725GHz);
≤20dBm EIRP (2.4GHz)

• 2.4 GHz:
11ac VHT20 MCS0: -98dBm, 11ac VHT20 MCS11: -66dBm,
11ac VHT40 MCS0: -96dBm, 11ac VHT40 MCS11: -64dBm,
11ax HE20 MCS0: -95dBm, 11ax HE20 MCS11: -64dBm,
11ax HE40 MCS0: -93dBm, 11ac HE40 MCS11: -62dBm

• 5 GHz:
11ac VHT20 MCS0: -94dBm, 11ac VHT20 MCS11: -63dBm,
11ac VHT40 MCS0: -93dBm, 11ac VHT40 MCS11: -61dBm,
11ac VHT80 MCS0: -89dBm, 11ac VHT80 MCS11: -58dBm,
11ac VHT160 MCS0: -84dBm, 11ac VHT160 MCS11: -53dBm,
11ax HE20 MCS0: -92dBm, 11ax HE20 MCS11: -60dBm,
11ax HE40 MCS0: -89dBm, 11ax HE40 MCS11: -58dBm,
11ax HE80 MCS0: -86dBm, 11ax HE80 MCS11: -55dBm,
11ax HE160 MCS0: -84dBm, 11ax HE160 MCS11: -53dBm

Physical

10.9 × 7.2 × 2.3 in (277.3 × 183.9 × 57.3 mm)

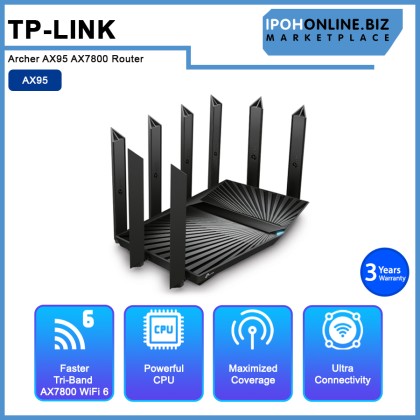

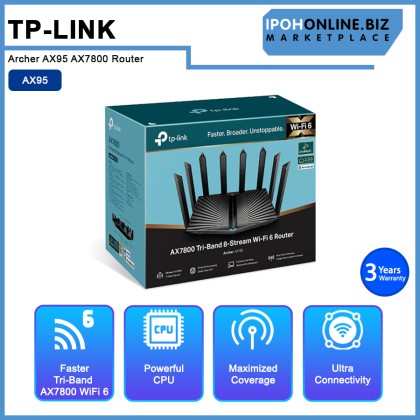

• Wi-Fi Router Archer AX95
• Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide
