Features

• Next-generation gigabit Wi-Fi 6 standard

• WAN aggregation

• Gaming engine providing unrivalled gaming experience

• Strong signals received

• Exclusive Reyee mesh providing whole-home Wi-Fi coverage

• Control of your home network at your fingertips

Specifications

Basics

• Dimension (W x D x H): 260 mm × 140 mm × 30 mm (10.24 in. × 5.51 in. × 1.18 in. antennas not included)

• Weight: 0.48 kg (packages not included)

• Wi-Fi Standards: Wi-Fi 6 (802.11ax)

• MIMO: 2.4 GHz, 2×2, MU-MIMO, 5 GHz, 2×2, MU-MIMO

• Max. Wi-Fi Speed:  2.4 GHz: 574 Mbps, 5 GHz: 2402 Mbps

• Channel Width: 2.4 GHz: Auto/20/40 MHz, 5 GHz: Auto/20/40/80/160/MHz

• Antennas: 5

• Antennas Type: External Omnidirectional

• Antenna Gain: 2.4 GHz: 5 dBi, 5 GHz: 5 dB

• Ports: 1×10/100/1000 Base-TWAN/LAN, 1×10/100/1000 Base-TWAN, 2×10/100/1000 Base-TLAN

• Recommended Users: 60

• Max.Users: 192

• Power Supply: DC 12V/1.5A

• Power Consumption: <18W

• Operating Frequency Bands: 802.11b/g/n/ax: 2.400 GHz to 2.483 GHz, 802.11a/n/ac/ax: 5.150 GHz to 5.350 GHz, 802.11a/n/ac/ax: 5.470 GHz to 5.725 GHz, 5.725 GHz to 5.850 GHz country-specific restrictions apply

• DFS: Support

• Transmit Power: General:CE EIRP: ≤20dBm (2.4GHz)≤27dBm (5GHz)≤20dBm 2400~2483.5MHz, Myanmar：2400~2483.5MHz ≤20dBm(EIRP)；5150~5350MHz ≤23dBm(EIRP)；5470~5725MHz ≤30dBm(EIRP)；5725~5850MHz ≤30dBm(EIRP)

• Receive Sensitivity: 2.4 GHz:20MHz802.11b: -91 dBm(1 Mbps)802.11g: -91 dBm(6 Mbps), -72 dBm(54 Mbps)802.11n: -90dBm(MCS0), -70 dBm(MCS7)5 GHz:20MHz802.11n: -85 dBm(MCS0), -67 dBm(MCS7)802.11a: -89 dBm(6 Mbps), -72 dBm(54 Mbps)802.11ac: -90dBm(MCS0), -63dBm(MCS8)802.11ax: -88dBm(MCS0), -62dBm(MCS8), -58dBm(MCS11)

• Operating Temperature: 10 °C to +40 °C (14 °F to 104°F)

• Operating Humidity: 5% to 95% Noncondensing

Wireless

• OFDMA: -

• MU-MIMO: Support

• BSS Coloring: Support

• Maximum Number of SSIDs: 6

• SSID Hiding: Support

• Band Steering: Support

• Guest Wi-Fi: Support

• WPA/WPA2: Support

• WPA3: Support

• Roaming: Layer 2 Roaming

• Blacklist: Support

• Reyee Mesh: Support

• Mesh Pairing by Hardware: Support

• Mesh Pairing by Mesh Button: Support

• Mesh Pairing by Eweb: Support

• Recommended Hop Count: ≤5

• Wi-Fi Optimization: Support

• QoS(WMM): Support

• WPS: -

• Transimission Power Adjustment: Support

Hardware

• CPU:  MT7981

• Flash: 128 MB

• RAM/SDRAM: 256 MB

• Color: Black

• System LED Indicator: Support

• Reyee Mesh LED Indicator: Support

• Reyee Mesh Button: Support

• Power Button: -

• Reset Button: Support

• DC Connector Dimensions: Outer Diameter: 5.5 mmInner Diameter: 2.1 mmLength: 9.5 mm(Outer Diameter: 0.22 in. Inner Diameter: 0.08 in. Length: 0.37 in)

WAN

• Static IP: Support

• DHCP: Support

• PPPoE: Support

• Learning PPPoE Account & Password: Support

• VLAN Tagging: Support

LAN

• DHCP Server: Support

• Client List: Support

• Static IP Assignment: Support

• Port-Based Flow Control: Support

Features

• TR069: Support

• IPv6: Support

• DDNS: Support

• IPTV: Support

• Alarm: Support

• Diagnosis: Support

• UPnP: Support

• ARP Binding: Support

• Port Mapping: Support

• DMZ Host: Support

• Rate Limitation of Terminals: Support

• Hardware Acceleration: Support

• MAC Address Cloning: Support

• Cloud Management: Support

• Repeater Mode: Support

• WISP Mode: Support

Security

• PPTP VPN Server: Support

• PPTP VPN Client: Support

• L2TP VPN Client: -

• Parental Control: Time Schedule

• Protect TCP Flood Attacks: Support

• Protect ICMP Attacks: -

• Protect UDP Flood Attacks: -

System

• Default Access/Password: 192.168.110.1, No Password Required by Default

• URL Access: Support

• Local Upgrade: Support

• Online Upgrade: Support

• APP Upgrade: Support

• Syslog: Support

• Backup: Support

• Factory Reset: Support

• Language: Chinese, English, Vietanmese, Turkish, Indonesia, Thai, traditioanl Chinese, Spanish, Russian, Arabic, Ukrainian, Czech, Italian

What In The Box

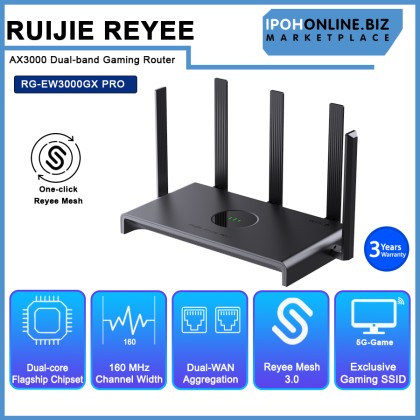

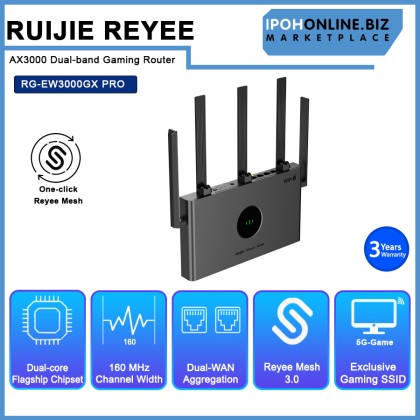

• 1 x RUIJIE REYEE RG-EW3000GX PRO Dual-band Gigabit Mesh Gaming Router Wi-Fi 6 3000M
• 1 x Power Adapter
• 1 x Quick Installation Guide
• 1 x Warranty Card
• 1 x Cat5E UTP Cable

Warranty

3 Years Warranty

Local Manufacturer Warranty
