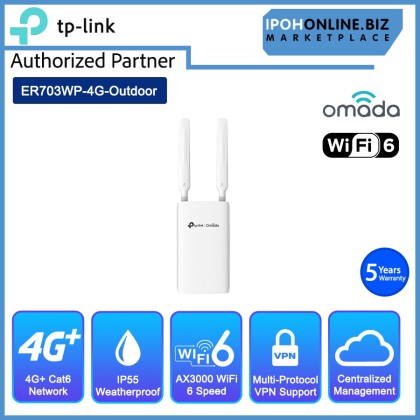

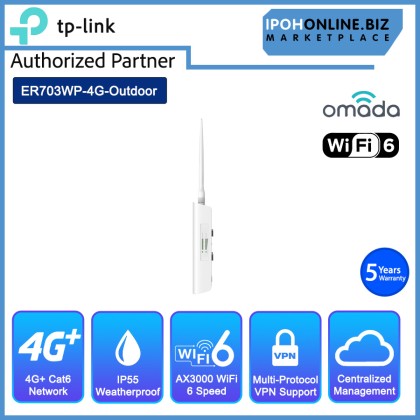

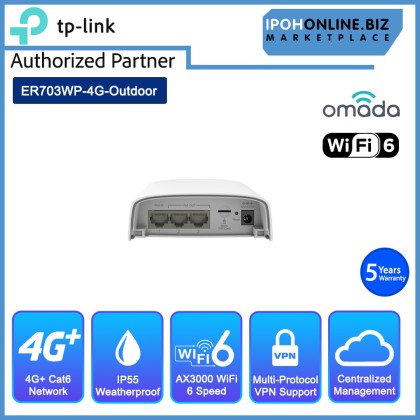

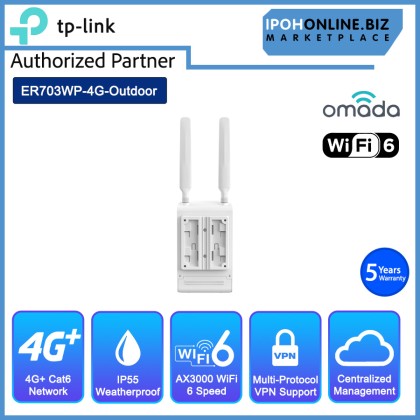

Name: TP-LINK ER703WP-4G-OUTDOOR OMADA 4G+CAT6 AX3000 WiFi 6 OUTDOOR/INDOOR GATEWAY
Brand: TP-Link
SKU: GATEWAY-TL-ER703WP-4G-OD
Price: 1399.00 MYR
Availability: InStock

RM1,399.00 RM1,999.00 RM

TP-LINK ER703WP-4G-OUTDOOR OMADA 4G+CAT6 AX3000 WiFi 6 OUTDOOR/INDOOR GATEWAY

Price	RM1,399.00 RM1,999.00 RM
Product SKU	GATEWAY-TL-ER703WP-4G-OD
Brand	TP-Link
Size (L x W x H)	27 cm x 26 cm x 12 cm
Availability	3

Quantity

Product
Description
Reviews (0)
What's in the box

Description

Highlight
								4G+ Cat6 up to 300 Mbps
AX3000 Wi-Fi 6 with 2402 Mbps on 5GHz and 574 Mbps on 2.4GHz
3 × Gigabit WAN/LAN Ports (2 × PoE Out, 1 × PoE In)
1 × Nano SIM Card Slot
802.3at/bt PoE or 12V/2A DC Power Supply
4G and Ethernet WAN Auto Backup with Load Balancing
IPSec/L2TP/PPTP/OpenVPN/GRE/WireGuard/SSL VPN
Centralized Management
IP55 Weatherproofing



Features

4G+ Cat6 up to 300 Mbps
AX3000 Wi-Fi 6 with 2402 Mbps on 5GHz and 574 Mbps on 2.4GHz
3 × Gigabit WAN/LAN Ports (2 × PoE Out, 1 × PoE In)
1 × Nano SIM Card Slot
802.3at/bt PoE or 12V/2A DC Power Supply
4G and Ethernet WAN Auto Backup with Load Balancing
IPSec/L2TP/PPTP/OpenVPN/GRE/WireGuard/SSL VPN
Centralized Management
IP55 Weatherproofing

Specification

4G
Network Type	LTE Band of EU: 4G LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/900/800/700/1450 MHz) 4G LTE-TDD: B38/B40/B41 (2600/2300/2500 MHz) 3G DC-HSDPA/HSPA+/HSDPA/HSUPA/WCDMA: B1/B3/B5/B8(2100/1800/850/900 MHz) Carrier Aggregation: B1+B1/B3/B5/B7/B8/B20/B28/B38/B40/B41 B3+B3/B5/B7/B8/B20/B28/B38/B40/B41 B5+B5/B7/B38/B40/B41 B7+B7/B8/B20/B28/B32 B8+B32/B38/B40/B41 B20+B32/B38/B40 B28+B32/B38/B40/B41 B38+B38 B40+B40 B41+B41
SIM Type	1× Nano SIM Card
Frequency	Downlink: 300 Mbps Uplink: 50 Mbps
SECURITY
DPI	Application control via DPI / Updated app library
Access Control	Source/Destination IP Based Access Control
Filtering	Sending GARP Packets URL Filtering Web Security
ARP Inspection	Sending GARP Packets ARP Scanning IP-MAC Binding
Attack Defence	TCP/UDP/ICMP Flood Defense Block TCP Scan (Stealth FIN/Xmas/Null) Block Ping from WAN
HARDWARE FEATURES
Interface	3 Gigabit WAN/LAN Ports
Network Media	10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
Button	Reset Button
Power Supply	802.3at/bt PoE; 12VDC / 2A Power Adapter
Wi-Fi Frequency & Signal Rate	2.4 GHz: 574 Mbps 5 GHz: 2402 Mbps (HE160)
Flash	256 MB NAND
DRAM	512 MB DDR4
LED	4G Signal, WLAN, WAN/LAN, SYS
Dimensions ( W x D x H )	6.9 × 4.0 × 1.5 in (174.8 × 100.4 × 38.7 mm) (Antenna dimensions are not included)
Antenna	Wi-Fi: Two 5GHz 4.0dBi & 2.4GHz 2.3 dBi dual-band build-in antennas LTE: Two 4.0dBi omnidirectional detachable antennas
Mounting	Pole/Wall-Mounting
Max Power Consumption	POE:62.9W max @ 220V/50Hz 25℃ DC: 16.6W max @ 220V/50Hz 25℃
PERFORMANCE
DPI Throughput	TCP: 1131 Mbps UDP: 974 Mbps
GRE	Unencrypted: 450.3 Mbps Encrypted: 277.6 Mbps
WireGuard VPN	462.8 Mbps
Concurrent Session	120,000
New Sessions /Second	3,800
NAT (Static IP)	945.9 Mbps / 950.2 Mbps
NAT (DHCP)	947.3 Mbps / 949.4 Mbps
NAT (PPPoE)	916.9 Mbps / 946.3 Mbps
NAT (L2TP)	878.9 Mbps / 778.9 Mbps
NAT (PPTP)	852.2 Mbps / 775.9 Mbps
IPsec VPN Throughput	ESP-SHA1-AES256: 568.3Mbps ESP-SHA256-AES256: 559.8Mbps ESP-SHA384-AES256: 565.6Mbps ESP-SHA512-AES256: 550.0 Mbps
OpenVPN	85.1Mbps
L2TP VPN Throughput	Unencryted: 858.7 Mbps Encrypted: 467.0 Mbps
PPTP VPN Throughput	Unencryted: 876.2 Mbps Encrypted: 182.6 Mbps
SSL VPN Throughput	86.6Mbps
66 Byte Packet forwarding rate	1,453,489 pps / 1,453,489 pps
1,518 Byte Packet forwarding rate	81275 pps / 81275 pps
WIRELESS FEATURES
Advanced Functions	Seamless Roaming Mesh (with EAP that supports Mesh) OFDMA Beamforming MU-MIMO Rate Limit: Based on SSID/Client Airtime Fairness Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise Multiple SSIDs: 16 in total (8 per radio)
Guest Network	Support
BASIC FUNCTIONS
WAN Connection Type	Static IP Dynamic IP PPPoE (Supports MRU Configuration) PPTP L2TP
MAC Clone	Modify WAN Address
DHCP	DHCP Server DHCPv6 PD Server (only in Standalone Mode) DHCP Options Customization DHCP Address Reservation Multi-IP Interfaces Multi-Net DHCP
SMS	Receive / Send SMS
IPv6	StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
VLAN	802.1Q VLAN
IPTV	IGMP v2/v3 Proxy, Custom Mode, Bridge Mode
ADVANCED FUNCTIONS
ACL	IP/Port/Protocol/Domain Name Filtering
Advanced Routing	Static Routing Policy Routing RIP OSPF
Bandwidth Control	IP-Based Bandwidth Control
Load Balance	Intelligent Load Balance Application Optimized Routing Link Backup(Timing, Failover) Online Detection
NAT	One-to-One NAT Multi-Net NAT
Session Limit	IP-Based Session Limit
VPN
GRE	Only in Standalone Mode
SSL VPN	50 Tunnels
IPsec VPN	100 IPSec VPN Tunnels LAN-to-LAN, Client-to-LAN Main, Aggressive Negotiation Mode DES, 3DES, AES128, AES192, AES256 Encryption Algorithm IPsec Failover IKE v1/v2 MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm NAT Traversal (NAT-T) Dead Peer Detection (DPD) Perfect Forward Secrecy (PFS)
PPTP VPN	PPTP VPN Server PPTP VPN Client (10) 50 Tunnels PPTP with MPPE Encryption
L2TP VPN	L2TP VPN Server L2TP VPN Client (10) 50 Tunnels L2TP over IPSec
OpenVPN	OpenVPN Server OpenVPN Client (5) 55 OpenVPN Tunnels "Certificate + Account" Mode Full Mode
WireGuard VPN	20 Tunnels
AUTHENTICATION
Web Authentication	No Authentication Simple Password Hotspot (Local User / Voucher / SMS / Radius) External Radius Sever External Portal Sever LDAP
MANAGAMENT
Omada App	Yes
Centralized Management	Omada Cloud Essentials Omada Cloud-Based Controller Omada Hardware Controller (OC300) Omada Hardware Controller (OC200) Omada Software Controller
Cloud Access	Yes
Service	Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
Maintenance	Web Management Interface Remote Management Export & Import Configuration SNMP v1/v2c/v3 Diagnostics (Ping & Traceroute) NTP Synchronize Port Mirroring CLI (only in Standalone Mode) Syslog Support
Management Features	Automatic Device Discovery Intelligent Network Monitoring Abnormal Event Warnings Unified Configuration Reboot Schedule Captive Portal Configuration
OTHERS
Certification	CE, FCC, RoHS
System Requirements	Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11 MAC OS, NetWare, UNIX or Linux
Environment	Operating Temperature: -30 °C to 60 °C (-22 °F to 140 °F) Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F) Operating Humidity: 5% to 95% non-condensing Storage Humidity: 5% to 90% non-condensing
