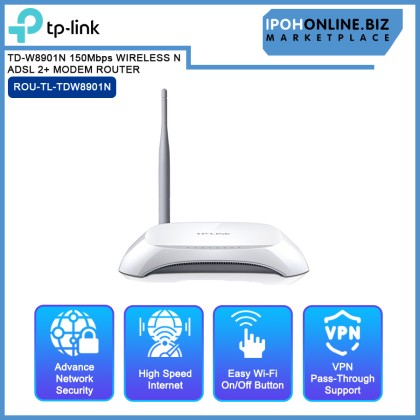

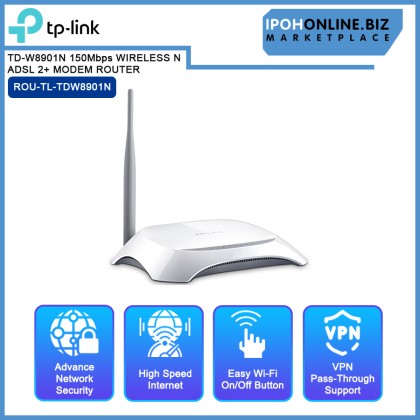

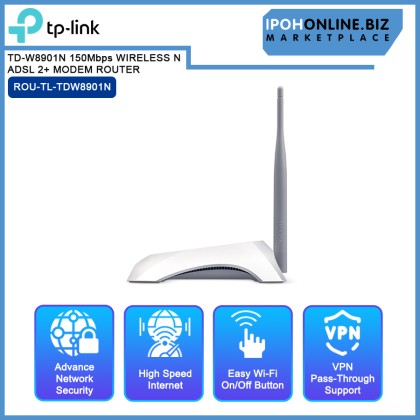

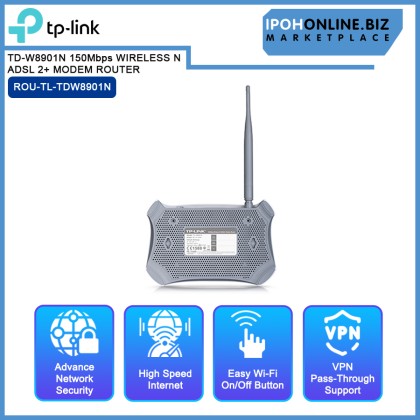

TP-LINK TD-W8901N 150Mbps WIRELESS N ADSL 2+ MODEM ROUTER

RM59.00 RM

TP-LINK TD-W8901N 150Mbps WIRELESS N ADSL 2+ MODEM ROUTER

Price	RM59.00 RM
Product SKU	ROU-TL-TDW8901N
Size (L x W x H)	30 cm x 29 cm x 12 cm
Availability

Product
Description
Reviews (0)
What's in the box

Description

Highlight
								Secure network: WPA/WPA2, MAC filtering, NAT & SPI Firewall
Fast ADSL2+ Internet with 150 Mbps Wi-Fi
Easy Wi-Fi On/Off Button
Supports VPN pass-through & QoS for smooth streaming

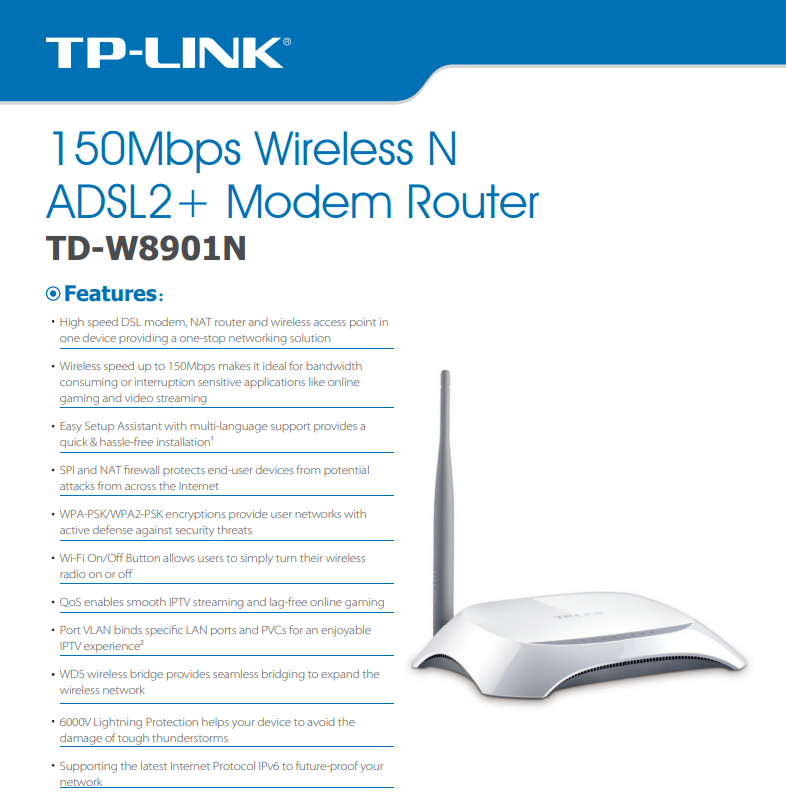

Features

Secure network: WPA/WPA2, MAC filtering, NAT & SPI Firewall
Fast ADSL2+ Internet with 150 Mbps Wi-Fi
Easy Wi-Fi On/Off Button
Supports VPN pass-through & QoS for smooth streaming

Specifications

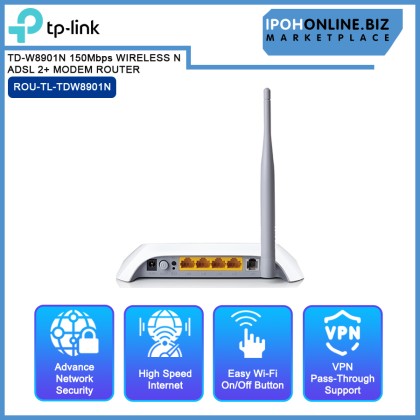

Interface	4 × 10/100Mbps RJ45 Ports, 1 RJ11 Port
Button	1 Power On/Off Button, 1 Reset Button, 1 Wi-Fi On/Off Button
External Power Supply	9VDC/0.6A
IEEE Standards	IEEE 802.3, 802.3u
ADSL Standards	Full-rate ANSI T1.413 Issue 2, ITU-T G.992.1 (G.DMT), ITU-T G.992.2 (G.Lite), ITU-T G.994.1 (G.hs), ITU-T G.995.1, ITU-T G.996.1, ITU-T G.997.1, ITU-T K.2.1
ADSL2 Standards	ITU-T G.992.3 (G.dmt.bis), ITU-T G.992.4 (G.lite.bis)
ADSL2+ Standards	ITU-T G.992.5
Dimensions (W × D × H)	7.2 × 5.0 × 1.4 in (182 × 128 × 35 mm)
Antenna	Omni directional, Undetachable, Reverse SMA
Antenna Gain	1 × 5 dBi
Wireless Standards	IEEE 802.11g, 802.11b, with some n features
Frequency	2.400–2.4835 GHz
Wireless Security	Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, Wireless MAC Filtering
Transmission Power	< 20 dBm (EIRP)
Quality of Service	QoS Remarking based on IPP/ToS, DSCP, and 802.1p
Advanced Features	Traffic Shaping (ATM QoS) UBR, CBR, VBR-rt, VBR-nrt; DHCP, DHCP relay; NAT; PVC/Ethernet Port Mapping; VLAN, 802.1P, Static Routing, RIP v1/v2 (optional); DNS Relay, DDNS, IGMP snooping V1/2, IGMP Multicast, UPnP
Security	NAT Firewall, SPI Firewall, MAC/IP/Packet/Application/URL Filtering, DoS, SYN Flooding, Ping of Death
Management Features	Web Based Configuration (HTTP), Remote management, Telnet management, CLI, SSL for TR-069, SNMP v1/2c, SNMP over EOC, Web Based Firmware Upgrade, CWMP (TR-069), Diagnostic Tools
Port Forwarding	Virtual server, DMZ, ACL (Access Control List)
VPN Pass-Through	PPTP, L2TP, IPSec Pass-through
ATM/PPP Protocols	ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364), PPP over Ethernet (RFC 2516), IPoA (RFC 1577/2225), PVC - Up to 8 PVCs
Certification	CE, FCC, RoHS
Package Content	TD-W8901N, External Splitter, RJ-11 Telephone Cable, RJ-45 Ethernet Cable, Quick Installation Guide, Resource CD, Power Adapter
System Requirements	Microsoft Windows 98SE, NT, 2000, XP, Vista, Windows 7/8, MAC OS, NetWare, UNIX, Linux
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉), Storage Temperature: -40℃~70℃ (-40℉~158℉), Operating Humidity: 10%~90% non-condensing, Storage Humidity: 5%~90% non-condensing
