| Price | RM249.00 RM349.00 RM |
| Product SKU | ROU-TD-W8970-3G |
| Brand | TP-Link |
| Size (L x W x H) | 7 cm x 31 cm x 24 cm |
| Availability | Out Of Stock |
- All-in-One Device: ADSL2+ Modem, NAT Router, 4-Gigabit-Port Switch and Wireless N Access Point
- 300Mbps Wireless speed and Gigabit Ethernet ports, ideal for multiple HD video streams
- Versatile Connectivity: ADSL, Ethernet WAN or 3G/4G modem for multiple Internet connection types
- One USB 2.0 port for storage sharing, printer sharing, FTP Server, Media Server and 3G/4G Modem
Overview
|

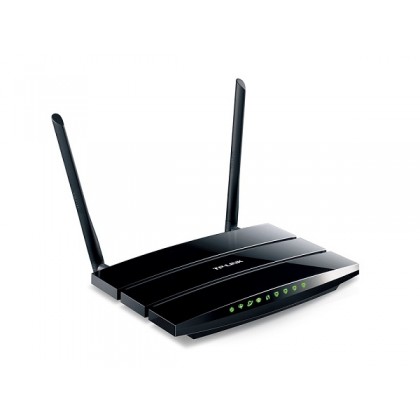

300Mbps Wireless N Gigabit ADSL2+ Modem Router -- TD-W8970 What This Product Does TP-LINK's TD-W8970 300Mbps Wireless N Gigabit ADSL2+ Modem Router is an incredibly robust all-in-one device allowing users to access high-speed internet connections and share them wirelessly at blazing 300Mbps wireless speeds or by using one of its 4 Gigabit LAN ports. With 2 multifunctional USB ports, users can share printers, files and media across the local network or the internet. What's more, this All-in-one device allows for two different connection types: ADSL, or Ethernet WAN, giving users the flexibility to access the Internet whichever method is most convenient. Full Gigabit Ports - More Power to You With 300Mbps 802.11n wireless and 4 Gigabit LAN ports, the TD-W8970 is the ideal choice for bandwidth heavy users that rely on speedy, reliable connections for bandwidth intensive work or entertainment such as lag-free conference calls, HD video streaming or online gaming. |
![]() |
|
2 USB Sharing Ports - Easy Sharing Using the TD-W8970's two multi-functional USB 2.0 ports, users can share printers, files and media either throughout the network at home with several different computers or even away, using the device's FTP server functions so that you never have to part with your files. |
![]() |
|
All-in-one Device The TD-W8970 does the work of several networking devices packed into one sleek device. With an ADSL2+ modem, NAT router and 300Mbps wireless access point, this device eliminates the need to purchase multiple devices to access and share a high-speed internet connections. |
![]() |
|
Interchangeable LAN/WAN Port The TD-W8970 supports ADSL or Ethernet WAN connections (EWAN) that allow users to have the flexibility of different Internet connections among ADSL, cable or fiber modem using its interchangeable LAN/WAN port. This unique feature makes it easier when users need to change to fiber or cable services when necessary. Its EWAN to LAN throughput can achieve up to 900Mbps+ allowing users to unleash the full potential of their networks. |
![]() |
Specification
| HARDWARE FEATURES | |

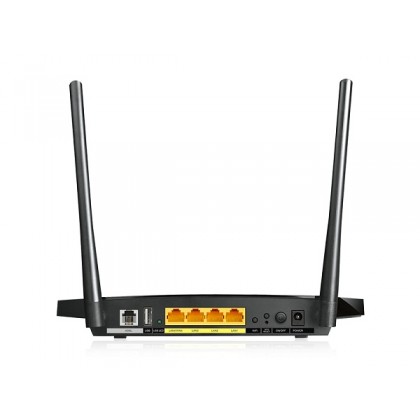

| Interface | 4 10/100/1000Mbps RJ45 Ports 1 RJ11 Port 1 USB 2.0 Port |
| Button | 1 Power On/Off Button 1 WPS Button 1 Wi-Fi On/Off Switch 1 RESET Button |
| External Power Supply | 12VDC/1.5A |
| IEEE Standards | IEEE 802.3, 802.3u, 802.3ab |
| ADSL Standards | Full-rate ANSI T1.413 Issue 2 ITU-T G.992.1(G.DMT), ITU-T G.992.2(G.Lite) ITU-T G.994.1 (G.hs) ITU-T G.995.1 |
| ADSL2 Standards | ITU-T G.992.3 (G.dmt.bis), ITU-T G.992.4(G.lite.bis) |
| ADSL2+ Standards | ITU-T G.992.5 |
| Dimensions ( W x D x H ) | 8.9x5.5x1.3 in.(225x140x32.5mm) |
| Antenna Type | Omni directional, Detachable, Reverse SMA |
| Antenna Gain | 2 x 5dBi |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11b, 802.11g, 802.11n |
| Frequency | 2.400-2.4835GHz |
| Transmit Power | <20dBm(EIRP) |
| Wireless Security | Support 64/128 bit WEP, WPA /WPA2, WPA-PSK/WPA2-PSK Wireless MAC Filtering |
| SOFTWARE FEATURES | |
| Quality of Service | WMM, Bandwidth Control (IP QoS) |
| Security | NAT Firewall, SPI Firewall, MAC / IP / URL Filtering |
| IPv6 | IPv6 and IPv4 dual stack Supported IPv6 Tunnels: DS-Lite, 6RD, 6 to 4 Supported IPv6 Connection Type: PPPoEv6, DHCPv6, Static IPv6 |
| Management | Web Based Configuration(HTTP) Remote management Telnet management Command Line Interface SSL for TR-069 SNMP V1/V2C Web Based Firmware Upgrade CWMP(TR-069) |
| Port Forwarding | Virtual server, Port Triggering, UPnP, DMZ, Manage Control |
| VPN Pass-Through | PPTP, L2TP, IPSec Pass-through |
| ATM/PPP Protocols | ATM Forum UNI3.1/4.0 PPP over ATM (RFC 2364) PPP over Ethernet (RFC2516) IPoA (RFC1577/2225) PVC - Up to 8 PVCs |
| Advanced Features | Guest Network, Parental Control, Wireless Schedule Traffic Shaping(ATM QoS) UBR, CBR, VBR-rt, VBR-nrt Dynamic Host Configuration Protocol (DHCP), DHCP relay Network Address Translation (NAT) PVC/Ethernet Port Grouping Static Routing, RIP v1/v2 (optional) DNS Relay, DDNS |
| USB Sharing | Storage Sharing, FTP Server, Media Server, Print Server |
| IGMP | IGMP snooping V1/V2/V3 IGMP Multicast |
| IPSec VPN | 10 IPSec VPN Tunnels LAN-to-LAN Main, Aggressive Negotiation Mode DES, 3DES, AES128, AES192, AES256 Encryption Algorithm MD5, SHA1 Authentication Algorithm Manual, IKE Key Management Mode Dead Peer Detection (DPD) Perfect Forward Secrecy (PFS) |
| OTHERS | |
| Certification | CE, FCC, RoHS IPv6 |
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 10/8.1/7, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment | Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
- 1 x 300Mbps Wireless N Gigabit ADSL2+ Modem Router
- 1 x TD-W8970
- 1 x External Splitter
- 1 x RJ-11 Phone Line
- 1 x RJ-45 Ethernet Cable
- 1 x Quick Installation Guide
- 1 x Resource CD
- 1 x Power Adapter
