| Price | RM439.00 RM899.00 RM |
| Product SKU | CAM-HIK-DS-2CD1743G0-IZ |
| Brand | Hikvision |
| Size (L x W x H) | 16 cm x 16 cm x 18 cm |
| Availability | Out Of Stock |
- 1/3" Progressive Scan CMOS
- 2560 × 1440@20fps
- 2.8 mm To 12 mm Manual/Motorized (With -Z) Vari-Focal Lens
- H.265+, H.265, H.264+, H.264
- Dual Stream
- 120 dB WDR (Wide Dynamic Range)
- 3D DNR (Digital Noise Reduction)
- Up To 30 m IR Range
- PoE (Power Over Ethernet)
- IP67

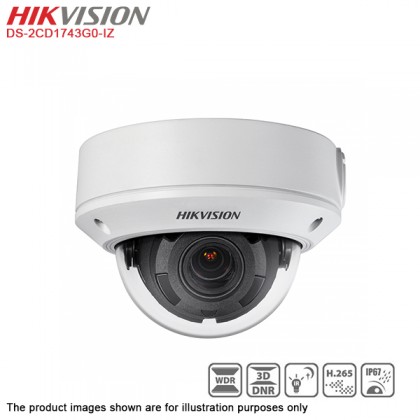

Hikvision DS-2CD1743G0-IZ 4MP 2.8-12MM Motorized VF Vandal Resistant Weatherproof EXIR ONVIF Network PoE Dome Camera
Specifications
| Camera | |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Min. Illumination | Color: 0.01 Lux @(F1.2, AGC ON), 0.018Lux @ (F1.6, AGC ON) |
| Shutter Time | 1/3 s To 1/100, 000 s |
| Slow Shutter | Yes |
| Lens | 2.8 To 12 mm Horizontal Field Of View: 98° To 28° Vertical Field Of View: 51° To 16° Diagonal Field Of View: 115° To 32° |
| Lens Mount | φ14 |
| Adjustment Range | Pan: 0° To 355°, Tilt: 0° To 70°, Rotation: 0° To 360° |
| Day & Night | IR Cut Filter |
| Wide Dynamic Range | Digital WDR |
| Digital Noise Reduction | 3D DNR |
| Focus | Auto |
| Compression Standard | |
| H.265 Type | Main Profile |
| Video Compression | H.265/H.264/MJPEG |
| H.264 Code Profile | Baseline Profile/Main Profile/High Profile |
| Video Bit Rate | 32 Kbps ~ 6 Mbps |
| Image | |
| Max. Image Resolution | 2560 × 1440 |
| Frame Rate | 50Hz: 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1080, 1280 × 720) 60Hz: 20fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720) |
| Sub Stream | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
| Image Enhancement | BLC, 3D DNR |
| Image Settings | Rotate Mode, Saturation, Brightness, Contrast, Sharpness, AGC, And White Balance Are Adjustable By Client Software Or Web Browser |
| ROI | 1 Fixed Region For Main Stream And Sub-Stream |
| Day/Night Switch | Auto, Scheduled |
| Network | |
| General Function | One-Key Reset, Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark, IP Address Filter |
| Network Storage | MicroSD/SDHC/SDXC Card (128G), Local Storage And NAS (NFS,SMB/CIFS), ANR |
| Alarm Trigger | Motion Detection, Video Tampering Alarm, Network Disconnected, IP Address Conflict, Illegal Login, HDD Full, HDD Error |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
| System Compatibility | ONVIF (Profile S, Profile G), ISAPI |
| General | |
| Operation Condition | -30 °C To 50 °C (-22 °F To 122 °F), Humidity: 95% Or Less (Non-Condensing) |
| Power Supply | 12 VDC ± 25%, PoE (802.3af Class3) |
| Power Consumption | -IZ: 12 VDC, 0.8 A, Max: 10 W; PoE: (802.3af, 36 V To 57 V), 0.35 A To 0.2 A, Max: 12 W -I: 12 VDC, 0.5 A, Max: 6 W; PoE: (802.3af, 36 V To 57 V), 0.22 A To 0.14 A, Max: 8 W |
| Impact Protection | IK10 |
| Weather Proof | IP67 |
| IR Range | Up To 30m |
| Dimensions | Camera: Φ 141 mm × 99.9 mm (5.6" × 3.9") With Package: 140 mm × 140 mm × 154 mm (5.5" × 5.5" × 6.1") |
| Weight | Camera: Approx. 820 g (1.8 lb.) With Package: Approx. 1200 g (2.6 lb.) |
What In The Box
- 1 x Hikvision DS-2CD1743G0-IZ 4MP 2.8-12MM Motorized VF Vandal Resistant Weatherproof EXIR ONVIF Network PoE Dome Camera
- 1 x Screw Set
- 1 x Drill Template
- 1 x Quick Start Guide
Warranty
1 Years Warranty
Local Manufacturer Warranty
