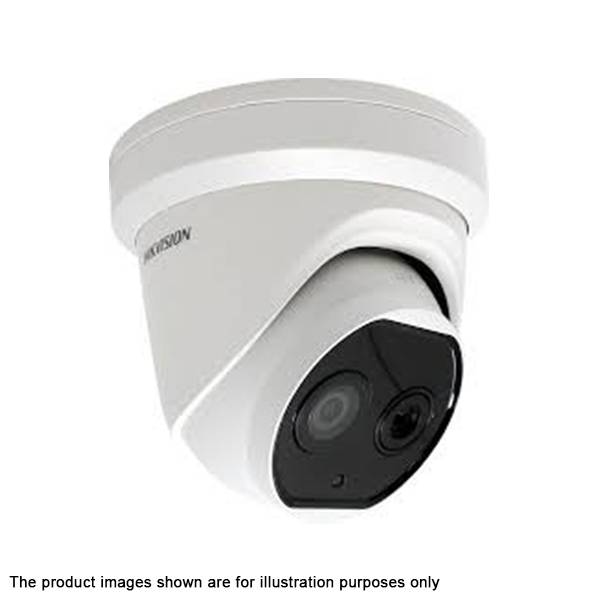

Name: Hikvision DS-2TD1217-3/V1 3MM Thermal BI-Spectrum Network Dome Camera
Brand: Hikvision
SKU: CAM-HIK-DS-2TD1217-3/V1
Price: 1600.00 MYR
Availability: InStock

Hikvision DS-2TD1217-3/V1 3MM Thermal BI-Spectrum Network Dome Camera

RM1,600.00 RM1,980.00 RM

Hikvision DS-2TD1217-3/V1 3MM Thermal BI-Spectrum Network Dome Camera

Price	RM1,600.00 RM1,980.00 RM
Product SKU	CAM-HIK-DS-2TD1217-3/V1
Brand	Hikvision
Size (L x W x H)	28 cm x 18 cm x 26 cm
Availability	1

Quantity

Product
Description
Reviews (0)
What's in the box

Description

Highlight
								High Sensitivity Thermal Module With 160 x 120 Resolution
NETD Is Less Than 40 Mk (@25° C, F#=1.1)
Supports Contrast Adjustment
Leading Thermal Image Processing Technology: Adaptive AGC, DDE, 3D DNR
Up To 15 Palettes 0f Adjustable Color
Powerful Behavior Analysis Functions, Based On Deep Learning Algorithm: Line Crossing, Intrusion, Region Entrance & Exit
Reliable Temperature-Anomaly Alarm
Advanced Fire Detection Algorithm
High Quality Optical Module With 2 MP Resolution
Bi-Spectrum Image Fusion, Picture-In-Picture Preview





Specification

Thermal Module
Image Sensor	Vanadium Oxide Uncooled Focal Plane Arrays
Pixel Interval	17μm
Response Waveband	8μm To 14μm
NETD	Less Than 40mk (@25°C,F#=1.1)
MRAD	5.48 mrad
Field Of View	50° × 37.2° (H × V)
Min. Focusing Distance	0.2 m
Aperture	F1.1
Image Function
Bi-Spectrum Image Fusion	Fusion View Of Thermal View And Overlaid Details Of The Optical Channel
Picture In Picture	Combins Details Of Thermal And Optical Image PIP, Overlay Thermal Image On Optical Image
Smart Function
VCA(Video Content Analysis)	4 VCA Rule Types (Line Crossing, Intrusion, Region Entrance, And Region Exiting), Up To 8 VCA Rules.
Temperature Measurement	3 Temperature Measurement Rule Types, 21 Rules (10 Points, 10 Regions, And 1 Line).
Temperature Range	-20 °C to 150 °C (-4 °F To 302 °F)
Temperature Accuracy	±8 °C (14.4 °F)
Fire Detection	Dynamic Fire Point Detection, Up To 10 Fire Points Detectable.
Infrared
IR Distance	Up To 15 m
IR Intensity And Angle	Automatically Adjusted
Network
Main Stream	Visible Light: 50Hz: 25fps (1920 × 1080), 25fps (1280 × 960), 25fps (1280 × 720),Visible Light: 60Hz: 30fps (1920 × 1080), 30fps (1280 × 960), 30fps (1280 × 720),Thermal: 25fps (160 × 120 (The Resolution Of Output Image Is 320 × 240))
Sub Stream	Visible Light: 50Hz: 25fps (704 × 576), 25fps (640 × 480),Visible Light: 60Hz: 30fps (704 × 480), 30fps (640 × 480),Thermal: 25fps (160 × 120 (The Resolution Of Output Image Is 320 × 240))
Video Compression	H.265/H.264, H.265+/H.264+ Encoding With Baseline/Main/High Profile
Audio Compression	G.711u/G.711a/G.722.1/MP2L2/G.726/PCM
Simultaneous Live View	Up To 20-ch
User/Host Level	Up To 32 Users, 3 Levels: Administrator, Operator, User
Security Measures	User Authentication (ID And PW), MAC Address Binding, HTTPS Encryption, IEEE 802.1x Access Control, IP Address Filtering
Integration
Alarm Input	1-ch inputs (0-5vDC)
Alarm Output	1-ch Relay Outputs, Alarm Response Actions Configurable
Alarm Action	SD Recording/Relay Output/Smart Capture/FTP Upload/Email linkage
Audio Input	1 3.5mm Mic in/Line in Interface. Line input: 2-2.4V[p-p], Output Impedance:1KΩ±10%
Audio Output	Linear Level; Impedance: 600Ω
Reset	1 Reset Button
Ethernet	1 RJ45 10M/100M Self-adaptive Ethernet interface, 1 RS485
SD Memory Card	Built-In Micro SD Card Slot, Support Micro SD/SDHC/SDXC Card (Up To 256GB), Support Manual/Alarm Recording
Application Programming	Open-Ended API, Support ISAPI; Support HIKVISION SDK And Third-Party Management Platform
Client	iVMS-4200
Web Browser	IE8-IE11, Chrome41-Chrome44, Firefox 30-Firefox51
General
Menu Language	English
Power	12 VDC± 20%, Two-Core Terminal Block PoE (802.3at, class 4
Power Consumption	12 VDC± 20%: 0.7 A, Max. 8W,PoE (802.3at, Class 4): 42.5 V To 57 V, 0.14 A To 0.22 A, Max. 8.5W
Work Temperature/Humidity	-30°C To 60°C (-22°F To 140°F); Humidity: 95% Or Less
Protection Level	IP67 Standard; TVS 6000V Lightning Protection, Surge Protection And Voltage Transient Protection
