| Camera |
| Image Sensor |
1/3" Progressive Scan CMOS |
| Min. Illumination |
0.07Lux @ (F1.2, AGC ON) ,0 Lux with IR |
| Shutter time |
1/3 s to 1/100,000 s |
| Lens |
4mm@ F2.0 (6mm 12mm optional)
Angle of view: 70°(4mm), 43.3°(6mm), 20.6°(12mm)@(2048 × 1536); 79°(4mm), 49°(6mm), 23.2°(12mm)@(1920 × 1080) |
| Lens Mount |
M12 |
| Day & Night |
IR cut filter with auto switch |
| Wide Dynamic Range |
Digital WDR |
| Digital noise reduction |
3D DNR |
| Compression Standard |
| Video Compression |
H.264/MJPEG |
| Video bit rate |
32Kbps~12Mbps |
| Dual Stream |
Yes |
| Image |
| Max. Image Resolution |
2048×1536 |
| Frame Rate |
50Hz: 20fps (2048 × 1536), 25fps (1920 × 1080), 25fps (1280 × 720)
60Hz: 20fps (2048 × 1536), 30fps (1920 × 1080), 30fps (1280 × 720) |
| Image Settings |
Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser
|
| BLC |
|
| ROI |
Suppport |
| Network |
| Network Storage |
Built-in Micro SD/SDHC/SDXC slot, up to 128G, NAS(NFS, SMB/CIFS) |
| Alarm Trigger |
Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception |
| Protocols |
TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour
|
| General Function |
One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering |
| System Compatibility |
ONVIF, PSIA, CGI, ISAPI |
| Interface |
| Communication Interface |
1 RJ45 10M / 100M Ethernet interface |
| Reset Button |
Yes |
| Wi-Fi Specification |
| Wireless Standards |
IEEE802.11b, 802.11g, 802.11n |
| Security |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
|
|
Transmit Power
|
11b: 17±1.5dBm @ 11Mbps
11g: 14±1.5dBm @ 54Mbps
11n: 12.5±1.5dBm |
| Receive Sensitivity |
11b: -90dBm @ 11Mbps (Typical)
11g: -75dBm @ 54Mpbs (Typical)
11n: -74dBm (Typical) |
| Transmission Rate |
11b: 11Mbps
11g: 54Mbps
11n: up to 150Mbps |
| Wireless Range |
50m(depend on environment) |
| General |
| Operating Conditions |
-30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing) |
| Power Supply |
12 VDC ± 10%, PoE (802.3af) |
| Power Consumption |
Max. 5 W (Max. 7 W with IR cut filter on) |
| Weather Proof |
IP66 |
| IR Range |
Up to 30m |
| PIR |
70×157×62 mm (2.8” × 6.1” × 2.4”) |
| Weight |
500g (1.1 lbs) |
|
|
|
|
|
|
What In The Box

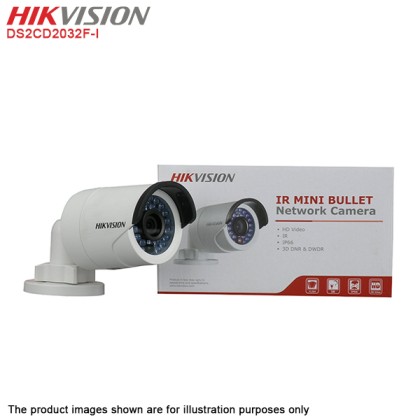

- 1 x Hikvision DS2CD2032F-I 3MP Full HD 2048×1536 IP66 4mm IR Mini Bullet Network Camera
- 1 x Screw Set
- 1 x Drill Template
- 1 x Quick Start Guide
- 1 x EZVIZ Cloud P2P Quick Start Guide
- 1 x CD
Warranty
3 months Warranty
Local Manufacturer Warranty
