| Price | RM3,750.00 RM3,750.00 RM |
| Product SKU | CAM-DS2TP31B-3AUF |
| Brand | Hikvision |
| Size (L x W x H) | 32 cm x 21 cm x 15 cm |
| Availability | 3 |
| Quantity |
|
- 160 × 120 Resolution
- 320 × 240 Resolution 2.4’’ LCD Display
- Built-in Rechargeable Li-ion Battery
- Up to 8 Hours Continuous Running
- Thermometry D:S = 75:1, A Circular Target With A Diameter Of 1 cm Can Be Measured Accurately Within A Distance Of 75

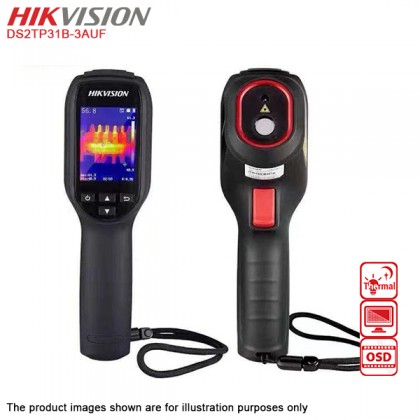

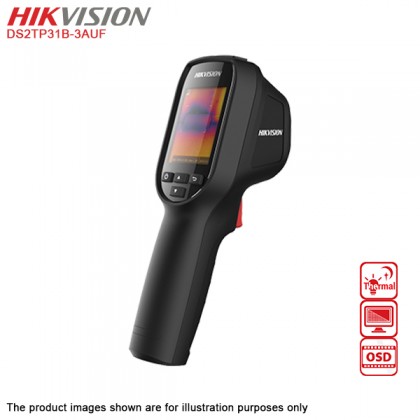

Hikvision Handheld Body Temperature Measurement Fever Screening Camera DS-2TP31B-3AUF
Functions
Thermography
Device detects the real-time temperature, and display it on the screen.
Storage
Device is equipped with replaceable memory card to store recorded captured snapshots, and important data.
Palette
Device supports 4 palettes.
Laser Light Supplement
Long-distance laser light supplement to point the thermography target.
Specifications
| Model | DS-2TP31-3AUF |
| Parameter | Handheld Thermography Camera |
| Thermal Module | |
| Image sensor | Uncooled Focal Plane Arrays |
| Max. Resolution | 160 × 120 |
| Pixel Pitch | 17μm |
| Response waveband | 8μm to 14μm |
| NETD | < 40mK (@ 25 °C,F#=1.0) |
| Field of View | 37.2° × 50 ° |
| Focal length | 3.1 mm |
| IFOV (mrad) | 5.48 mrad |
| Min. Focus Length | ≥ 150 mm |
| Aperture | F 1.1 |
| Image Display | |
| Monitor | 320 × 240 resolution 2.4’’ LCD display |
| Palettes | Black hot, White hot, Rainbow, Ironbow |
| Thermography | |
| Rules | 3 thermometry points: Max. Temperature; Min. Temperature; Center Temperature |
| Thermometry Range | -20 °C to 550 °C (-4 °F to 1022 °F) |
| Thermometry Accuracy | Max (±2 °C, ±2%) |
| Thermometry Distance | D:S = 75:1 |
| Battery | |
| Battery Type | Rechargeable Lithium Battery |
| Battery Operating Time | 8 hours continuous running |
| Functions | |
| Laser Light | Support (Point to the thermography target) |
| Storage | Replaceable memory card (default 8G, support up to 128G storage) |
| Photo | Thermal image |
| Video | N.A. |
| Language | English |
| General | |
| Power | 3.7 V DC/0.4 A |
| Power Consumption | Less than 1.2 W |
| Hardware Interface | micro USB |
| Working Temperature | -10 °C to 50 °C (14 °F to 122 °F) |
| Protection level | IP54 |
| Drop Test Height | 2 m (6.56 feet) |
| Dimension | 196 mm × 117 mm × 59 mm (7.7 ″ × 4.6 ″ × 2.3 ″) |
| Weight | Approx. less than 350 g (0.77 lb) |
| Accessory | Power Adaptor, USB cable, 8GB memory card, User manual, Disk, Wrist Strap |
Whats in the box
- 1 x Hikvision Handheld Body Temperature Measurement Fever Screening Camera DS-2TP31B-3AUF
- 1 x User Manual
- 1 x Disk
- 1 x USB Cable
- 1 x Power Adapter
- 1 x Wrist strap
Warranty
1 Years Warranty
Local Manufacturer Warranty
Warranty Policy : Please complete and submit Product Warranty Registration Form within 14 days of purchase to ensure continuous coverage. LAZADA Warranty Registration http://LWR.accessglobal.info Email us at [email protected]
- 1 x Hikvision Handheld Body Temperature Measurement Fever Screening Camera DS-2TP31B-3AUF
- 1 x User Manual
- 1 x Disk
- 1 x USB Cable
- 1 x Power Adapter
- 1 x Wrist strap
