RM975.00 RM1,075.00 RM

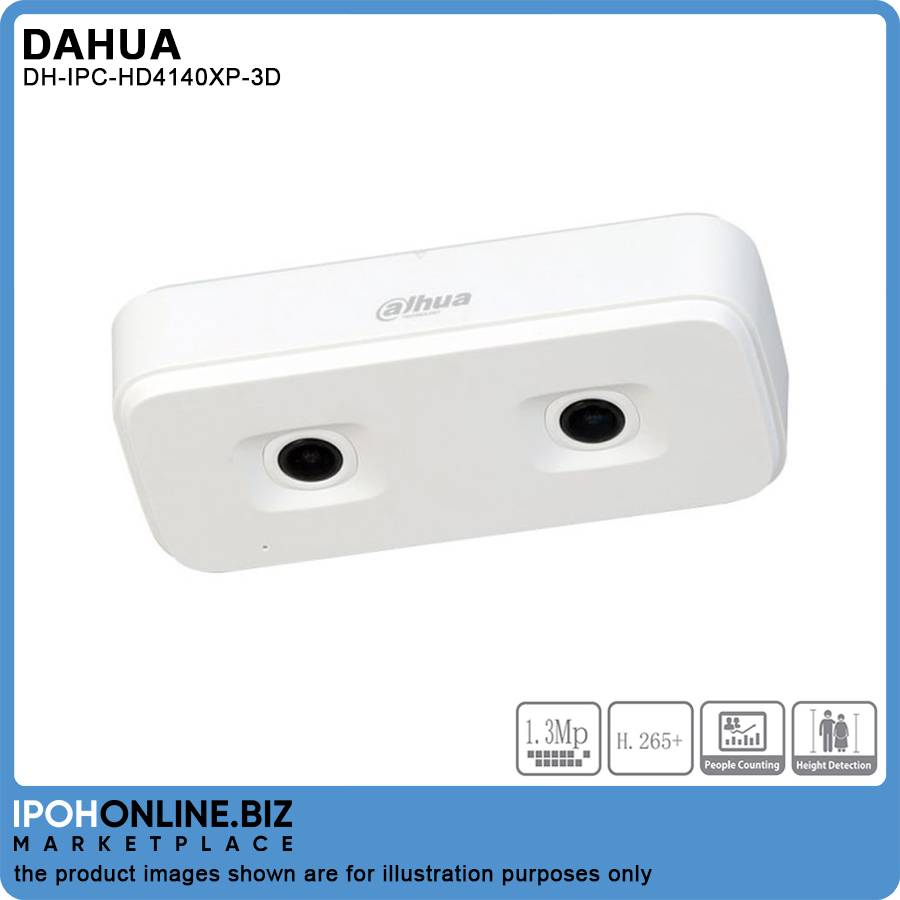

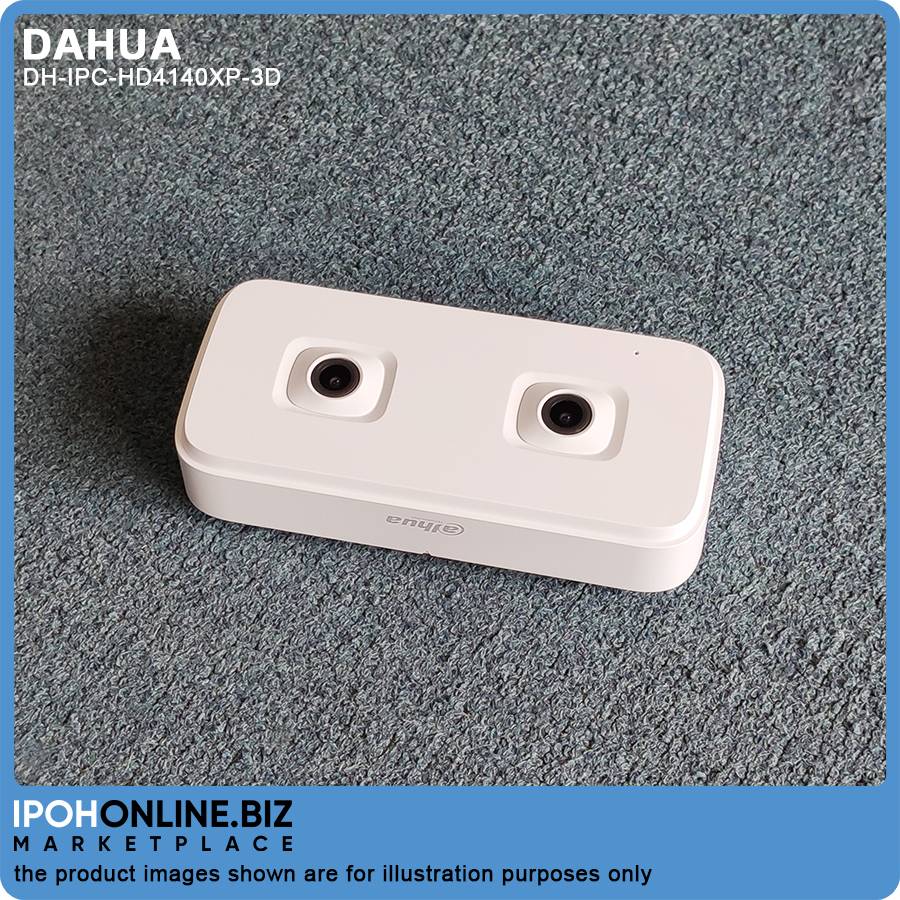

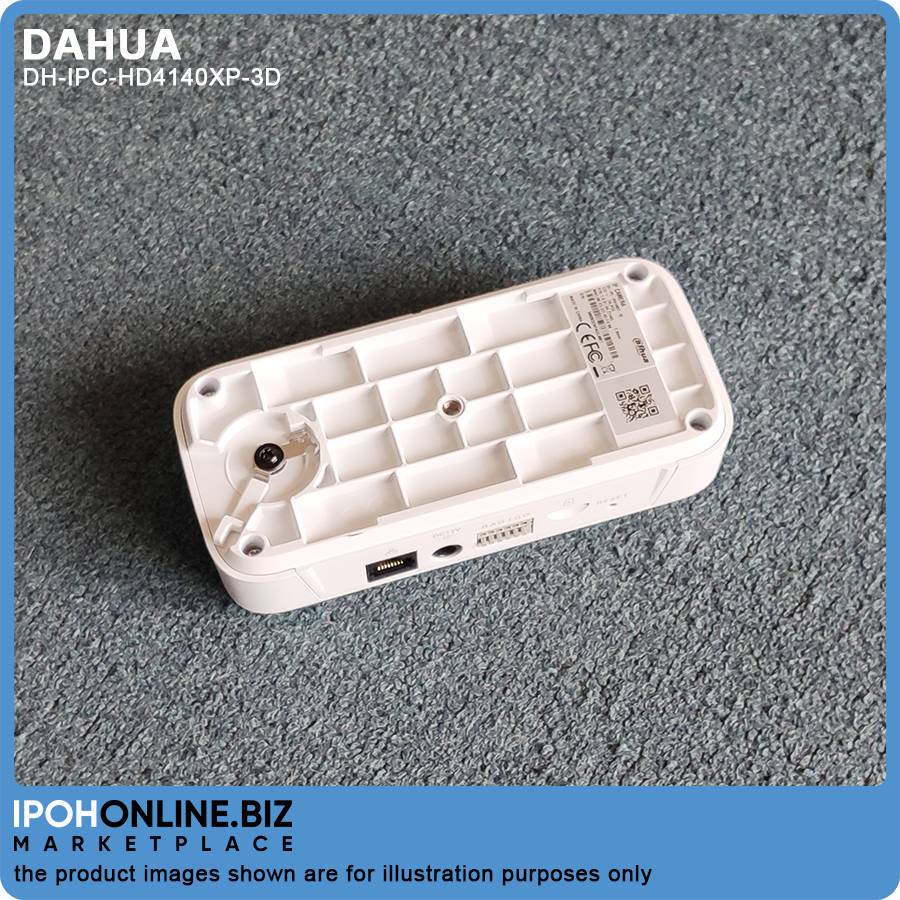

DAHUA DH-IPC-HD4140XP-3D 1.3MP Dual-Lens People Counting AI Network Camera
Price RM975.00 RM1,075.00 RM
Product SKU CAM-DAHUA- DH-IPC-HD4140XP-3D
Brand Dahua
Size (L x W x H) 24 cm x 14 cm x 13 cm
Availability 2
Quantity
Description
Highlight
  • Two 1/3” 1.3 Megapixel Progressive Scan STARVISTM CMOS
  • H.265 & H.264 Triple-Stream Encoding
  • 25/[email protected] (1280×960)
  • DWDR, Day/Night (Electronic), 3DNR, AWB, AGC, BLC
  • Multiple Network Monitoring : Web Viewer, CMS (DSS/PSS) & DMSS
  • 2.1mm Fixed Lens (2.8mm Optional)
  • Micro SD Memory, IP54, PoE
  • People Counting : Support Line Crossing People Counting, Region People Counting

Specification

Camera
Image Sensor Two 1/3” 1.3 Megapixel Progressive Scan CMOS
Effective Pixels 1028 (H) x 960 (V)
RAM/ROM 512MB/128MB
Scanning System Progressive
Minimum Illumination 0.003 Lux/F2.2 (Color, 1/3s, 30 IRE)
0.02 Lux/F2.2 (Color, 1/30s, 30 IRE)
0.005 Lux/F2.2 (B/W, 1/3s, 30 IRE)
0.02 Lux/F2.2 (B/W, 1/30s, 30 IRE)
S/N Ratio More Than 50dB
IR Distance N/A
IR On/Off Control N/A
IR LEDs N/A
Lens
Lens Type Fixed
Mount Type Board-In
Focal Length 2.1mm (2.8mm)
Max. Aperture F2.2
Angle Of View H : 109.5º (89º), V : 84.3º (64º)
Optical Zoom N/A
Focus Control Fixed
Close Focus Distance 0.3m (0.98ft)
Pan/Tilt/Rotation
Pan/Tilt/Rotation Range N/A
Artificial Intelligence
People Counting Line Crossing People Counting, Region People Counting, Height Filter, Loitering Filter
General Intelligence
Event Trigger Motion Detection, Video Tampering, Scene Changing, Network Disconnection, Ip Address Conflict, Illegal Access, Storage Anomaly
General Intelligence N/A
Video
Compression H.265/H.264/H.264H/H.264B/MJPEG (Sub Stream)
Smart Codec Support H.265+/H.264+
Streaming Capability 3 Streams
Resolution 1.3M (1280x960)/720P (1280x720)/D1 (704x576/704x480)/VGA (640x480)
Frame Rate Main Stream : 1.3MP (1~25/30fps)
Sub Stream 1 : D1 (1~25/30fps)
Sub Stream 2 : 720P (1~25/30fps)
Bit Rate Control CBR/VBR
Bit Rate H.264 : 1280~6144Kbps
H.265 : 512~3072Kbps
Day/Night Electronic
BLC Mode BLC/HLC/DWDR
White Balance Auto/Manual
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detection Off/On (4 Zone, Rectangle)
Region Of Interest Off/On (4 Zone)
Electronic Image Stabilization (EIS) N/A
Smart IR N/A
Defog N/A
Digital Zoom 16x
Flip N/A
Mirror N/A
Privacy Masking Off/On (4 Area, Rectangle)
Audio
Compression G.711a/G.711Mu/AAC/G.726
Network
Ethernet RJ-45 (10/100Base-T)
Protocol HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;RTCP;SMTP;FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;
NTP;Bonjour;IEEE 802.1x;Multicast;ICMP;IGMP;SNMP;TLS
Interoperability ONVIF Profile S&G, API
Streaming Method Unicast/Multicast
Max. User Access 10 Users/20 Users
Edge Storage NAS
Local PC For Instant Recording
Mirco SD Card 128GB
Web Viewer IE, Chrome, Firefox, Safari
Management Software Smart PSS, DSS, DMSS
Smart Phone IOS, Android
Interface
Video Interface N/A
Audio Interface Built-In Mic
RS485 1 Port
Alarm 1 Channel In : 5mA 5VDC
1 Channel Out : 300mA 12VDC
Electrical
Power Supply DC12V, PoE (IEEE 802.3af) (Class 0)
Power Consumption DC12V : 3.6W 4.6W (People Counting On)
PoE : 4.2W 5.3W (People Counting On)
Environmental
Operating Conditions -10ºC~+45ºC (14ºF~+113ºF)/Less Than 95% RH
Storage Conditions -10ºC~+45ºC (14ºF~+113ºF)/Less Than 95% RH
Ingress Protection IP54
Vandal Resistance N/A
Construction
Casing Metal
Dimensions 162.1mm x 76mm x 37.8mm (6.38" x 2.99" x 1.49")
Net Weight 0.3kg (0.66lb)
Gross Weight 0.46kg (1.01lb)



What In The Box

  • 1 x DAHUA DH-IPC-HD4140XP-3D 1.3MP Dual-Lens People Counting AI Network Camera
  • 1 x Mounting Board
  • 1 x Screw Set
  • 1 x Drill Template
  • 1 x Quick Start Guide



Warranty
1 Year Limited Warranty
Local Manufacturer Warranty
Warranty Policy : Please Complete And Submit Product Warranty Registration Form Within 14 Days Of Purchase To Ensure Continuous Coverage. Lazada Warranty Registration http://lwr.accessglobal.info Email Us At [email protected]
