| Price | RM587.00 RM687.00 RM |
| Product SKU | CAM-DAHUA-DH-PTZ1C203UE-GN |
| Brand | Dahua |
| Size (L x W x H) | 34 cm x 19 cm x 18 cm |
| Availability | Out Of Stock |
Description
Highlight
- 1/2.8“ 2 Megapixel STARVIS™ CMOS
- Powerful 3x Optical Zoom
- Starlight Technology
- Max. 25/30fps@1080P
- IVS
- WDR
- H.265 Encoding
- Support PoE
- IR Distance Up To 20m
- IP66
Specification
| Camera | |
| Image Sensor | 1/2.8" STARVIS™ CMOS |
| Max. Resolution | 2MP |
| Effective Pixels | 1920 (H) x 1080 (V) |
| ROM | 128MB |
| RAM | 256MB |
| Electronic Shutter Speed | 1/3-1/30000s |
| Minimum Illumination | Color : [email protected] B/W : [email protected] 0Lux (IR Light On) |
| IR Distance | 20m (65.6ft) |
| IR On/Off Control | Zoom Prio/Manual/SmartIR |
| IR LED Number | 1 |
| Lens | |
| Focal Length | 2.7mm-8.1mm |
| Aperture | F1.8~F2.7 |
| Field Of View | H : 46.43º-106.79º V : 25.91º-57.88º |
| Optical Zoom | 3x |
| Focus Control | Auto/Semi-Auto/Manual |
| Close Focus Distance | 0.8m-1.7m |
| Iris Control | Fixed Iris |
| DORI Distance | Detect : 101.4m (332.68ft) / Observe : 40.6m (133.20ft) / Recognize : 20.3m (66.60ft) / Identify : 10.1m (33.14ft) |
| PTZ | |
| Pan/Tilt Range | Pan : 0º-180º; Tilt : -5º-55º |
| Manual Control Speed | Pan : 6º/s; Tilt : 3º/s |
| Intelligence | |
| IVS | Tripwire; Intrusion; Object Abandoned/Missing |
| Advanced Intelligence | Heat Map; Face Detection |
| Video | |
| Video Compression | H.265; H.264 Baseline Profile; H.264 Main Profile; H.264 High Profile; MJPEG; H.265+; H.264+ |
| Streaming Capability | 3 Streams |
| Resolution | 1080P (1920x1080); 1.3M (1280x960); 720P (1280x720); D1 (704x576); CIF (352x288) |
| Video Frame Rate | Main Stream : 1080P/1.3M/720P (1-25/30fps) Sub Stream 1 : D1/CIF (1–25/30fps) Sub Stream 2 : 720P/D1/CIF (1-25/30fps) |
| Bit Rate Control | Variable Bit Rate/Constant Bit Rate |
| Video Bit Rate | H.264 : 216Kbps-8192Kbps H.265 : 108Kbps-8192Kbps |
| Day/Night | ICR |
| BLC | Support |
| WDR | 120dB |
| HLC | Support |
| White Balance | Auto/Indoor/Outdoor/Tracking/Manual/Sodium Lamp/Natural/Street Lamp |
| Gain Control | Auto/Manual |
| Noise Reduction | 2D/3D |
| Motion Detection | Support |
| Region Of Interest (RoI) | Support |
| Electronic Image Stabilization | Support |
| Defog | Electronic Defog |
| Digital Zoom | 16x |
| Audio | |
| Audio Compression | G.711A; G.711Mu; G.726; AAC; MPEG2-Layer2; G.722.1; G.729 |
| Audio In | 1 |
| Audio Out | 1 |
| Network | |
| Ethernet Port | 1 RJ-45 Port 10/100Base-T |
| Network Protocol | IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMP; DNS; DDNS; NTP; SNMPv1/v2c/v3(MIB-2); ARP; RTCP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE |
| Interoperability | ONVIF; CGI |
| Streaming Method | Unicast/Multicast |
| User/Host | 20 (Total Bandwidth 48M) |
| Edge Storage | FTP; Micro SD Card (256G); P2P |
| Browser | IE7 And Newer Versions Chrome 42 And Older Versions Firefox 52 And Older Versions Safari |
| Management Software | Smart Player Configtool SMART PSS DMSS DSS |
| Certifications | |
| Certifications | CE : EN55032/EN55024/EN50130-4 FCC : Part15 SubpartB, ANSI C63.4-2014 |
| Electrical | |
| Power Supply | DC12V/1.5A±10% POE (802.3af) |
| Power Consumption | 7W 11W (PTZ, IR Light) |
| Environmental | |
| Operating Conditions | -30ºC To +60ºC (-22ºF To 140ºF) |
| Operating Humidity | ≤95% RH |
| Ingress Protection | IP66; TVS 4000V Lightning Protection; Surge Protection |
| Construction | |
| Housing Material | Aluminium Alloy ADC12 |
| Dimensions | Wall Mounted : 195.3mmx90mmx102.7mm Ceiling Mounted : 190.8mmx90mmx112.2mm |
| Weight | Net Weight : 0.9kg Gross Weight : 1.2kg |
What In The Box

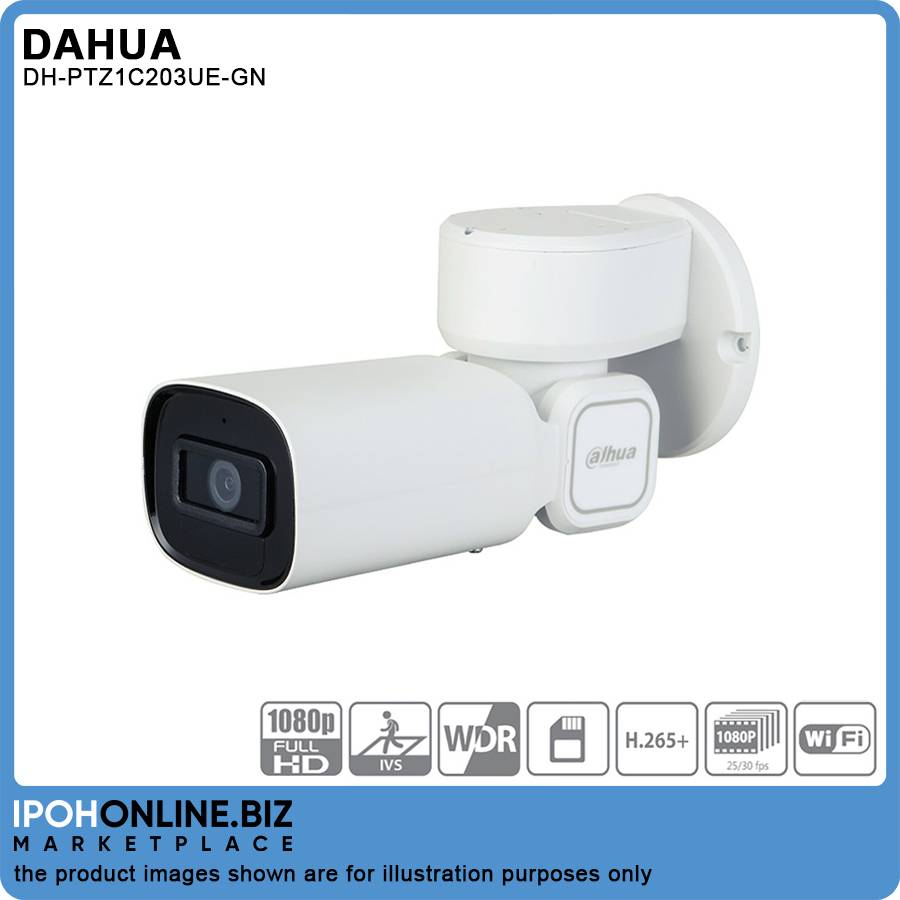

- 1 x Dahua DH-PTZ1C203UE-GN 1080P 2MP 3X Optical Zoom Starlight IR Network Camera
- 1 x Screw Set
- 1 x Drill Template
- 1 x User Manual
Warranty
1 Year Limited Warranty
Local Manufacturer Warranty
Warranty Policy : Please Complete And Submit Product Warranty Registration Form Within 14 Days Of Purchase To Ensure Continuous Coverage. Lazada Warranty Registration http://lwr.accessglobal.info Email Us At [email protected]
