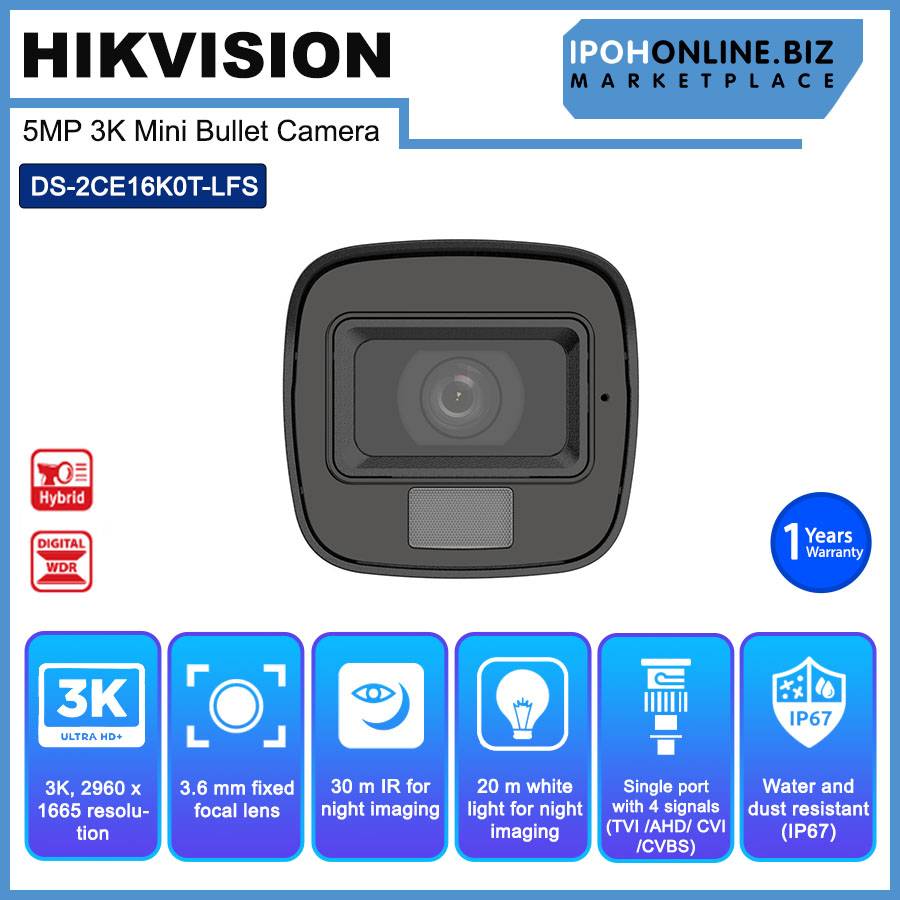

- High quality imaging with 3K, 2960 × 1665 resolution
- 3.6 mm fixed focal lens
- Up to 30 m IR distance for bright night imaging
- Up to 20 m white light distance for bright night imaging
- One port for four switchable signals (TVI/AHD/CVI/CVBS）
- Water and dust resistant (IP67)
- High quality audio with audio over coaxial cable, built-in mic
- Smart-Hybrid light, optimize your security with flexible lighting options
Specifications
|
Camera |
|
|
Image Sensor |
3K CMOS |
|
Max. Resolution |
2960 (H) × 1665 (V) |
|
Min. Illumination |
0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR |
|
Shutter Time |
PAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s |
|
Day & Night |
ICR |
|
Angle Adjustment |
Pan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360° |
|
Signal System |
PAL/NTSC |
|
Lens |
|
|
Lens Type |
3.6 mm fixed focal lens |
|
Focal Length & FOV |
3.6 mm, horizontal FOV: 81.3°, vertical FOV: 50.7°, diagonal FOV: 102.4° |
|
Lens Mount |
M12 |
|
Illuminator |
|
|
Supplement Light Type |
White Light; IR |
| Supplement Light Range | IR : Up to 30 m White Light : Up to 20 m |
|
Image |
|
|
Image Settings |
Brightness, Sharpness, Smart IR |
|
Frame Rate |
TVI: 3K@20 fps, 4 MP@25 fps/30 fps, 1080p@25 fps/30 fps AHD: 5 MP@20 fps, 4 MP@25 fps/30 fps CVI: 4 MP@25 fps/30 fps CVBS: PAL/NTSC |
|
Day/Night Mode |
Auto/Color/BW (Black and White) |
|
Wide Dynamic Range (WDR) |
Digital WDR |
|
Image Enhancement |
DWDR/BLC/HLC/Global |
|
White Balance |
Auto/Manual |
|
AGC |
Yes |
|
Interface |
|
|
Video Output |
Switchable TVI/AHD/CVI/CVBS |
|
Built-In Microphone |
Yes |
|
General |
|
|
Material |
Metal |
|
Dimension |
138.8 mm × Ø70 mm (5.47" × Ø2.76") |
|
Weight |
Approx. 270 g (0.60 lb.) |
|
Operating Condition |
-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) |
|
Communication |
HIKVISION-C |
|
Language |
English |
|
Power Supply |
12 VDC ± 25% |
|
Consumption |
Max. 3.3 W |
|
Approval |
|
|
Protection |
IP67 |
What's in the box
- 1 x HIKVISION 3K 5MP 16:9 3.6mm Smart Hybrid Light Audio Fixed Mini BULLET CCTV Camera DS-2CE16K0T-LFS Acusense Smart Lighting
- rt Hybrid Light 1 x Screw Set
- 1 x Quick Start Guide
Warranty
1 Year Warranty
Local Manufacturer Warranty
- 1 x HIKVISION 3K 5MP 16:9 3.6mm Smart Hybrid Light Audio Fixed Mini BULLET CCTV Camera DS-2CE16K0T-LFS Acusense Smart Lighting
- 1 x Screw Set
- 1 x Quick Start Guide
