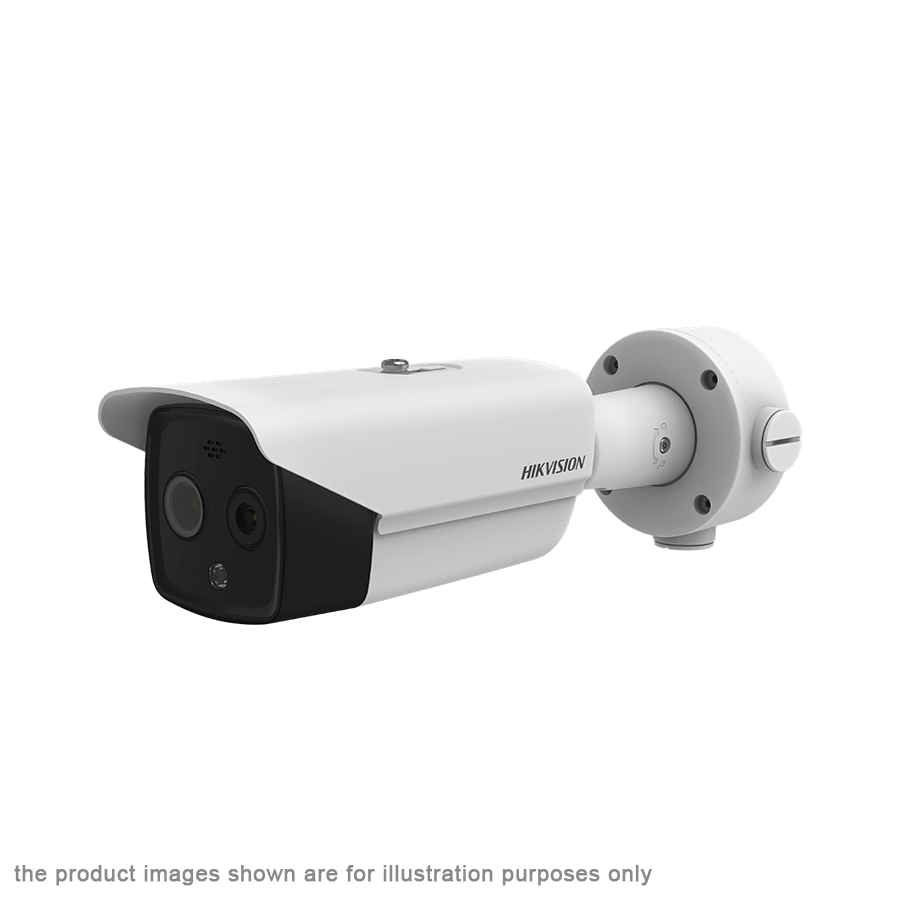

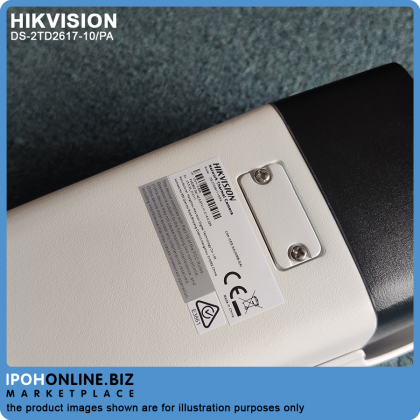

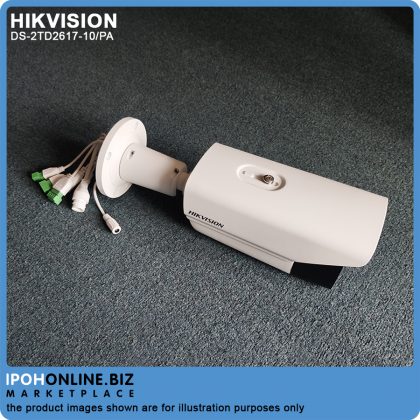

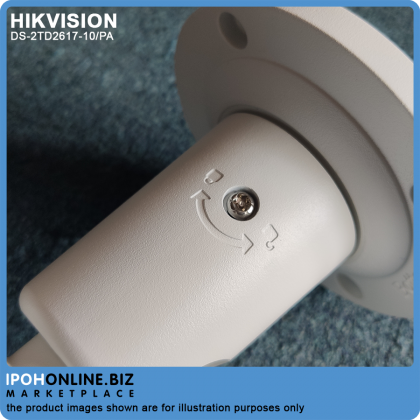

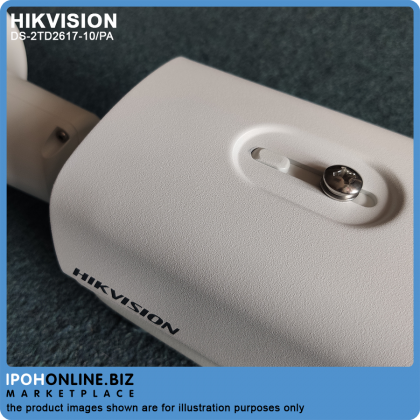

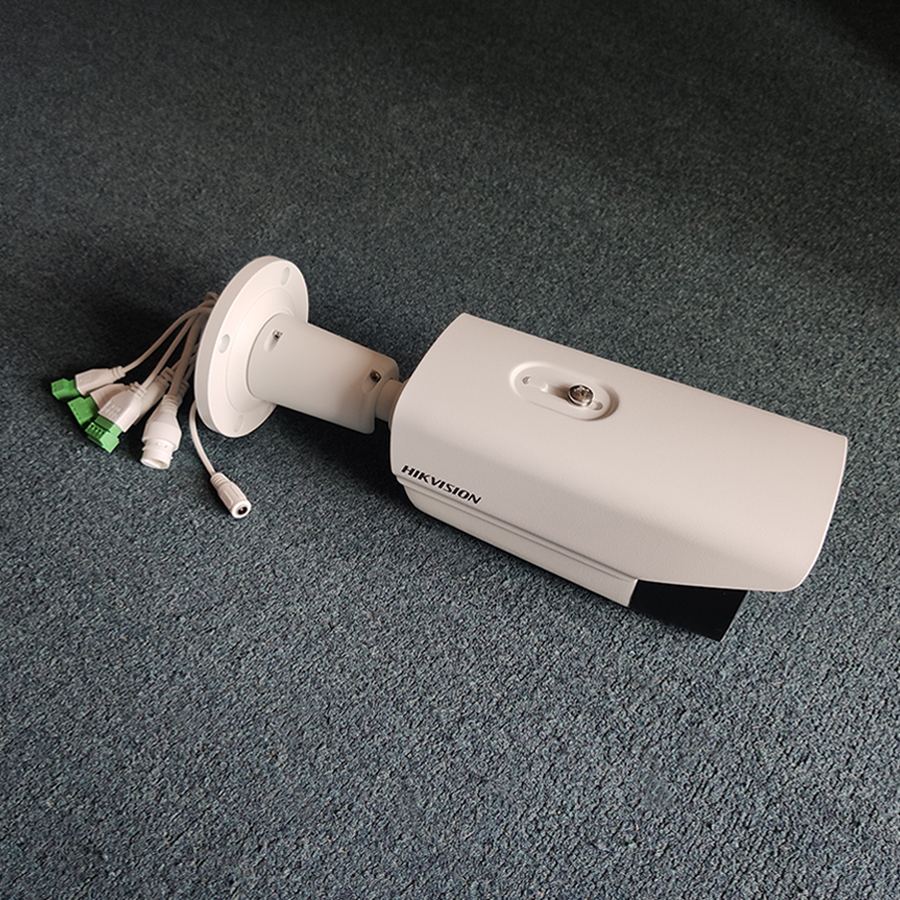

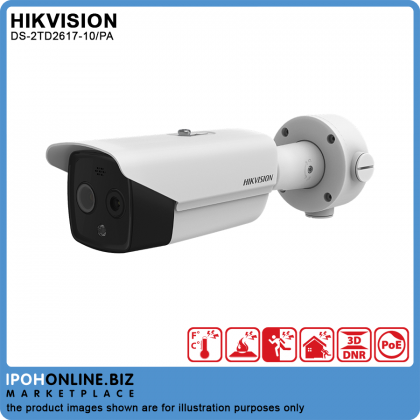

Hikvision DS-2TD2617-10/PA Thermal & Optical Bi-Spectrum Network Bullet Camera
| Price | RM1,800.00 RM2,400.00 RM |
| Product SKU | CAM-HIK-DS-2TD2617-10/PA |
| Brand | Hikvision |
| Size (L x W x H) | 43 cm x 23 cm x 20 cm |
| Availability | 1 |
| Quantity |
|
Description
Highlight
- Behavior Analysis Function, Based On Deep Learning Algorithm : Line Crossing, Intrusion, Region Entrance & Exit
- Temperature Exception Alarm
- Fire Detection Algorithm
- 160 x 120 (The Resolution Of Output Image Is 320 x 240) Resolution 17μm, VOx UFPA, NETD ≤ 40mK (25ºC, F# = 1.1)
- Image Processing Technology : Liner, Histogram And Self-Adaptive Thermal AGC Mode, DDE, 3D DNR
Specification
| Thermal Module | |
| Image Sensor | Vanadium Oxide Uncooled Focal Plane Arrays |
| Resolution | 160 x 120 |
| Pixel Interval | 17μm |
| Response Waveband | 8μm To 14μm |
| NETD | Less Than 40mK (@ 25°C, F#=1.1) |
| Focal Length | 9.7mm |
| IFOV | 1.75mrad |
| Field Of View | 15.96° x 12° (H x V) |
| Min. Focusing Distance | 0.6m |
| Aperture | F1.1 |
| Digital Zoom | x2, x4, x8 |
| Optical Module | |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Resolution | 2688 x 1520, 4MP |
| Min. Illumination | Color : 0.0176 Lux @ (F2.25, AGC ON), B/W : 0.0035 Lux @ (F2.25, AGC ON) |
| Shutter Speed | 1s To 1/100,000s |
| Focal Length | 8mm |
| Field Of View | 39.42° x 22.14° (H x V) |
| Aperture (Range) | F1.7 |
| WDR | 120dB |
| Image Effect | |
| Bi-Spectrum Image Fusion | Display The Details Of Optical Channel On Thermal Channel |
| Picture In Picture | Display Partial Image Of Thermal Channel On The Full Screen Of Optical Channel |
| Target Coloration | Yes. Supported In White Hot And Black Hot Mode |
| Illuminator | |
| IR Distance | Up To 40m |
| IR Intensity And Angle | Automatically Adjusted |
| Audible And Visual Alarm | |
| White Light Range | Up To 40m |
| Visual Alarm | Yes. White Light Used As The Visual Alarm, Flashing Frequency Adjustable |
| Audio Alarm | Yes. 6 Audio Alarms Are Supported To Cover All Kinds Of Alarm |
| Smart Function | |
| VCA | 4 VCA Rule Types (Line Crossing, Intrusion, Region Entrance And Region Exiting), Up To 8 VCA Rules In Total |
| Temperature Measurement | 3 Temperature Measurement Rule Types, 21 Rules In Total (10 Points, 10 Areas And 1 Line) |
| Temperature Range | -20°C To 150°C (-4°F To 302°F) |
| Temperature Accuracy | ±8°C (±14.4°F) |
| Fire Detection | Dynamic Fire Detection, Up To 10 Fire Points Detectable |
| Video And Audio | |
| Main Stream | Thermal : 25fps (1280 x 720, 704 x 576, 640 x 480, 352 x 288, 320 x 240) Optical : 50Hz : 25fps (2688 x 1520, 1920 x 1080, 1280 x 720) Optical : 60Hz : 30fps (2688 x 1520, 1920 x 1080, 1280 x 720) |
| Sub Stream | Thermal : 25fps (704 x 576, 352 x 288, 320 x 240) Optical : 50Hz : 25fps (704 x 576, 352 x 288, 176 x 144) Optical : 60Hz : 30fps (704 x 480, 352 x 240, 176 x 120) |
| Video Compression | Main Stream : H.265/H.264 Sub-Stream : H.265/H.264/MJPEG |
| Audio Compression | G .711u/G.711a/G.722.1/MP2L2/G.726/PCM |
| Network | |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE |
| Network Storage | MicroSD/SDHC/SDXC Card (Up To 256G) Local Storage And NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) |
| API | ISAPI, HIKVISION SDK And Third-Party Management Platform, ONVIF (Profile S, Profile G, Profile T) |
| Simultaneous Live View | Up To 20 Channels |
| User/Host Level | Up To 32 Users, 3 Levels : Administrator, Operator, User |
| Security | User Authentication (ID And PW), MAC Address Binding, HTTPS Encryption, IEEE 802.1x (EAP-MD5, EAP-TLS), Access Control, IP Address Filtering |
| Client | iVMS-4200, Hik-Connect |
| Web Browser | Live View (Plug-In Allowed) : Internet Explorer 11 Live View (Plug-In Free) : Chrome 57.0 +, Firefox 52.0 + Local Service : Chrome 57.0 +, Firefox 52.0 + |

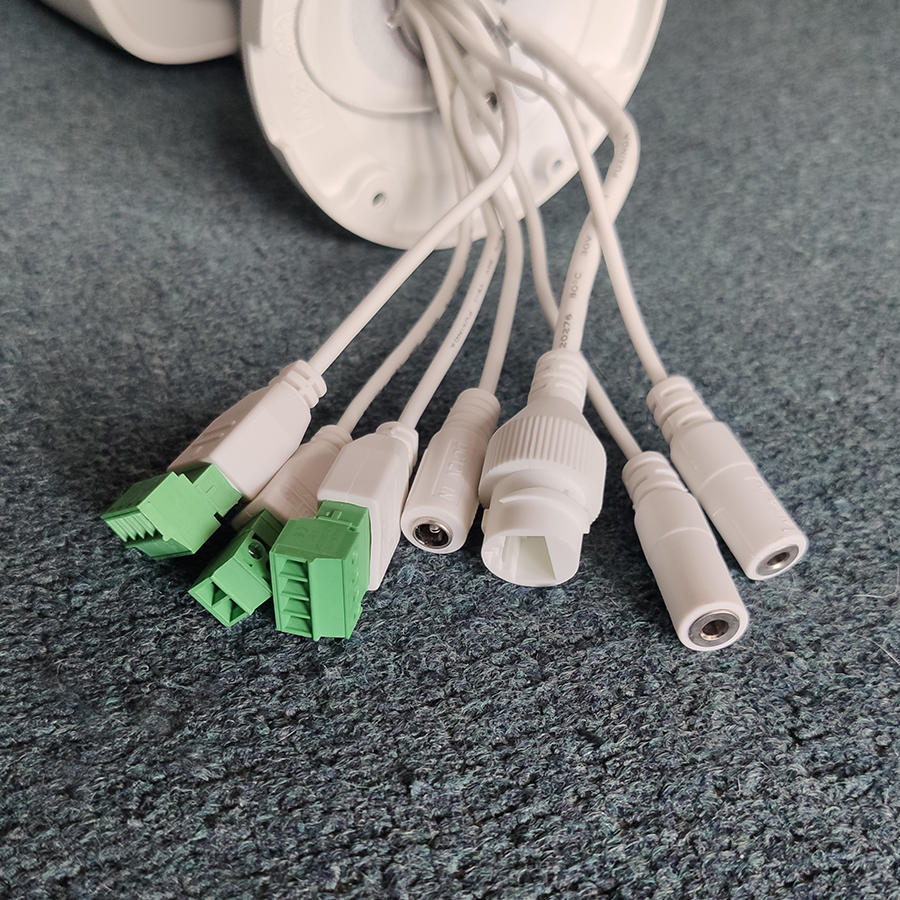

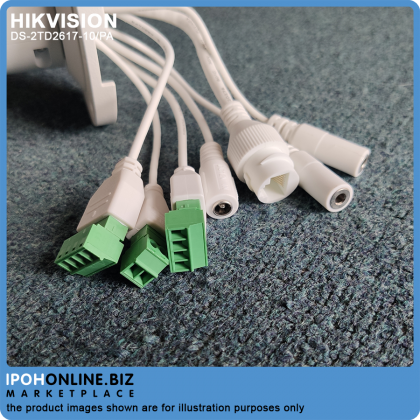

| Interface | |
| Alarm Input | 2-CH Inputs (0-5 VDC) |
| Alarm Output | 2-CH Relay Outputs, Alarm Response Actions Configurable |
| Alarm Action | SD Recording/Relay Output/Smart Capture/FTP Upload/Email Linkage |
| Audio Input | 1, 3.5mm Mic In/Line In Interface. Line Input : 2 - 2.4V [p-p], Output Impedance : 1 KΩ ± 10% |
| Audio Output | Linear Level; Impedance : 600 Ω |
| Communication Interface | 1, RJ45 10M/100M Self-Adaptive Ethernet Interface 1, RS-485 Interface |
| General | |
| Web Client Language | 32 Languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) |
| Power | PoE (802.3af, Class 3), 42.5V To 57V, 0.14A To 0.22A; DC 12V, 0.65A |
| Power Consumption | PoE (802.3af, Class 3) : 42.5V To 57V, 0.14A To 0.22A, Max. 8W 12 VDC ± 20% : 0.65A, Max. 7.5W |
| Work Temperature/Humidity | From -40ºC To 65ºC (-40ºF To 149ºF); Humidity : 95% Or Less |
| Protection Level | IP66 Standard; TVS 6000V Lightning Protection, Surge Protection And Voltage Transient Protection |

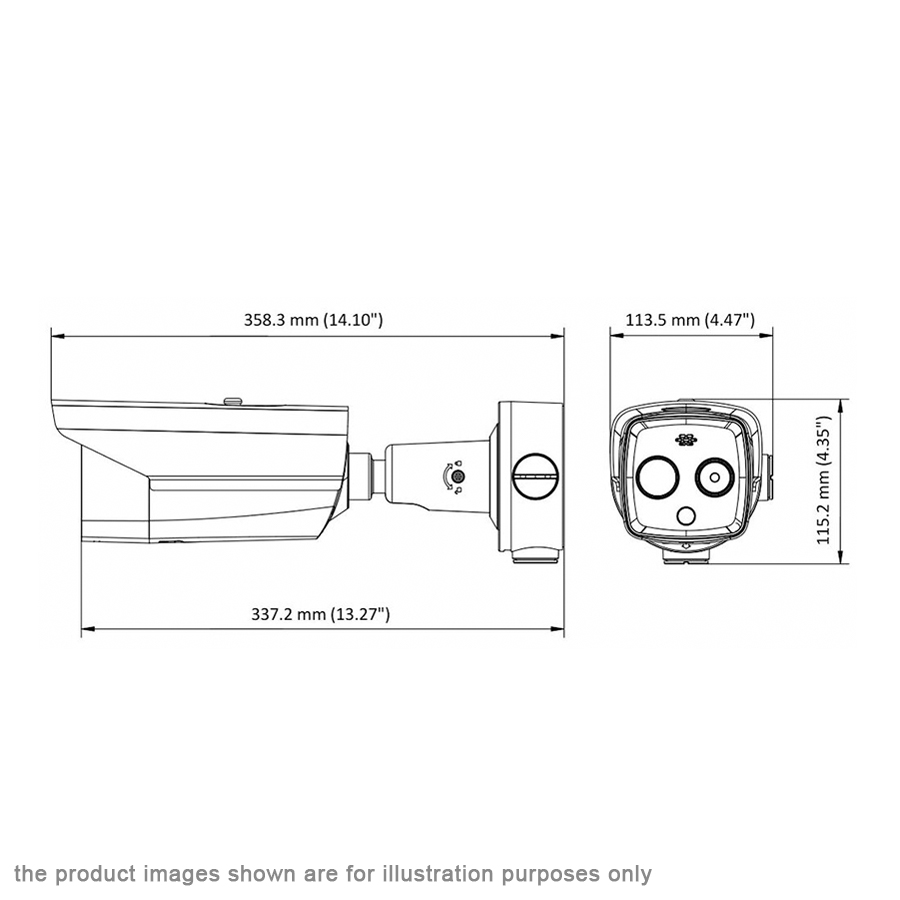

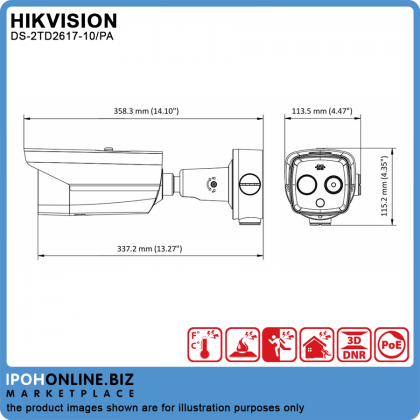

| Dimension | 358.3mm x 113.5mm x 115.2mm (14.10" x 4.47" x 4.53") Approx. 1.76kg (3.88lb) |
| Detection Range Table/Wide Range Coverage | |
| Detection Range For Humans (1.8 x 0.5m) | 285m |
| Detection Range For Vehicles (4.0 x 1.4m) | 875m |
| Recognition Range For Humans (1.8 x 0.5m) | 71m |
| Recognition Range For Vehicles (4.0 x 1.4m) | 219m |
| Identification Range For Humans (1.8 x 0.5m) | 36m |
| Identification Range For Vehicles (4.0 x 1.4m) | 109m |
| Detection Range Table/Smart Function Range | |
| VCA Range For Humans | 70m |
| VCA Range For Vehicles | 210m |
| Temperature Measurement Range For Object (2m x 2m) | 235m |
| Temperature Measurement Range For Object (1m x 1m) | 118m |
| Fire Detection Range For Object (2m x 2m) | 588m |
| Fire Detection Range For Object (1m x 1m) | 294m |

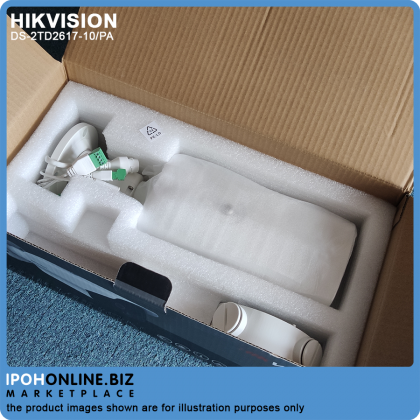

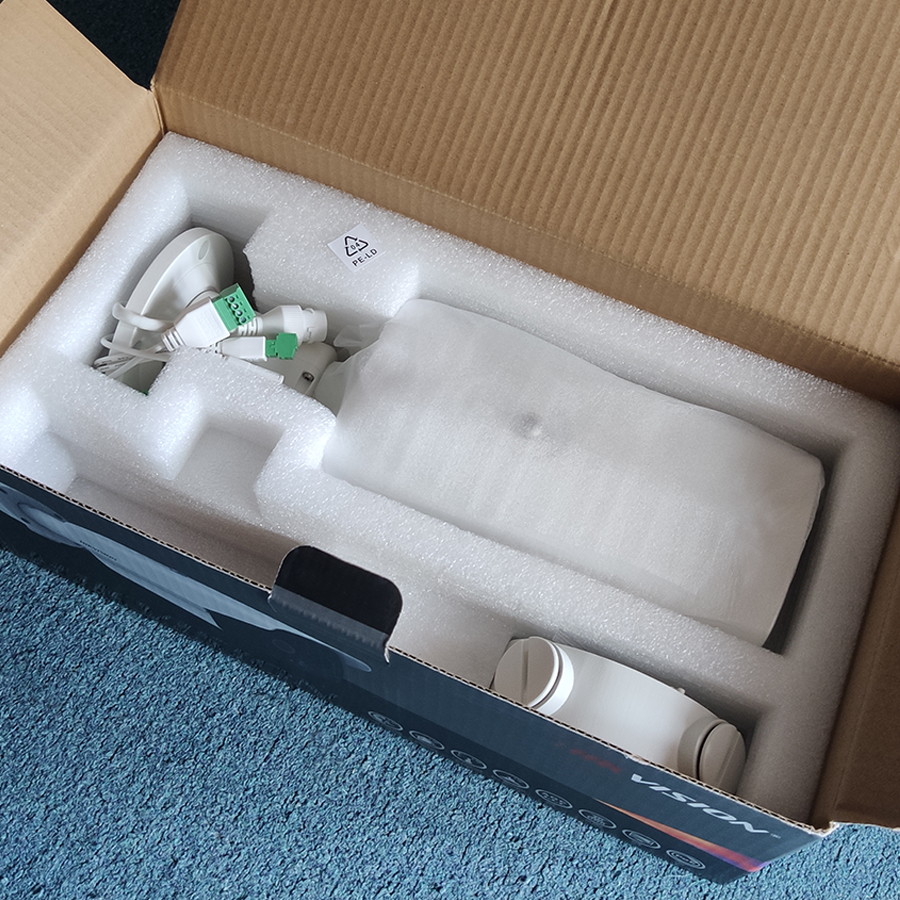

What In The Box
- 1 x Hikvision DS-2TD2617-10/PA Thermal & Optical Bi-Spectrum Network Bullet Camera

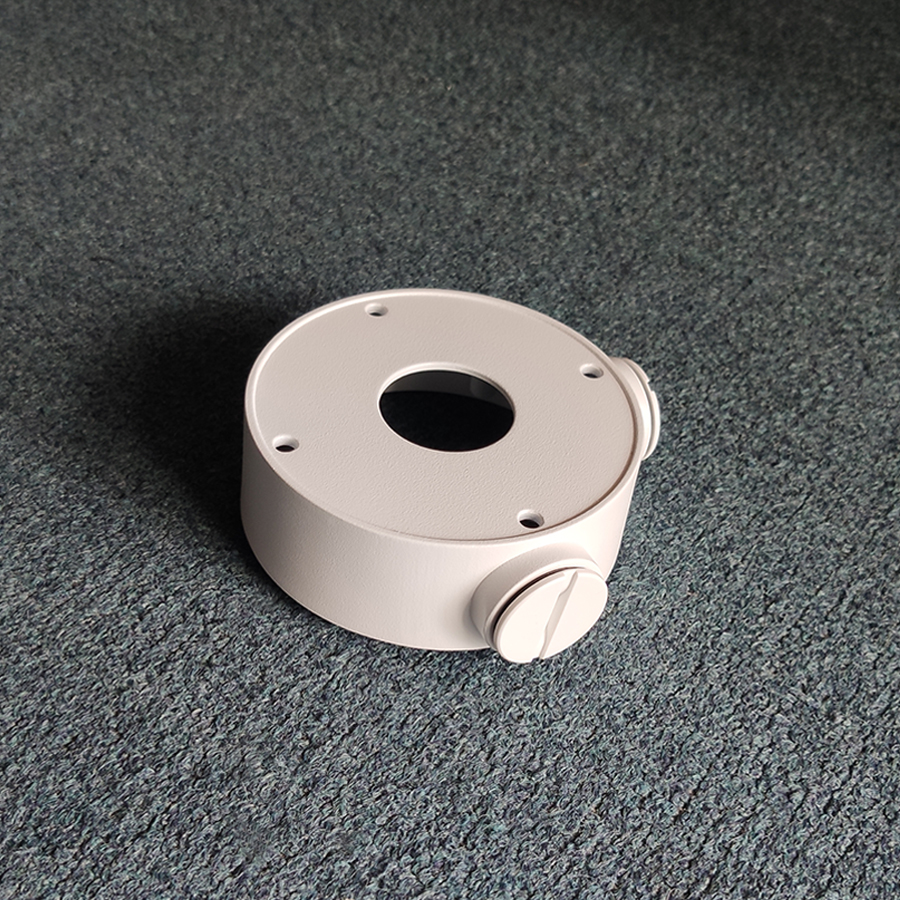

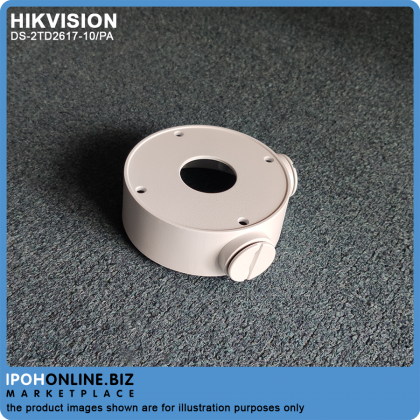

- 1 x Junction Box
- 1 x Accessories
- 1 x Waterproof Kit
- 1 x Drill Template
- 1 x Quick Start Guide
Warranty
1 Year Limited Warranty
Local Manufacturer Warranty
Warranty Policy : Please Complete And Submit Product Warranty Registration Form Within 14 Days Of Purchase To Ensure Continuous Coverage. Lazada Warranty Registration http://lwr.accessglobal.info Email Us At [email protected]
Hikvision & EZVIZ CCTV Service Centre
Add : No. 99-19 Hala Perusahaan Menglembu 13, Industri Menglembu Jaya, 31450 Menglembu.
Tel : 05-2822 919
Fax : 05-2811 909
H/Phone : 012-5088891 / 016-5534968
