| Price | RM978.00 RM1,038.00 RM |
| Product SKU | DOOR-HIK-DS-KIS702-P |
| Brand | Hikvision |
| Size (L x W x H) | 42 cm x 28 cm x 20 cm |
| Availability | Pre-Order |
Description
Highlight

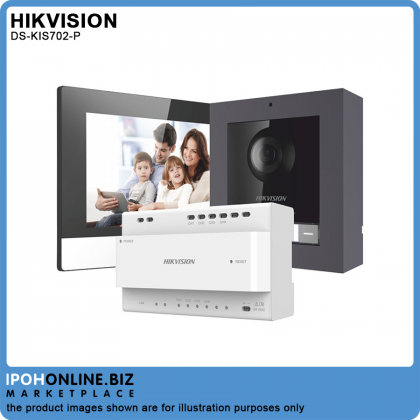

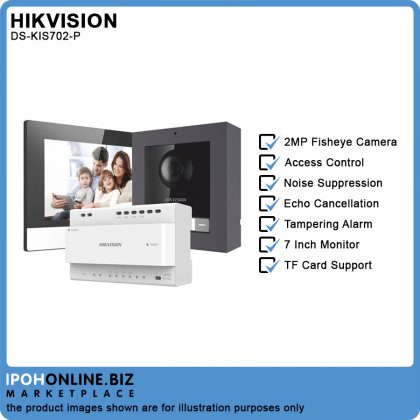

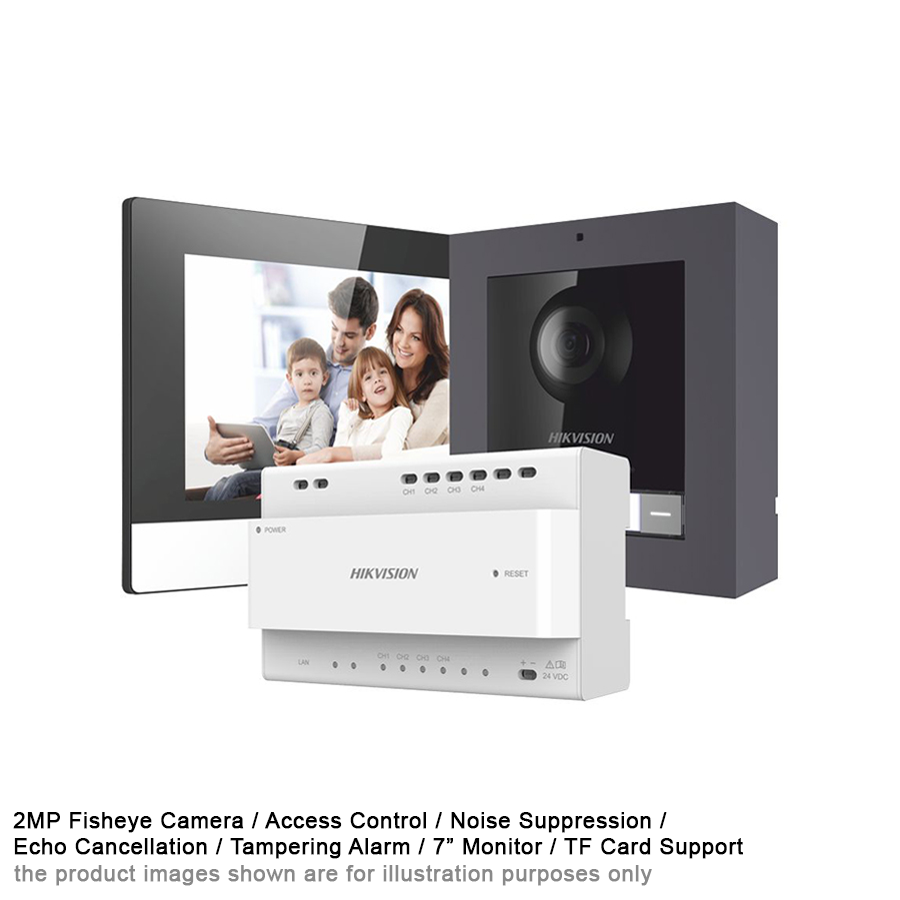

- Plug And Play Two Wire And IP Based Video Intercom Kit
- User-Friendly And Hands-Free Indoor Monitor With 7-Inch Touch Screen

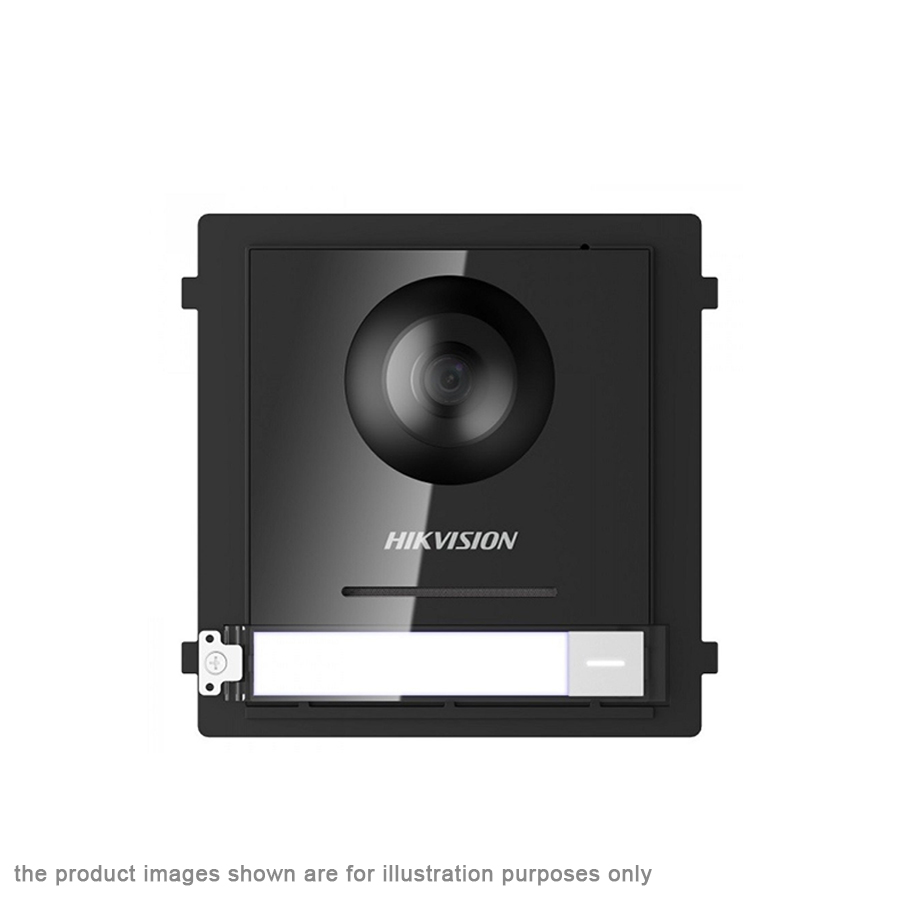

- Metal Outdoor Panel, Waterproof, IP65 Rating
- 2 Mega Pixel HD Fisheye Camera With Night Vision And 180º Wide Viewing Angle
- Receives Video Call On Mobile App Anywhere, Anytime
- Supports Live View Of Up To 16 IP Cameras (ONVIF Compatible)
Specification

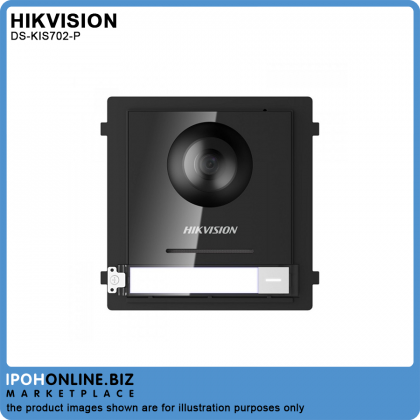

| Door Station/System Parameters | |
| Processor | Embedded Microcontroller |
| Operation System | Embedded Linux Operation System |
| Operation Mode | One Touch Key |
| Door Station/Video Parameters | |
| Camera | 2MP Super Definition Camera |
| Resolution | Main Stream : 1920x1080, (720p Configurable); Sub Stream : 720x480 |
| Night Vision | Support Low Light And IR Light Supplement Mode |
| Backlight Compensation | Support |
| Digital Noise Reduction | Support |
| WDR | True WDR |
| Field Of View | Horizontal 180º, Vertical 96º |
| Video Compression Standard | H.264 |
| Stream | Main Stream : 1080p@30fps, 720p@30fps (Configurable); Sub Stream : D1 |
| Motion Detection | Support |
| Flash-Avoid Frequency | 50Hz, 60Hz |
| Door Station/Audio Parameters | |
| Audio Input | Built-In Omnidirectional Microphone |
| Audio Output | Loudspeaker, 20cm Sound Effect >80db |
| Audio Quality | Noise Suppression And Echo Cancellation |
| Audio Compression Standard | G.711U |
| Audio Compression Rate | 64Kbps |
| Audio Intercom | Full-Duplex Two-Way Audio Intercom |
| Door Station/Device Interfaces | |
| RS-485 | 1 (Inter-Module Connection) |
| Alarm Input | 1 |
| Door Station/General | |
| Working Temperature | -40ºC To 60ºC (-40ºF To 140ºF) |
| Working Humidity | 10% To 90% |
| Dimension | 98mm x 99.8mm x 43.9mm (3.86" x 3.93" x 1.73") |
| Installation | Wall Mounting |
| Protection Level | IP65 |
| Button | 1 |
| Power Input | 24 VDC Two-Wire Power Supply (<16W) |

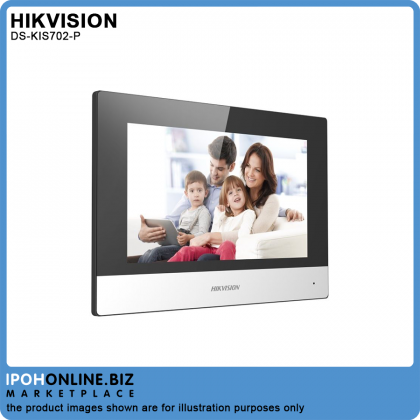

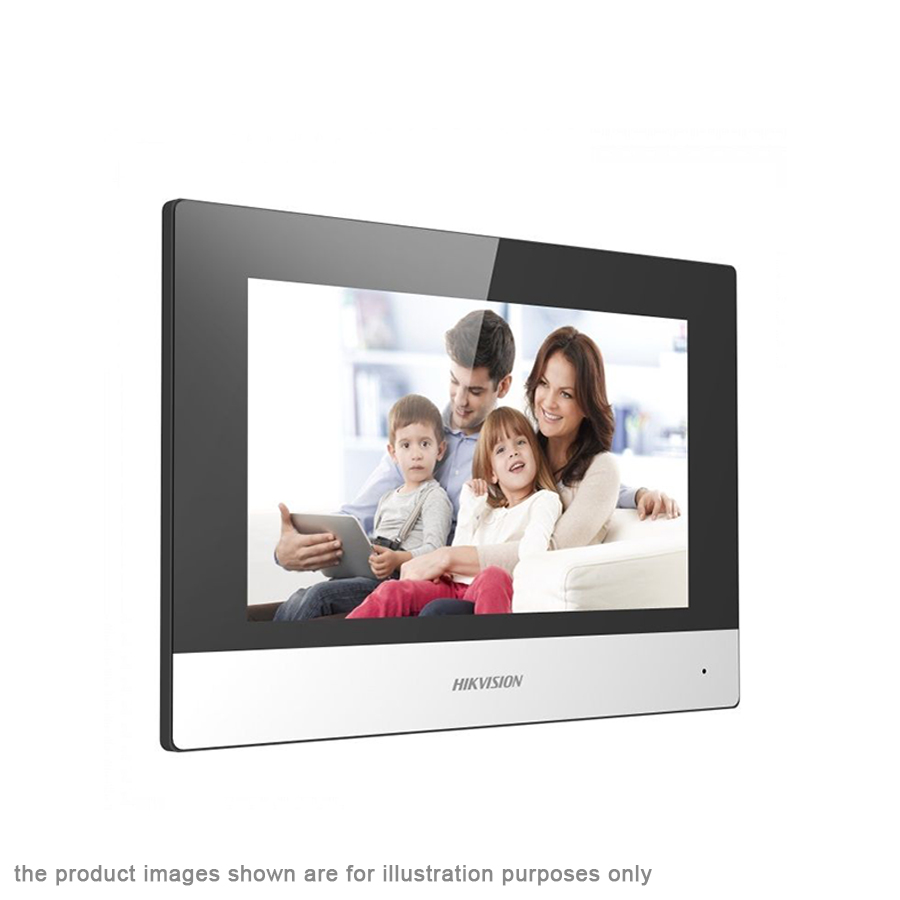

| Indoor Station/System Parameters | |
| Operation System | Embedded Linux Operation System |
| Processor Basic Frequency | 1GHz |
| Memory | 128MB |
| Flash | 32MB |
| Indoor Station/Display Parameters | |
| Display Screen | 7-Inch TFT LCD |
| Display Resolution | 1024x600 |
| Operation Method | Capacitive Touch |
| Indoor Station/Audio Parameters | |
| Audio Input | Built-In Omnidirectional Microphone |
| Audio Output | Built-In Loudspeaker |
| Audio Quality | Noise Suppression And Echo Cancellation |
| Volume | Local Or Software Control |
| Audio Compression Standard | G.711U, G.711A |
| Audio Compression Rate | 64Kbps |
| Indoor Station/Network Parameters | |
| Wired Network | Two-Wire Network |
| Wireless Network | Wi-Fi 802.11b/g/n |
| Protocol | TCP/IP, SIP, RTSP |
| Indoor Station/Device Interfaces | |
| Network Interface | Two-Wire Interface |
| RS-485 | 1 |
| Alarm Input | 8 Zones Alarm Input |
| Relay Output | 2 |
| TF Card | Support, Max. 32GB |
| Indoor Station/General | |
| Power Supply | Two-Wire |
| Power Consumption | ≤6W |
| Working Temperature | -10ºC To 50ºC (14ºF To 122ºF) |
| Working Humidity | 10% To 90% |
| Dimensions | 200mm x 140mm x 15.1mm (7.87" x 5.51" x 0.59") (W x H x D) |

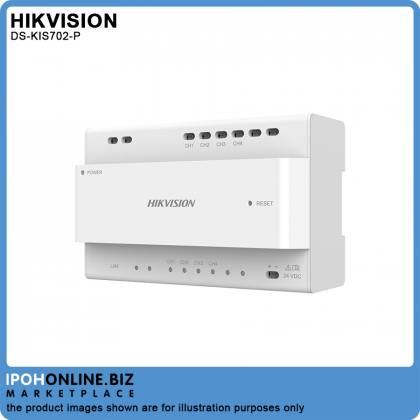

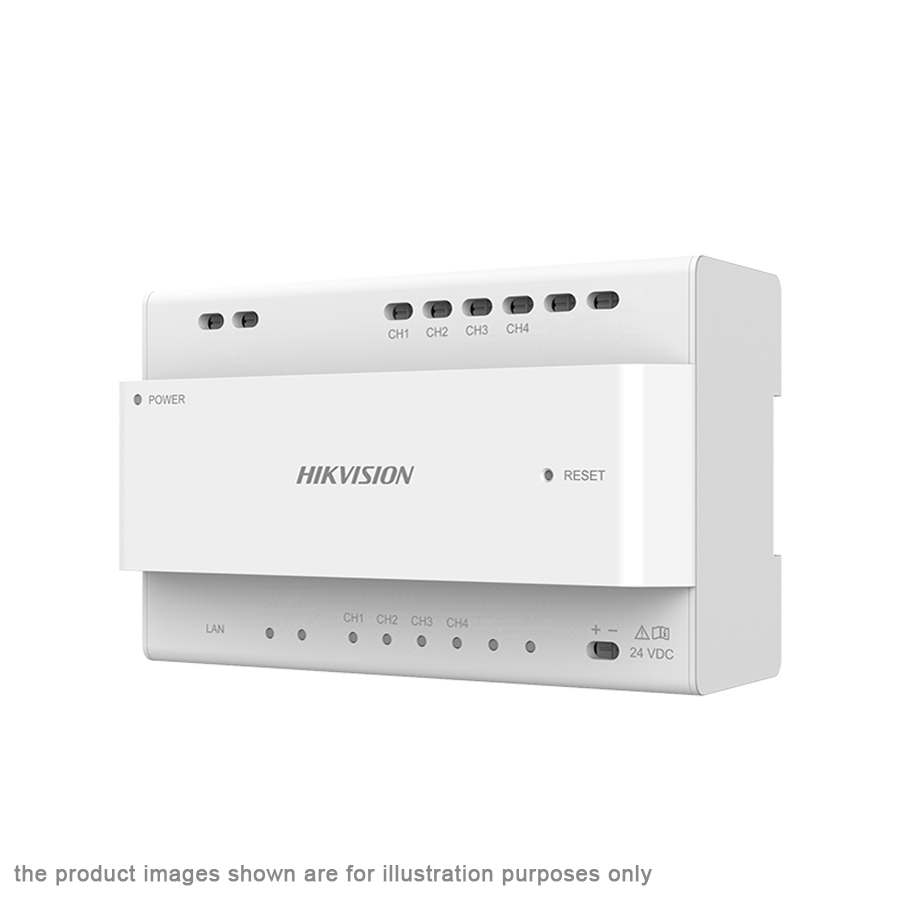

| Video Audio Distributor/Interfaces | |
| Network Interface | 1 RJ45 |
| Two-Wire Interface | 4 |
| Signal Indicator | 4 |
| Power Indicator | 1 |
| Reset | 1 |
| Video Audio Distributor/General | |
| Power Supply | Two-Wire Mode |
| Power Consumption | CH1 To CH3 <6W, CH4 <8W |
| Working Temperature | -10ºC To +50ºC (14ºF To +122ºF) |
| Working Humidity | 10% To 90% |
| Digital Noise Reduction | Support |
| Dimension | 143.7mm x 92.4mm x 65.9mm (5.66" x 3.64" x 2.59") |
What In The Box
- 1 x Hikvision DS-KIS702-P Two-Wire IP Video Intercom Kit
- 1 x Power Adapter
- 1 x Power Cord
- 1 x Screw Set
- 1 x Mounting Template
- 1 x Quick Start Guide
Warranty
1 Year Limited Warranty
Local Manufacturer Warranty
Warranty Policy : Please Complete And Submit Product Warranty Registration Form Within 14 Days Of Purchase To Ensure Continuous Coverage. Lazada Warranty Registration http://lwr.accessglobal.info Email Us At [email protected]
Hikvision & EZVIZ CCTV Service Centre
Add : No. 99-19 Hala Perusahaan Menglembu 13, Industri Menglembu Jaya, 31450 Menglembu.
Tel : 05-2822 919
Fax : 05-2811 909
H/Phone : 012-5088891 / 016-5534968
