Specifications

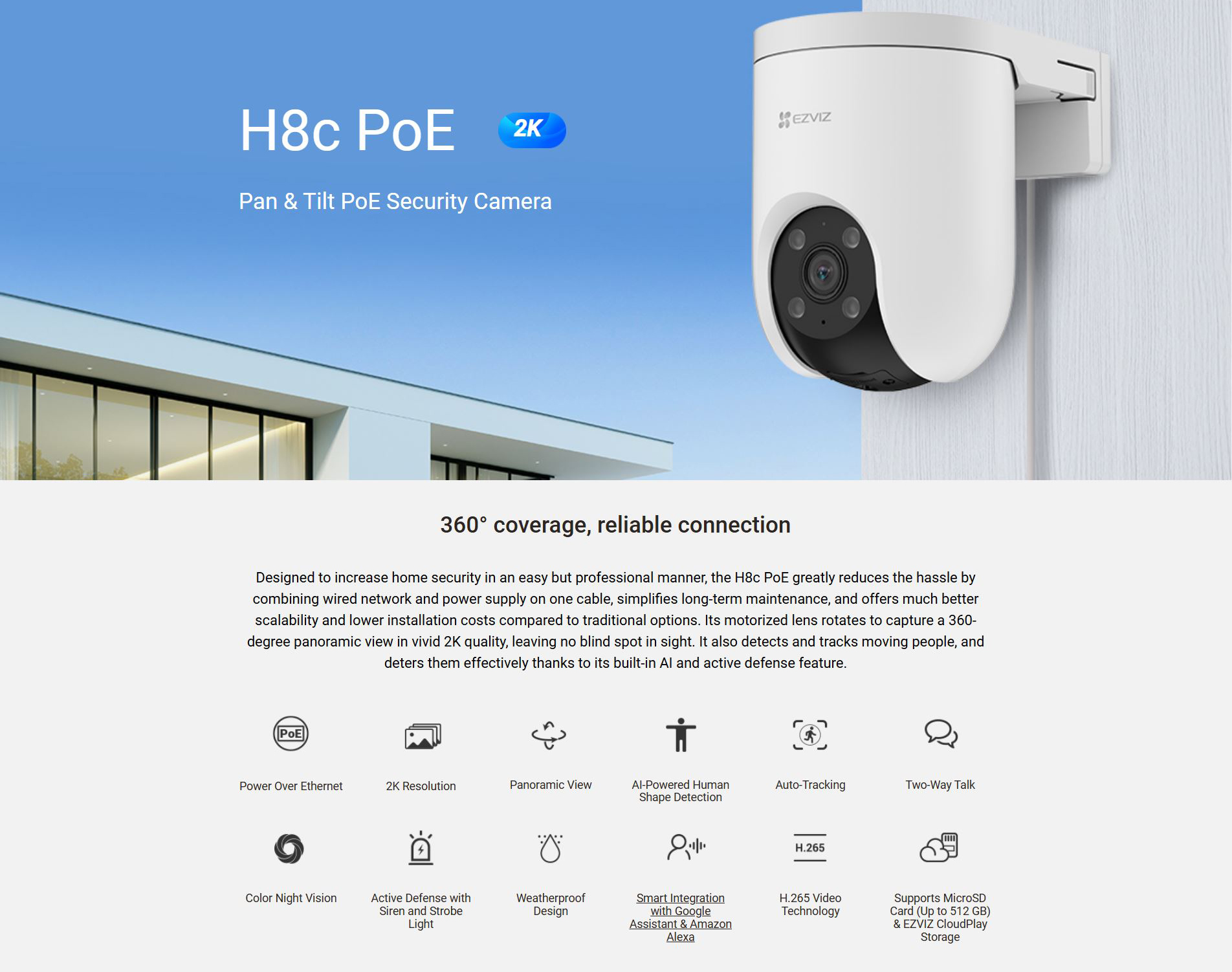

• Model : CS-H8c PoE (2K)

Camera

• Image Sensor : 1/2.8" Progressive Scan CMOS
• Shutter Speed : Self-adaptive shutter
• Lens : 4mm@ F1.6, viewing angle: 49° (Vertical), 89° (Horizontal), 104° (Diagonal) 6mm@ F1.6, viewing angle: 28° (Vertical), 52° (Horizontal), 60° (Diagonal)
• PT Angle : Pan: 350°, Tilt: 80°
• Minimum Illumination : 0.5 Lux @(F1.6, AGC ON), 0 Lux with IR (*data is obtained from EZVIZ laboratories)
• Lens Mount : M12
• Day & Night : IR-cut filter with auto switch
• DNR : 3D DNR
• WDR : Digital WDR
• Black & White Night : 30m / 98ft

Video & Audio

• Max Resolution : 2304 × 1296
• Frame Rate : Max: 30fps; Self-Adaptive during network transmission
• Video Compression : H.265 / H.264
• H.265 Type : Main Profile
• Video Bit Rate : Ultra-HD; Hi-Def; Standard. Adaptive bit rate.
• Audio Bit Rate : Self-Adaptive

Network

• Protocol : EZVIZ Cloud Proprietary Protocol
• Interface Protocol : EZVIZ Cloud Proprietary Protocol
• Wired Network : RJ45 × 1 (10M / 100M Adaptive Ethernet Port)
• Functions
• Smart Alarm : AI-Powered Human Shape Detection
• Auto Tracking : Supports
• Customized Alert Area : Supports
• Two-way Talk : Supports
• Preset Locations : Supports
• General Function : Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark

Storage

• Local Storage : Supports MicroSD Card (Up to 512 GB)
• Cloud Storage : EZVIZ CloudPlay storage

General

• Operating Conditions : -30°C to 50°C (-22 °F to 122 °F) Humidity 95% or less (non-condensing)
• IP Grade : Weatherproof Design
• Power Supply : DC 12V/1A, Supports PoE power supply
• Power Consumption : MAX. 12W

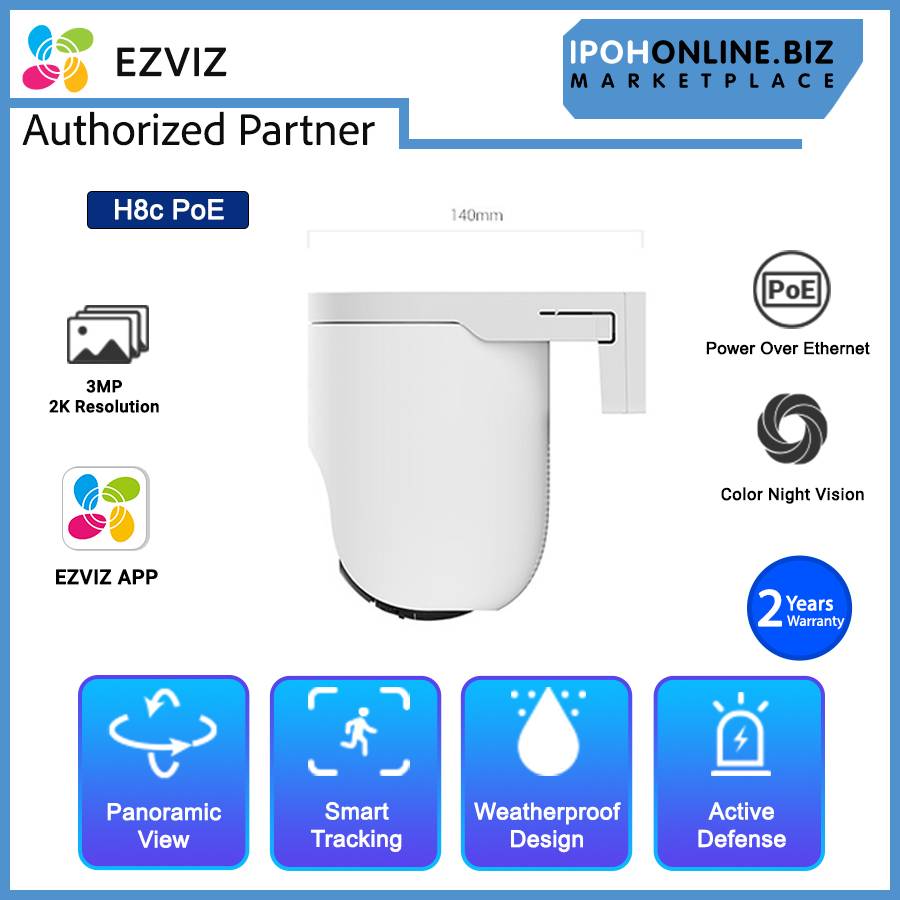

• Dimensions : 100 × 136 × 140mm (3.94 × 5.35 × 5.51 inch)
• Packaging Dimensions : 140 × 140 × 192mm (5.51 × 5.51 × 7.56 inch)
• Weight : Net Weight: 525g With Package

Certifications

• Certifications    CE / UL / RoHS / WEEE / REACH

What In The Box

• 1 x EZVIZ H8C PoE 3MP 2K Pan Tilt Color Night Vision Motion Detection Outdoor PoE Security Camera
• 1 x Drill Template
• 1 x Screw Kit
• 1 x Waterproof Kit
• 1 x Regulatory Information
• 1 x Quick Start Guide

Warranty
2 Years Warranty
Local Manufacturer Warranty
