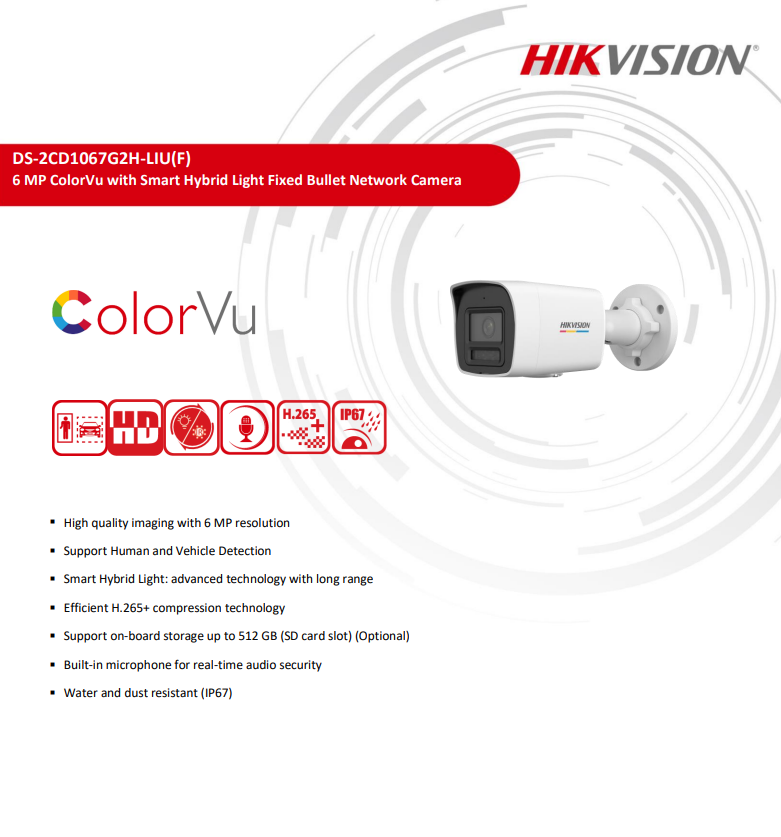

HIKVISION DS-2CD1067G2H-LIU 6MP 2.8mm ColorVu with Smart Hybrid Light Fixed Bullet Network Camera

RM395.00 RM455.00 RM

HIKVISION DS-2CD1067G2H-LIU 6MP 2.8mm ColorVu with Smart Hybrid Light Fixed Bullet Network Camera

Price	RM395.00 RM455.00 RM
Product SKU	CAM-HIK-DS-2CD1067G2H-LIU
Size (L x W x H)	27 cm x 17 cm x 17 cm
Availability	3

Quantity

Product
Description
Reviews (0)
What's in the box

Description

Highlight
								High quality imaging with 6 MP resolution
Support Human and Vehicle Detection
Smart Hybrid Light: advanced technology with long range
Efficient H.265+ compression technology
Support on-board storage up to 512 GB (SD card slot) (Optional)
Built-in microphone for real-time audio security
Water and dust resistant (IP67)



Features

High quality imaging with 6 MP resolution
Support Human and Vehicle Detection
Smart Hybrid Light: advanced technology with long range
Efficient H.265+ compression technology
Support on-board storage up to 512 GB (SD card slot) (Optional)
Built-in microphone for real-time audio security
Water and dust resistant (IP67)

Specifications

Image Sensor	1/2.4″ Progressive Scan CMOS
Max. Resolution	3200 × 1800
Min. Illumination	Color: 0.001 Lux @(F1.0, AGC ON), 0 Lux with light
Shutter Time	1/3 s to 1/100,000 s
Day & Night	IR cut filter
Angle Adjustment	Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
Lens Type	Fixed focal lens, 2.8 mm and 4 mm optional
Focal Length & FOV	2.8 mm: H 115°, V 60°, D 143°
Lens Mount	M12
Iris Type	Fixed
Aperture	F1.0
DORI (2.8 mm)	D: 64 m, O: 25 m, R: 12 m, I: 6 m
DORI (4 mm)	D: 77 m, O: 30 m, R: 15 m, I: 7 m
Illuminator – Supplement Light Type	IR and White Light
Illuminator – Range	Up to 30 m
Smart Supplement Light	Yes
IR Wavelength	850 nm
Video – Main Stream	50 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Video – Sub‑Stream	50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
Video Compression	Main: H.265+/H.265/H.264+/H.264 Sub: H.265/H.264/MJPEG
Video Bit Rate	32 Kbps to 16 Mbps
Audio Type	Mono sound
Audio Compression	G.711/G.722.1/G.726/MP2L2/PCM/AAC‑LC
Audio Sampling Rate	8 kHz / 16 kHz
Network Protocols	IPv4 / IPv6, TCP/IP, ICMP, DHCP, DNS, HTTP, RTP/RTSP/RTCP, NTP, IGMP, UDP, QoS, FTP, SMTP, UPnP
Simultaneous Live View	Up to 6 channels
Users / Levels	Up to 32 users; Administrator, Operator, User
Image Settings	Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance (via client software/web)
WDR	120 dB
SNR	≥ 52 dB
Privacy Mask	4 programmable polygon masks
Ethernet Interface	1 × RJ45 10/100 M self‑adaptive port
On‑Board Storage	microSD/microSDHC/microSDXC up to 512 GB (‑F model)
Built‑in Microphone	Yes, 1 built‑in microphone
Power	12 V DC ±25%, max 6.6 W / PoE IEEE 802.3af, max 8 W
Material	Front cover: metal; body/bracket: plastic
Dimension	69.8 mm × 67.9 mm × 172.9 mm
Weight	Approx. 550 g (camera)
Storage / Operating Conditions	–30 °C to +60 °C; humidity ≤ 95% non‑condensing
Protection Level	IP67: IEC 60529-2013
EMC	CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7
Safety	CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
Environment	CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
