| Price | RM247.50 RM598.00 RM |
| Product SKU | CAM-HIK-DS-2CE16D1T-VFIR3 |
| Brand | Hikvision |
| Size (L x W x H) | 28 cm x 12 cm x 13 cm |
| Availability | 4 |
| Quantity |
|
Description

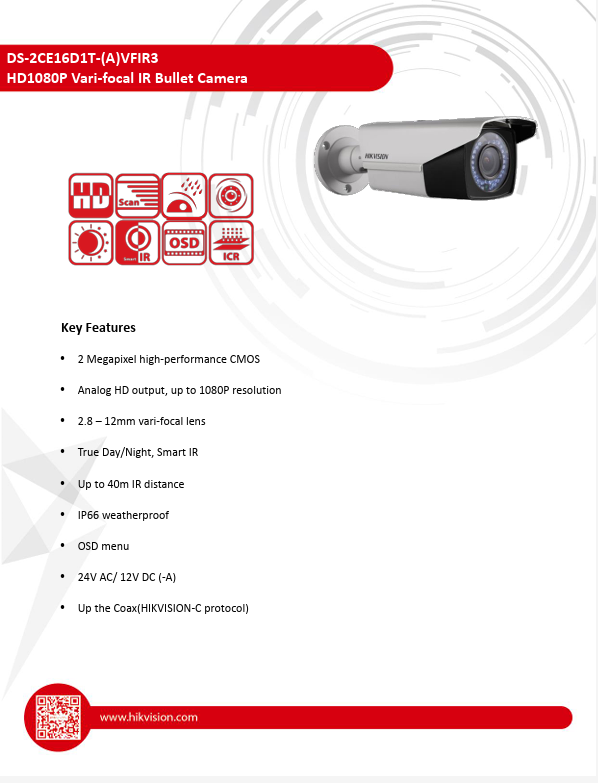

Highlight
- 2 Megapixel high-performance CMOS
- Analog HD output, up to 1080P resolution
- 2.8 – 12mm vari-focal lens
- True Day/Night, Smart IR
- Up to 40m IR distance
- IP66 weatherproof
- OSD menu
- 24V AC/ 12V DC (-A)
- Up the Coax(HIKVISION-C Protocol)
Features
- 2 Megapixel high-performance CMOS
- Analog HD output, up to 1080P resolution
- 2.8 – 12mm vari-focal lens
- True Day/Night, Smart IR
- Up to 40m IR distance
- IP66 weatherproof
- OSD menu
- 24V AC/ 12V DC (-A)
- Up the Coax(HIKVISION-C Protocol)

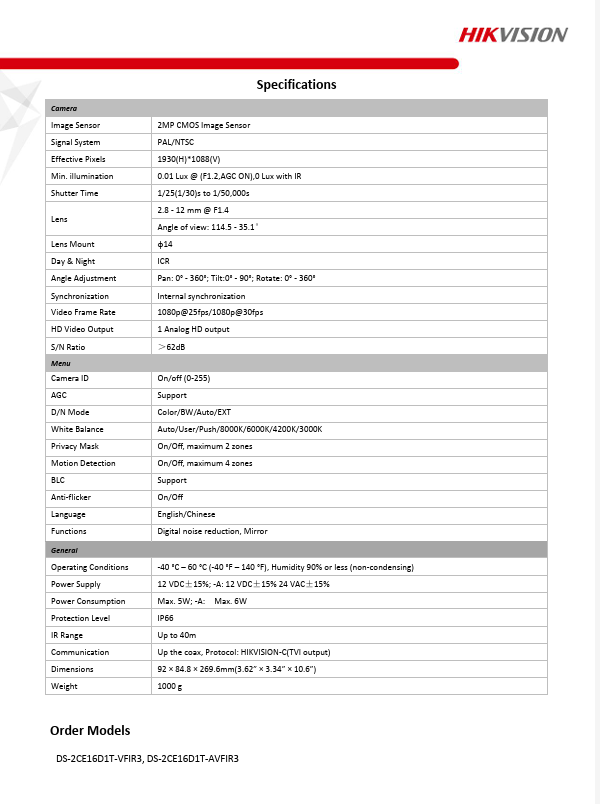

Specification
| Model | DS-2CE16D1T-VFIR3 (Manual Focus Varifocal Bullet) |
| Image Sensor | 2 MP CMOS (1/2.7″) |
| Effective Pixels | 1930 × 1088 |
| Max. Resolution | 1920 × 1080 (1080p) |
| Signal System | PAL / NTSC |
| Minimum Illumination | 0.01 Lux @ F1.2 (AGC ON); 0 Lux with IR |
| Shutter Speed | 1/25 (PAL) / 1/30 (NTSC) to 1/50,000 s |
| Lens | 2.8 mm – 12 mm varifocal @ F1.4 |
| Field of View (Approx.) | ~114.5° – 35.1° |
| Lens Mount | φ14 |
| Day/Night | ICR (True Day/Night) |
| IR Illumination | EXIR, up to ~40 m Range |
| Video Output | 1 × Analog HD (TVI) |
| Frame Rate | 1080p @ 25/30 fps |
| S/N Ratio | > 62 dB |
| AGC / BLC / DNR | Supported (Digital Noise Reduction, AGC, BLC) |
| OSD Menu | Yes – via coax (White Balance, Motion Detect, Privacy Mask, etc.) |
| White Balance | Auto / User / Push / Multiple presets |
| Privacy Masking | On/Off (up to zones supported) |
| Motion Detection | On/Off (up to zones supported) |
| Synchronization | Internal |
| Operating Temperature | –40 °C to +60 °C |
| Humidity | ≤ 90 % (non-condensing) |
| Power Supply | 12 VDC ±15 % (some variants also 24 VAC) |
| Power Consumption | Max ~5 W (up to ~6 W for AC variants) |
| Protection Rating | IP66 Outdoor Weatherproof |
| Dimensions | ~92 × 84.8 × 269.6 mm |
| Weight | ~900 g – 1000 g |
| Protocol | HIKVISION-C (up the coax) |
What's in the box
- 1 x Hikvision DS-2CE16D1T-VFIR3 2MP Turbo HD varifocal IR bullet camera
- 1 x User manual
- 1 x Mounting screw pack
- 1 x Drilling template
- 1 x Warranty card
Warranty
1 Year Warranty
Local Manufacturer Warranty
