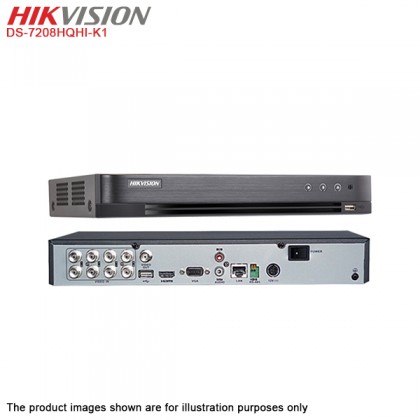

Hikvision DS-7208HQHI-K1 DVR
Specifications
| Video / Audio Input |
| Audio Input |
1-ch |
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 |
| Analog And HD-TVI Video Input |
8-ch, BNC Interface (1.0Vp-p, 75Ω) Connection |
| Supported Camera Types |
Support HDTVI Input: 3MP, 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz, 720P/50Hz, 720P/60Hz
Support AHD Input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz
Support CVI Input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz
Support CVBS Input |
| Video Input Interface |
BNC (1.0 Vp-p, 75Ω) |
| Audio Compression |
G.711u |
| Audio Input Interface |
RCA (2.0 Vp-p, 1kΩ) |
| Two-Way Audio |
1-ch, RCA (2.0 Vp-p, 1KΩ), (Using The 1st Channel Of Audio Input) |
| Video / Audio Output |
| CVBS Output |
1-ch
BNC (1.0Vp-p, 75Ω)
Resolution:
PAL: 704x576
NTSC: 704x480 |
| HDMI/VGA Output |
1920 × 1080 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz |
| Recording Resolution |
When 1080p Lite Mode Not Enabled: 3MP / 1080p / 720p / VGA / WD1 / 4CIF / CIF
When 1080p Lite Mode Enabled: 1080p lite / 720p lite / VGA / WD1 / 4CIF / CIF |
| Frame Rate |
Main stream:
When 1080p Lite Mode Not Enabled:
For 3MP Stream Access: 3MP / 1080p / 720p / VGA / WD1 / 4CIF / CIF@15fps
For 1080p Stream Access: 1080p / 720p@15fps; VGA / WD1 / 4CIF / CIF@25fps (P) / 30fps (N)
For 720p Stream Access: 720p / VGA / WD1 / 4CIF / CIF@25fps (P) / 30fps (N)
When 1080p Lite Mode Enabled:
3MP@15fps
1080p Lite / 720p Lite / VGA / WD1 / 4CIF / CIF@25fps (P) / 30fps (N)
Sub-Stream:
WD1 / 4CIF@12fps; CIF@25fps (P) / 30fps (N) |
| Video Bit Rate |
32 Kbps - 6 Mbps |
| Stream Type |
Video / Video & Audio |
| Two-Way Audio |
1-ch, RCA (2.0 Vp-p, 1kΩ) (Using The Audio Input) |
| Audio Output |
1-ch RCA (Linear, 1kΩ) |
| Audio Bit Rate |
64 kbps |
| Dual Stream |
Support |
| Playback Resolution |
3MP / 1080p / 720p / VGA / WD1 / 4CIF / CIF |
| Synchronous Playback |
8-ch |
| Network Management |
| Remote Connections |
128 |
| Network Protocols |
TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
| Hard Disk Driver |
| Interface Type |
1 SATA Interface |
| Capacity |
Up To 6TB Capacity For Each Disk |
| External Interface |
| External Interface |
1; 10M / 100M Self-Adaptive Ethernet Interface |
| USB Interface |
2 USB 2.0 Interfaces |
| Serial Interface |
1; Standard RS-485 Serial Interface, Half-Duplex |
| General |
| Power Supply |
12V DC |
| Consumption |
≤ 7.5W (Without Hard Disks) |
| Working Temperature |
-10ºC To + 55ºC (14ºF To 131ºF) |
| Working Humidity |
10% To 90% |
| Dimensions |
315 × 242 × 45 mm (12.4 × 9.5 × 1.8 Inch) |
| Weight |
≤ 1.78 kg (3.9 lb) |

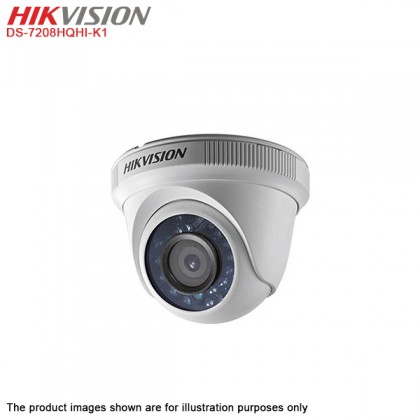

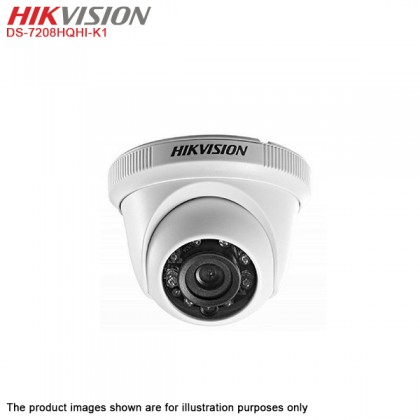

Hikvision DS-2CE56C0T-IRP Camera
Specifications
| Camera |
| Image Sensor |
1MP CMOS Image Sensor |
| Signal System |
PAL / NTSC |
| Effective Pixels |
1296(H) x 732(V) |
| Shutter Time |
1/25(1/30) s To 1/50,000 s |
| Lens Mount |
M12 |
| Adjustment Range |
Pan: 0 - 360°
Tilt: 0 - 75°
Rotation: 0 - 360° |
| Day & Night |
IR Cut Filter With Auto Switch |
| Video Frame Rate |
720p@25fps / 720p@30fps |
| HD Video Output |
1 Analog HD Output |
| Synchronization |
Internal Synchronization |
| S/N Ratio |
More Than 62 dB |
| General |
| Operating Conditions |
-20°C - 45°C (-4°F - 113°F)
Humidity 90% Or Less (Non-Condensing) |
| Power Supply |
12 VDC±15% |
| IR Range |
Up To 20m |
| Dimension |
Φ89.5 × 69.8 mm (Φ3.52” × 2.75”) |
| Weight |
250 g |

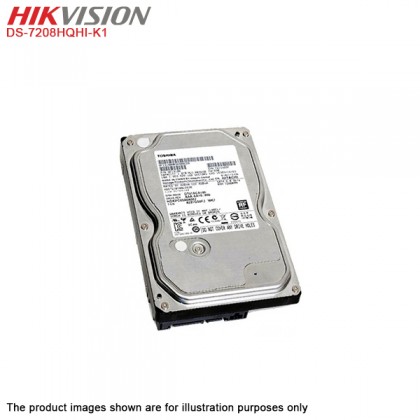

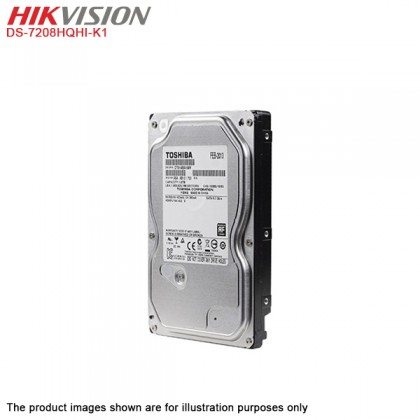

Toshiba 1TB 7200 CCTV HDD
Overview
Toshiba’s 7200 RPM 3.5-Inch (8.9cm) HDD Series Is Optimised For Use In Power-Friendly Consumer And Commercial Desktop Computers, Gaming PCs And External HDD. The DT01ACA100 Offers 1TB Capacity And Uses Advanced Format And Leverages A Best-In-Class Power Management Technology. In Addition, This Desktop Drive Provides Up To 16% Idle Power Savings Over The Previous Model. The 6Gb/s SATA Interface Drives Deliver 7200 RPM Performance
Features
• 7200 RPM Performance
• For Use In Consumer And Commercial Computers
• 6Gb/s SATA Interface
• Halogen-Free Design And Power-Efficient Operation

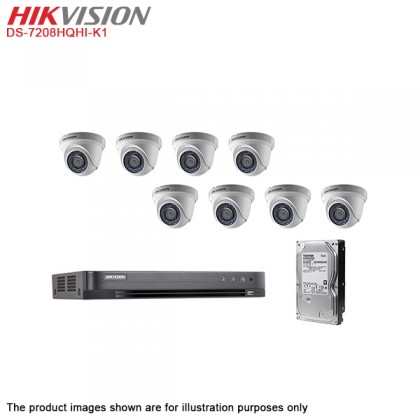

What In The Box
Hikvision DS-7208HQHI-K1 DVR
- 1 x Hikvision DS-7208HQHI-K1 Turbo HD 8 Channel CCTV DVR
- 1 x Power Adapter
- 1 x Mouse
- 1 x Software CD
Hikvision DS-2CE56C0T-IRP Camera
- 8 x Hikvision DS-2CE56C0T-IRP 1MP 720P IR Dome Camera
- 8 x Screw Set
- 8 x User Guide
Toshiba 1TB CCTV HDD
Warranty
1 Years Warranty
Local Manufacturer Warranty
