Features

• Supports AHD/TVI/CVI 720P/1080N/CVBS/IP Video Inputs
• Supports VGA, HD-OUT Output
• Easy To Use Same Interface Of GUI/WEB/Client
• Support Various Mobile Monitoring:(IOS, Android)
• Support More Than Languages
• Perfect Protection Circuit, Unique Triple Watchdog Function
• Supporting Web, IMS, Provide SDK Development

Specifications

System Network

• Main Processor : Embedded processor
• Operating System : Embedded LINUX

Audio and Video

• Analog Camera Input : 16ch BNC
• AHD Camera : 1080N / 720P / 960H @25/30fps
• TVI Camera : 1080N / 720P / 960H @25/30fps
• CVI Camera : 1080N / 720P / 960H @25/30fps
• CVBS Camera : PAL/NTSC
• IP Camera Input : 16ch, Each Channel Up To 1080P
• Audio In/Out : 6ch Input, 1ch Output, RCA
• Two-way Talk : N/A

Display

• Interface : 1HD-OUT, 1 VGA
• Resolution : HD-OUT : 1920×1080, 1280×1024, 1440×900 , VGA : 1920×1080, 1280×1024, 1440×900, 1280x720
• Multi-Screen Display : 1/4/9/16

Recording

• Compression : H.264 High Profile
• Resolution : 1080N / 720P / 960H & etc.
• Record Rate : 128Mbps
• Bit Rate : 100Kbps ~ 8Mbps Per Channel
• Record Mode : 1080N@12fps、960H (1~25/30fps)
• Record Interval : Post-Record : 5 ~ 60s

Video Detection And Alarm

• Trigger Events : Recording, Buzzer, Push Message, Pop Up Message
• Video Detection :  Motion Detection, Video Loss, Camera Tamper
• Alarm In/Out : 8/1

Network

• Interface : 1 RJ-45 Port (10/100Mbps)
• Network Function : HTTP, TCP/IP, UDP, NTP, DHCP, DNS, IP Filter, DDNS,
• Max. User Access : Access 5 Users
• Smart Phone : iPhone, iPad, Android
• Interoperability : ONVIF 2.6, SDK

Playback And Backup

• Playback : 16/8/4/1
• Search Mode : Time / Date, Alarm, Picture Grid, Event
• Playback Function : Play, Pause, Stop, Next Frame, Fast Play, Slow Play,Layout, Shue, Backup Selection, Digital Zoom
• Backup Mode : USB HDD

Storage

• Internal HDD : 2 SATA Ports, Up To 6TB For Each HDD
• Mounting Mode : Embedded
• eSATA : N/A

Interface

• USB : 2 Ports (USB 2.0 x2)
• RS232 : N/A
• RS485 : 1 Port, For PTZ Control

General

• Power Supply : DC12V/4A
• Power Consumption : Max 10W (Without HDD)
• Operating Temperature : -10 °C ~ 50 °C (14 °F ~ 122 °F)
• Strorage Conditions : Less Than 90% RH
• Certications : CE/FCC
• Dimensions : 255mm(L)x255mm(W)x45mm(H)
• Net Weight : 1900g

What's In The Box :

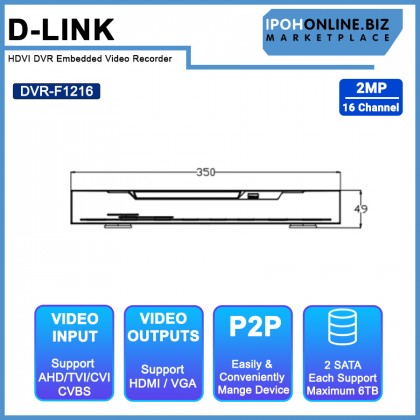

• 1 x D-link DVR-F1216 16CH 1080P Lite Hybird 2 Bay DVR - 2MP AHD / TVI / CVI / CVBS Video Inputs VGA / HDMI Outputs
• 1 x CD
• 1 x User manual
• 1 x Power cable
• 1 x Mouse

Warranty
3 Month Warranty
Local Manufacturer Warranty
