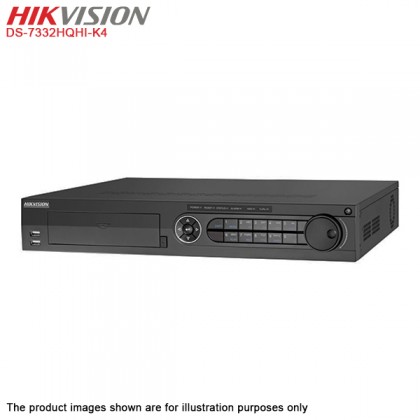

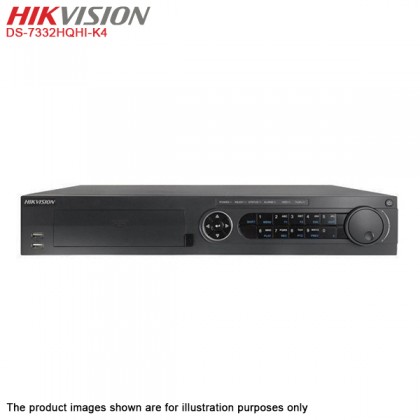

Hikvision DS-7332HQHI-K4 32 Channel up to 4MP Turbo HD TVI AHD CVI CVBS IP CCTV DVR
| Price | RM2,328.00 RM3,988.00 RM |
| Product SKU | DVR-HIK-DS-7332HQHI-K4 |
| Brand | Hikvision |
| Size (L x W x H) | 53 cm x 20 cm x 53 cm |
| Availability | Out Of Stock |
Description
Highlight
- Support H.265 Pro+ / H.265 Pro / H.265 Video Compression
- Support HDTVI / AHD / CVI / CVBS / IP Video Input
- Max. 40/48 IP Cameras Input (Up To 6MP)
- Max. 800m For 1080p And 1200m For 720p HDTVI Signal Transmission
- Up To 10TB Capacity Per HDD
Hikvision DS-7332HQHI-K4 32 Channel up to 4MP Turbo HD TVI AHD CVI CVBS IP CCTV DVR
Specification
| Video / Audio Input | |
| Audio Input | 4-CH |
| Video Compression | H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 |
| Analog And HD-TVI Video Input | 32-CH, BNC Interface (1.0Vp-p, 75Ω) Connection |
| Supported Camera Types | Support HDTVI Input : 4MP, 3MP, 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz, 720P/50Hz, 720P/60Hz Note : The 3MP Signal Input Is Only Available For Channel 1/2/3/4 Support AHD Input : 4MP, 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz Support CVI Input : 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz Support CVBS Input |
| Video Input Interface | BNC (1.0 Vp-p, 75Ω) |
| Audio Compression | G.711u |
| Audio Input Interface | 4-CH, RCA (2.0 Vp-p, 1KΩ) |
| Two-Way Audio | 1-CH, RCA (2.0 Vp-p, 1KΩ), (Using Audio Input) |
| Video / Audio Output | |
| CVBS Output | 1-CH, BNC (1.0Vp-p, 75Ω) Resolution PAL : 704x576 NTSC : 704x480 |
| HDMI2 Output | 1-CH, 4K (3840x2160)30Hz, 2K (2560x1440)60Hz, 1920x1080/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| HDMI / VGA Output | 1920x1080/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Recording Resolution | When 1080p Lite Mode Not Enabled : 4MP Lite / 3MP / 1080p / 1080p Lite / 720p / WD1 / 4CIF / VGA / CIF When 1080p Lite Mode Enabled : 4MP Lite / 3MP / 1080p Lite / 720 / 720p Lite / WD1 / 4CIF / VGA / CIF |
| Frame Rate | Main Stream When 1080p Lite Mode Not Enabled For 4MP Stream Access : 4MP Lite@15fps, 1080p Lite / 720p / WD1 / 4CIF / VGA / CIF@25fps (P) / 30fps (N) For 3MP Stream Access : 3MP / 1080p / 720p / WD1 / 4CIF / VGA / CIF@15fps For 1080p Stream Access : 1080p / 720p@15fps, 720p / WD1 / 4CIF / VGA / CIF@25fps (P) / 30fps (N) For 720p Stream Access : 720p / WD1 / 4CIF / VGA / CIF@25fps (P) / 30fps (N) When 1080p Lite Mode Enabled For 4MP Stream Access : 4MP Lite@15fps, 1080p Lite / 720p Lite / WD1 / 4CIF / VGA / CIF@25fps (P) / 30fps(N) For 3MP Stream Access : 3MP / 1080p Lite / 720p Lite / WD1 / 4CIF / VGA / CIF@15fps For 1080p Stream Access : 1080p Lite / 720p Lite / WD1 / 4CIF / VGA / CIF@25fps (P) / 30fps (N) For 720p Stream Access : 720p / WD1 / 4CIF / VGA / CIF@25fps (P) / 30fps (N) |
| Video Bit Rate | 32Kbps - 6Mbps |
| Stream Type | Video / Video & Audio |
| Two-Way Audio | 1-CH, RCA (2.0 Vp-p, 1KΩ) (Independent) |
| Audio Output | 1-CH RCA (Linear, 1KΩ) |
| Dual Stream | Support |
| Synchronous Playback | 16-CH |
| Network Management | |
| Remote Connections | 128 |
| Network Protocols | TCP/IP, PPPoE, DHCP, Hik-Connect Cloud P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
| Hard Disk Driver | |
| Interface Type | 4 SATA Interfaces |
| Capacity | Up To 10TB Capacity For Each Disk |
| External Interface | |
| Network Interface | 1; 10M / 100M / 1000M Self-Adaptive Ethernet Interface |
| USB Interface | 2 USB 2.0 Interfaces On The Front Panel / 1 USB 3.0 Interfaces On The Rear Panel |
| Alarm Input | 16-CH |
| Alarm Output | 4-CH |
| General | |
| Power Supply | 100 To 240 VAC |
| Consumption | ≤ 45W (Without Hard Disks) |
| Working Temperature | -10ºC To +55ºC (14ºF To 131ºF) |
| Working Humidity | 10% To 90% |
| Dimensions | 440x390x70 MM |
| Weight | ≤ 7 KG |
What In The Box
- 1 x Hikvision DS-7332HQHI-K4 32 Channel up to 4MP Turbo HD TVI AHD CVI CVBS IP CCTV DVR
- 1 x Power Adapter
- 1 x Remote Control
- 1 x Mouse
- 1 x Screw Set
- 1 x Software CD
- 1 x User Manual
Warranty
1 Years Warranty
Local Manufacturer Warranty
Hikvision & EZVIZ CCTV Service Centre
Add : No. 99-19 Hala Perusahaan Menglembu 13,Industri Menglembu Jaya, 31450 Menglembu.
Tel : 60-5-2822 919
Fax : 60-5-2811 909
H/Phone : 012-5088891 / 016-5534968
