| Price | RM288.00 RM388.00 RM |
| Product SKU | DVR-HIKVISION-DS-7204HQHI-K1/B |
| Brand | Hikvision |
| Size (L x W x H) | 43 cm x 30 cm x 12 cm |
| Availability | 3 |
| Quantity |
|
- Support H.265 Pro+/H.265 Pro/H.265 Video Compression
- Support HDTVI/AHD/CVI/CVBS/IP Video Input
- Max. 6-CH IP Cameras Input (Up To 6MP)
- Up To 10TB Capacity Per HDD
- 4 channels and 1 HDD 1U DVR
- Built-in balun: video can be transported via twisted-pair
- Efficient H.265 pro+ compression technology
- Encoding ability up to 1080p @ 15 fps
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
- Up to 6 network cameras can be connected
Specifications
| Recording | |
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Encoding Resolution | When 1080p Lite Mode Is Not Enabled 4MP Lite/3MP/1080p/720p/WD1/4CIF/VGA/CIF When 1080p Lite Mode Is Enabled 4MP Lite/3MP/1080p Lite/720p Lite/WD1/4CIF/VGA/CIF |
| Frame Rate | Main Stream When 1080p Lite Mode Is Not Enabled For 4MP Stream Access : 4MP Lite@15fps 1080p Lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 3MP Stream Access : 3MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps For 1080p Stream Access : 1080p@15fps; 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p Stream Access : 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite Mode Is Enabled 4MP Lite/3MP@15fps; 1080p Lite/720p Lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) Sub-Stream WD1/4CIF@12fps; CIF@25fps (P)/30fps (N) |
| Video Bit Rate | 32Kbps To 6Mbps |
| Dual Stream | Support |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711u |
| Audio Bit Rate | 64Kbps |
| Video And Audio | |
| IP Video Input | 2-CH (Up To 6-CH) Up To 6MP Resolution Support H.265+/H.265/H.264+/H.264 IP Cameras |
| Analog Video Input | 4-CH Balun Interface, Supporting Coaxitron Connection |
| HDTVI Input | 4MP, 3MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 *The 3MP Signal Input Is Only Available For Channel 1 |
| AHD Input | 4MP25, 4MP30, 1080p25, 1080p30, 720p25, 720p30 |
| HDCVI Input | 4MP25, 4MP30, 1080p25, 1080p30, 720p25, 720p30 |
| CVBS Input | PAL/NTSC |
| CVBS Output | 1-CH, BNC (1.0 Vp-p, 75Ω) Resolution : PAL : 704x576, NTSC : 704x480 |
| HDMI/VGA Output | 1-CH, 1920x1080/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Audio Input | 1-CH, RCA (2.0 Vp-p, 1KΩ) |
| Audio Output | 1-CH, RCA (Linear, 1KΩ) |
| Two-Way Audio | 1-CH, RCA (2.0 Vp-p, 1KΩ) (Using The First Audio Input) |
| Synchronous Playback | 4-CH |
| Network | |
| Remote Connections | 32 |
| Network Protocols | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
| Network Interface | 1, RJ45 10M/100M Self-Adaptive Ethernet Interface |
| Auxiliary Interface | |
| SATA | 1 SATA Interface |
| Capacity | Up To 10TB Capacity For Each Disk |
| Serial Interface | RS-485 (Half-Duplex) |
| USB Interface | Rear Panel : 2xUSB 2.0 |
| Alarm In/Out | N/A |
| General | |
| Power Supply | 12 VDC |
| Consumption (Without HDD) | ≤ 6W |
| Working Temperature | -10°C To 55°C |
| Working Humidity | 10% To 90% |
| Dimension | 260x222x45 MM (WxDxH) |
| Weights (Without HDD) | ≤ 1.16 KG |

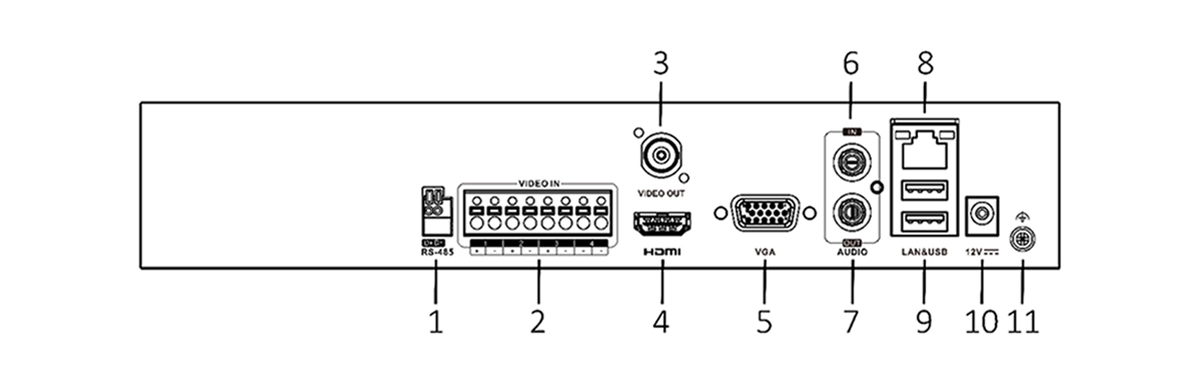

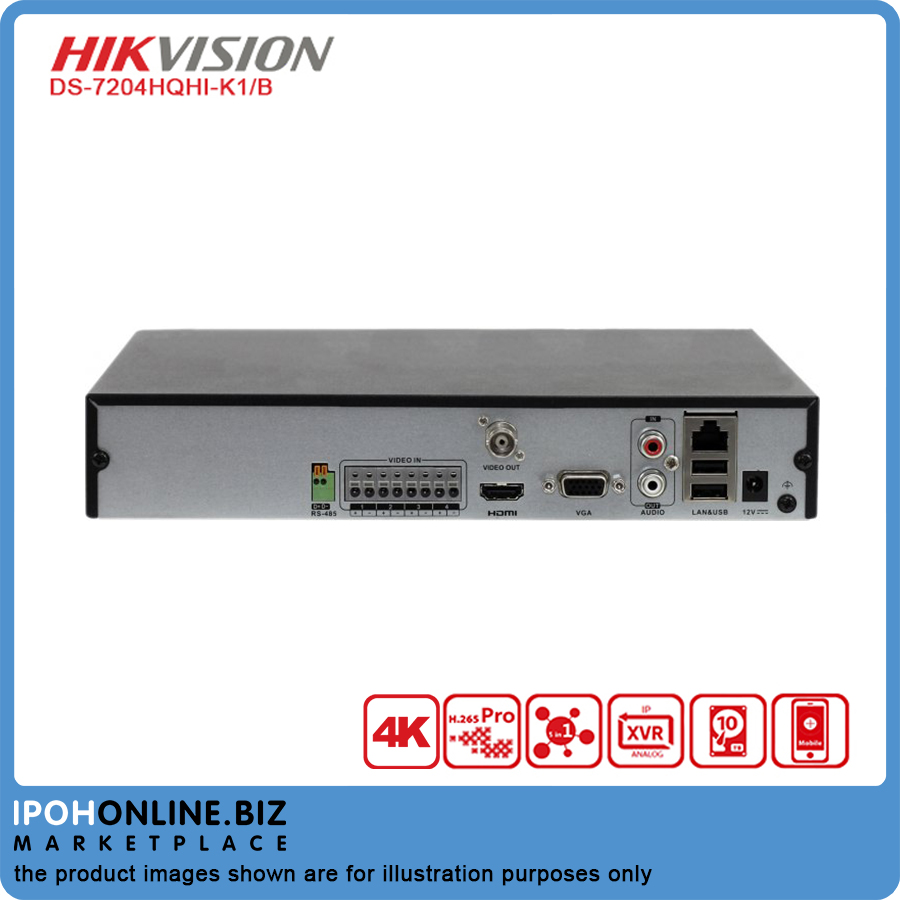

1) RS-485 Serial Interface
2) Video In, Balun Interface
3) Video Out
4) HDMI Interface
5) VGA Interface
6) Audio In, RCA Connector
7) Audio Out, RCA Connector
8) LAN Interface
9) USB Interface
10) 12 VDC Power Input
11) GND

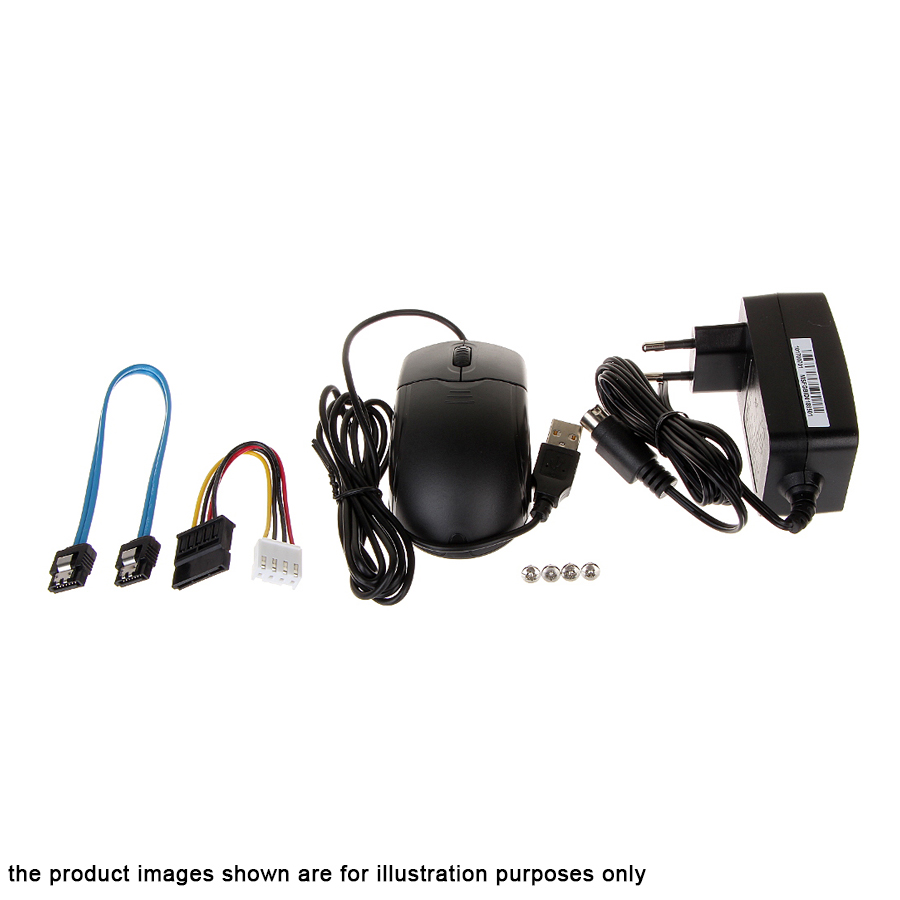

What In The Box
- 1 x Hikvision DS-7204HQHI-K1/B 4 Channel up to 2mp Turbo HD TVI AHD CVI CVBS IP CCTV DVR
- 1 x Power Adapter
- 1 x Mouse
- 1 x Screw Set
- 1 x User Manual
Warranty
1 Years Warranty
Local Manufacturer Warranty
Warranty Policy : Please complete and submit Product Warranty Registration Form within 14 days of purchase to ensure continuous coverage. LAZADA Warranty Registration http://LWR.accessglobal.info Email us at [email protected]
Hikvision & EZVIZ CCTV Service Centre
Add : No. 99-19 Hala Perusahaan Menglembu 13, Industri Menglembu Jaya, 31450 Menglembu.
Tel : 60-5-2822 919
Fax : 60-5-2811 909
H/Phone : 012-5088891 / 016-5534968
- 1 x Hikvision DS-7204HQHI-K1/B 4 Channel up to 2mp Turbo HD TVI AHD CVI CVBS IP 4 IN 1 Balun CCTV DVR
- 1 x Power Adapter
- 1 x Mouse
- 1 x Screw Set
- 1 x User Manual
