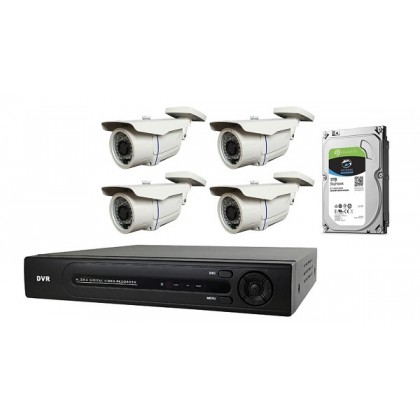

ADV 8 port AHD MegaPixel HD CCTV DVR ADV7008AHD + ADV 1.3MP IP66 12V 720P AHD IR Bullet CCTV Camera ADV3622WAHD + 1TB Seagate Skyhawk CCTV HDD

RM750.00 RM950.00 RM

ADV 8 port AHD MegaPixel HD CCTV DVR ADV7008AHD + ADV 1.3MP IP66 12V 720P AHD IR Bullet CCTV Camera ADV3622WAHD + 1TB Seagate Skyhawk CCTV HDD

Price	RM750.00 RM950.00 RM
Product SKU	DVR-ADV7008AHD-8CH-SET
Brand	ADV
Size (L x W x H)	110 cm x 80 cm x 60 cm
Availability	Out Of Stock

Product
Description
Reviews (0)
What's in the box

Description

Highlight
								Support 5-in-1 video format: AHD/TVI/CVI/CVBS/IP
VGA, HDMI full HD output simultaneously
Support XM Cloud technology
Support various mobile monitoring: (IOS, Android)
Support ONVIF; access third party
Support UTC, control signal & video stream transmit through one single coaxial



ADV ADV7008AHD DVR

Specifications

System
Main Processor	Huawei Hi 3521
Video
Video Compression	H.264 (High Profile)
Encode	8 x AHD-M
Decode	1 x AHD-M
Multi-mode Input	Pure Analog: 4 x AHD-L / 8 x AHD-M / 4 x AHD-M Mixed: 4 x AHD-M (analog) + 4 x 720P (network) Pure Network: 8 x 720P / 2 x 1080P + 2 x 720P
Audio
Audio Compression	G.711A
Intercom	Support
Recording & Playback
Record Mode	Manual / alarm / motion detection / timing
Playback Channels	4 (pure local input mode)
Playback & Backup
Space Occupation	960H: 12~20GB/day per channel 720P: ~20GB/day per channel Audio: 691.2MB/day per channel
Backup Mode	Network backup / USB HDD / USB writer / SATA writer
Interface
Video Input	8 BNC
Video Output	1CH VGA / 1CH HDMI
Audio Input	4CH RCA
Audio Output	1CH RCA
Alarm Input	No
Alarm Output	No
Network Interface	RJ45 10M/100M Adaptive Ethernet port
PTZ Control	RS485: support multiple PTZ protocols
USB	2 USB ports
Hard Disk	1 SATA (Each maximum support 4TB)
Other
Power	12V / 2A
Dimensions	255mm(L) x 236mm(W) x 44mm(H)

ADV ADV3622WAHD CCTV Camera

Specifications

Video
Image Sensor	1/3 CMOS 1.3 Megapixel
CCTV System	720P @ AHD (PAL)
Effective Pixels	1280 x 720
Minimum Illumination	0Lux when IR turned on
S/N Ratio	More than 52dB
Video Output	1.0Vp-p composite 75ohm
Operantional
Gamma Ratio	0.45
White Balance	Auto
BLC	Auto
Gain Control	Auto
Iris Mode	AES
Synchronization	Internal Synchronization
Day & Night	Infrared Cut-filter Removal with auto switch
Electronic Shutter	Auto: 1/60 to 1/100,000 sec (NTSC) / 1/50 to 1/100,000 sec (PAL)
IR LED / Effective Length	36pcs / approx. 30 meters
Lens
Focal Length	2.8mm wide-angle
Electrical / Mechanical
Power Source	DC12V ± 10% / 100mA,360mA when IR turn On
Weather Resistance	IP66 Rating
Operation Temperature	-10°C ~ +50°C RH95% Max
Weight	500g
Dimensions (mm)	210(L) x 76(W) x 70(H)

Seagate SkyHawk 1TB CCTV HDD

Best-Fit Applications

Network video recorders (NVR)
Embedded surveillance DVRs (SDVR)
Hybrid surveillance DVRs
Surveillance DVRs

Optimized for Surveillance

Surveillance recording demands sustained performance over time. A minute missed can mean money lost—or worse. SkyHawk drives are engineered for always-on recording in harsh environments, ensuring you’ll have the footage you need when you need it.

Record Smarter

ImagePerfect Firmware

Surveillance-optimized firmware improves reliability by up to 30% over traditional desktop drives.

Built Tough

3× the workload rating of desktop drives—up to 180TB/year.

Stays Cool

SkyHawk drives use less power and generate less heat for extra-long lifecycles.

Specifications

RAID compatible
Up to 10TB capacity
Up to 180TB/year workload rating
1M hours MTBF
3-year limited warranty
Supports up to 64 cameras

Stay Safer

SkyHawk drives are ideal for the booming NVR market and RAID environments. Rotational vibration (R/V) sensors along with low power consumption and heat output ensure consistent performance in multi-drive enclosures
